5.12kWh Power System | 200Ah LiFePO4 Batteries, 3000W Inverter

SKU: RBT200-Mx2-PUH3-RBC50-UK
£950.99 £1,940.99
+ Renogy Rays after purchase.
Log In About Rays
Tax included. Shipping Policy.
Save 6% on £350+ | 8% on £1000+
valid until 2026-06-14
RNGDAY
Key Features
  • • Off-Grid Power System - A fully integrated 5.12kWh power kit for motorhomes and off-grid living.
  • • Advanced LiFePO4 Battery Technology - 400Ah lithium battery system with long cycle life, low-temperature protection.
  • • Powerful 3000W Pure Sine Wave Inverter - Run appliances, electronics and everyday essentials safely with stable and reliable power. (The Inverter Charger requires an external N-G Bonding Relay and an RCD/RCBO.)
  • • DC-DC Charger with MPPT - Recharge efficiently via solar panels or while driving with the built-in DC-DC charger and MPPT controller.
  • • Built for UK Touring & Van Life - Compact, reliable and easy to install for campervan conversions, wild camping and extended off-grid travel.
Solar Panel
Inverter
Free Shipping on All Products
30-Day Return & Refund Service



6% OFF Coupon for New Subscriber
Lifetime Customer Support Contact us: +44 3300589559
Show More Benefits Show Less
Quantity：
Payment Methods
Delivery Methods
Delivery time: 3–6 business days. (Excludes LTL shipping.) Free Shipping
Description
Includes
Specs
Downloads
FAQ
Reviews

Renogy Power Kit

Tired of worrying about power on your caravan trips? This Renogy Caravan Power Kit is your all-in-one solution for total energy freedom. Engineered for the outdoors, it delivers massive, reliable power to run your fridge, lights, air conditioning, and all your essentials for days on end. Stop relying on crowded caravan parks and noisy generators. This complete kit is designed to work together seamlessly, giving you the confidence to explore further and stay off-grid longer.

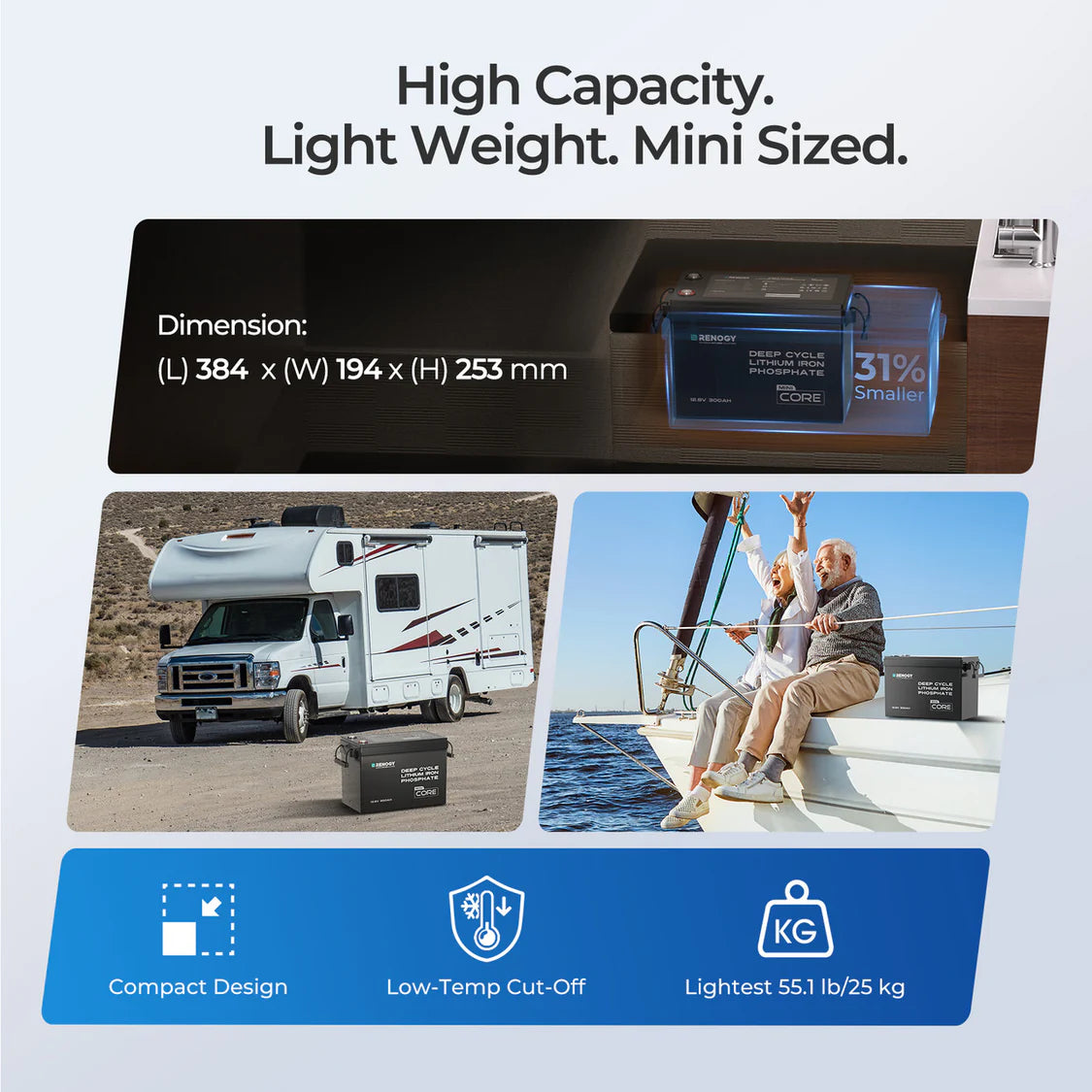

200Ah Core Mini LiFePO4 Battery

Massive 5.12kWh Capacity: Two ultra-compact 200Ah batteries provide extensive power for long off-grid use. Smart & Safe: Built-in Core BMS with Bluetooth app monitoring and Low-Temperature Protection to prevent charging in freezing conditions. Long Lifespan: Over 4000 cycles for a decade-plus of reliable service.

3000W Inverter
3000W Inverter Charger

High-Efficiency Solar Inverter for RVs & Off-Grid

Renogy 3000W Pure Sine Wave Inverter (12V DC to 230V AC) provides clean power (90%+ efficient) with 6000W surge. Ideal for RVs, solar systems, and off-grid homes.

3000W 12V Pure Sine Wave Inverter Charger

Redefine your power solutions with a versatile dual-purpose dynamo.

50A DC-DC + MPPT Charger

Dual-Source Charging: Combines a 50A DC-DC charger (from vehicle alternator) and an MPPT solar controller in one unit. Rapid, Efficient Power: Quickly charges batteries from both your vehicle and solar panels with maximum solar efficiency.

200W ShadowFlux N-Type Solar Panel （ONLY with Solar panel option）

The solar panels feature anti-shading technology for consistent performance. 25% efficiency with anti-hotpsot tech for less overheating. 7% smaller, 10% lighter than other panels for easy install.

500A Bluetooth Battery Monitor

Complete System Insight: Accurately tracks voltage, current, power, and state-of-charge in real-time via your smartphone. Protect Your Investment: Programmable alarms for high/low voltage help prevent battery damage. Integrated System Advantage

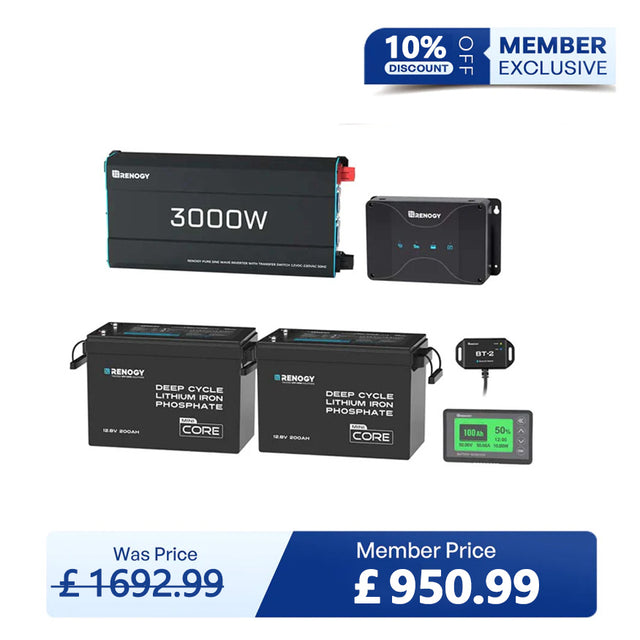

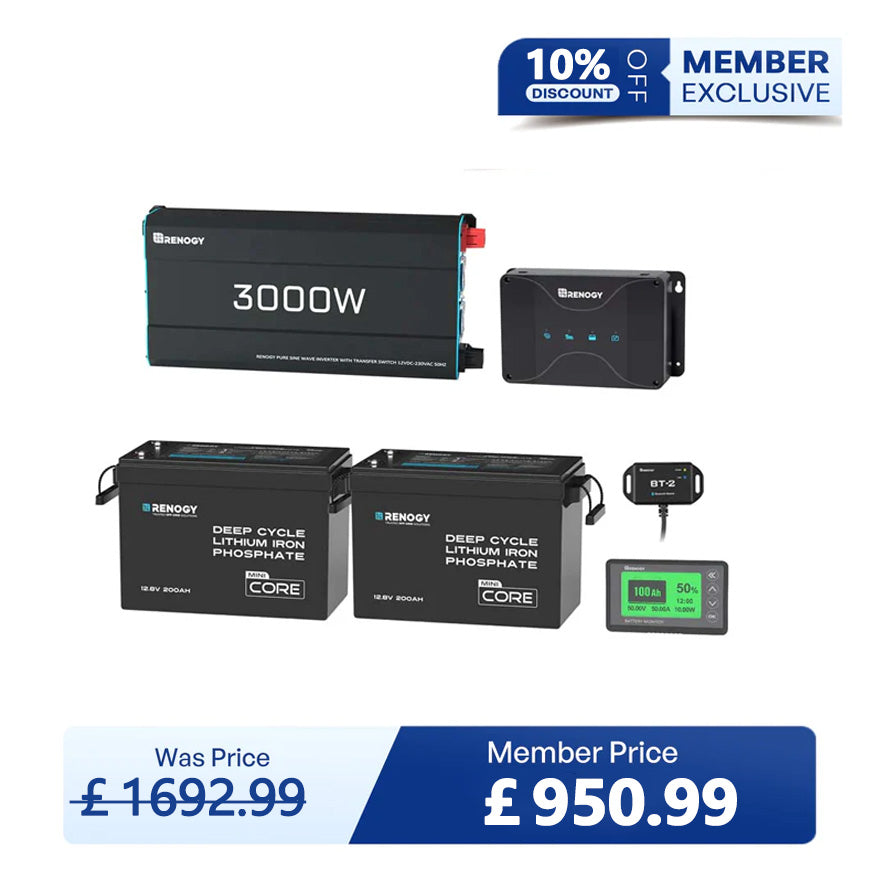

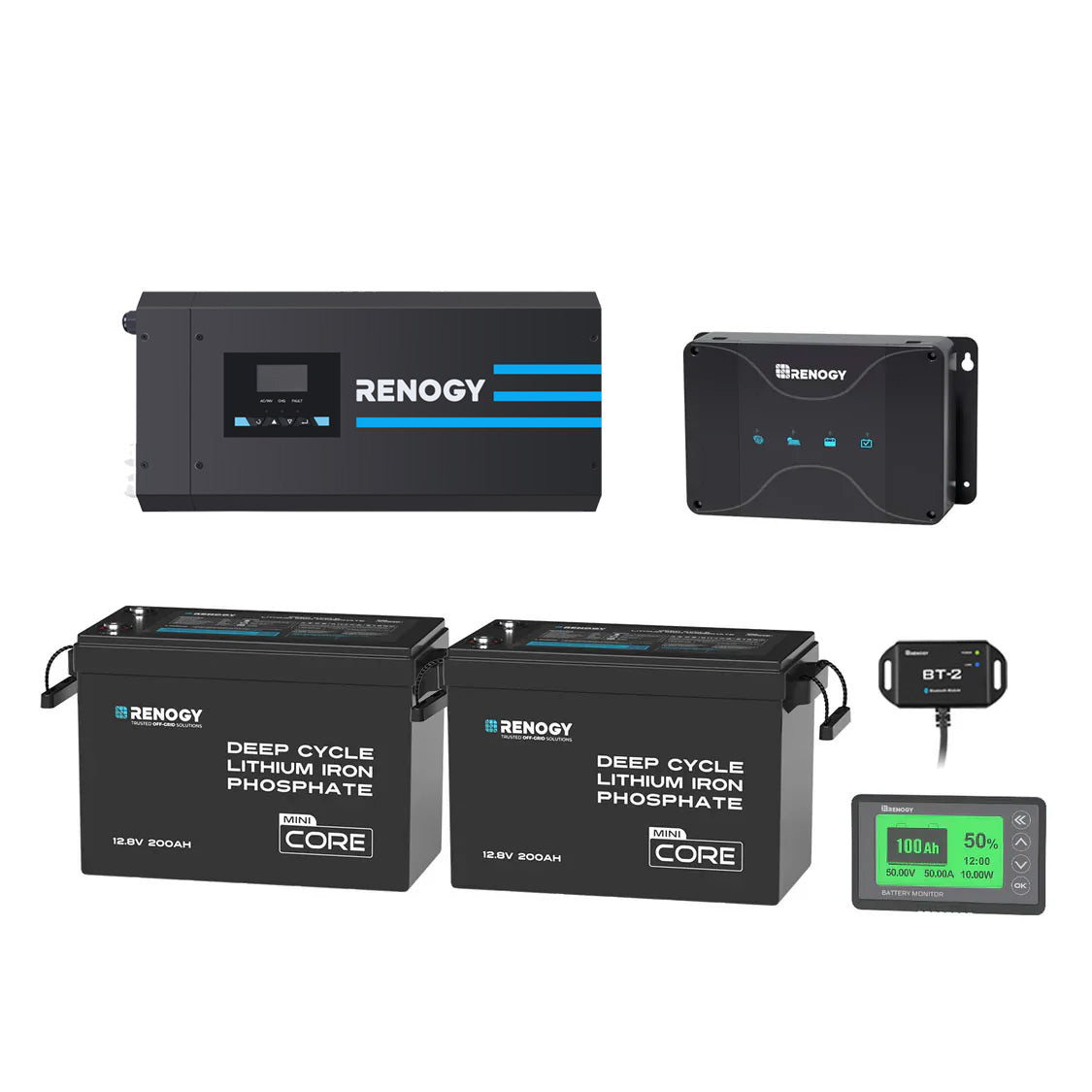

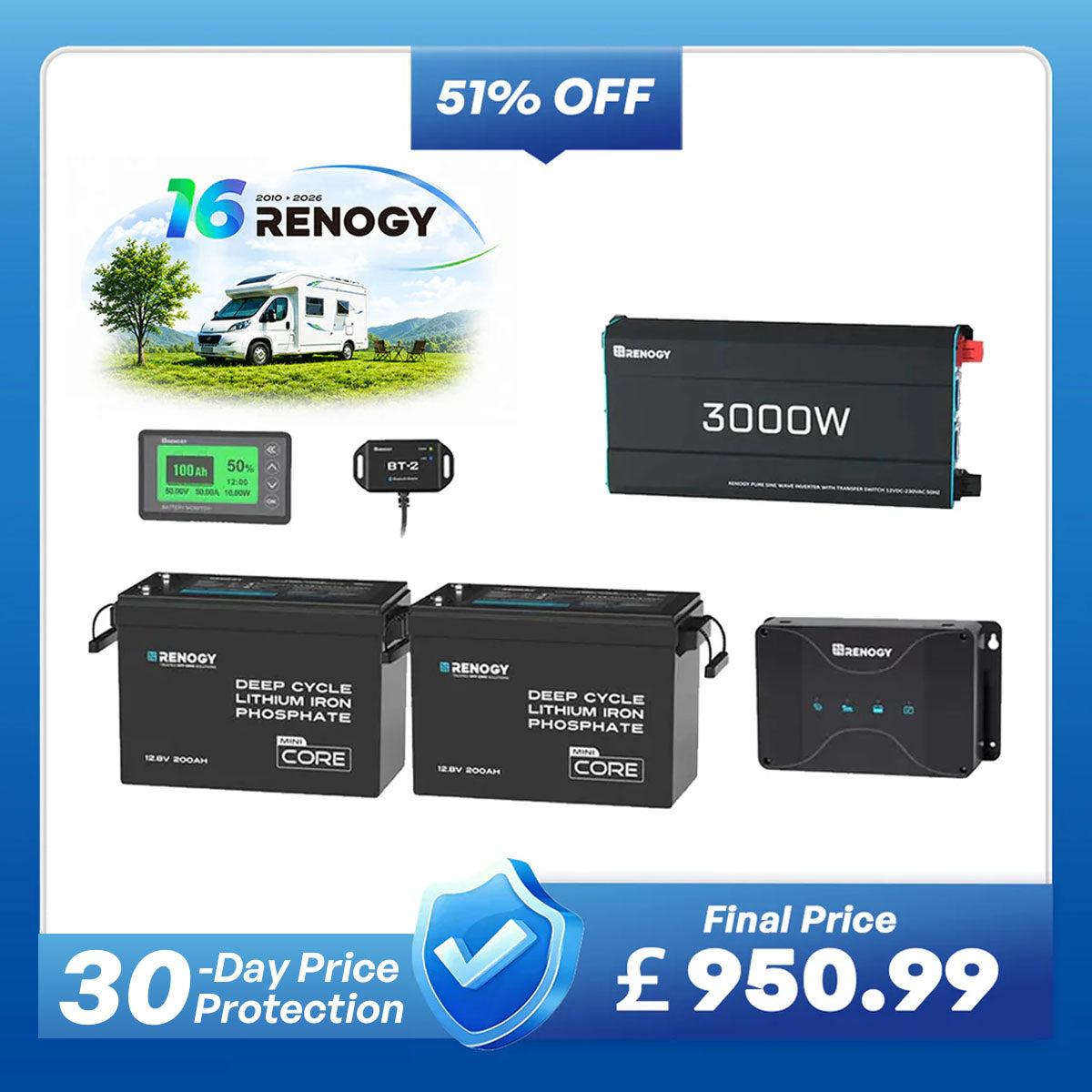

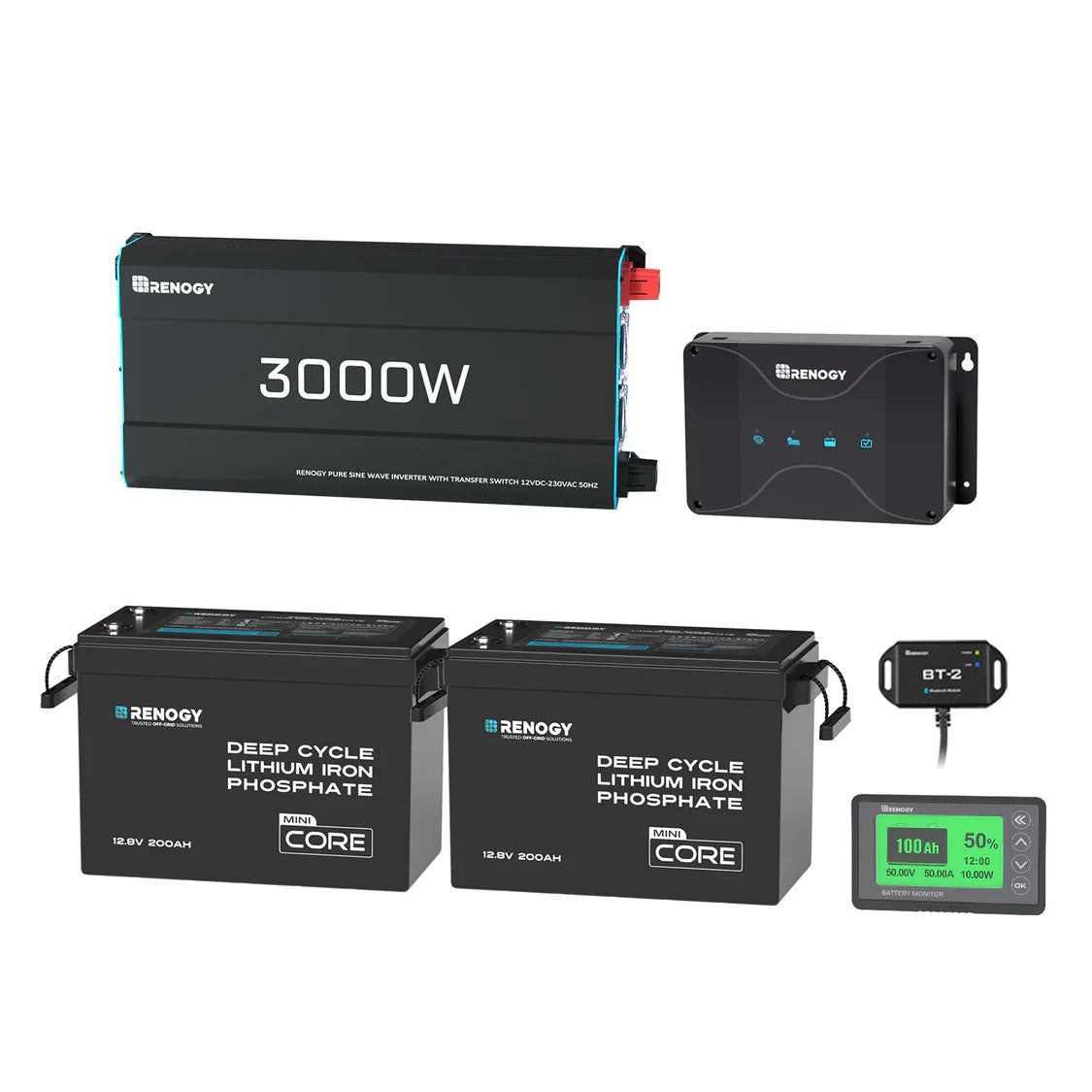

Package includes ( No Solar)

Renogy Core Mini 12.8V 200Ah LiFePO4 Battery

x 2

3000W Pure Sine Wave Inverter/ Inverter charger

x 1

Renogy 12V 50A DC-DC On-Board Battery Charger with MPPT

x 1

Renogy 500A Battery Monitor

x 1

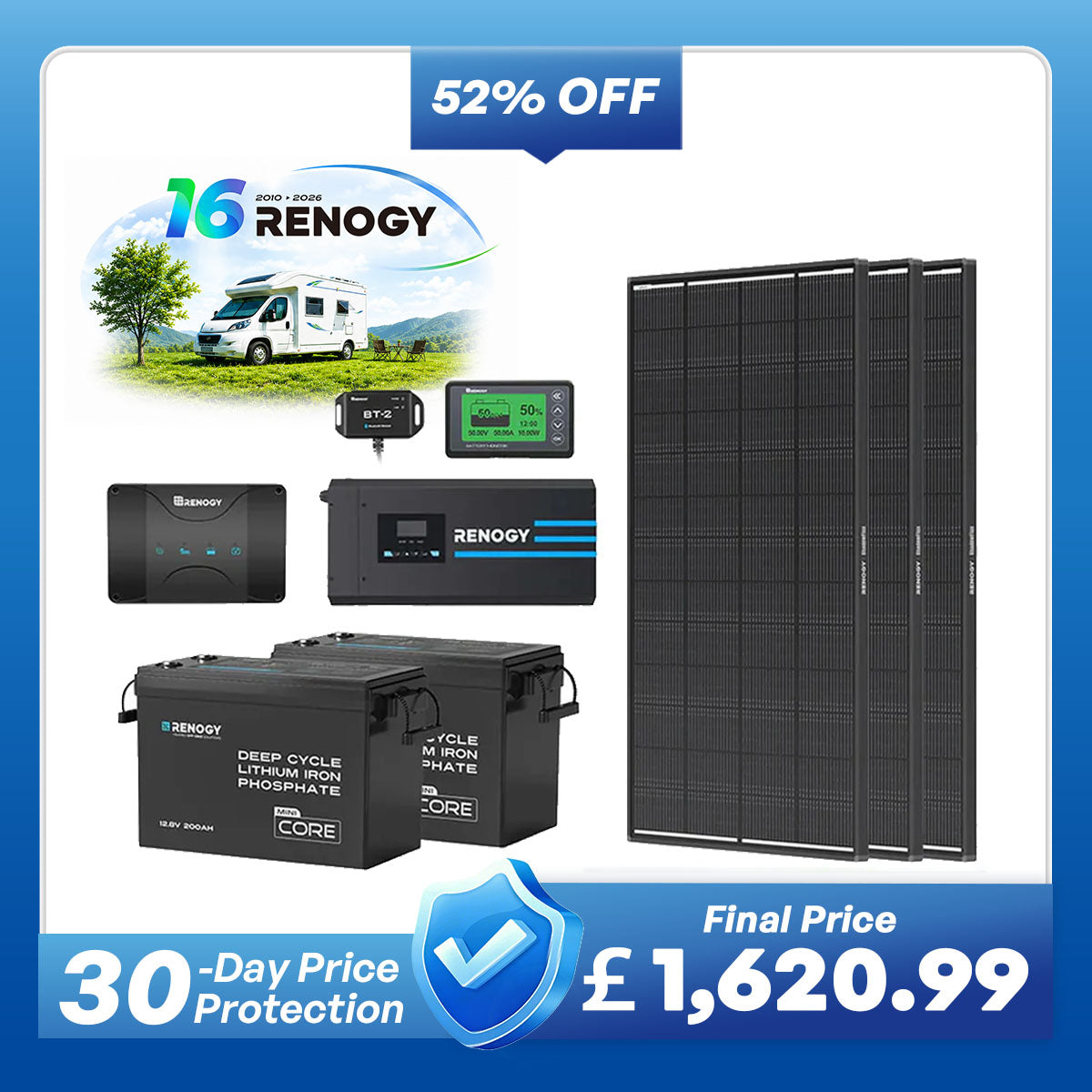

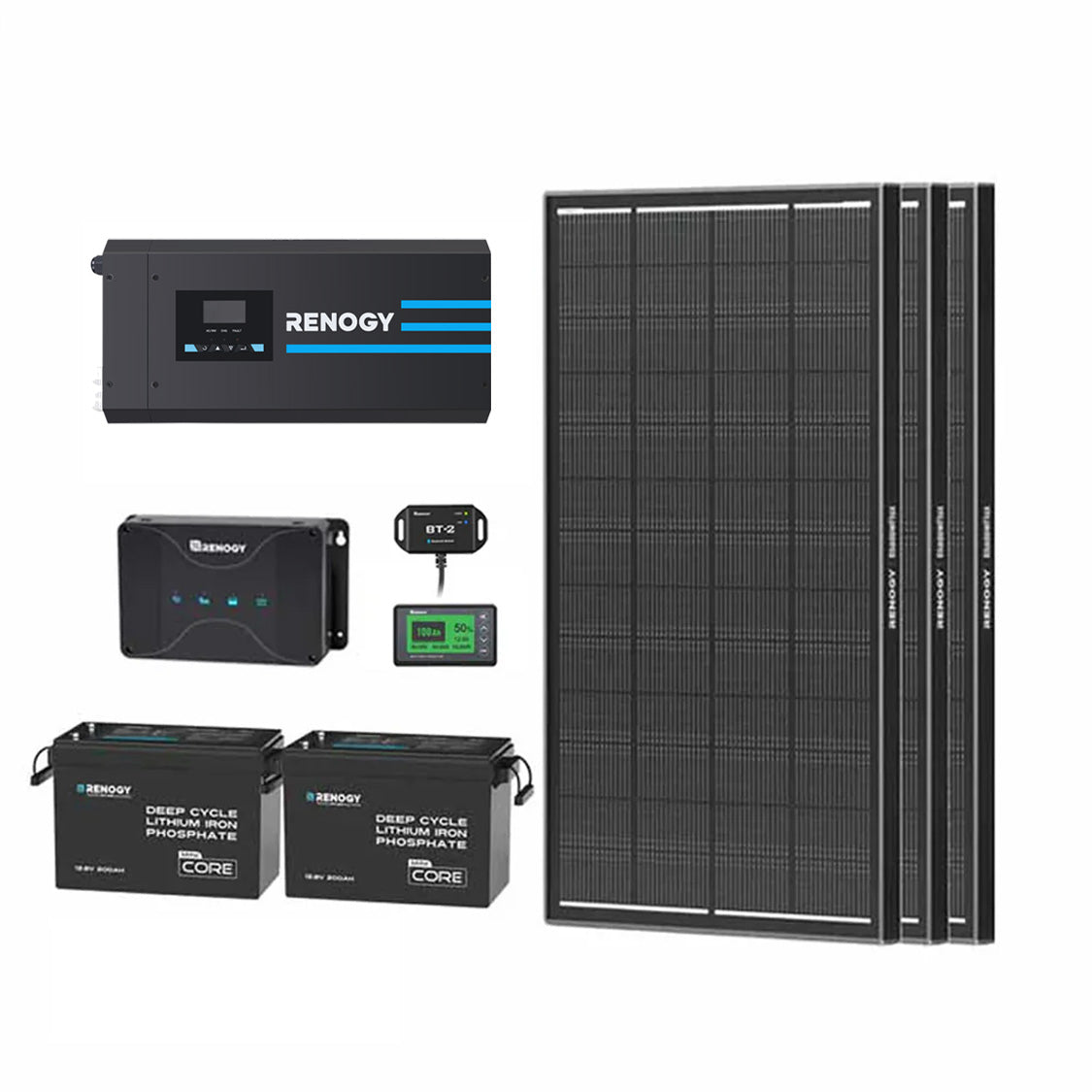

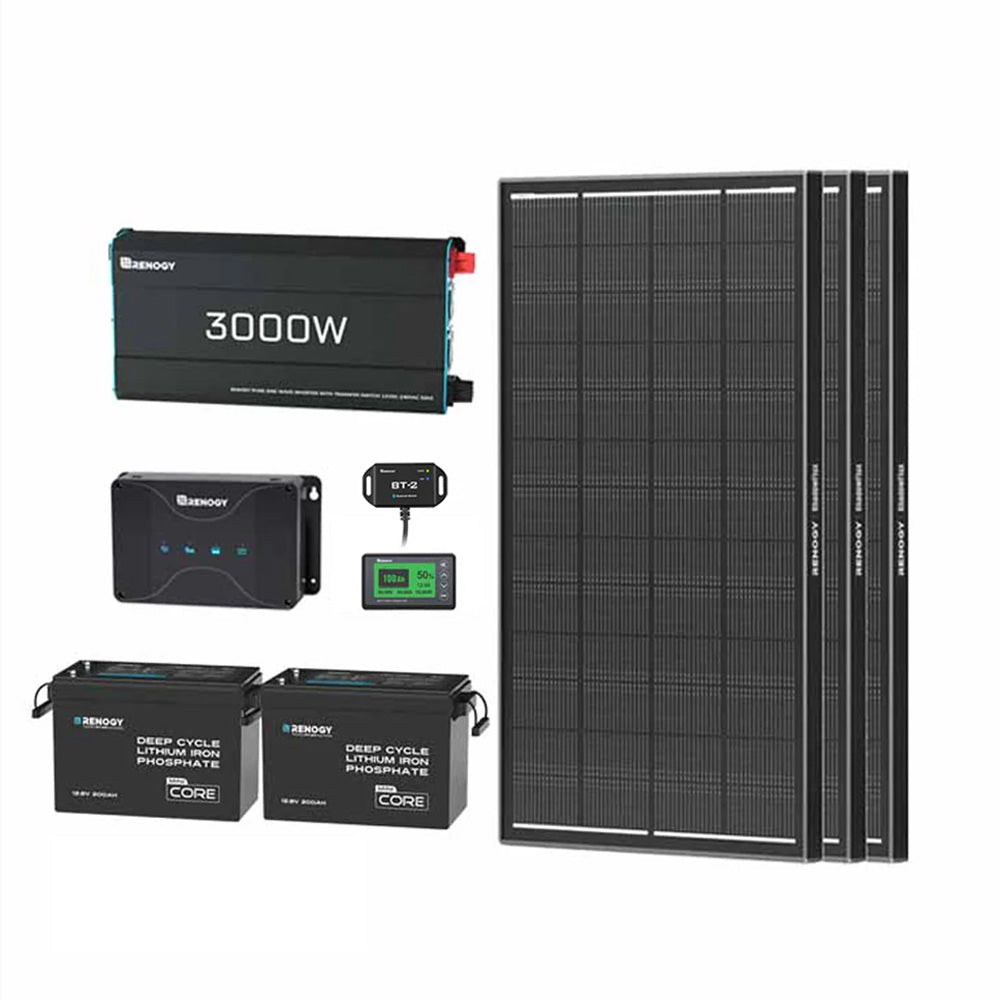

Package includes ( With Solar)

Renogy Core Mini 12.8V 200Ah LiFePO4 Battery

x 2

3000W Pure Sine Wave Inverter/ Inverter charger

x 1

Renogy 500A Battery Monitor

x 1

Renogy 12V 50A DC-DC On-Board Battery Charger with MPPT

x 1

200W ShadowFlux N-Type Solar Panel

x 3

Specification

200W ShadowFlux Anti-Shading N-Type Solar Panel

Max Power at STC
200W
Open Circuit Voltage
36.5V
Short Circuit Current
6.86A
Optimum Operating Voltage
31.3V
Optimum Operating Current
6.38A
Maximum System Voltage
1000VDC
Maximum Series Fuse Rating
15A
Module Efficiency
20.7%
Operating Temperature
-40°F~185°F / -40℃~85℃
Dimensions
1262*764*30mm/
49.69*30.08*1.18inch
Weight
10.81kg/23.83lb

12.8V 200Ah Core Mini Deep Cycle Lithium Iron Phosphate Battery

Terminal Bolt Size
M8×1.25×12 mm & M8×1.25×16 mm
Weight
42.44 lbs / 19.25 kg
Rated Capacity
200Ah (0.5C, 25℃)
Voltage
12V
Cycle Life (0.5C/1C, 25℃)
5000 Cycles (80% DOD, 80% EOL)
Energy
2560Wh
Operation Temperature Range
Charge: 32°F to 131°F (0°C to 55°C); Discharge: -4°F to 149°F (-20°C to 65°C)
Storage Temperature Range
-20°C to 60°C (-4°F to 140°F)
Operation Relative Humidity
5% to 95%
Voltage Range
10V to 14.6V
Maximum Continuous Charge Current
100A
Maximum Continuous Discharge Current
200A
Peak Discharge Current
380A@10s
Dimension (L x W x H)
15.12×7.64×9.96 in/384×194×253 mm
Protection Rating
IP65
5-year prorated material and workmanship warranty
Yes
MSDS, UN38.3, FCC, CE, PSE, RCM, IC, RoHS, and UKCA
Yes
Shop By Scenario
RV, Vans, Camper & Trolling Motor

Renogy 3000W 12V Pure Sine Wave Inverter

Continuous Power
3000W
Surge Power (Peak Power)
6000W
Input Voltage
12VDC
Output Voltage
220VAC±10
Input Voltage Range
11-16Vdc
Static Current
1.5A
Output Frequency (Nominal)
50Hz±0.3
Output Wave form
Pure Sine Wave
Low Voltage Shutdown
10Vdc
High Voltage Shutdown
16.3Vdc
Battery supply & AC main transfer time
Within 50mS
Maximum Efficiency
90%
Working Temperature
0°C~40°C
Dimensions
482*220*92 mm
Weight
6.4Kg

Renogy 3000W 12V Pure Sine Wave Inverter Charger (The Inverter Charger requires an external N-G Bonding Relay and an RCD/RCBO)

Rated Output Power
3000W
Surge Power (Peak Power)
9000W
Nominal Output Voltage RMS
230VAC (200~240VAC, 10V interval)
Output Frequency (Nominal)
50 Hz
Input Voltage Range
10-16Vdc
Output Wave Form
Pure Sine Wave
Nominal Efficiency
90% Peak
No Load Power Consumption
Normal: <30W; Power Saving: <15W
Battery Types
GEL, AGM, SLA, FLD, CAL, LI, USER
Operating Temperature
0 ~ 40°C / 32 ~ 104°F
Dimensions
510 x 285 x 193 mm / 20.1 x 11.2 x 7.6 in
Weight
28.8 Kg / 63.5 lbs
Output Current
5-75A; configurable, 5A intervals
Optimal Efficiency
>85%C
Nominal Input Voltage
230 VAC
Input Voltage Range
155-275 VAC
Input Frenquency Range
40Hz - 70Hz
Input Wave Form
Pure Sine Wave (Utility or Generator)
Transfer Time
~ 10ms
Transfer Relay Rating
30A
Certifications
CE

12V 50A DC-DC On-Board Battery Charger ELECTRICAL DATA

System Voltage
12V-12V
Input Voltage
50 VDC
Output Voltage
9-16 VDC
Alternator Input
Traditional Alternator: 13.2-16 VDC
Smart Alternator (Euro 6): 12-16 VDC
Maximum Output Current Rating
50A
Output Power
660W
Battery Types
AGM/SLD , GEL ,FLD ,LI,USER
Input Fuse Rating
75A-100A
Output Fuse Rating
75A-100A
Charging Efficiency
94%
Temperature Compensation
'-3mV / ℃ / 2V (Non-Lithium)
'0mV / ℃ / 2V (Lithium)
Idle Power Consumption
＜30mA

Downloads

200Ah Battery

Download

200w Anti-Shading Solar Panel

Download

3000W Inverter

Download

3000W Inverter Charger

Download

Warranty

Download

50 DC Battery Charger

Download

FAQ

What’s included in the kit?

The kit includes 2 × 12.8V 200Ah Core Mini LiFePO4 Batteries, a 3000W Pure Sine Wave Inverter or Inverter Charger, a 50A DC-DC Charger with MPPT, and a 500A Bluetooth Battery Monitor. The solar version also includes 3 × 200W ShadowFlux N-Type Solar Panels.

Is this kit suitable for campervans and motorhomes?

Yes. The kit is designed for campervans, caravans, motorhomes, and off-grid van life, with compact components built for mobile installations and extended touring.

What can a 5.12kWh power system run?

This system is designed to power larger off-grid loads including fridges, coffee machines, TVs, laptops, induction cookers, air fryers, lighting, water pumps, and other motorhome essentials.

How long do the lithium batteries last?

The Core Mini LiFePO4 batteries are rated for up to 5000 cycles at 80% depth of discharge, delivering long-term performance for years of off-grid use.

What appliances can the 3000W inverter support?

The 3000W Pure Sine Wave Inverter supports most everyday AC appliances and delivers up to 6000W surge power for startup loads.

Does the Inverter Charger require additional components?

Yes. The Inverter Charger requires an external N-G Bonding Relay and an RCD/RCBO for installation. Please refer to the installation guide in the Manuals Center for details.

Is the battery suitable for cold weather use?

Yes. The Core Mini LiFePO4 battery includes low-temperature charging protection and an IP65-rated design for reliable use in outdoor and mobile environments.
