Solar Connectors Y Branch Parallel Adapter Cable

SKU: RPC0110EC-Y-UK
£16.99 £21.99
Tax included. Shipping Policy.
+   Renogy Rays after purchase.
Log In About Rays

  • -CE-certified solar M connector rated 30A, 1500V DC for all solar panels.
  • -Anti-oxidation, anti-UV, anti-high-temperature and waterproof (IP67).
  • -Compatible with standard solar connectors, fits 14AWG to 10AWG cables.
  • -Simple assembly with secure built-in lock, reliable connection.
  • -1-year warranty, dedicated customer support available.
Size
Free Shipping on All Products
30-Day Return & Refund Service



6% OFF Coupon for New Subscriber
Lifetime Customer Support Contact us: +44 3300589559
Show More Benefits Show Less
Quantity：
Payment Methods
Delivery Methods
Delivery time: 3–6 business days. (Excludes LTL shipping.) Free Shipping
Description
Includes
Specs
Reviews
MMF+FFM Pair
MMMF+FFFM Pair

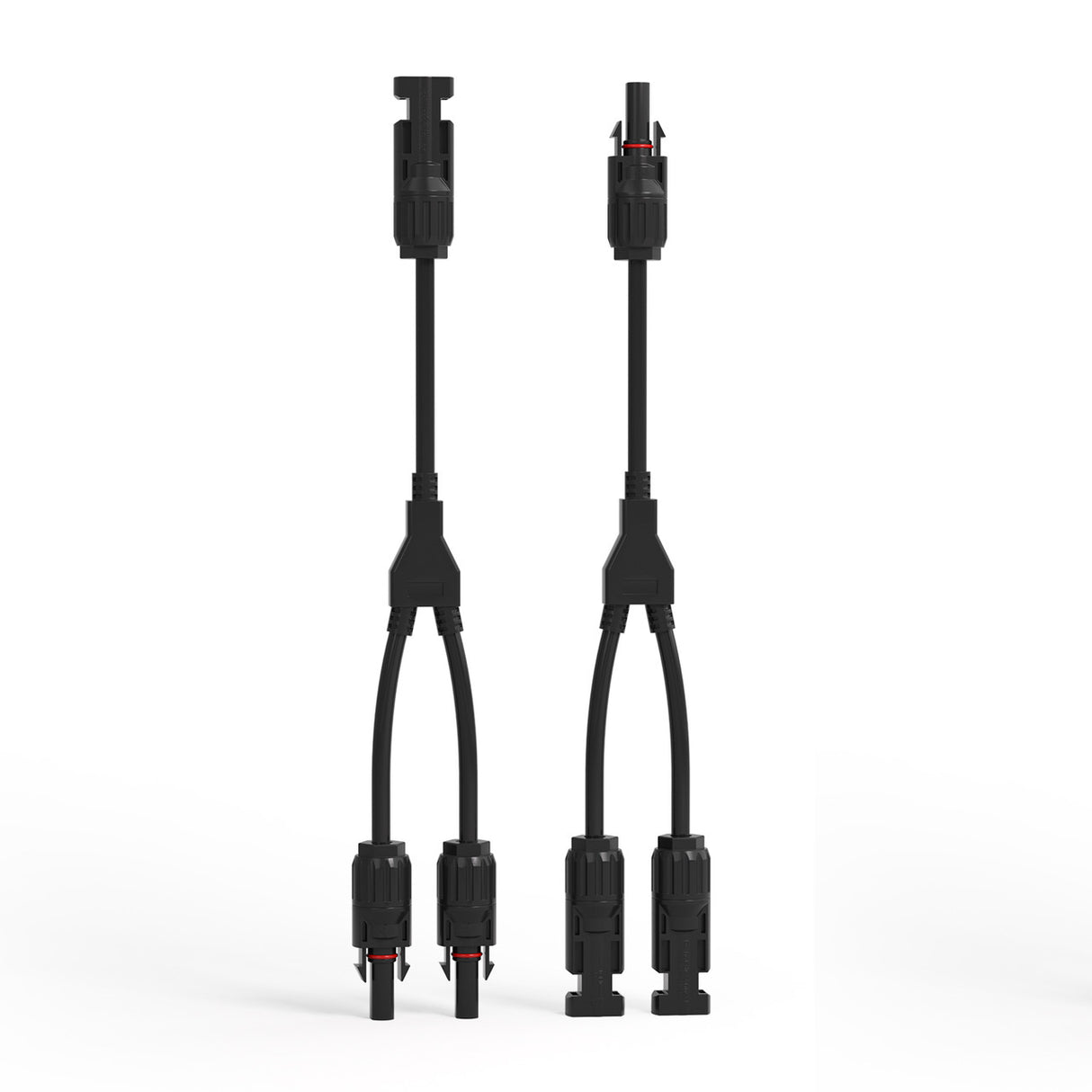

Solar Connectors Y Branch Parallel Adapter Cable MMF+FFM Pair

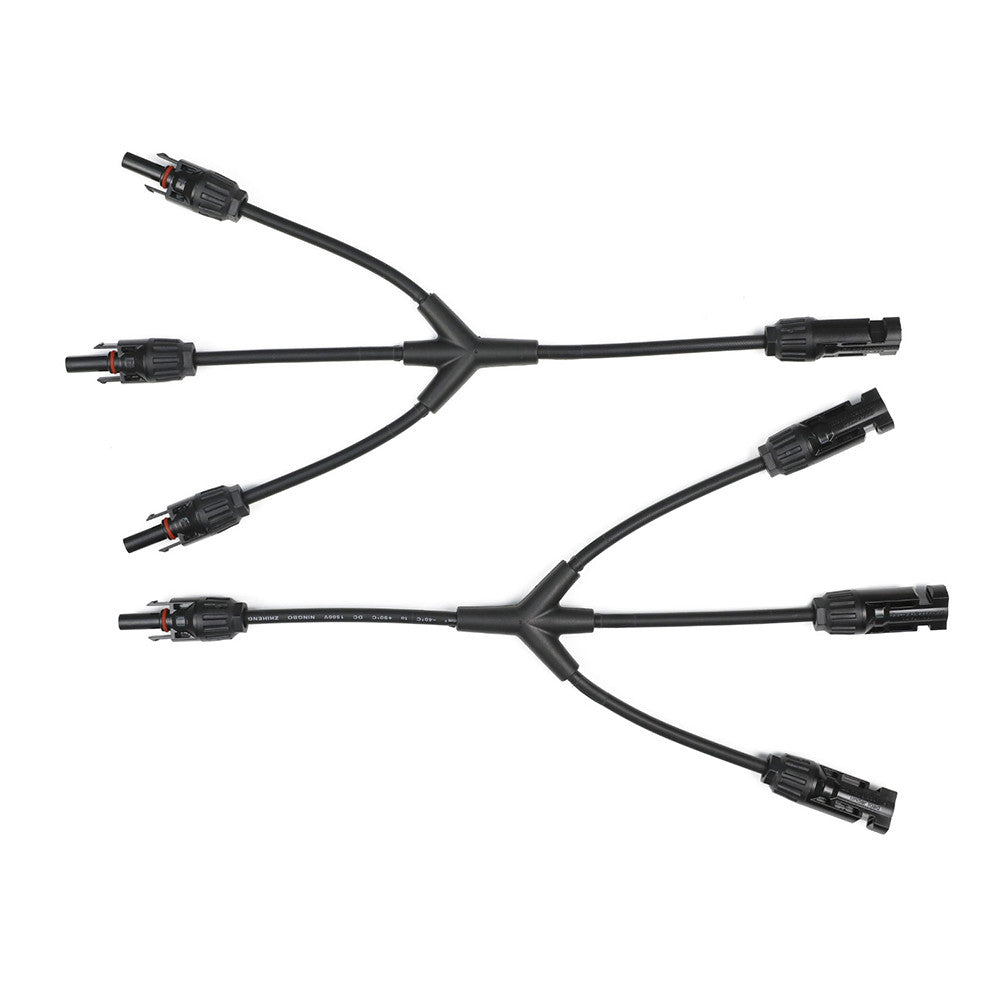

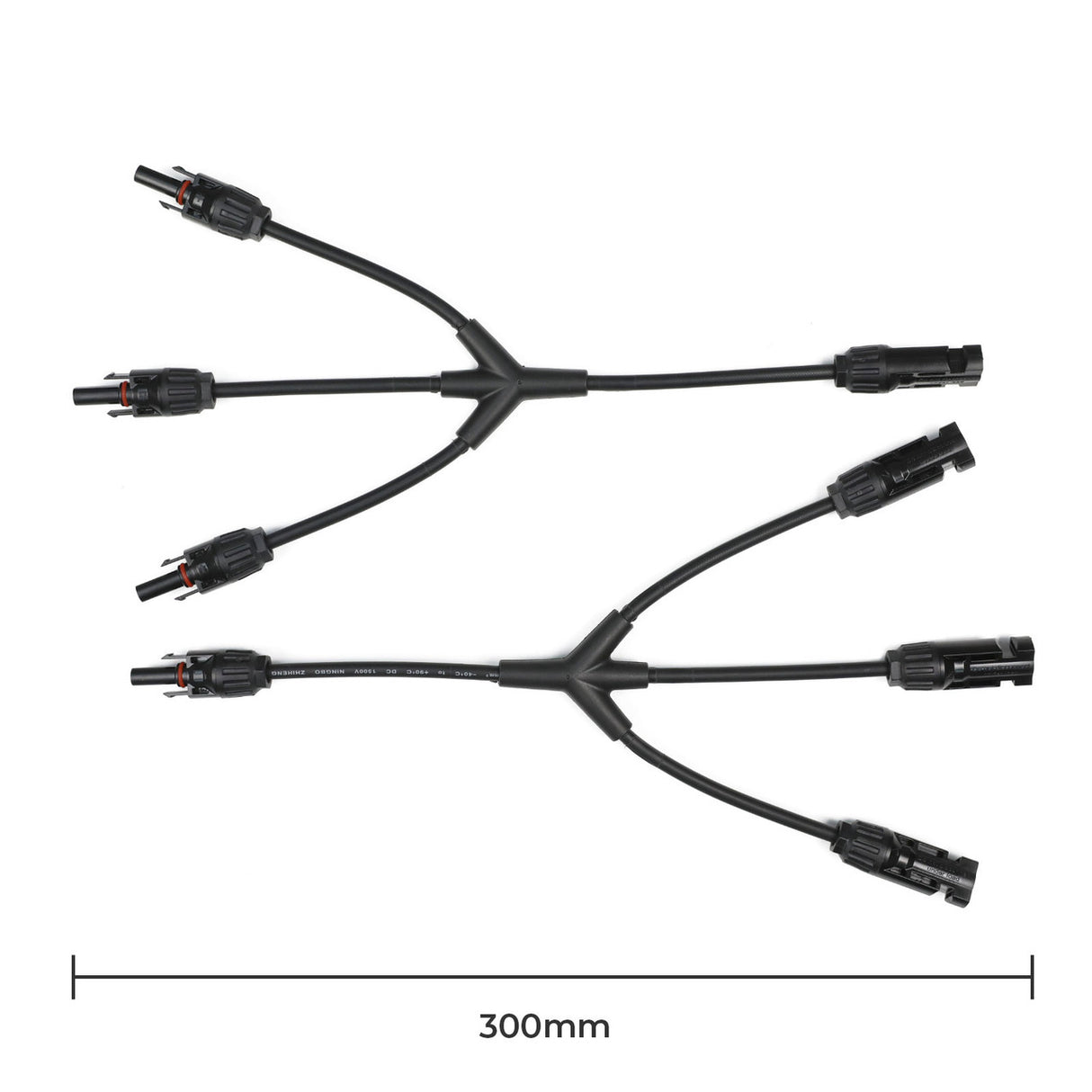

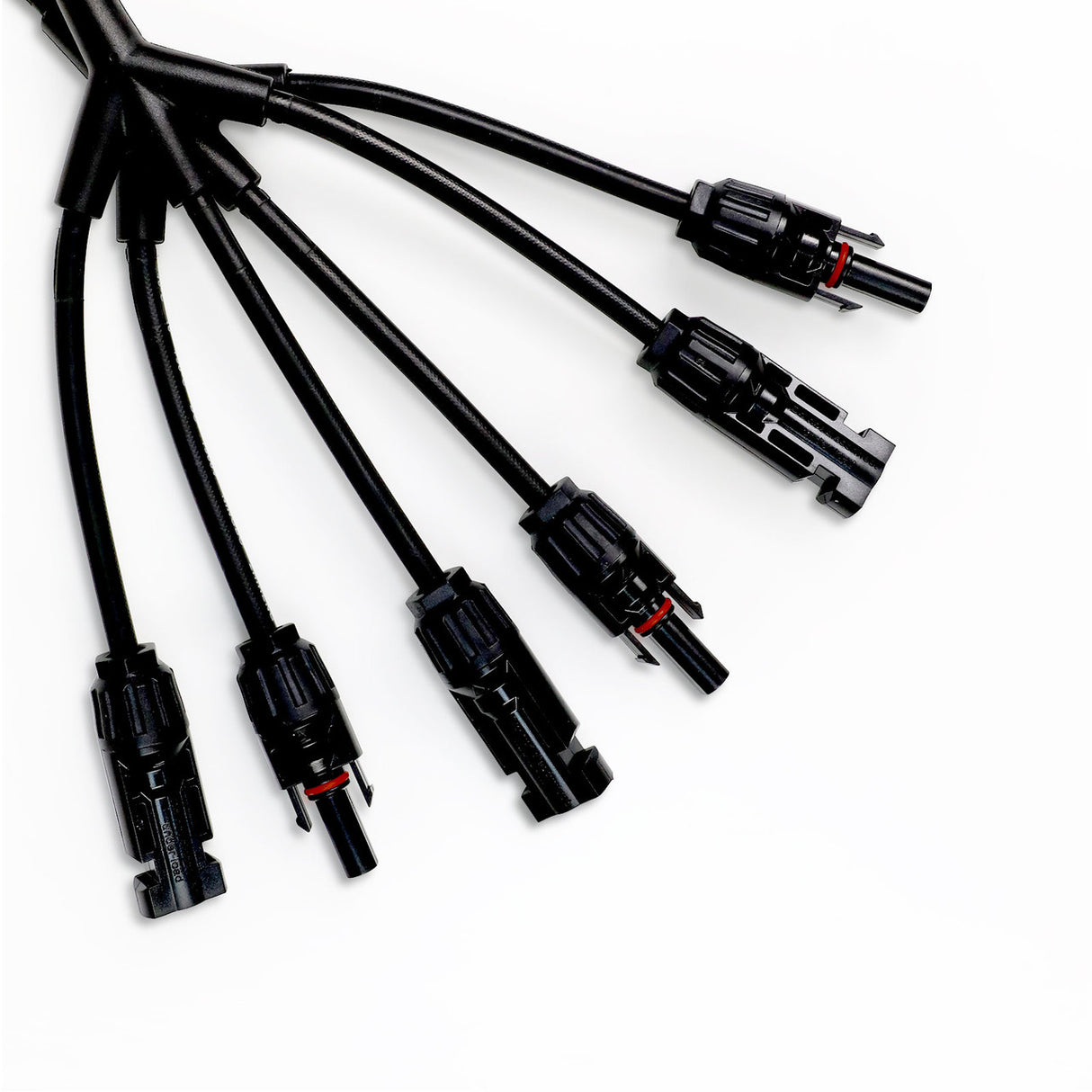

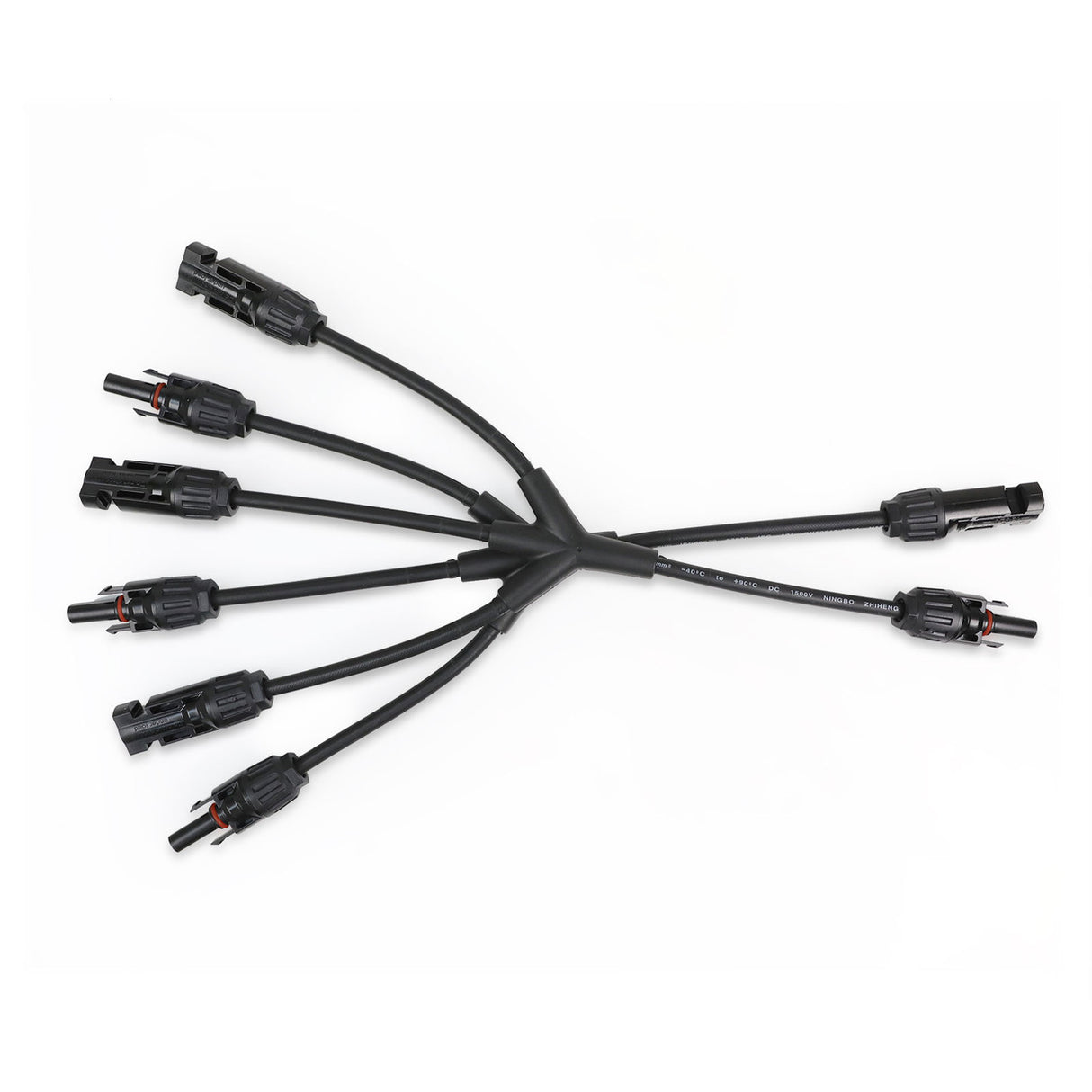

Solar Connectors M Branch Parallel Adapter Cable MMMF+FFFM Pair

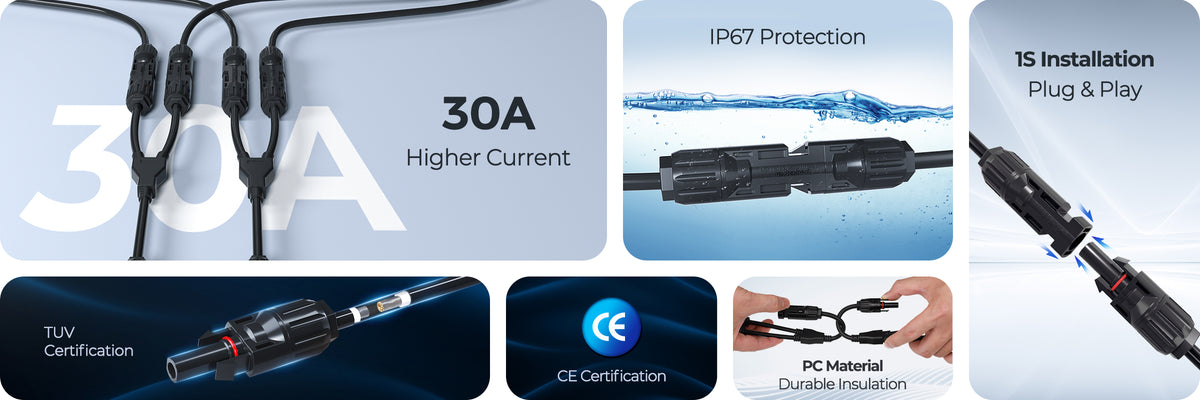

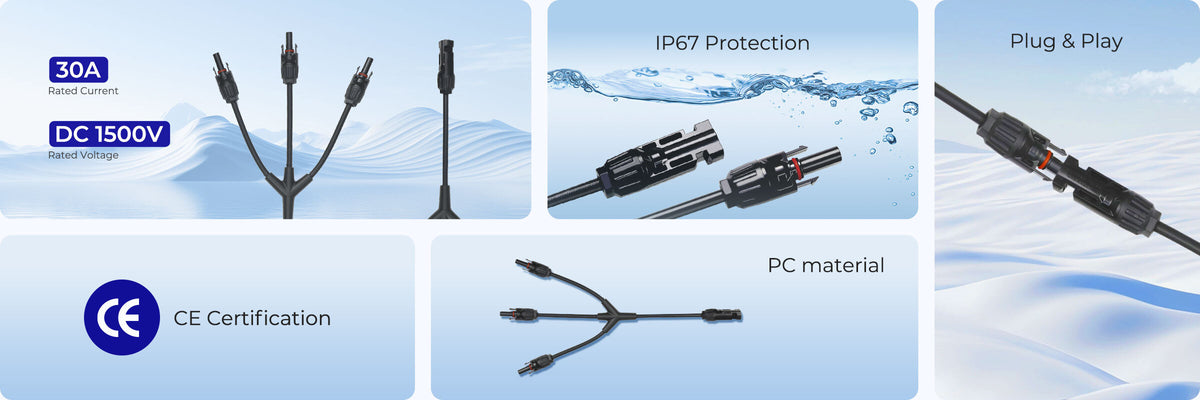

30A Higher Current
CE & TUV Certified Connectors
PC Material
IP67 Protection

30A Higher Current

With a rated current of 30A, this connector increases the wattage range for panels in parallel connections, making it ideal for larger solar systems.

CE & TUV Certified Connectors

These high-quality connectors, with CE and TUV certifications, are constructed with PC insulation material and tinned copper cables, ensuring both exceptional safety and durability.

PC Material: Tough on Grease and Oil

Crafted from PC material, this connector exhibits superior resistance to greases and oils compared to those made from PPO material. It is ideal for extended outdoor use, especially in RV scenarios prone to oil contamination.

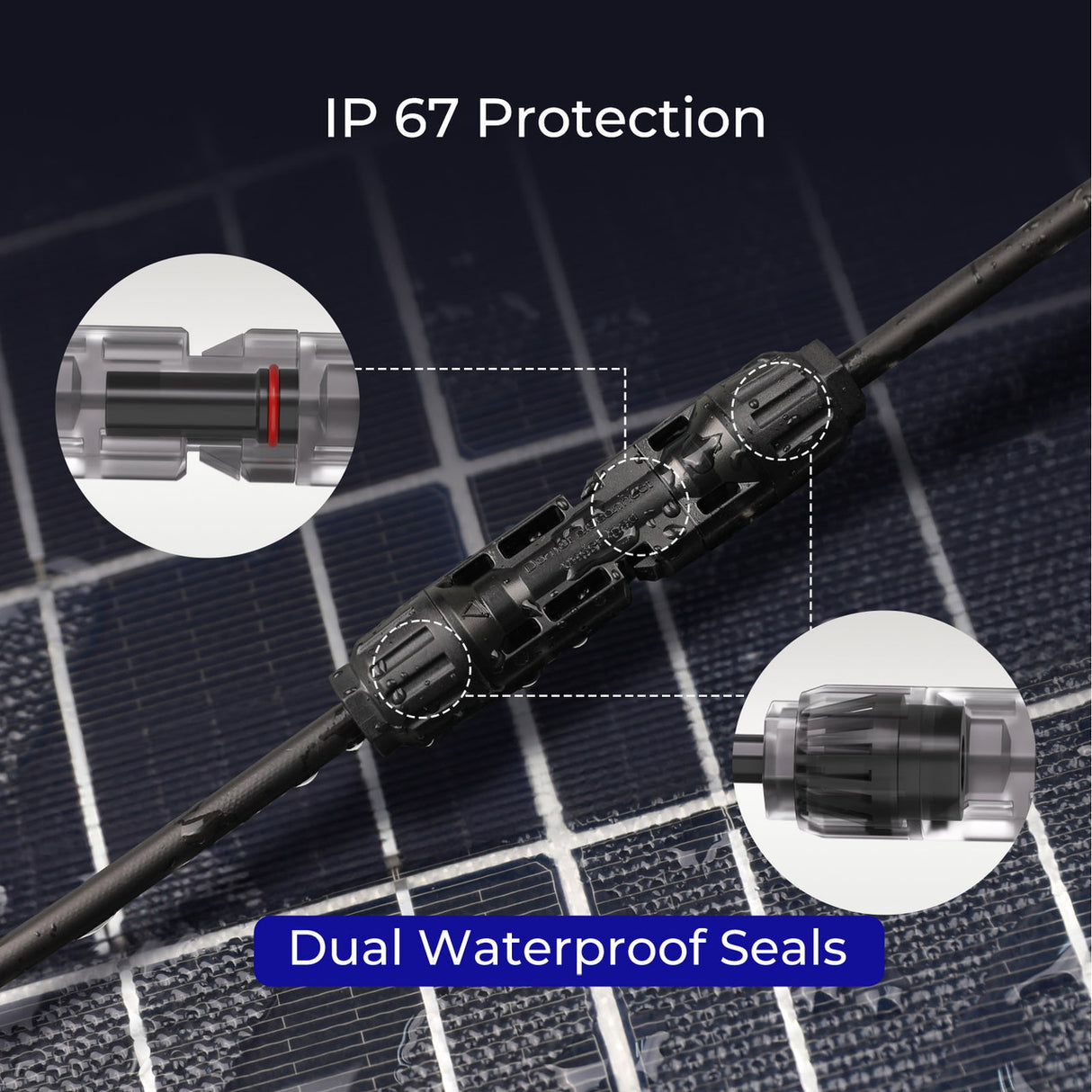

IP67 Protection

The connector is equipped with dual waterproof seals, ensuring IP67 protection. The red ring keeps the male connector body dry inside, while the black sleeve protects the tinned copper cable from moisture.

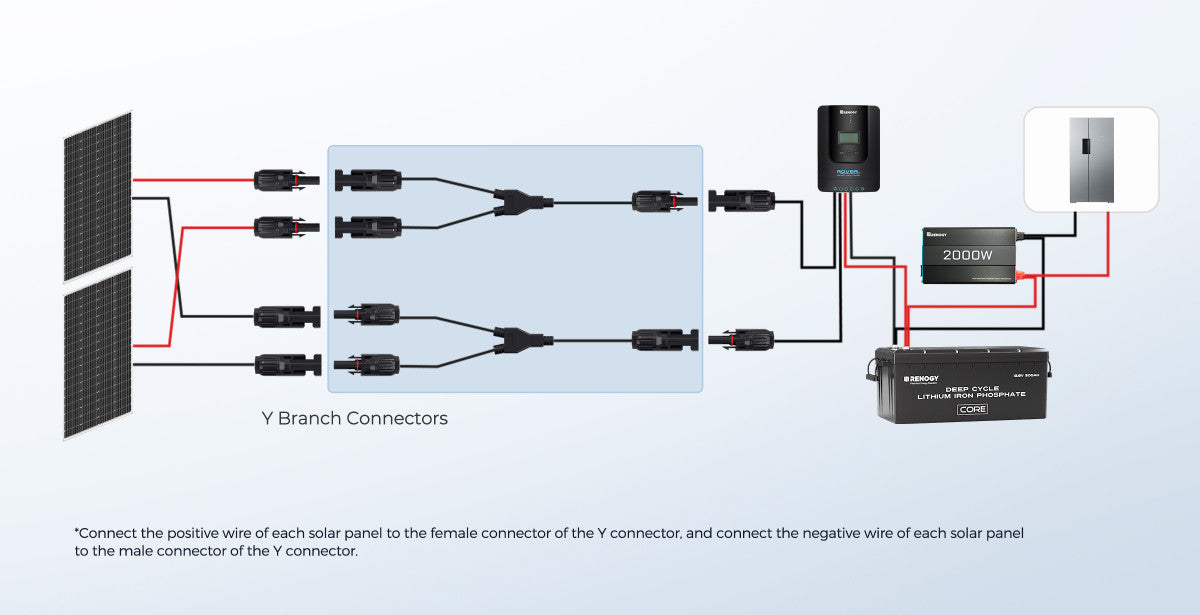

How to Connect in Parallel

Connect the positive wire of each solar panel to the female connector of the Y connector, and connect the negative wire of each solar panel to the male connector of the Y connector.

Package Includes

Solar Connectors M Branch Parallel Adapter Cable

x 1

Solar Connectors Y Branch

Rated Voltage
1500V DC(IEC)
Rated Current
30A
Contact Resistance
0.5mΩ
Insulation Material
PC
Contact Material
Copper,tin plated
Temperature
-40℃-90℃/-40°F-194°F
Protection Degree
IP67 mated/IP2X unmated
Safety Degree
Ⅱ
Flame Class
UL94-HB/UL94-V0
Suitable Single Core Cable Section
2.5mm²,4mm²,6mm²
