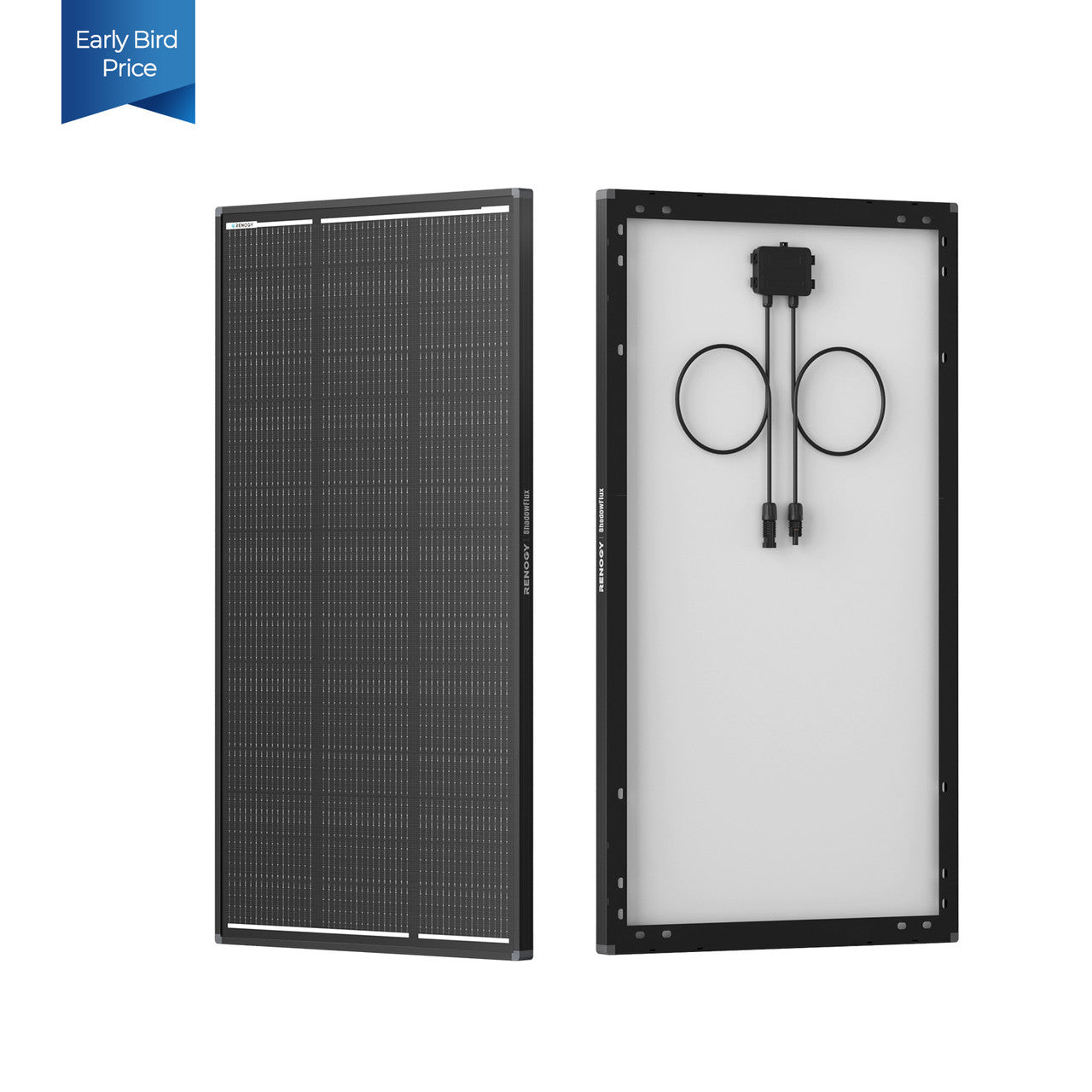

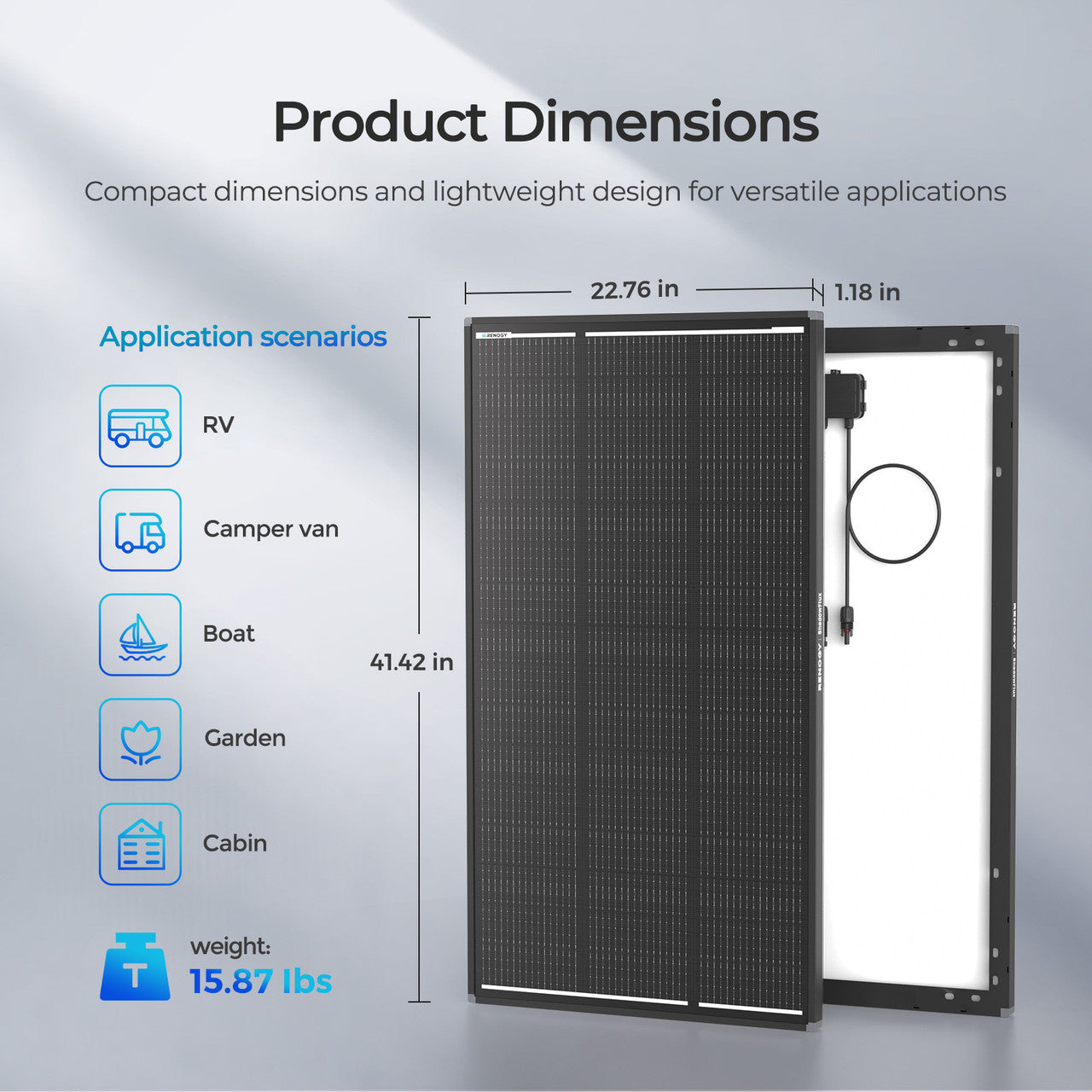

120W ShadowFlux Anti-shading N-Type Solar Panel

"To choose a suitable controller for your ShadowFlux anti-shading solar panel, it’s important to consider the panel’s optimized voltage designed to enhance power output under partial shading conditions. The open-circuit voltage (Voc) of this 120W solar panel is 33.69V. For single or parallel connections, the controller’s maximum PV input voltage should be at least 40V. In the case of series connections, the controller’s maximum PV input voltage needs to be no less than 40V multiplied by the number of panels connected in series. Selecting a controller with these specifications ensures optimal performance and compatibility with your ShadowFlux solar panel system. "

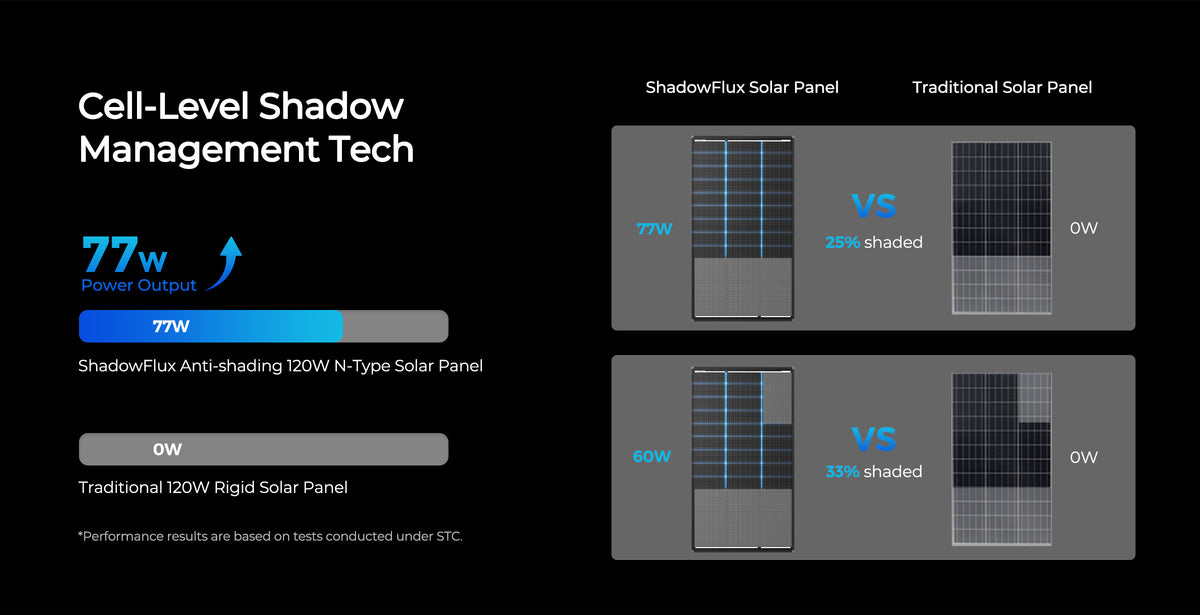

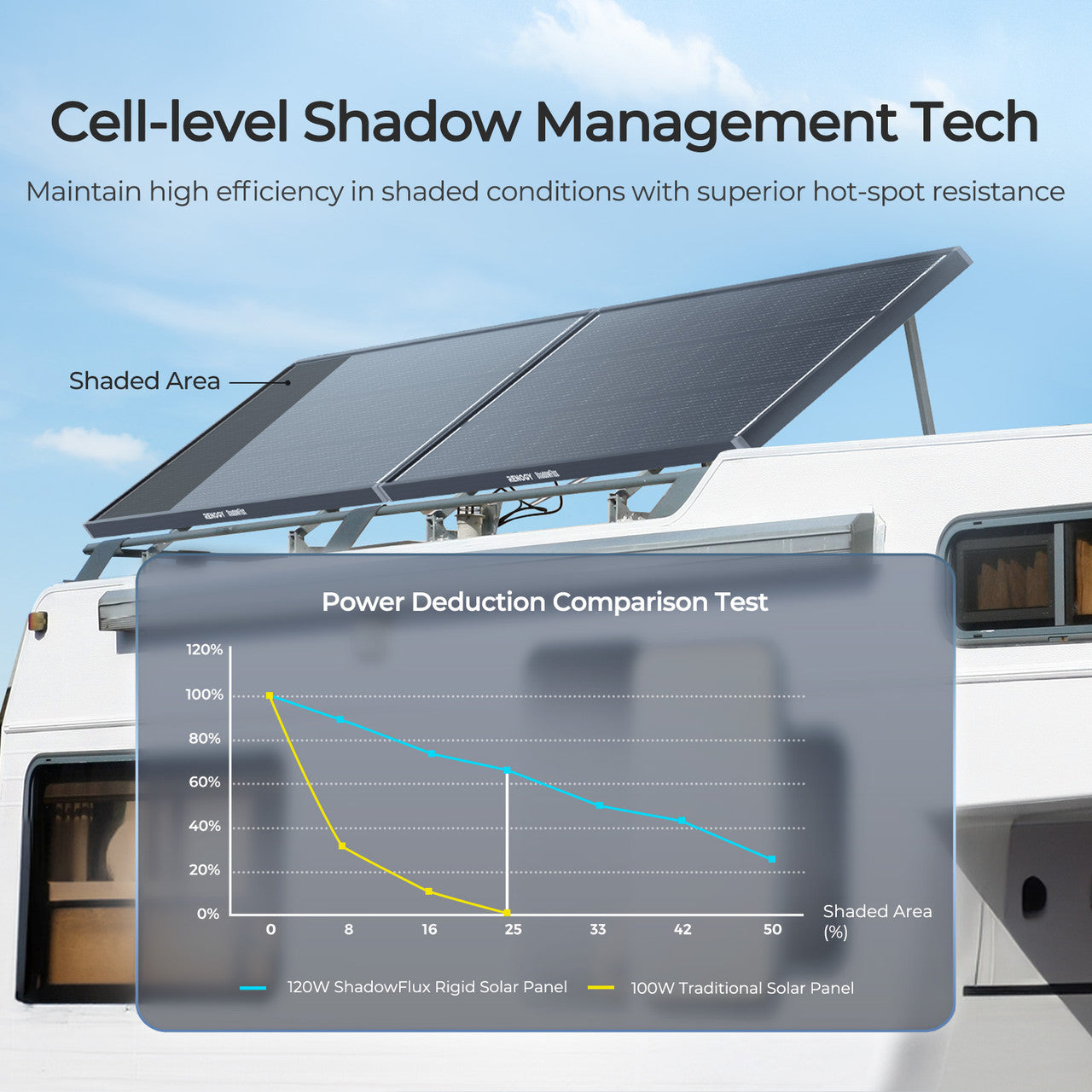

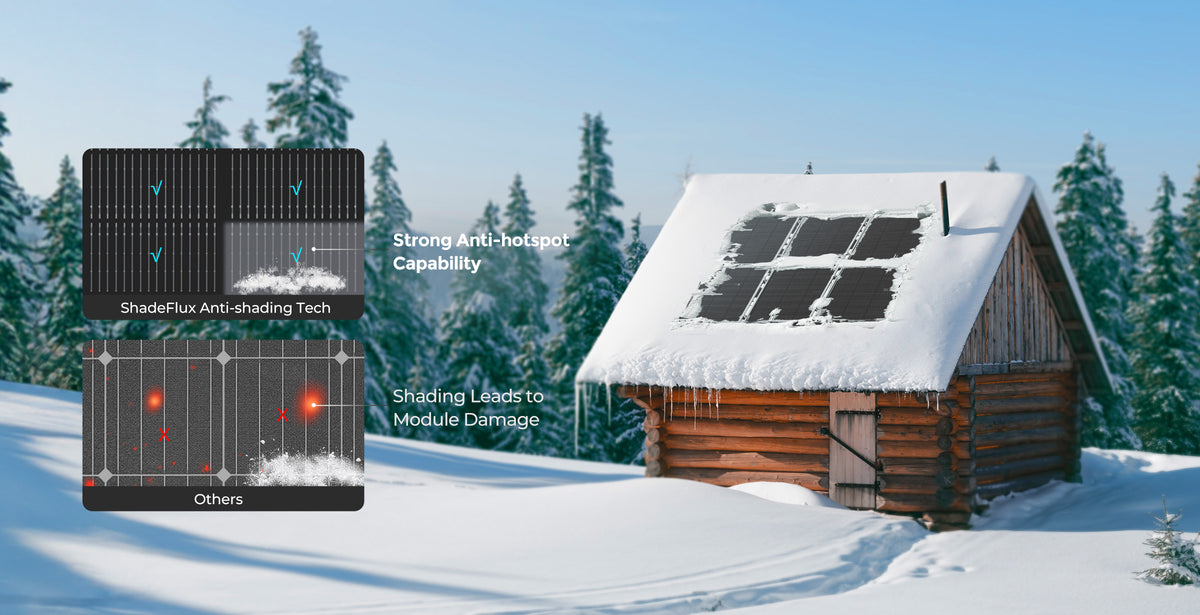

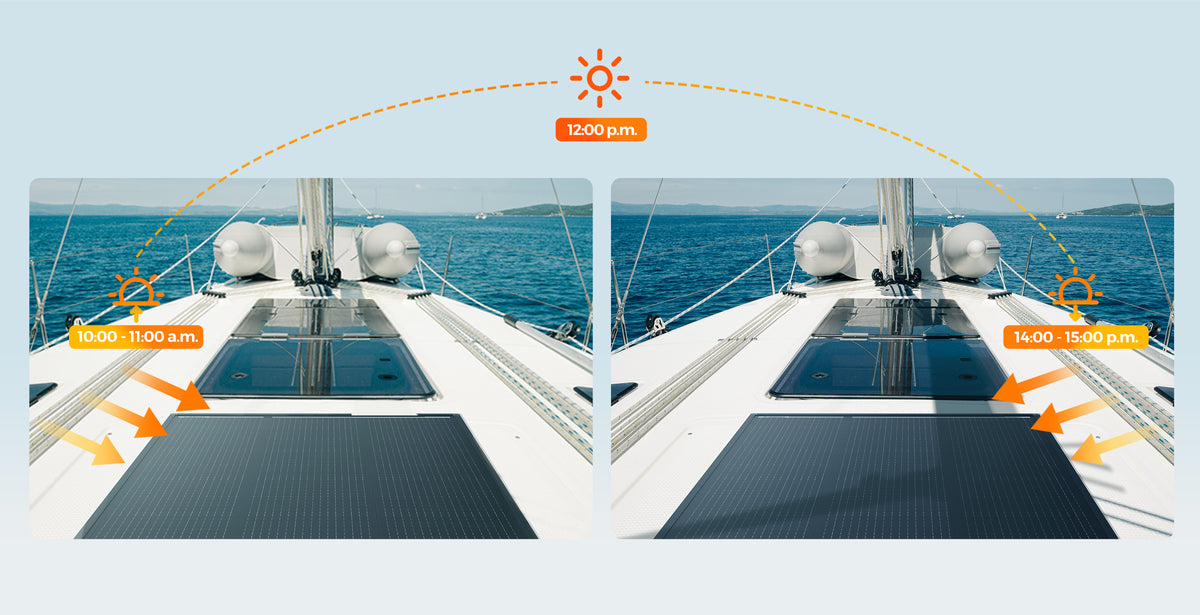

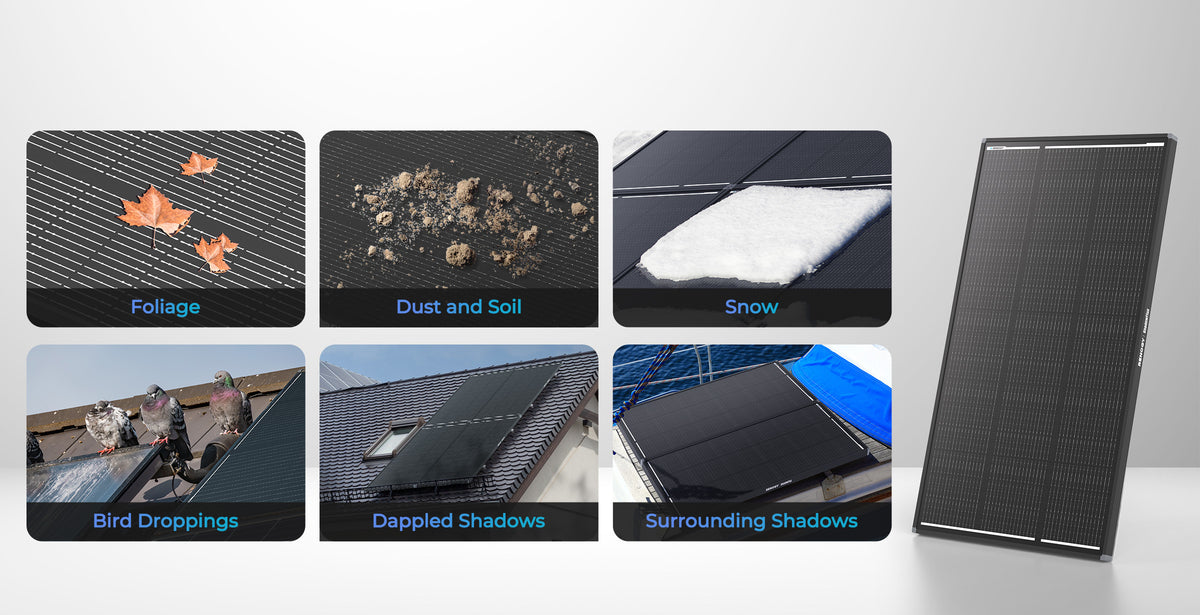

"ShadowFlux Anti-Shading technology is designed to maintain high power output even when the solar module is partially shaded, ensuring consistent energy generation. By minimizing the effects of shading, it significantly boosts the total power output of your solar system. Additionally, this advanced technology protects the solar module from potential damage caused by shading, enhancing its durability and overall performance. "

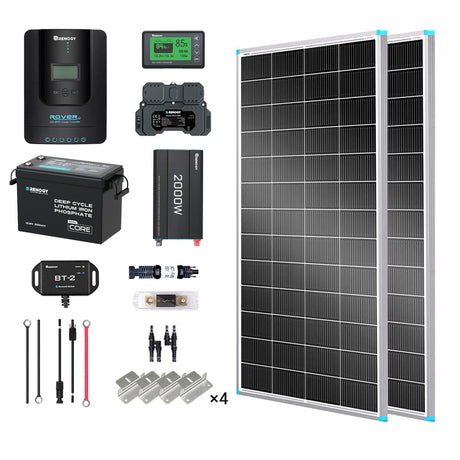

"To set up a complete off-grid solar power system, you will need a solar panel to generate electricity, a charge controller to regulate the current, and a battery to store the energy for later use. Additionally, you’ll require adapter kit cables to connect the solar panel to the charge controller and tray cables to link the controller to a deep-cycle battery. These components work together to ensure a reliable and efficient off-grid power solution. "

"On-grid systems refer to solar power setups that are connected to the electrical grid, allowing you to draw power from the grid when needed. In contrast, off-grid systems operate independently of the grid, storing the power they generate for later use. This independence makes off-grid systems a reliable option in areas without grid access or during blackouts, as they are unaffected by grid outages. "

"Solar panels may underperform due to various factors, most of which are related to environmental conditions. Indirect sunlight, high temperatures, cloudy weather, or the accumulation of dirt and debris on the panel’s surface can all significantly reduce energy output. Regular maintenance and proper placement can help optimize performance. "

"Solar panels can be connected in series or parallel to match your electrical circuit size and power requirements. In a series connection, the operating voltage of each panel is added together, while the current remains the same as that of a single panel. Conversely, in a parallel connection, the current from each panel is combined to determine the system's total current output, while the voltage remains the same as that of a single panel. To achieve optimal power output and meet your system’s specifications, you can use a combination of both series and parallel connections. "

"To determine how many solar panels you need, start by understanding and defining the power load required for your system. Power is measured in watts, while capacity is measured in watt-hours, which is calculated by multiplying the power output (in watts) by the number of hours of operation, then adding a safety factor of 1.5 to 2. It’s recommended to size your battery bank first based on the minimum required capacity. Once you have this figure, you can determine how many solar panels or how much power input is necessary to meet your energy needs. "

The 12V/24V mentioned in product titles, such as 150W 12V CIGS Solar Panel," indicates the voltage of the solar system or energy storage system the panel is designed to pair with, rather than the panel’s actual operating voltage (Voc or Vmp). To ensure proper functionality, the solar panel’s voltage must always be higher than the voltage of the solar system it supports.
