Core - 3000W 12V Pure Sine Wave High-Frequency HF Inverter Charger
SKU:
RIV1230ECH-23S-UK
£485.99
£620.99
Unit price
/
Unavailable
22% Off
+
+
Rays
after purchase.
Log In
About Renogy Membership
Tax included.
Shipping Policy.
Key Features
- 【Compact & Lightweight】 Up to 70% lighter than traditional low-frequency inverter chargers.

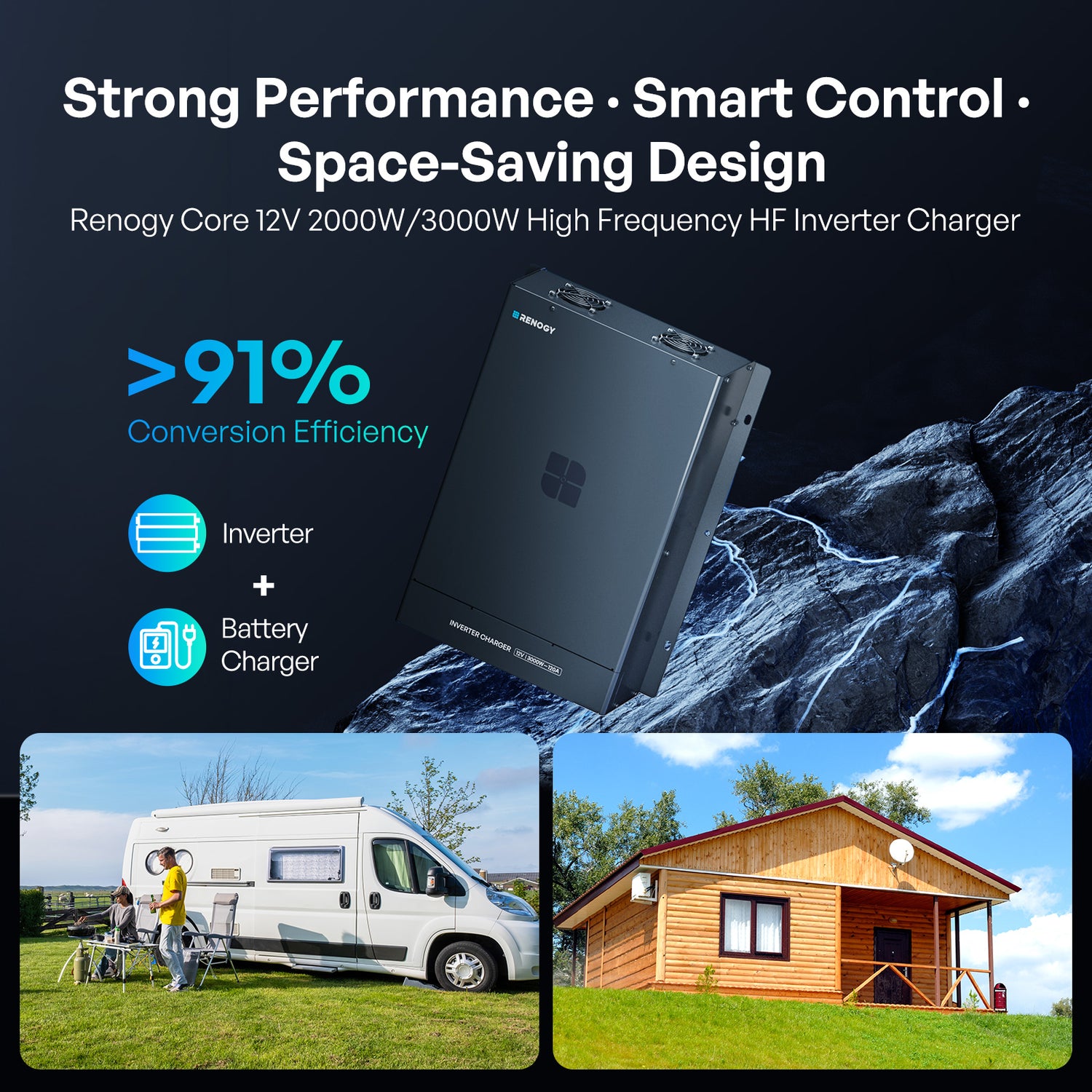

- 【3-in-1 Inverter Charger with UPS】 3000W pure sine wave inverter, charger and <20ms UPS with 6000W surge output and up to 91% efficiency.

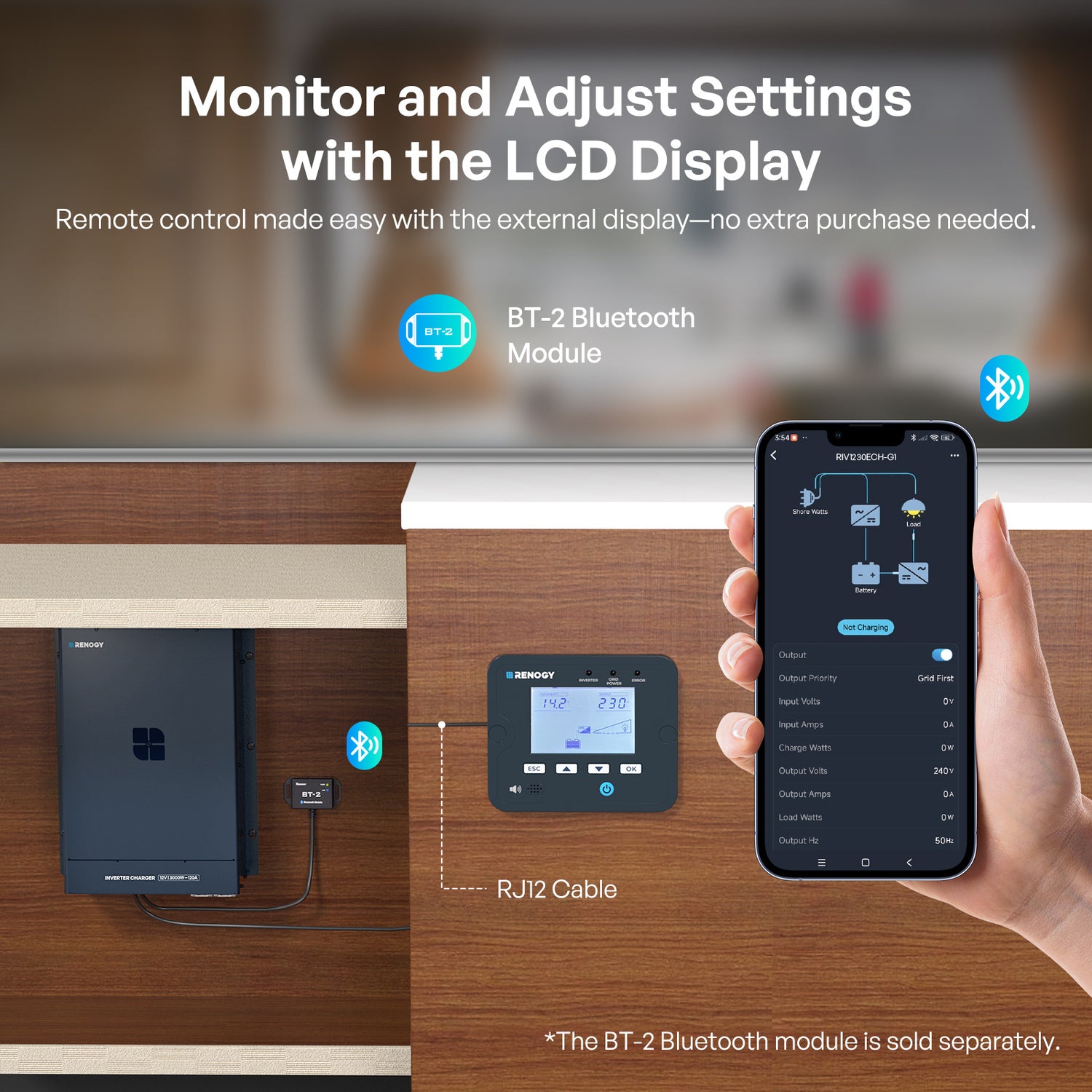

- 【LCD & Bluetooth Monitoring】 Monitor your system via the external LCD or the optional BT-2 Bluetooth Module with the Renogy App.

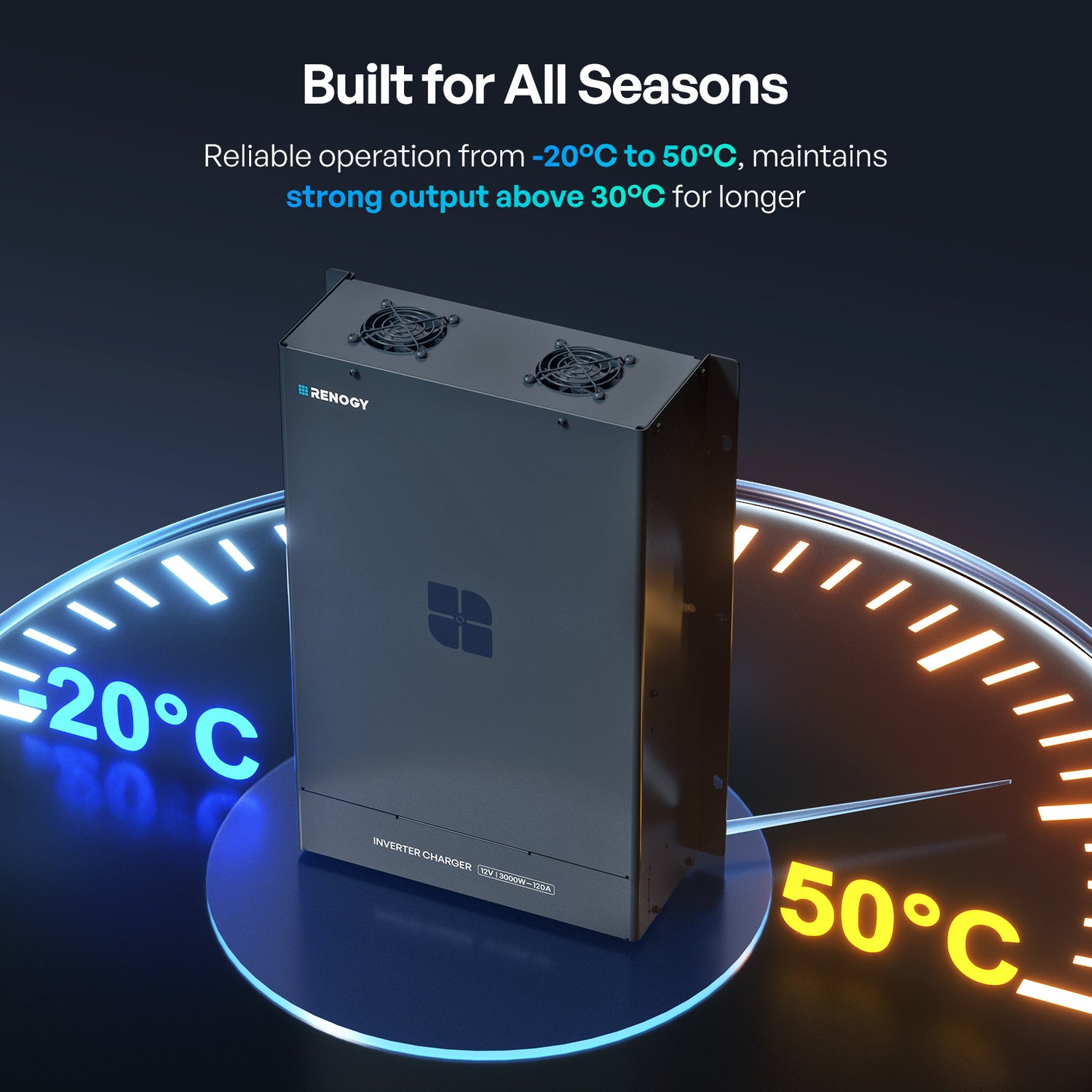

- 【Efficient & Reliable】 Operates from −20°C to 50°C, supports multiple battery types, and uses <10W standby power.

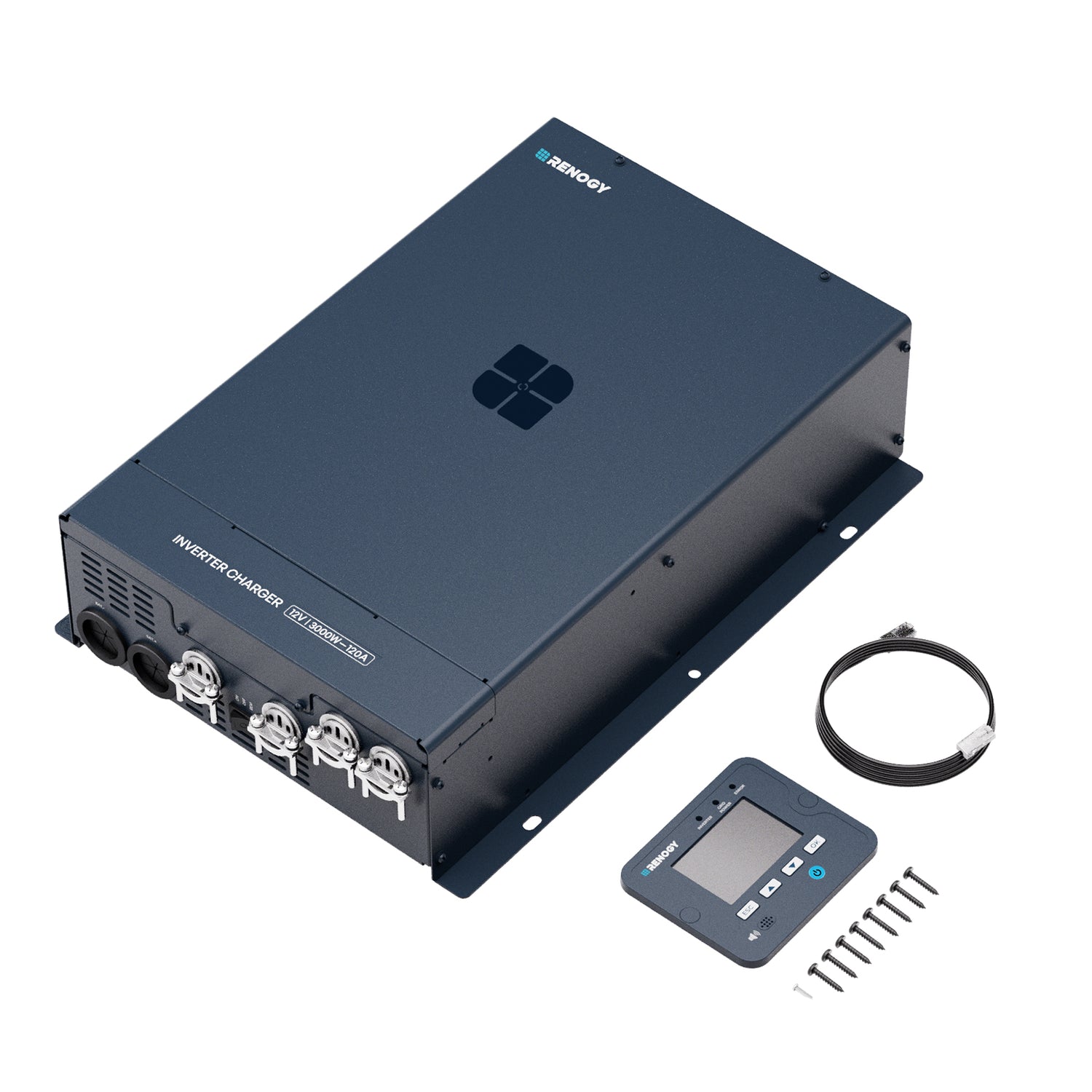

- 【Complete Installation Package】 Includes the inverter charger, external LCD with 5m RJ12 cable, N–G bonding relay screw, and 8 self-tapping screws.
Core - 3000W 12V Pure Sine Wave High-Frequency HF Inverter Charger is backordered and will ship as soon as it is back in stock.
Free Shipping on All Products
30-Day Return & Refund Service
6% OFF Coupon for New Subscriber
Lifetime Customer Support Contact us: +44 3300589559
Show More Benefits
Show Less
Payment Methods
Core - 3000W 12V Pure Sine Wave High-Frequency HF Inverter Charger
Description
Includes
Specs
Downloads
Reviews

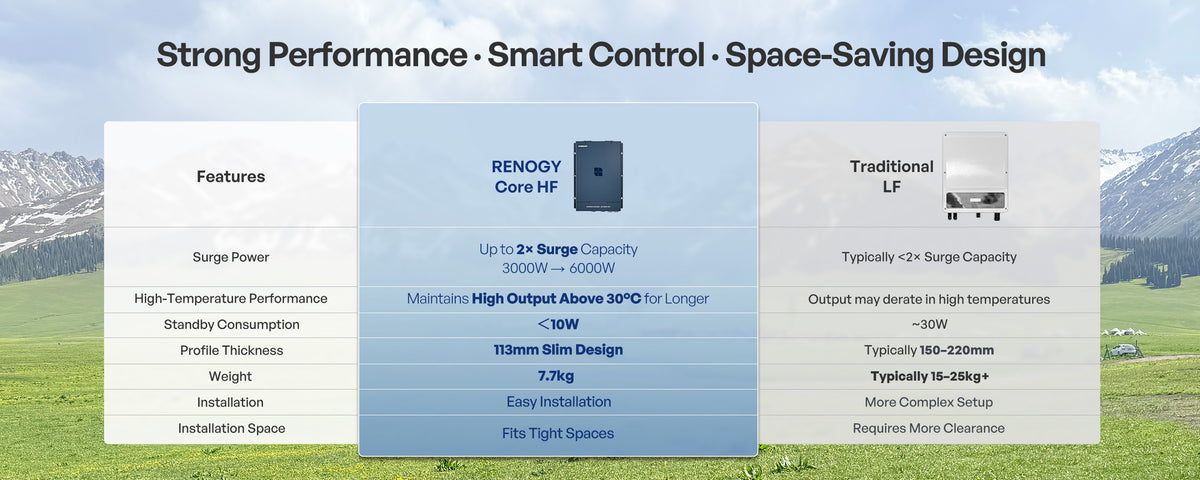

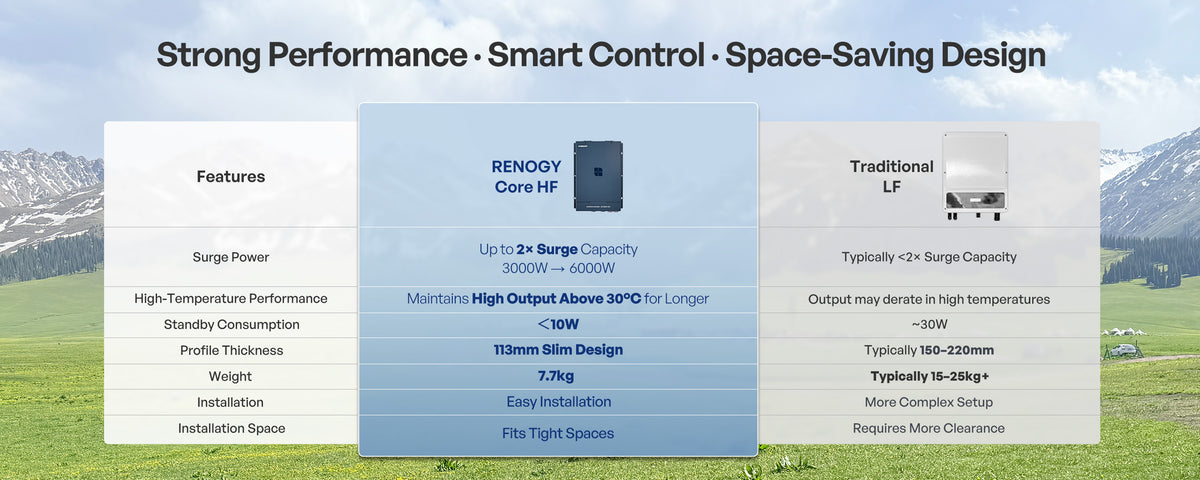

Why Choose RENOGY Pure Sine Wave HF Inverter Chargers?
Reliable Power

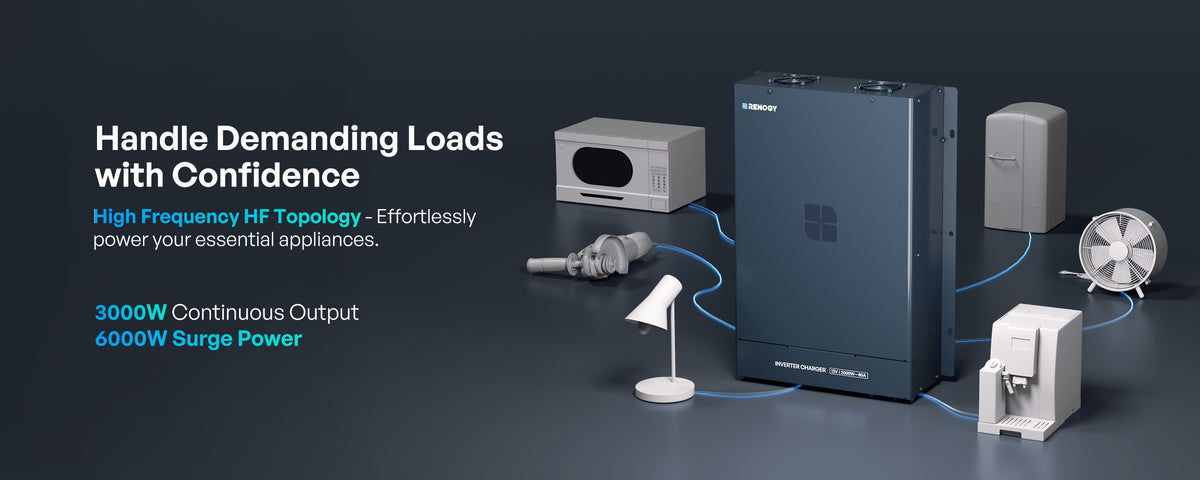

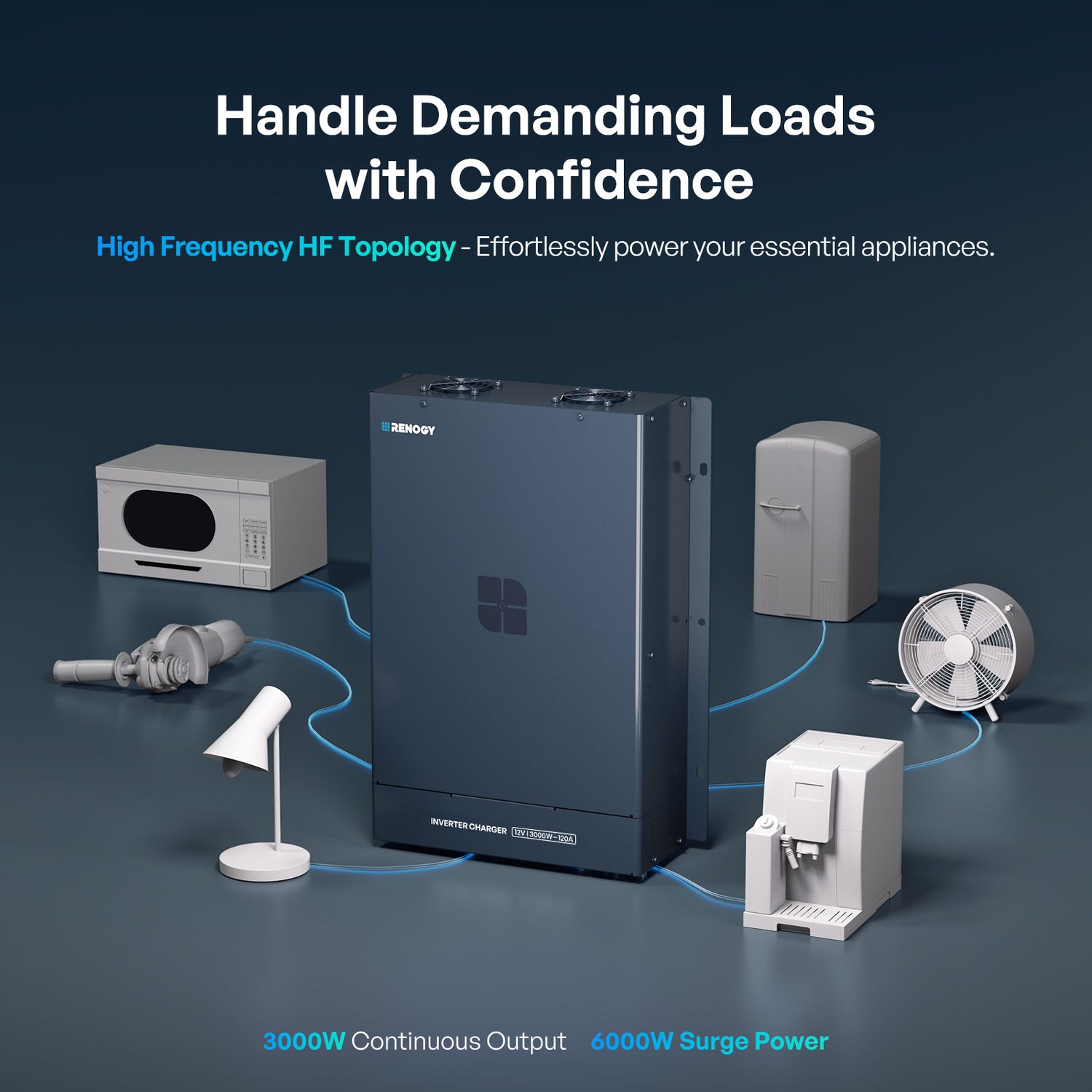

Strong Load Support
Power. Charge. One System. Simplified.
Run your essentials on battery, recharge via grid power when available, all in one compact unit.
Keep Power On During Outages
When grid or shore power fails, the inverter charger automatically switches to battery power in under 20ms to help keep essential devices running.

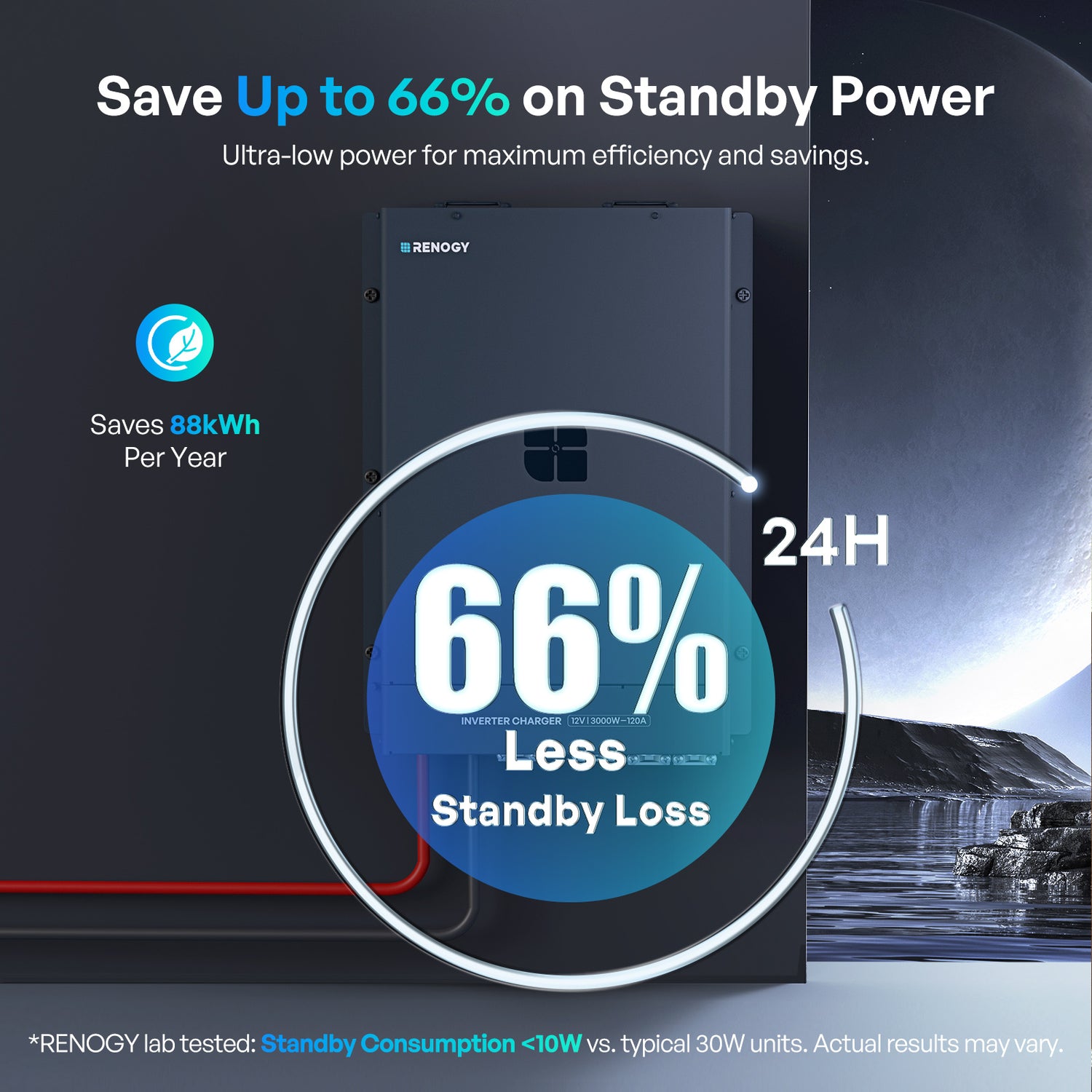

66% Less Standby Loss VS. 30W Units
Cut Standby Loss. Maximize Savings.Consumes less energy when idle, saving battery power for longer off-grid operation.
Stay Powered And Prepared Anytime
Power your Motorhome on the road and recharge with shore power at camp
Easier Setup. Smarter Off-Grid Power.
Pair with Renogy batteries, solar panels, and controllers to build a complete system with less guesswork.

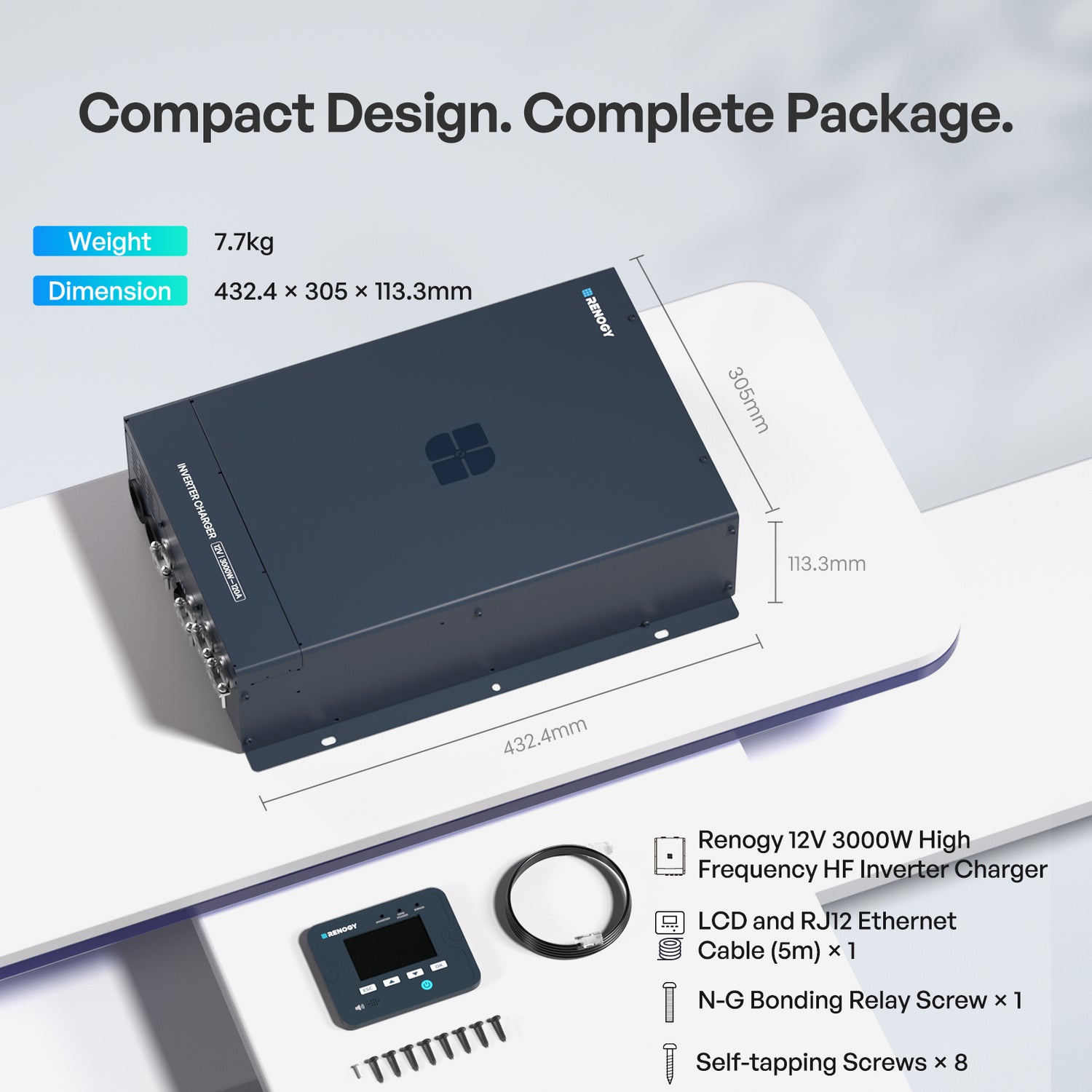

Package Includeds
Renogy 12V 3000W HF Inverter Charger
x 1
User Manual
x 1
LCD and RJ12 Ethernet Cable (5m)
x 1
M3*8 mm N-G Bonding Relay Screw
x 1
ST6.3*16 mm Self-tapping Screws
x 8
Specs
Rated Output Power @86°F (30°C)
3000W
Surge Power (100 ms)
6000W
Surge Power (3 seconds)
4500W
Nominal Output Voltage RMS
3600W
Nominal Output Voltage RMS
230(±3%)V AC
Output Frequency
50Hz (±0.1Hz) (Default) / 60Hz (±0.1Hz)
Output Wave Form
Pure Sine Wave
Nominal Input Voltage
12V DC
Input Voltage Range
9V to 16.5V DC (±0.3V) (Full load 10.5V to 15.5V DC)
Short Circuit Protection
Software Protection
Total Harmonics Distortion (THD)
< 4% (Resistance load)
Maximum Nominal Efficiency
91% peak
No Load Power Consumption
<10W
Operating Temperature Range
-4°F to 122°F / -20°C to 50°C (Output power degrading at 86°F/30°C or higher)
Storage Temperature
-22°F to 158°F / -30°C to 70°C
Dimensions
17.02 x 12.01 x 4.46 in (432.4 x 305 x 113.3 mm)
Weight
16.98 lbs / 7.7 kg
