Description
The Renogy 100W Solar Power Starter Kit is perfect for new customers wanting to get a start in solar. The Starter Kit is great for off-grid applications; such as RVs; trailers; boats; sheds; and cabins — providing many benefits; including; but not limited to; quiet power production and grid independence. Adding a monocrystalline solar panel kit can extend your travels further then ever before.
This solar kit comes with the tools necessary for a new system: one Renogy 100W 12V Mono Solar Panels; one 30A PWM Wanderer Charge Controller; one 20ft 10AWG Solar Adaptor Kit; one 8ft 10AWG Tray Cable; and one set of Z-brackets. Start your solar adventure with a Renogy Starter Kit.
If you have any questions regarding this product, please submit a case.
Key Features
Efficient- High solar cell efficiency : Monocrystalline 18.4%
- Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments
- EL tested solar modules; no hot-spot heating guaranteed
- Corrosion-resistant aluminum frame for extended outdoor use; allowing the panels to last for decades
- TPT back sheet ensures smooth performance over a long period of time
- IP65 rated junction box provides complete protection against environmental particles and low pressure water jets
- Sealed; Gel and Flooded charging algorithim ready
- 4-Stage battery charging process for a rapid; efficient; and safe battery charging
- The Renogy Wanderer is equipped with multiple electronic protections; overcharging; overload; short-circuit and reversed polarity
- Pre-drilled holes on the back of the panel allow for fast and secure mounting
- With the Renogy Wanderer 30A PWM Charge Controller; you can expand your system up to a maximum of 400W.
Package Includes
|
100W Monocrystalline Panel(Compact Design)
1 x |
Renogy Wanderer 30A PWM Charge Controller
1 x |
|
1 x |
Renogy 20ft 10AWG Solar Adaptor Kit (A pair)
1 x |
|
Renogy 8ft 10AWG Tray Cables (A pair)
1 x |

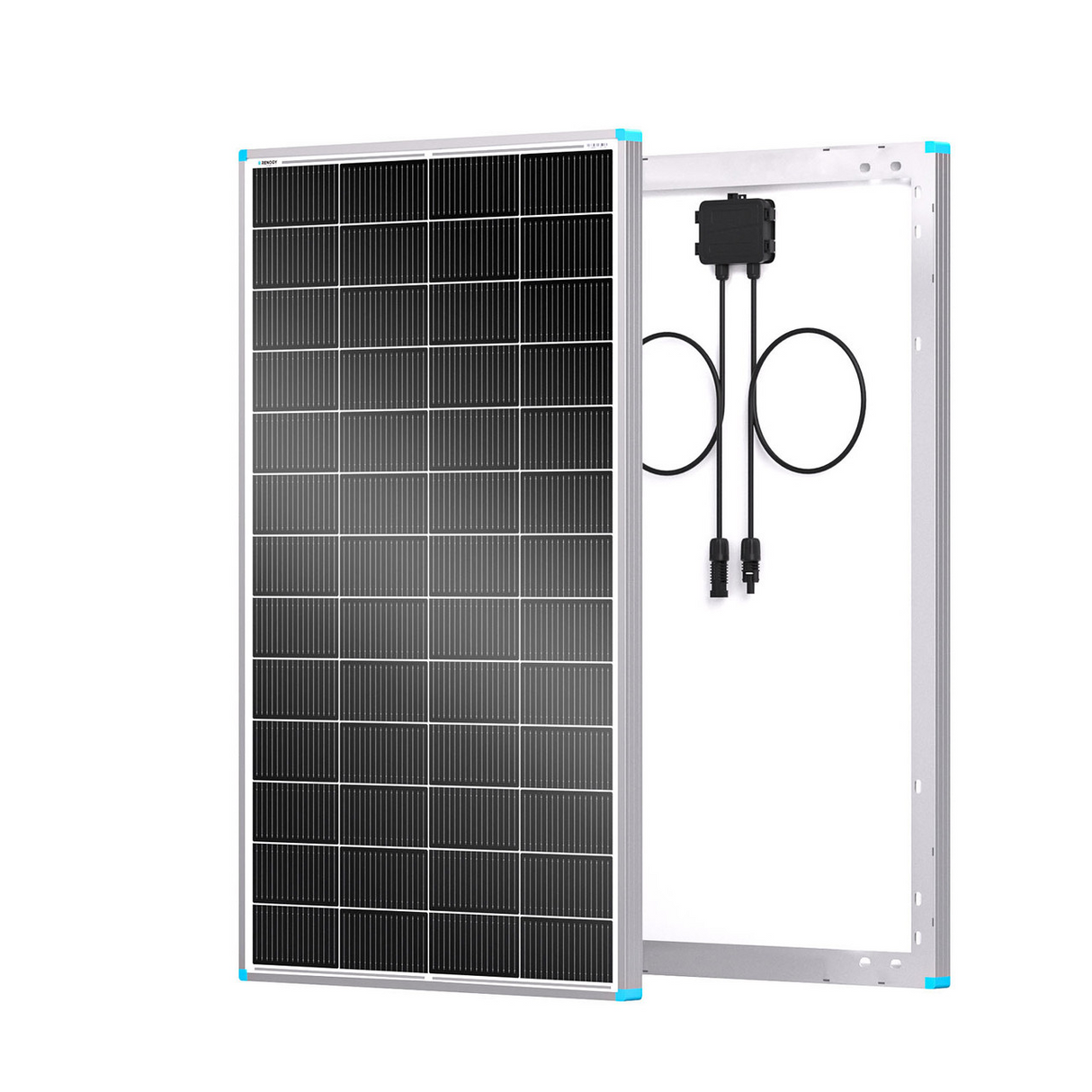

| Renogy 100W Monocrystalline Solar Panel |
The Renogy Wanderer - 30A PWM Negative-Ground Charge Controller |
|---|---|
| Maximum Power: 100W | Norminal Voltage: 12VDC |
| Maximum System Voltage:600V DC (UL) | Rated Charge Current: 30A |
| Open-Circuit Voltage (Voc): 21.6V | Max. PV Input Voltage: 25 VDC |
| Short-Circuit Current (Isc): 6.24A | Max. PV Input Power: 400W (12V) |
| Optimum Operating Voltage (Vmp): 17.9V | |
| Optimum Operating Current (Imp): 5.72A | |
| Weight: 14.3lbs(6.5kg) | |
| Dimensions: 42.2 X 19.6 X 1.38 in(1074x498x35mm) |
| Renogy 8ft 10AWG Tray Cables (A pair) | Mounting Z Brackets (Set) |
|---|---|
| Length: 8ft | Eight Long Cap Bolts and Four Short Bolts |
| AWG: 10 | Four Spring Washers and Four Washers |
| Rating Voltage: 600/1000V | Four Z Shape Solar Panel Brackets |
| Temperature: -40°F to +185°F | Four Nuts |
| Renogy Adaptor Kit (Set) | |
|---|---|
| Length: 20ft | |
| AWG: 10 | |
| Rating Voltage: 600/1000V | |
| Temperature: -40°F to +185°F |
Warranty Information
| Panels |
25-year transferable power output warranty: 5 year/95% efficiency rate; 10 year/90% efficiency rate; 25-year/80% efficiency rate 5-year material and workmanship warranty |
| Accessories | 1-year material warranty |
Certification
 |
|||
 |
|||
 |
|||
| Please click the links below to download the manuals: | |||
| 30A PWM Wanderer Li Charge Controller | |||
| Mounting Z Brackets | |||
