How Many Solar Panels Do I Need UK? Panel Size, System Sizing & Home Power Guide

How Many Solar Panels do I Need?

To determinehow many solar panels to power house, you must account for your location's sunlight. Use the formula:

Daily Watt-Hours Needed ÷ Peak Sun Hours ÷ Efficiency Factor (0.8) = Solar Panel Watts Required.

Here,Peak Sun Hoursrefers to the average equivalent hours of full sun your location receives per day (e.g., 4-5 hours in sunny climates, 2-3 in cloudier ones), while theEfficiency Factor of 0.8accounts for inevitable real-world losses in wiring, heat, and panel performance. This calculation ensures your solar array can reliably replenish your daily energy use.

Example:1500Wh per day with 4 peak sun hours: 1500Wh ÷ 4h ÷ 0.8 = 469W. You'd need approximately 470W of solar panels.

Typical House Type (UK)	Avg Annual Electricity Use (kWh/y)	Solar System Size (kW)	Solar Panels Needed (400W)
Small house / 1‑2 bed	~2,700 kWh	3.0 – 3.5 kW	8 – 9
Medium house / 2‑3 bed	~2,900 – 3,100 kWh	3.5 – 4.0 kW	9 – 10
Larger house / 3‑4 bed	~3,400 – 4,000 kWh	4.0 – 4.5 kW	10 – 11

What Size Solar System do I need?

Once you've figured out how many solar panels you need, the next question is "what size solar system do I need". A complete solar setup includes solar panels, an inverter, a charge controller, and a battery to store any excess power for later use. Let's take a closer look at these components and how they fit together.



A functional off-grid power system includes:

• Solar Panels:Capture sunlight and convert it into direct current (DC) electricity.
• Charge Controller:Regulates the power flowing from the solar panels to the battery, preventing overcharging and damage.
• Battery:Stores the DC electricity for later use when the sun isn't shining.
• Inverter:Converts the stored DC electricity from the battery into alternating current (AC) electricity to power standard household appliances.

Why You Need Solar Kits?

Investing in a pre-configured solar kit offers significant advantages over a piecemeal approach:

• One-Stop System:Everything you need arrives in one box, saving you research time and complexity.
• Cost Saving:Solar Kits are often more affordable than buying components individually.
• Guaranteed Compatibility:Renogy ensures the battery, charge controller, and inverter work seamlessly together.
• Tech Support:You can contact for troubleshooting and warranty claims.
• Simplified Installation:With matched components and comprehensive instructions, setup solar kit is more straightforward.

How to Choose a Solar System?

Follow this three-step process to calculate solar system size and find the perfect match for your lifestyle.

Step 1. Define Where the Solar Kits Will Be Used

The first and most important step is to figure out exactly how you plan to use your solar power. Your lifestyle and primary application, whether it's for a vehicle or a home, will define the system's necessary size, capacity, and overall design.

• RV:Focuses on powering household-style appliances like a fridge, lights, water pump, air conditioner, and microwave. These solar systems are typically larger, with higher capacity, and are often permanently installed.
• 4x4:Prioritizes portability, weight, and compact size. Powers essentials like a portable fridge/freezer, LED lighting, communication devices, and gadget charging. Systems are often modular and designed for rugged conditions.
• Home Back Up:Designed to power essential home circuits (e.g., refrigerator, sump pump, home networking/security) during grid outages. These are high-capacity, permanently installed systems engineered for seamless automatic switchover to maintain critical functions.

Step 2. List the Appliances You Will Run

You can't calculate watt hours for battery sizing if you don't know what you're powering. Create a list of every electrical device you plan to use and estimate its daily usage hours.

How to Find the Power Rating (Watts):

1. Look for a label, specification sheet, or engraved information on the device itself.
2. Use the conversion formula if needed:Amps (A) x Volts (V) = Watts (W).

TIPS For appliances with motors (like fans or water pumps), distinguish between their lowerrunning wattsand their higherstarting surge watts. Use the running watts for your daily energy consumption calculation, but note the surge for inverter sizing.

Step 3. Calculate Solar System Size

This is the core of determining what size solar system you need.

1. Size Your Battery (Calculate Your Daily Energy Needs)

This part is to determine how much energy you need to store for use at night or on cloudy days.

First, you should calculate daily Watt-Hours (Wh). For each appliance:Appliance Watts × Hours Used Per Day = Watt-Hours (Wh) per Day

Then sum the Wh for all appliances to get yourTotal Daily Watt-Hours.

Since battery capacity is rated in Amp-Hours (Ah), you need to convert our energy needs to this unit:Total Daily Watt-Hours ÷ System Voltage (12V) = Amp-Hours (Ah) Used Per Day

Finally,add a 20-30% safety bufferfor system loss and future demand.

Example:

• If your total is 1500Wh per day: 1500Wh ÷ 12V = 125Ah.
• With a 30% buffer: 125Ah x 1.3 = ~163Ah.
• You'd need a battery with at least 160-200Ah capacity.

2. Size Your Inverter (Determine Your Power Output)

The inverter converts battery power (DC) to usable household power (AC). This part determines what you can run simultaneously.

• Continuous Power Rating:This is the wattage the inverter can reliably deliver over an extended period. It mustexceed the sum of the running wattsof all appliances you plan to operate simultaneously.
• Surge Power Rating:Also known as peak power, this is the higher wattage the inverter can supply for a short duration to start motor-driven appliances like refrigerators, pumps, or power tools. This rating mustexceed the highest starting surge wattsof any single device in your setup.

Example:Running a 50W TV (50W) and a 700W microwave (700W) simultaneously requires 750W. Their highest surge might be the fridge at 1200W. Choose an inverter with a continuous rating >750W (e.g., 1000W) and a surge rating >1200W.

Solar Kits Recommendations

Here’s how the calculation translates into real-world solar power system size needs.

Scenario A: 4x4 Weekend Warrior (3 Days Off-Grid)

Appliances

• 45L Portable Fridge:30W, running 24 hours = 720 Wh
• LED Camp Lights:10W, for 4 hours = 40 Wh
• Phone/Tablet Charging:20W, for 3 hours = 60 Wh
• Total Daily Energy Need:720 + 40 + 60 =~820 Watt-Hours (Wh)

Translate Needs into System Specifications

• Battery Size:820 Wh ÷ 12V =~68 Ahper day. For 3 days without sun and a safety buffer, you'd need~200+ Ah capacity.
• Solar Power:To reliably recharge daily, a300-400W solar panelis recommended (based on average sun hours).
• Inverter:To run small appliances (like a kettle or blender) simultaneously, a2000W inverteroffers comfortable headroom.

Solar Kit Match

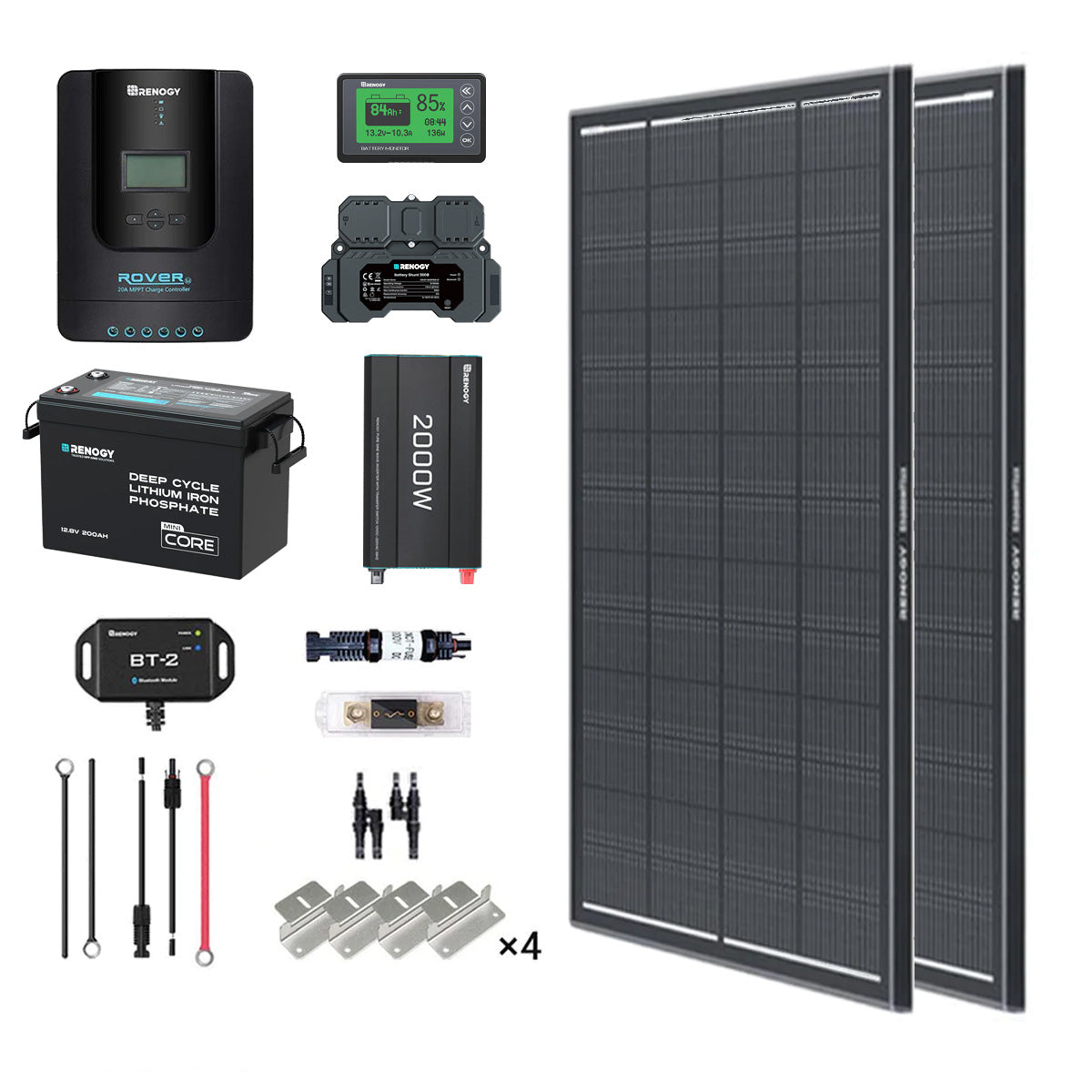

Based on your calculated demands, we propose using an all-in-one solution such as theRenogy 2kWh 400W 12V Solar Panel System. Here's how its specifications match your experience and provide outstanding value:

Your Calculated Need	Renogy 200Ah Kit Spec	Why It's a Great Fit
200Ah Core Mini Lithium Battery	2.56 kWh (200Ah) LiFePO₄	Provides ample power for 3+ days, exceeding your baseline for peace of mind.
300-400W Solar	Anti-Shading Solar Panel	High-efficiency panels recharge the battery faster, even in less-than-ideal light.
2000W Inverter	2000W Pure Sine Wave Inverter	Safely powers sensitive electronics and lets you run small kitchen appliances.
Efficient Charging System	40A DC-DC & MPPT Controller	Charges from both solar and your vehicle's alternator while driving.

Scenario B: RV Family Week-Long Trip

Now list your core appliances and estimate daily use. Here’s a typical calculation for a family RV:

Appliance	Power (Watts)	Hours Used/Day	Daily Energy (Watt-Hours)
12V Fridge	60W	24 hours	1,440 Wh
LED Interior Lights	30W	5 hours	150 Wh
Water Pump	60W	1 hour	60 Wh
Laptop / TV	100W	4 hours	400 Wh
Microwave	700W	0.5 hours	350 Wh
Total Daily Energy Need	~2,800 Wh

Translate Needs into System Specifications

• Battery:2,800Wh ÷ 12V = ~233Ah.Adding a 20-30% buffer for efficiency and future use leads to a recommended300Ah (3.84kWh) lithium battery.
• Solar Panel:To recharge daily (4 sun hours): 2,800Wh ÷ 4h ÷ 0.8 = ~875W. A600Warray is a strong foundation, supplemented by driving or occasional shore power.
• Inverter:Must handle simultaneous loads (e.g., microwave + lights). A2000W pure sine wave inverteris ideal.

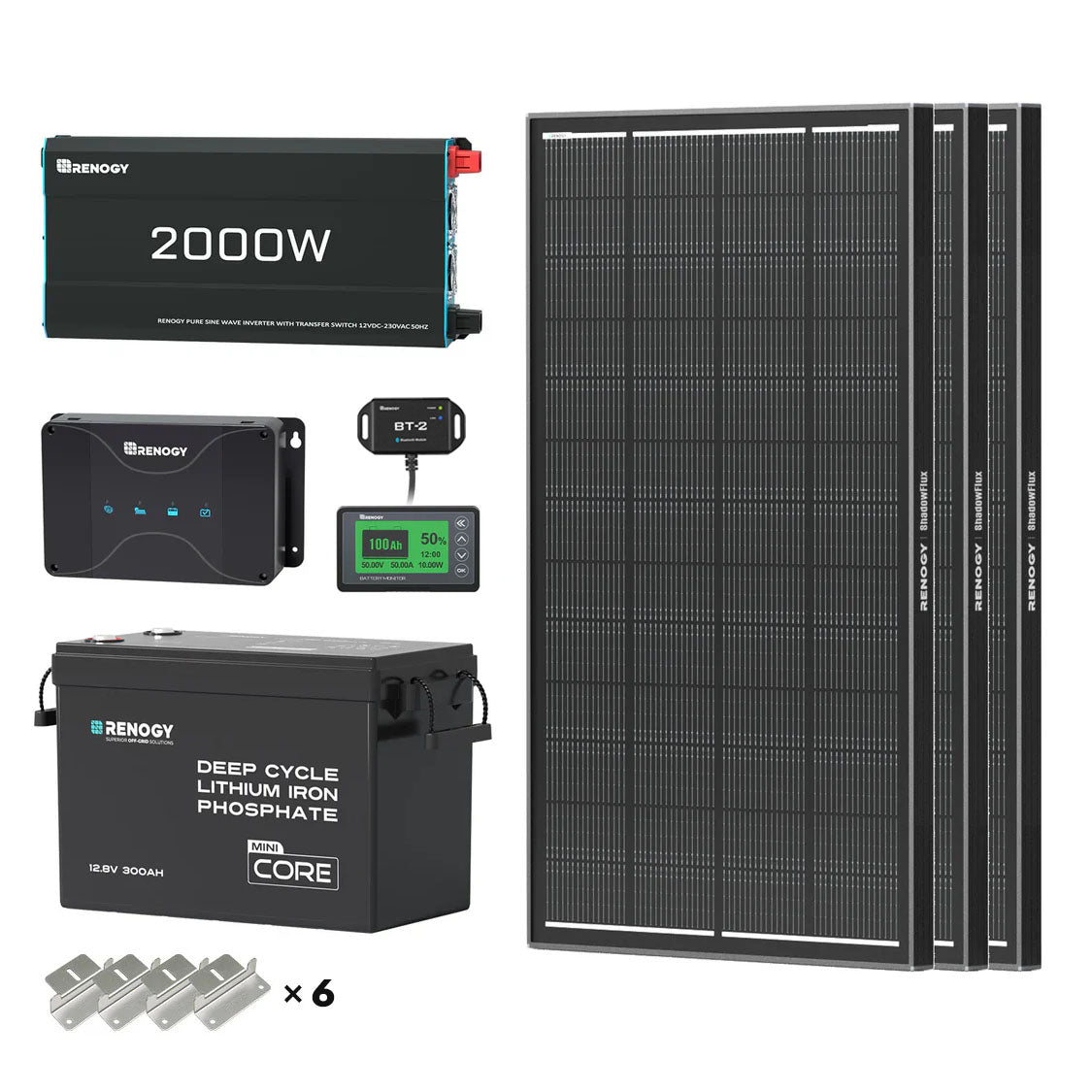

For this profile, we'd recommend theRenogy 300Ah Lithium Power Kit. It's engineered for your off-grid lifestyle.

✅Perfect Capacity:With3.84kWh of LiFePO₄ storageand a2000W inverter, it reliably cover your ~2,800Wh daily load.

✅Travel-Optimized:600W ShadowFlux solar panelsperform better in partial shade; theDC-DC chargertops up the battery while driving.

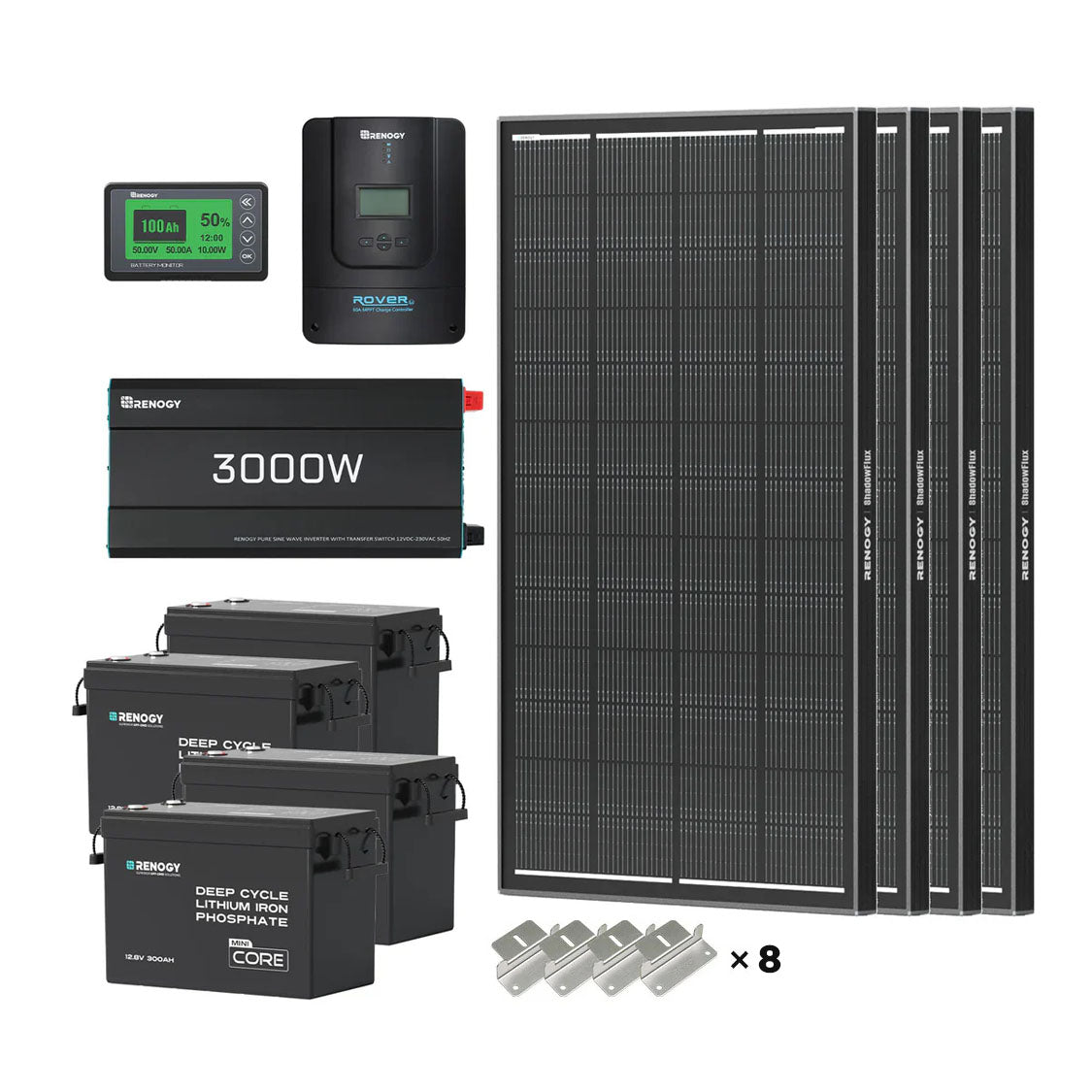

Scenario C: The Full-Time RVer or Remote Homeowner

If you live full-time on the road or off-grid, you need power that supports a complete lifestyle. Here's how to choose the right solar system.

Your Calculated Need	Required System Scale	Renogy Solar Kit Spec	Why It's the Right Fit
Daily Use: 5,000Wh+	Battery:15-36kWh Bank	15.36kWh LiFePO4 Battery	Engineered for Your Load:Provides multi-day autonomy in poor weather. The large LiFePO4 battery bank supports high-load appliances while maintaining voltage stability, even in hot conditions or partial shade. This ensures your essentials (like the fridge) run without interruption.
Peak Load: Kitchen + AC	Inverter:3000W+ Pure Sine Wave	3000W Pure Sine Wave Inverter	Delivers True Independence:Handles simultaneous high-demand appliances (e.g., induction cooktop + microwave) without a hiccup. The pure sine wave output is safe for sensitive electronics, enabling longer, undisturbed stays in remote locations with quiet nights and consistent power.
Recharge Rate	Solar:1500W+ Array with high-amp MPPT	High-Efficiency MPPT & Compatibility with High-Power Solar Panels (e.g., ShadowFlux N-Type)	A Long-Term Asset:Captures enough sun in 4-5 peak hours to refill your large battery bank daily. With durable components, long warranties, and scalable architecture, it functions as mobile energy infrastructure that lowers long-term costs, reduces generator wear, and adds tangible value to your off-grid build.

→ Explore the Renogy 15.36kWh Off-Grid Solar Kit

Conclusion

Choosing the right solar system size doesn't have to be guesswork. By clearly defining your needs and following the key calculation steps for your battery, inverter, and solar panels, you can confidently select a kit that delivers reliable, independent power. If you prefer to skip the calculations and jump straight to an all-in-one solution, a comprehensive solar kit is designed to handle everything seamlessly.
