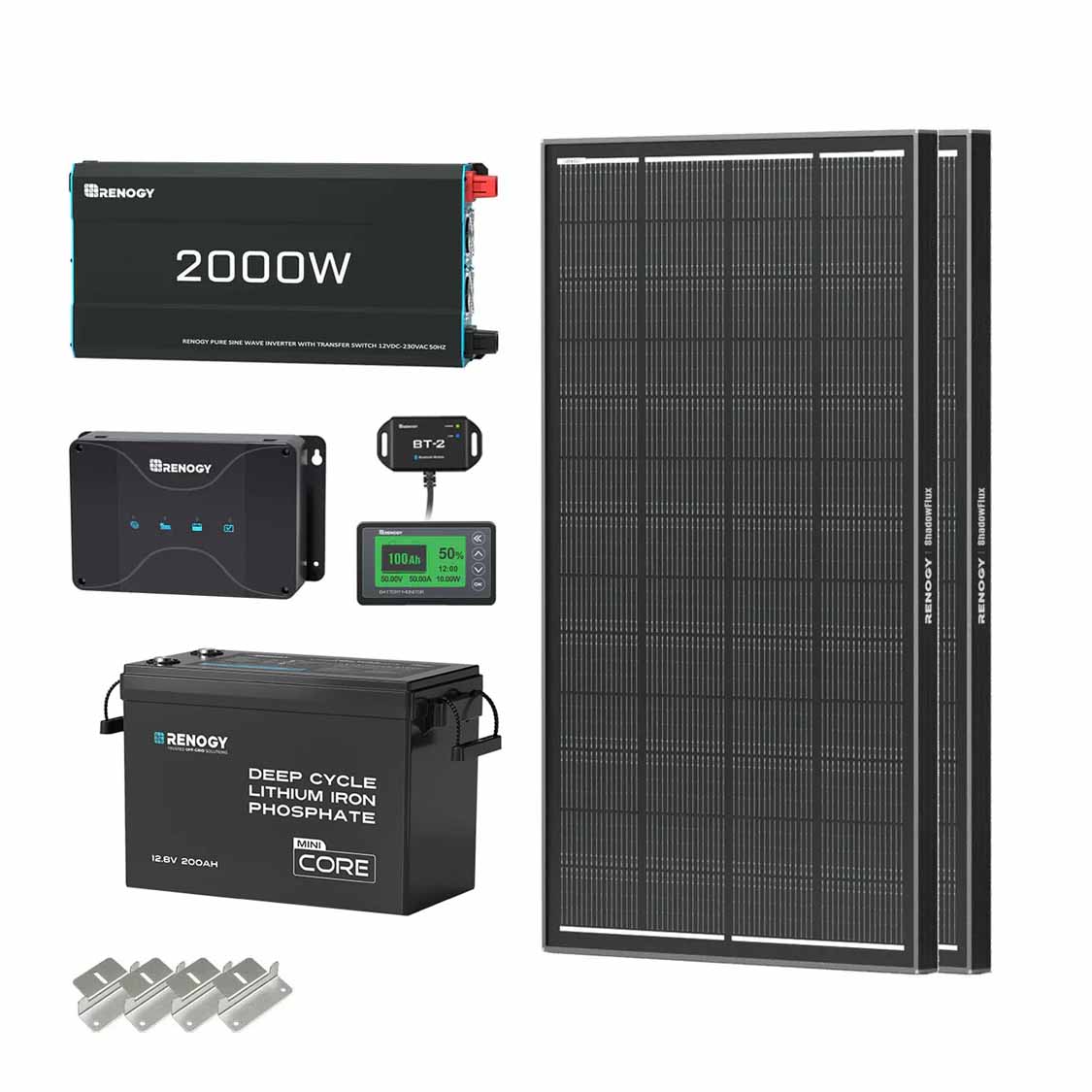

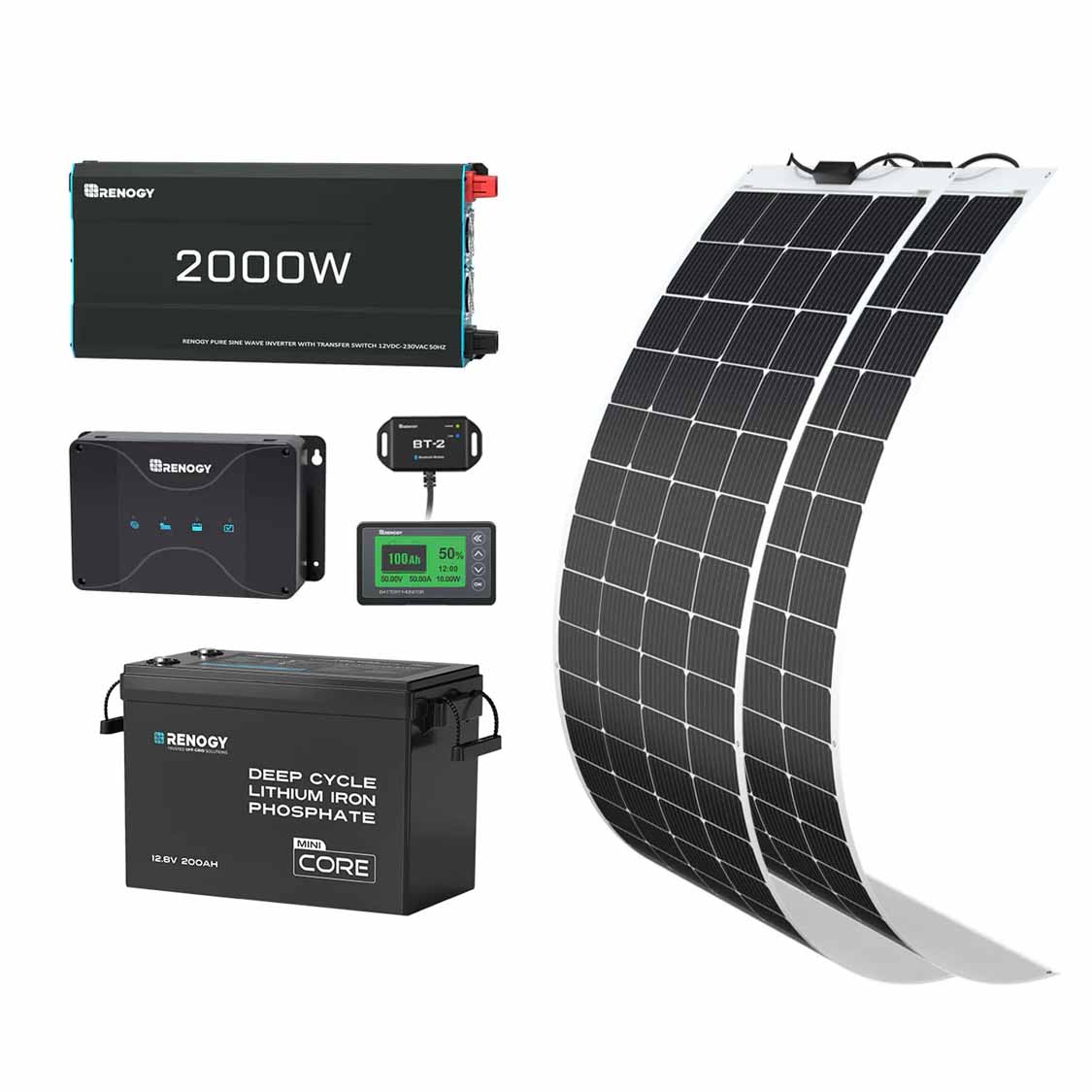

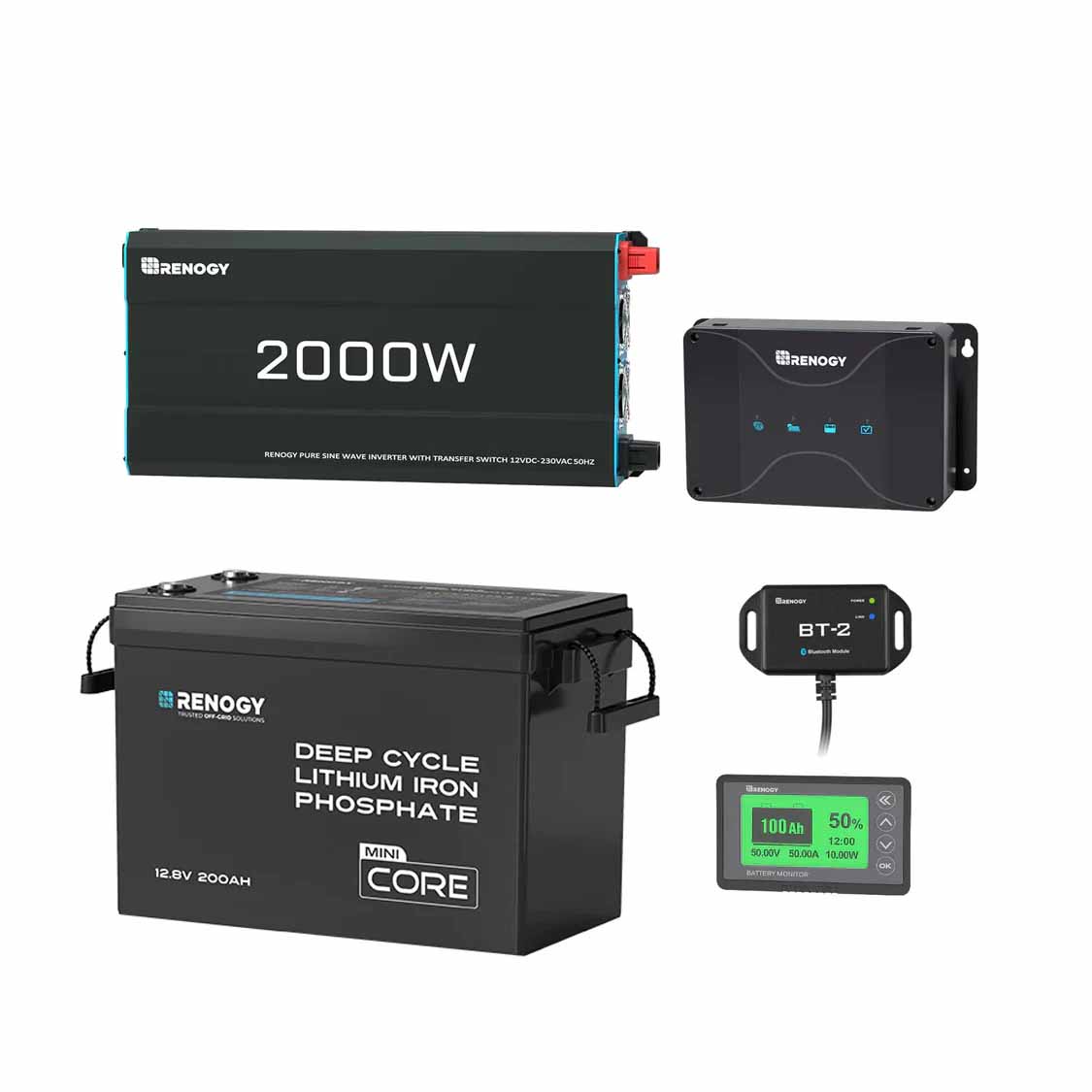

Renogy 200Ah Lithium Power Kit

Tired of worrying about power on your caravan trips? This Renogy 200Ah Caravan Power Kit is your all-in-one solution for total energy freedom. Engineered for the outdoors, it delivers reliable power to run your fridge, lights, TV, and all your essentials for days on end. Stop relying on crowded caravan parks and noisy generators. This complete kit is designed to work together seamlessly, giving you the confidence to explore further and stay off-grid longer.

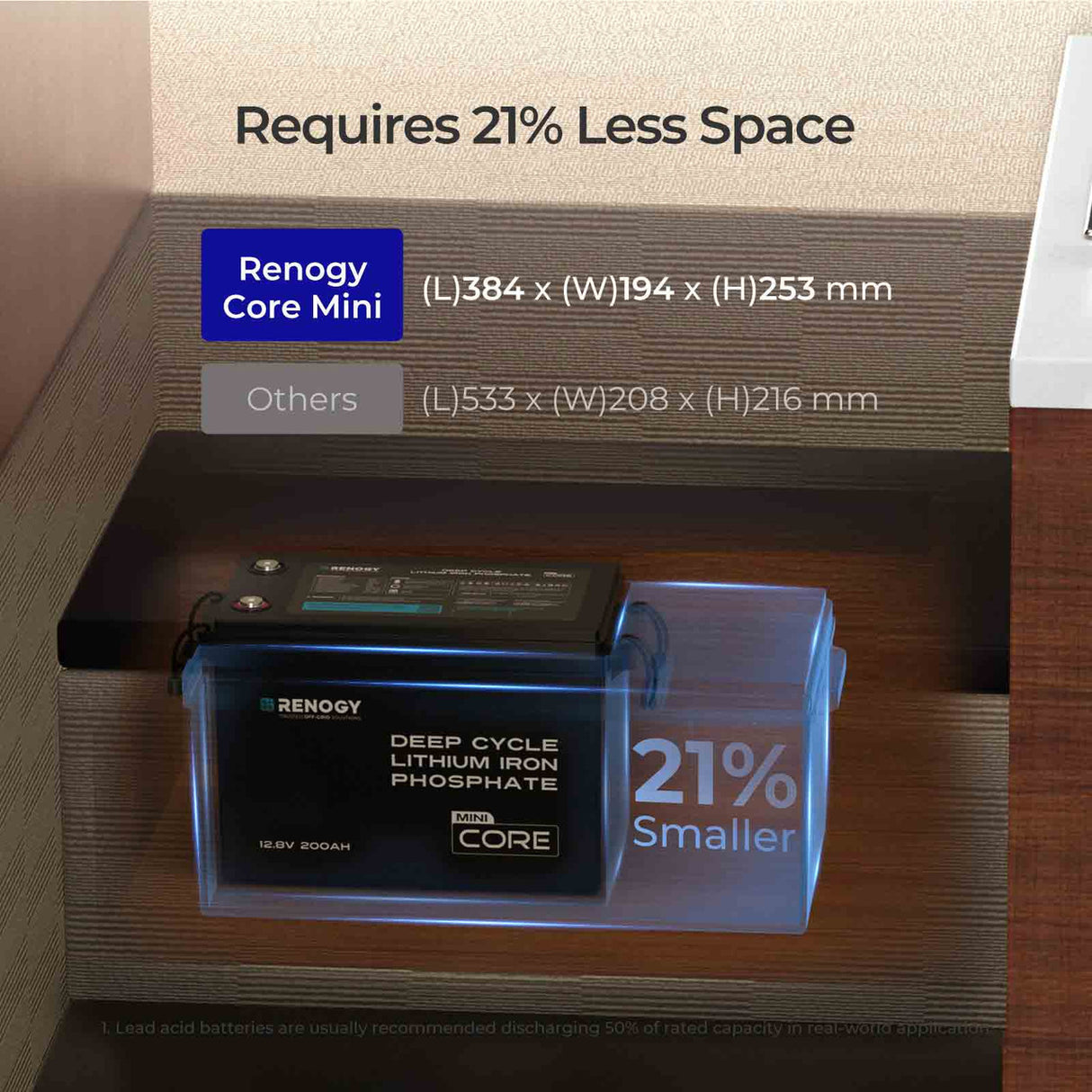

Smaller, Sleeker, Still Renogy Strong.

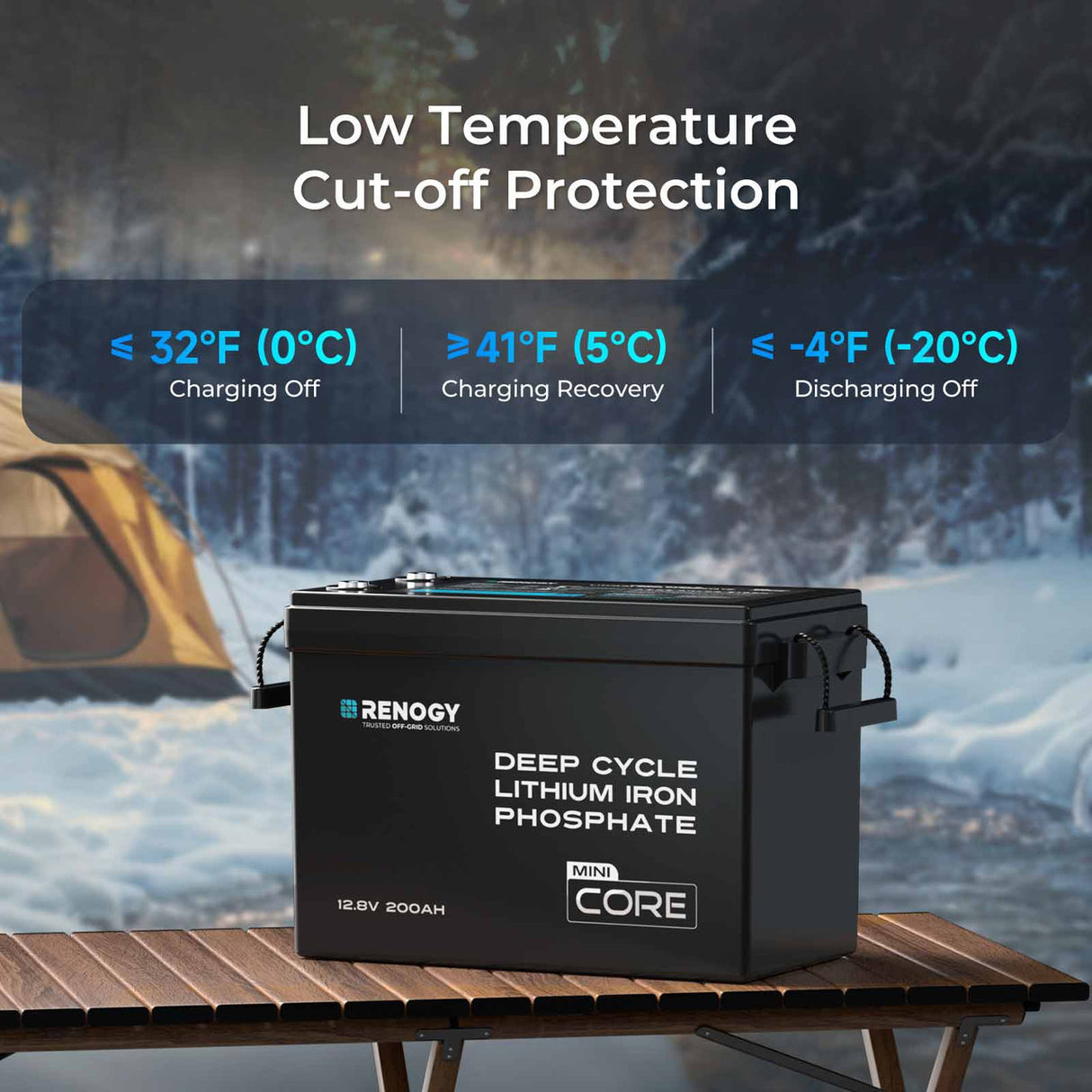

Power up with compact confidence! The Renogy 12V 200Ah Core Mini LiFePO4 Battery is 21% smaller than its counterparts while maintaining a robust 200A BMS plus a low-temperature cut-off for enhanced protection. Perfect for both travel and home use, it’s the ideal solution for versatile power demands.

2000W Pure Sine Wave Inverter

Clean Power for Sensitive Electronics: Pure sine wave output (THD<3%) safely runs laptops, CPAP machines, and other sensitive devices. Strong Surge Power: Handles the startup surge of many appliances, reliably powering your caravan's needs. Seamless Backup: Integrated UPS function provides a near-instantaneous switchover for critical devices.

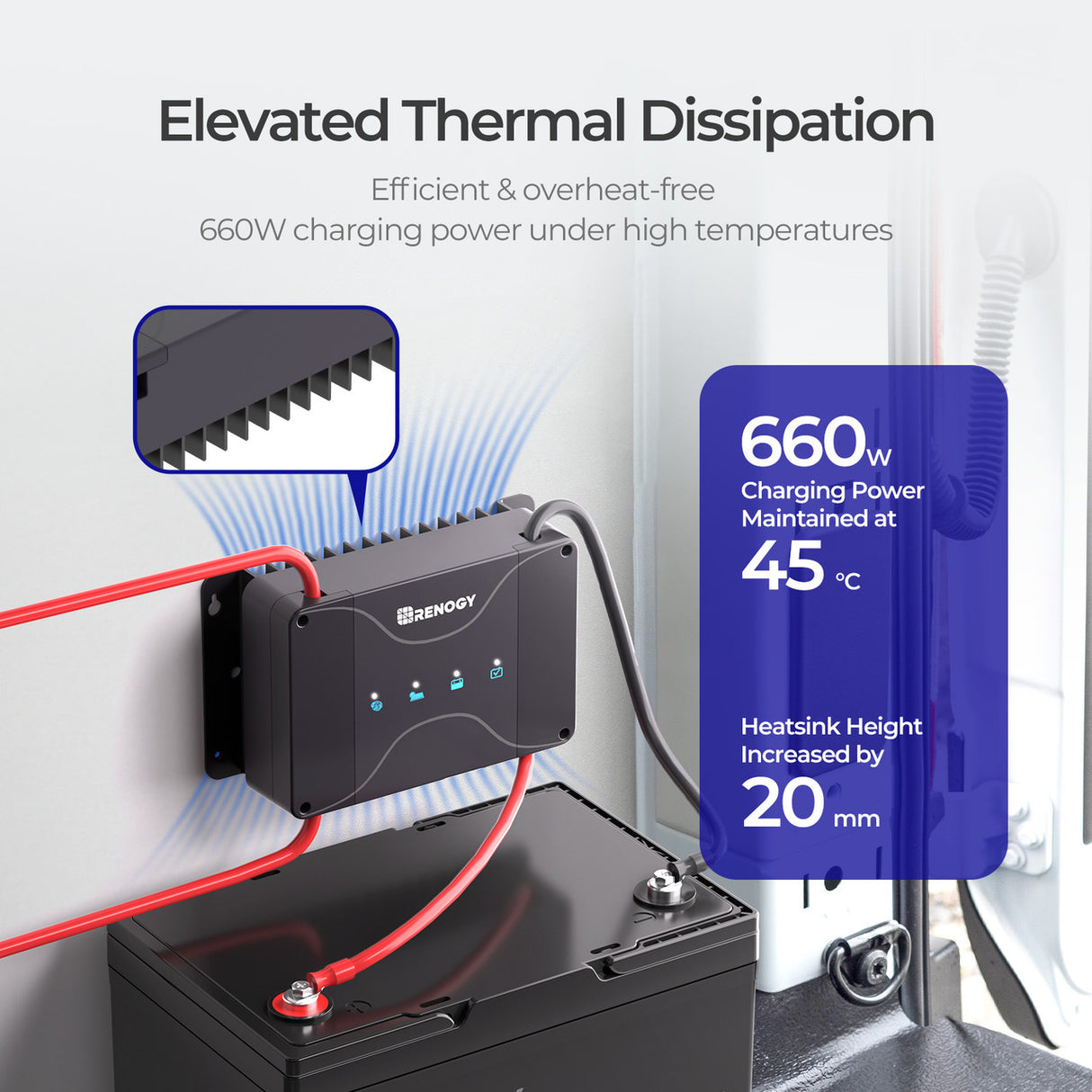

12V 50A DC-DC On-Board Battery Charger with MPPT

Renogy's enhanced DC-DC Dual Input Battery Charger now supports up to 50V solar input, enabling faster and more efficient house battery charging.

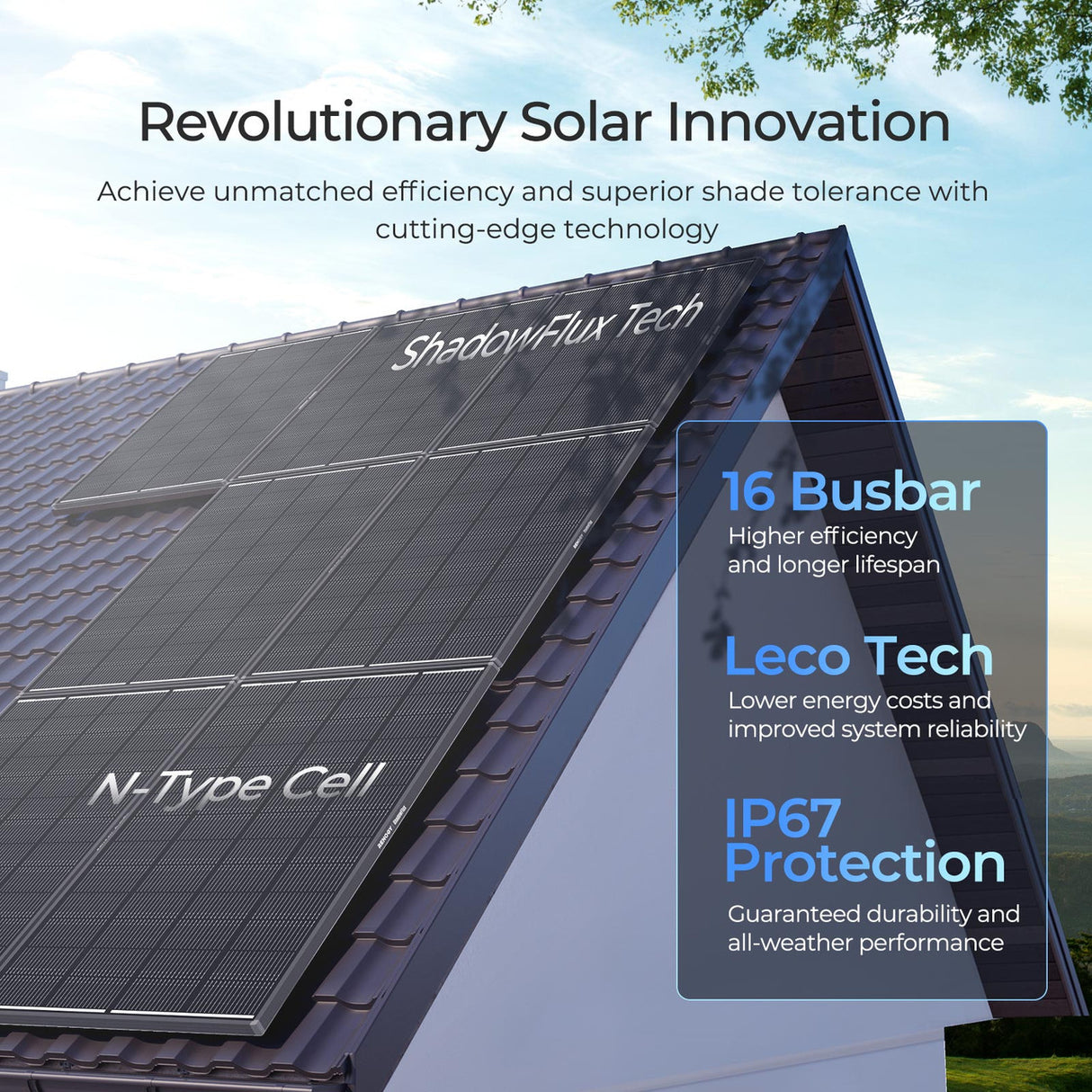

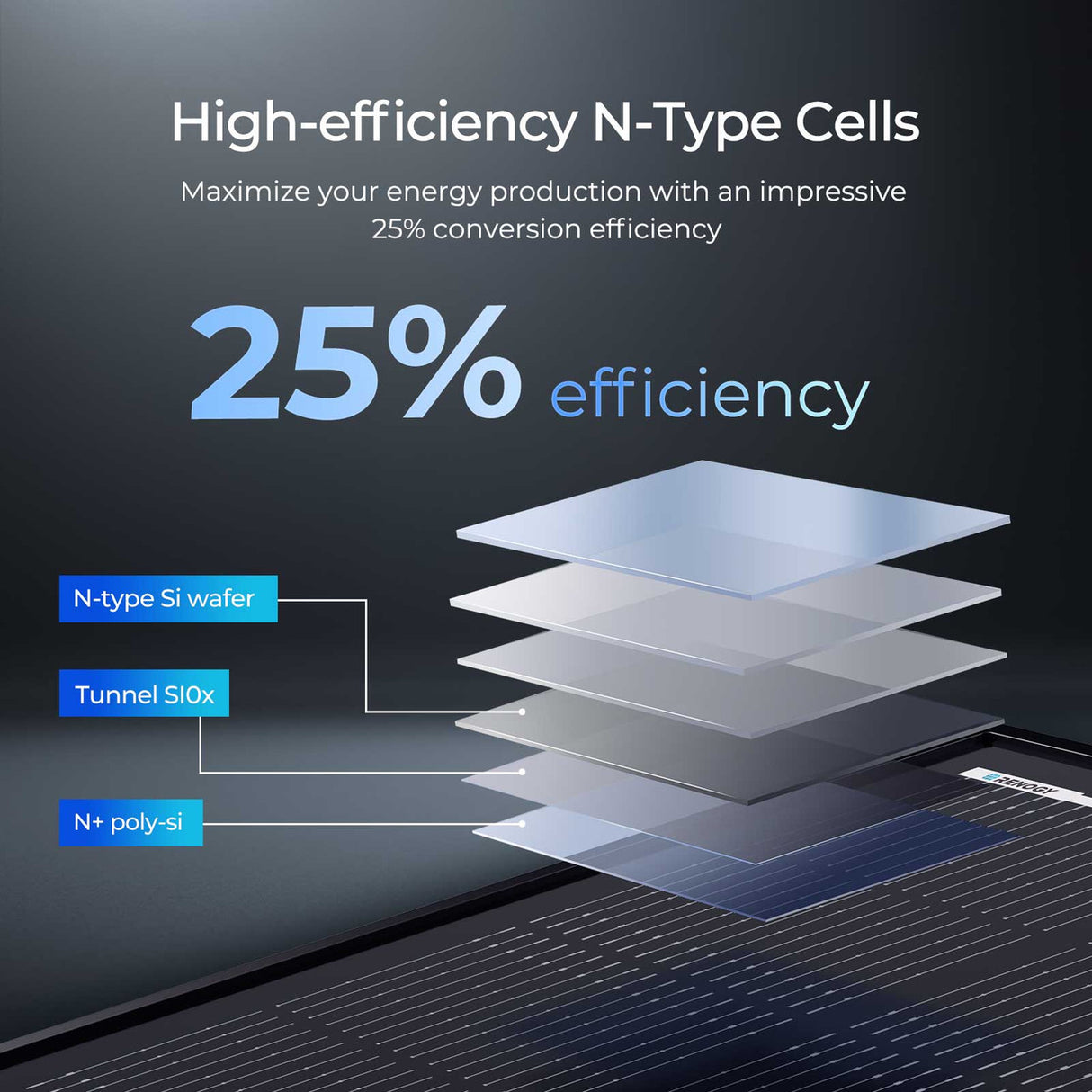

200W ShadowFlux Anti-shading N-Type Solar Panel

Revolutionize your solar setup with the market’s first N-Type solar panel, powered by advanced ShadowFlux anti-shading technology for stable, uninterrupted performance—day or night.

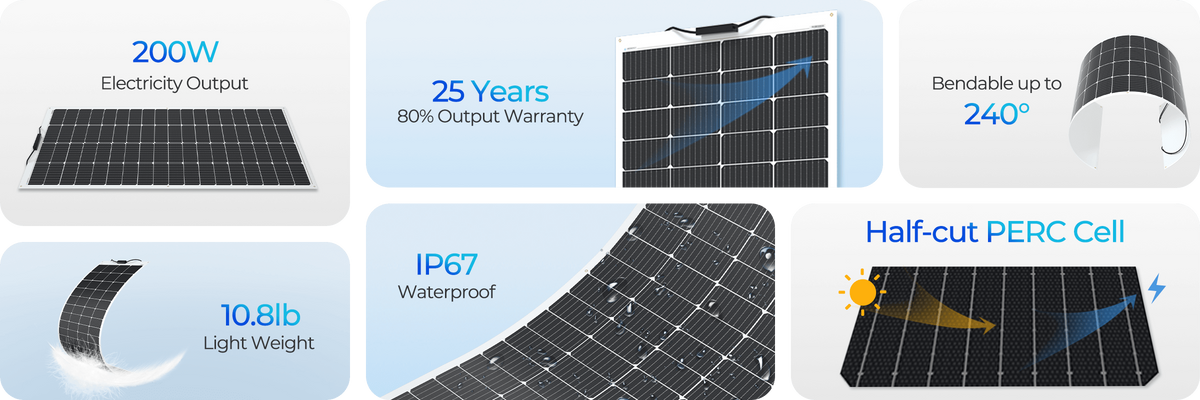

200 Watt 12 Volt Flexible Monocrystalline Solar Panel

500A Bluetooth Battery Monitor

Complete System Insight: Accurately tracks voltage, current, power, and state-of-charge in real-time via your smartphone. Protect Your Investment: Programmable alarms for high/low voltage help prevent battery damage. Integrated System Advantage

Specification

Core Mini - 12.8V 200Ah Lithium Iron Phosphate Battery

Rated Capacity: 200Ah (0.5C, 25℃)
Voltage: 12V
Energy: 2560Wh
Cycle Life (0.5C/1C, 25℃): 5000 Cycles (80% DOD, 80% EOL)
Charge Temperature Range: 32°F to 131°F (0°C to 55°C)
Discharge Temperature Range: -4°F to 149°F (-20°C to 65°C)
Storage Temperature Range: -20°C to 60°C (-4°F to 140°F)
Operation Relative Humidity: 5% to 95%
Voltage Range: 10V to 14.6V
Maximum Continuous Charge Current: 100A
Maximum Continuous Discharge Current: 200A
Peak Discharge Current: 380A@10s
Dimension (L x W x H): 15.12×7.64×9.96 in/384×194×253 mm
Weight: 42.44 lbs / 19.25 kg
Terminal Bolt Size: M8×1.25×12 mm & M8×1.25×16 mm
Protection Rating: IP65

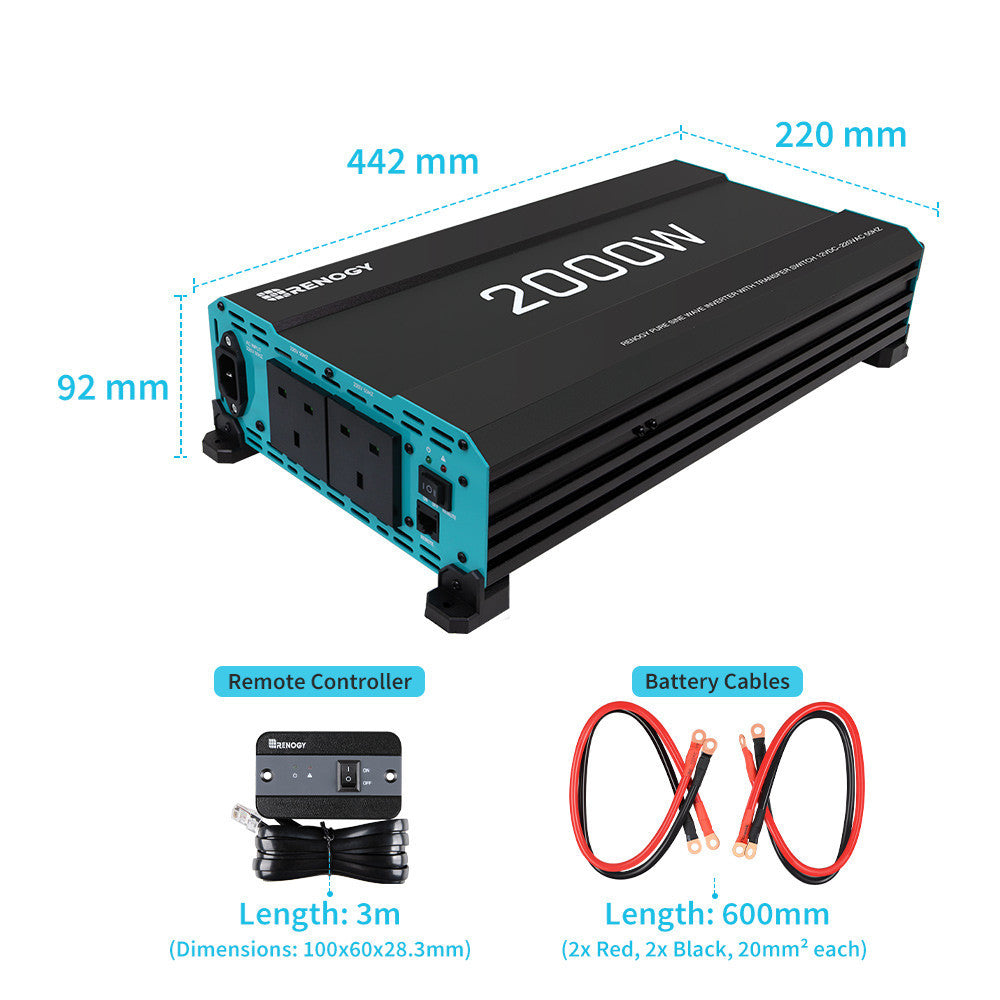

Renogy 2000W 12V Pure Sine Wave Inverter

Continuous Power
2000W
Surge Power (Peak Power)
4000W
Input Voltage
12VDC
Output Voltage
220VAC±10
Input Voltage Range
11-16Vdc
Static Current
1.3A
Input Voltage Range
11-16Vdc
Static Current
1.3A
Output Frequency (Nominal)
50Hz±0.3
Output Wave form
Pure Sine Wave
Low Voltage Shutdown
10Vdc
Recover from low voltage protection
Support
High Voltage Shutdown
16.3Vdc
Battery supply & AC main transfer time
Within 50mS
Maximum Efficiency
90%
Working Temperature
0°C~40°C
Dimensions
442*220*92 mm
Weight
4.8Kg

12V 50A DC-DC On-Board Battery Charger ELECTRICAL DATA

System Voltage
12V-12V
Input Voltage
50 VDC
Output Voltage
9-16 VDC
Alternator Input
Traditional Alternator: 13.2-16 VDC
Smart Alternator (Euro 6): 12-16 VDC
Maximum Output Current Rating
50A
Output Power
660W
Battery Types
AGM/SLD , GEL ,FLD ,LI,USER
Input Fuse Rating
75A-100A
Output Fuse Rating
75A-100A
Charging Efficiency
94%
Temperature Compensation
'-3mV / ℃ / 2V (Non-Lithium)
'0mV / ℃ / 2V (Lithium)
Idle Power Consumption
<30mA

200W ShadowFlux Anti-Shading N-Type Solar Panel

Max Power at STC
200W
Open Circuit Voltage
36.5V
Short Circuit Current
6.86A
Optimum Operating Voltage
31.3V
Optimum Operating Current
6.38A
Maximum System Voltage
1000VDC
Maximum Series Fuse Rating
15A
Module Efficiency
20.7%
Operating Temperature
-40°F~185°F / -40℃~85℃
Dimensions
1262*764*30mm/
49.69*30.08*1.18inch
Weight
10.81kg/23.83lb

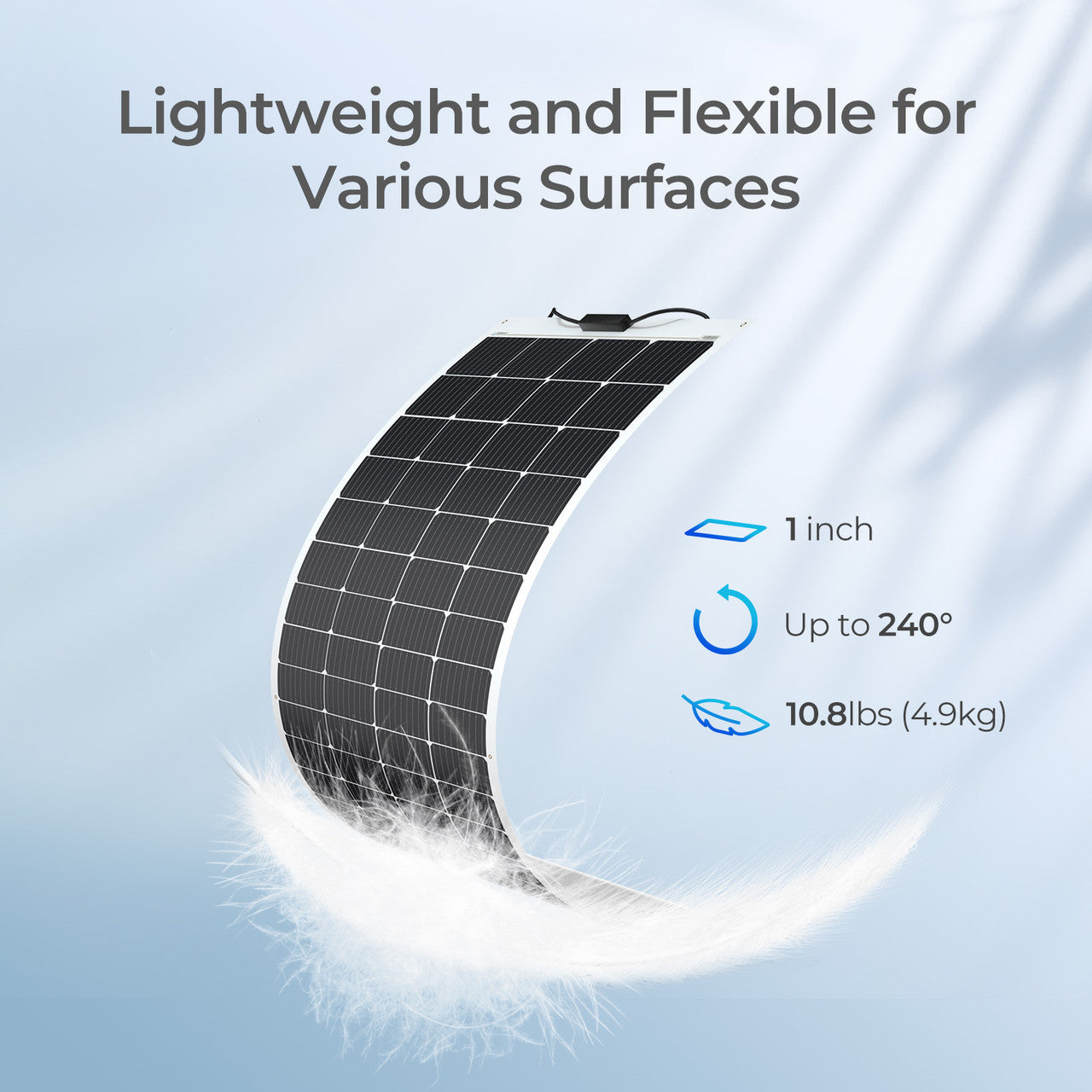

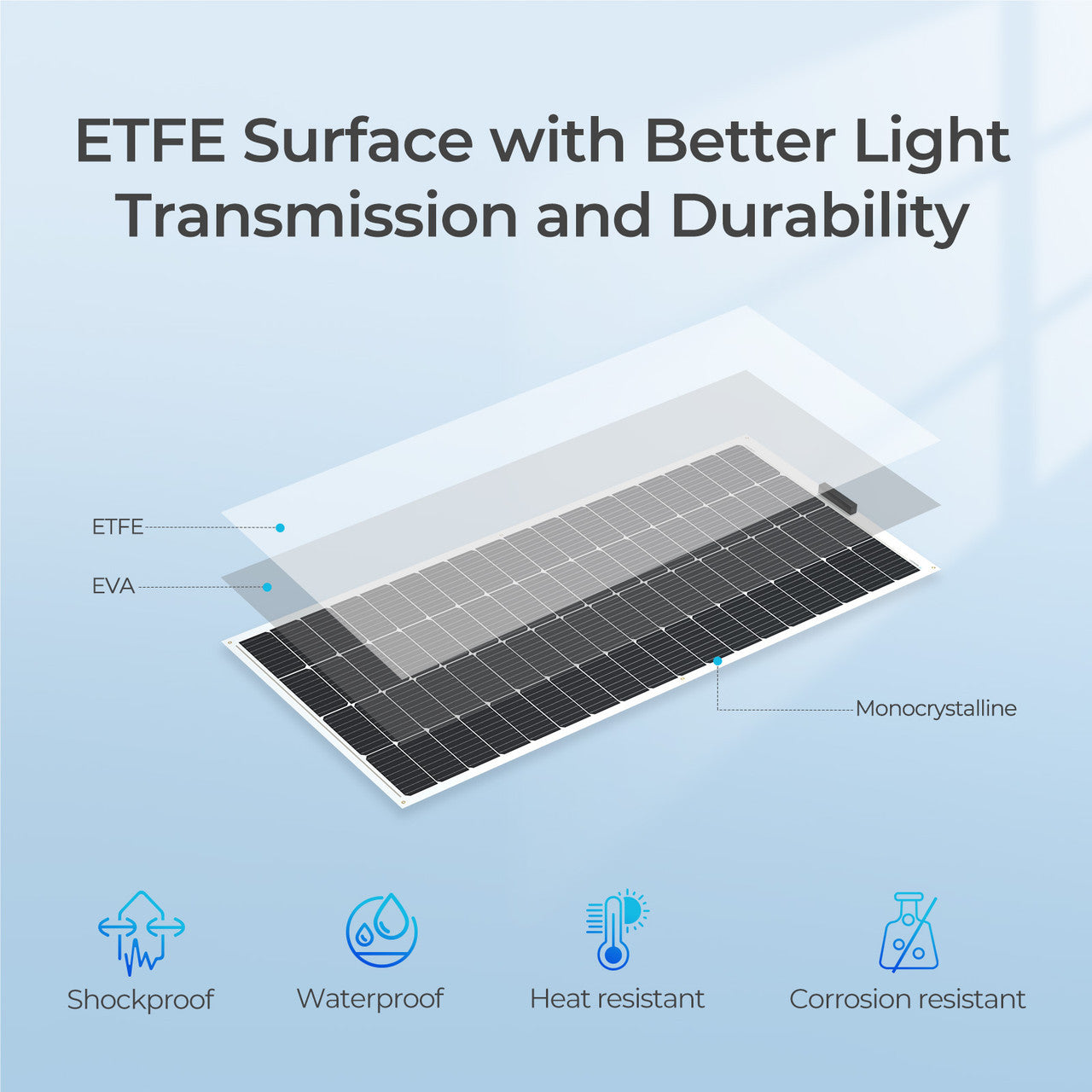

200W 12V Flexible Monocrystalline Solar Panel

Output Cables
12 AWG (2.3 ft)
Cell Type
Monocrystalline(6.5x3.3)
Number of Cells
72(18x4)
Junction Box
IP68
Solar Connectors
IP67
Maximum Power at STC
200W
Module Efficiency
16.7%
Optimum Operating Voltage (Vmp)
20.1V
Open-Circuit Voltage (Voc)
23.9V
Optimum Operating Current (Imp)
10.02A
Short Circuit Current
10.74A
Operating Temperature
-40°F to 176°F (-40ºC to +80ºC)
Maximum Series Fuse Rating
15A
Maximum System Voltage
600V DC
Certifications
CE,ISO9001
Weight
4.9 kg / 10.8 lbs
Dimensions
160.5 x 74.8 x 0.3 cm /(63.2 x 29.4 x 0.1 in)
Material and workmanship warranty
5 years
Performance Warranty
5-year 90% output warranty & material and workmanship warranty
parameterEnd
TRUE
Voltage
12V
Watt
200W
