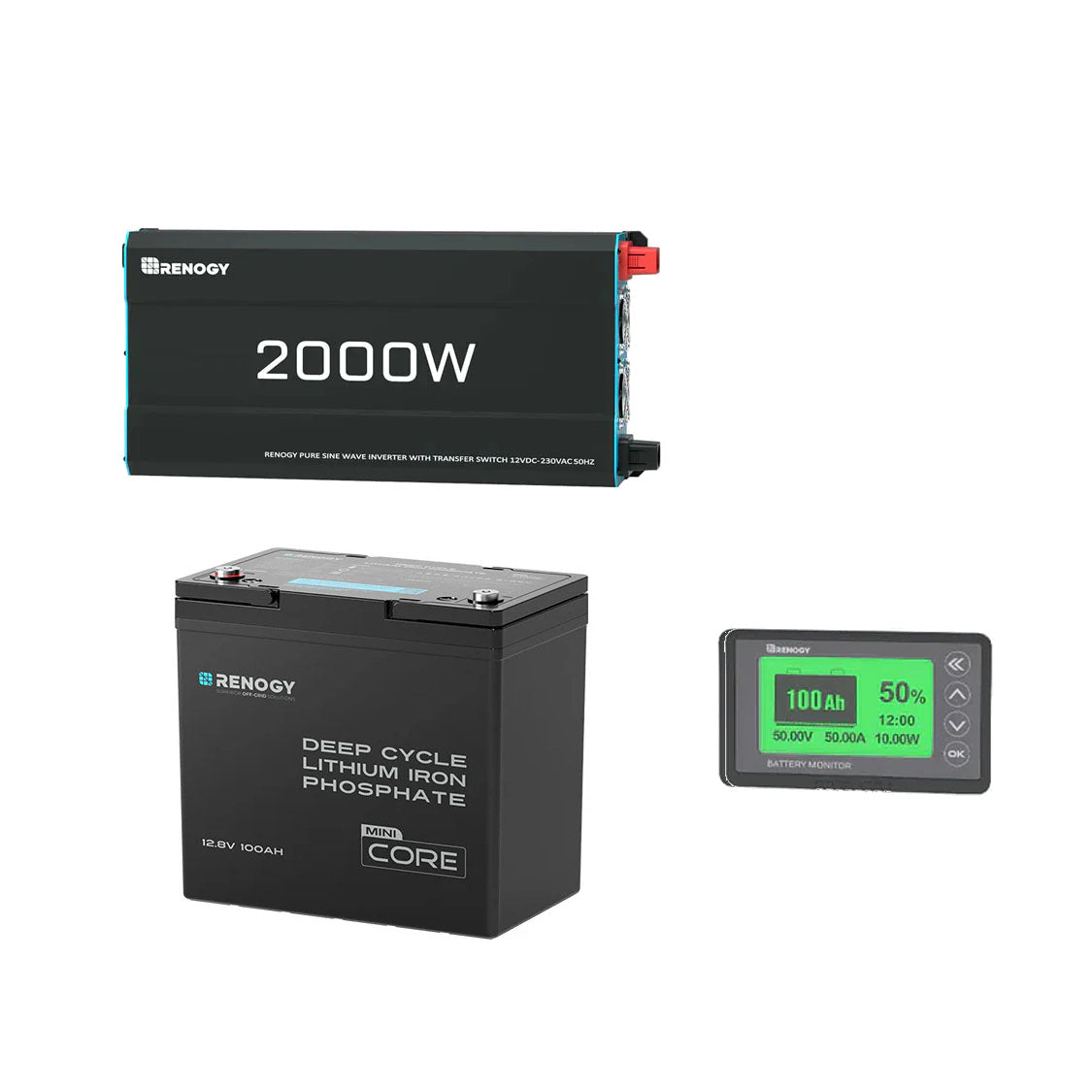

Renogy Motorhome Power Kit

Tired of worrying about power on your caravan trips? This Renogy Motorhome Power Kit is your all-in-one solution for total energy freedom. Engineered for the outdoors, it delivers reliable power to run your fridge, lights, TV, and all your essentials for days on end. Stop relying on crowded caravan parks and noisy generators. This complete kit is designed to work together seamlessly, giving you the confidence to explore further and stay off-grid longer.

Experience Our Most Compact 100Ah Battery

Revolutionary in size yet uncompromising in performance, the Core Mini packs full-sized power into a package half the size of a traditional Group 31 battery. Perfect for space-conscious installations in teardrop trailers, kayaks, and other compact spaces, this powerhouse opens new possibilities for outdoor adventures.

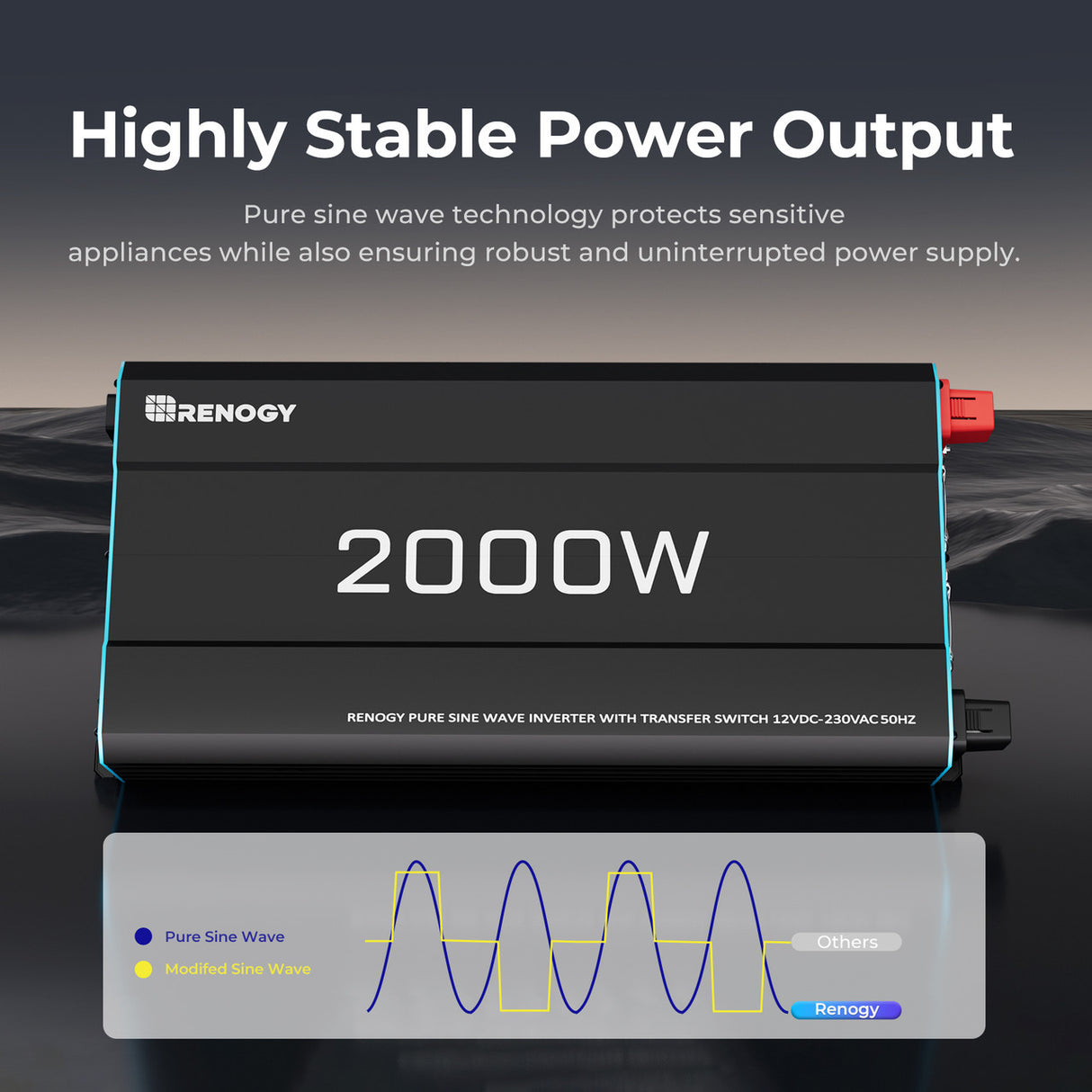

2000W Pure Sine Wave Inverter

Clean Power for Sensitive Electronics: Pure sine wave output (THD<3%) safely runs laptops, CPAP machines, and other sensitive devices. Strong Surge Power: Handles the startup surge of many appliances, reliably powering your caravan's needs. Seamless Backup: Integrated UPS function provides a near-instantaneous switchover for critical devices.

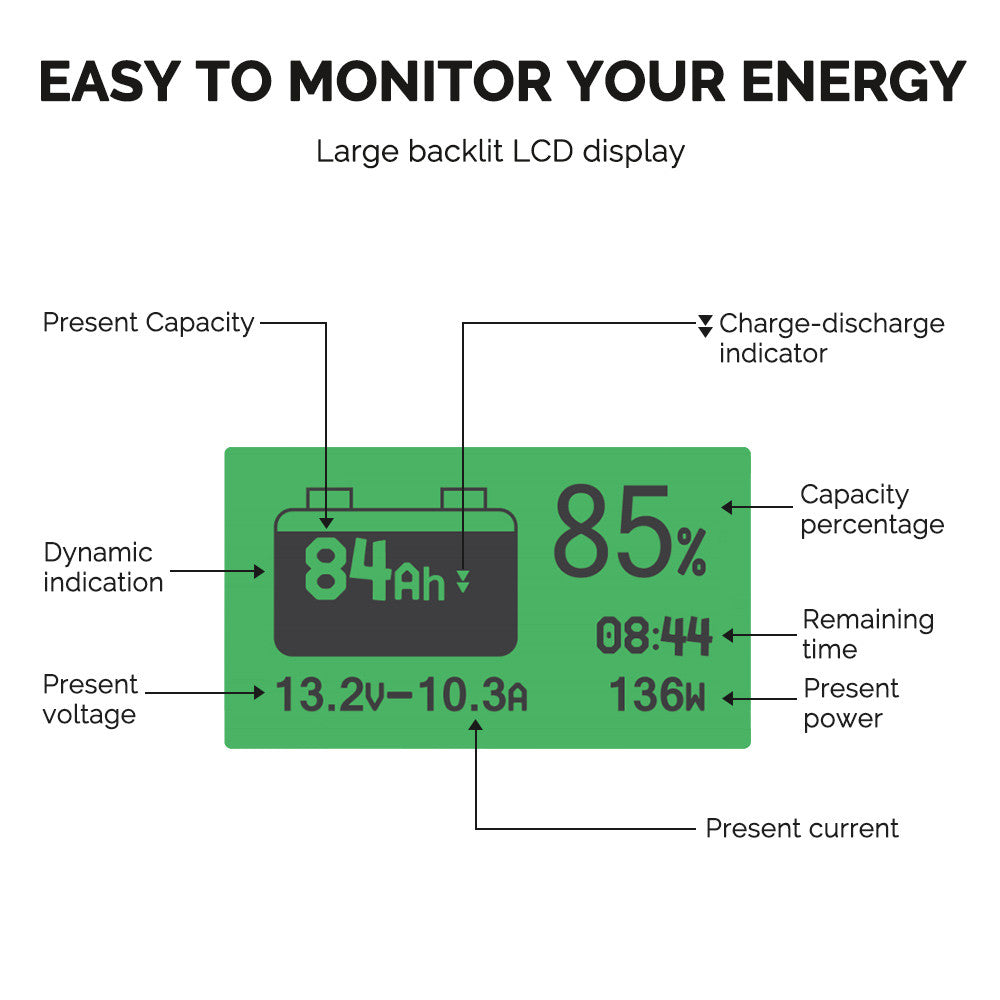

500A Bluetooth Battery Monitor

Complete System Insight: Accurately tracks voltage, current, power, and state-of-charge in real-time via your smartphone. Protect Your Investment: Programmable alarms for high/low voltage help prevent battery damage. Integrated System Advantage

Specification

Core Mini - 12.8V 100Ah Lithium Iron Phosphate Battery

Battery Type: Lithium Iron Phosphate
Nominal Voltage: 12.8V
Rated Capacity: 100Ah (0.5C, 25℃)
Voltage Range: 10V to 14.8V
Dimensions: 229 x 138 x 213 mm / 9.02 x 5.43 x 8.39 in
Weight: 21.8 lbs / 9.9 kg
Connection Method: Series & Parallel (4S4P)
Maximum Charge Current: 100A
Maximum Discharge Current: 100A
Protection Rating: IP65
Charge Temperature Range: 32°F to 122°F (0°C to 50°C)
Discharge Temperature Range: -4°F to 140°F (-20°C to 60°C)
Storage Temperature Range: -13°F to 149°F (-25°C to 65°C)
Terminal Bolt Size: M8 x 1.25 x 12 mm
Recommended Terminal Torque: 88.5 inch·lbs to 106.2 inch·lbs / 10 N·m to 12 N·m
Peak Discharge Current: 300A@5s
Cycle Life (0.5C, 25℃): 5000 Cycles (80% DOD, 80% EOL)

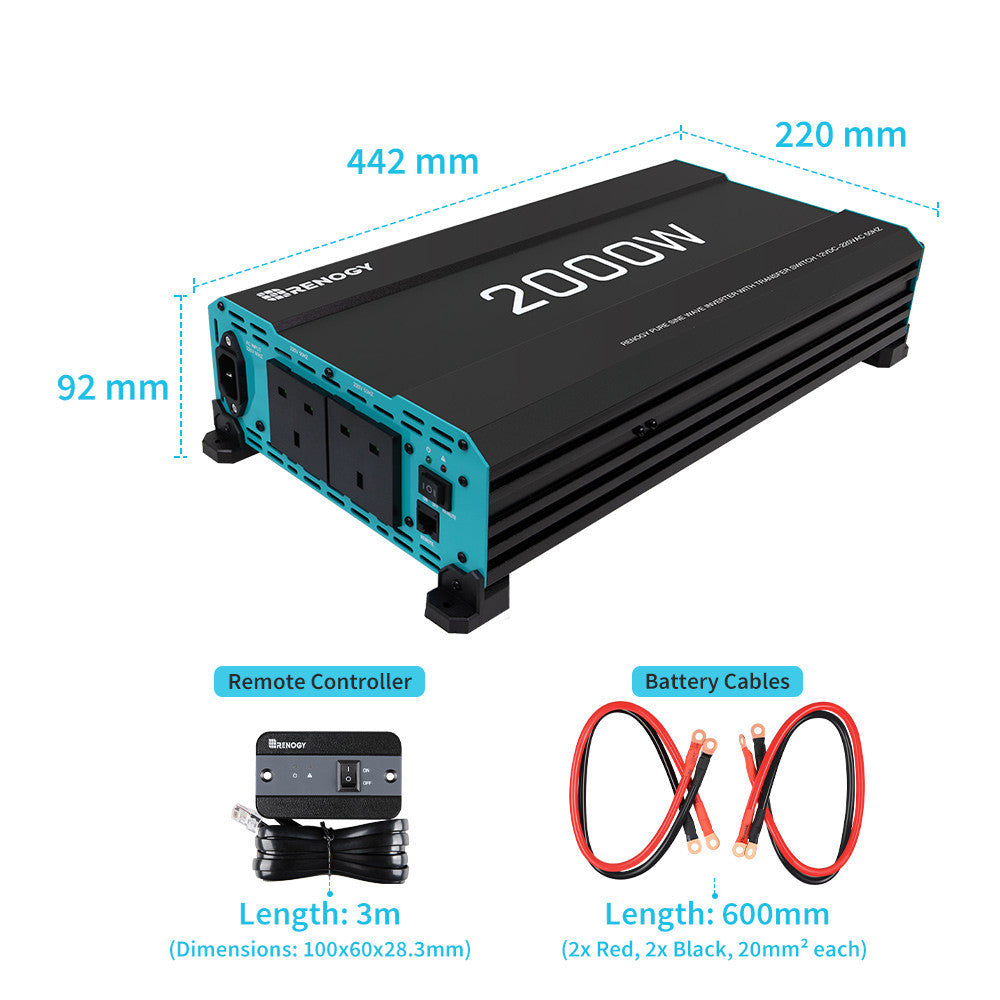

Renogy 2000W 12V Pure Sine Wave Inverter

Continuous Power
2000W
Surge Power (Peak Power)
4000W
Input Voltage
12VDC
Output Voltage
220VAC±10
Input Voltage Range
11-16Vdc
Static Current
1.3A
Input Voltage Range
11-16Vdc
Static Current
1.3A
Output Frequency (Nominal)
50Hz±0.3
Output Wave form
Pure Sine Wave
Low Voltage Shutdown
10Vdc
Recover from low voltage protection
Support
High Voltage Shutdown
16.3Vdc
Battery supply & AC main transfer time
Within 50mS
Maximum Efficiency
90%
Working Temperature
0°C~40°C
Dimensions
442*220*92 mm
Weight
4.8Kg

Download

100Ah Battery

Download

2000W Inverter

Download

Warranty

Download
