500A Battery Monitor with Shunt/Sampler (Coulomb meter)

SKU: RBM500-UK
Write a Review
£89.99
£59.99
 reward Renogy Rays
Calculater
Load More

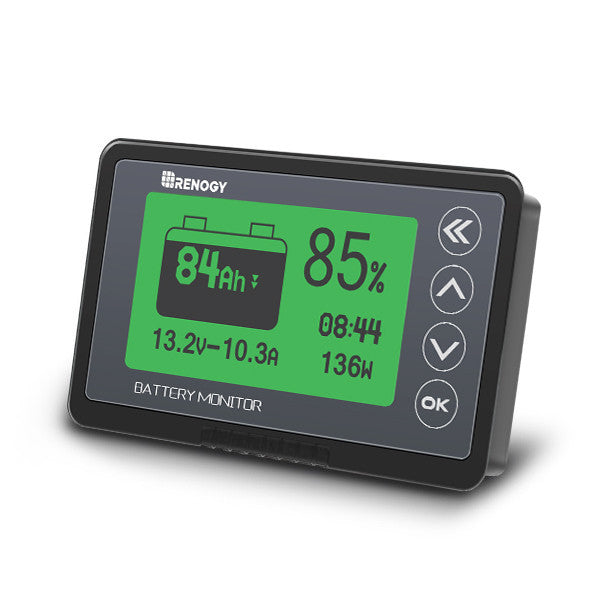

Renogy 500A Battery Monitor
500A Battery Monitor with Shunt/Sampler (Coulomb meter)
£89.99
£59.99
£89.99
£59.99
Add to cart
Adding to cart… The item has been added
Shop alone
Start group buy
Want to purchase in bulk? Request Bulk Purchase Prices

Return & refund policy
Write a Review
Free Shipping
Reliable Warranty
Secure Payment
【1% Accuracy in Measurement】 Shunt-type monitor design provides much more accurate real-time voltage and current draw measurement.
【Protect the batteries】 With High and low capacity alarm functions, our battery monitor with shunt will alarm, and backlight and voltage value will flash simultaneously to protect the batteries from getting over-discharged.

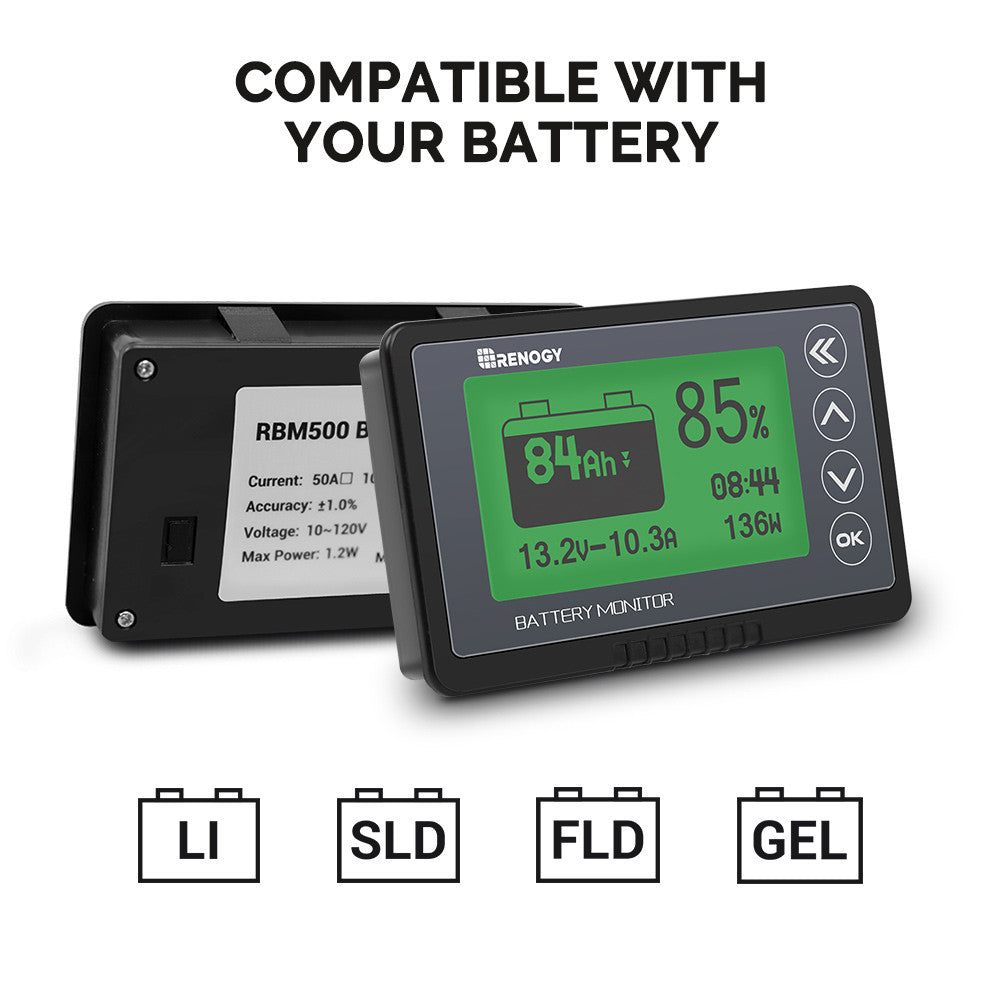

【Fit for all battery】 Compatible with various battery types, including Lead Acid (AGM, GEL), Lithium Iron Phosphate, Lithium-ion, Nickel-metal hybrid.

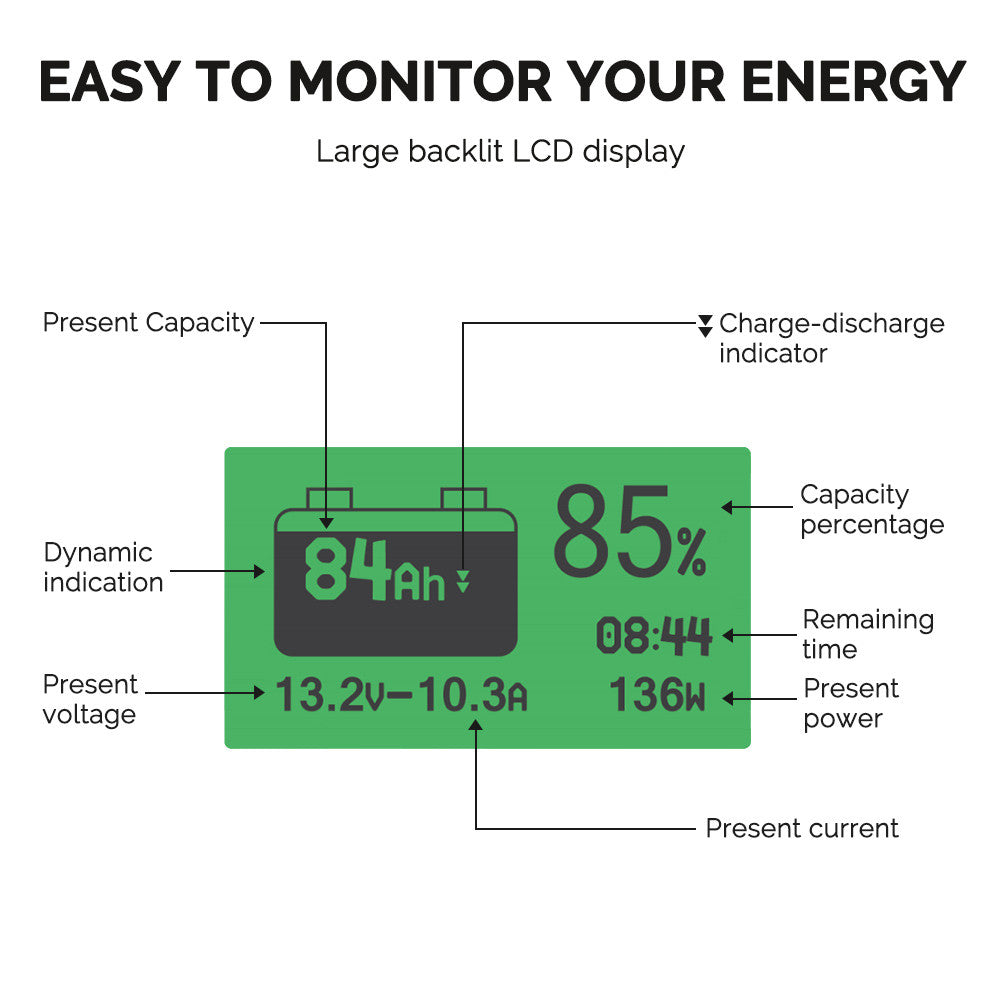

【Easy to read】 Displays multiple electronic parameters, including Voltage, Current, Consumed Power, Battery Capacity, and battery degradation rate with a customized brightness high-definition Backlight Display.
【Easy to Install】 The transparent shunt holder simplifies mounting, while the 20ft shielded cable enables remote monitoring of battery status.


The Renogy Battery Monitor is designed to monitor the performance of most battery types. Its high-precision measurements will eliminate the guesswork from battery usage and enhance your battery bank's performance and lifespan.

It is a universal battery monitor that you can use with voltage ranging from 10V to 120V and up to 500A.

LOW POWER CONSUMPTION DESIGN

The backlight will automatically shut down when the charging current is <100mA and only 1 mA Standby Dissipation. This battery monitor is equipped with data storage capacity. It automatically saves the last testing data when its power is off.

PROTECT YOUR BATTERY

This monitor gives you high precision current detection and accurate battery state of charge. You can also set an alarm for high or low current voltage. When the alarm is activated, the backlight and voltage value will be shown on the screen to alert you on what to do when you reach the cut-off voltage.

EASY TO INSTALL

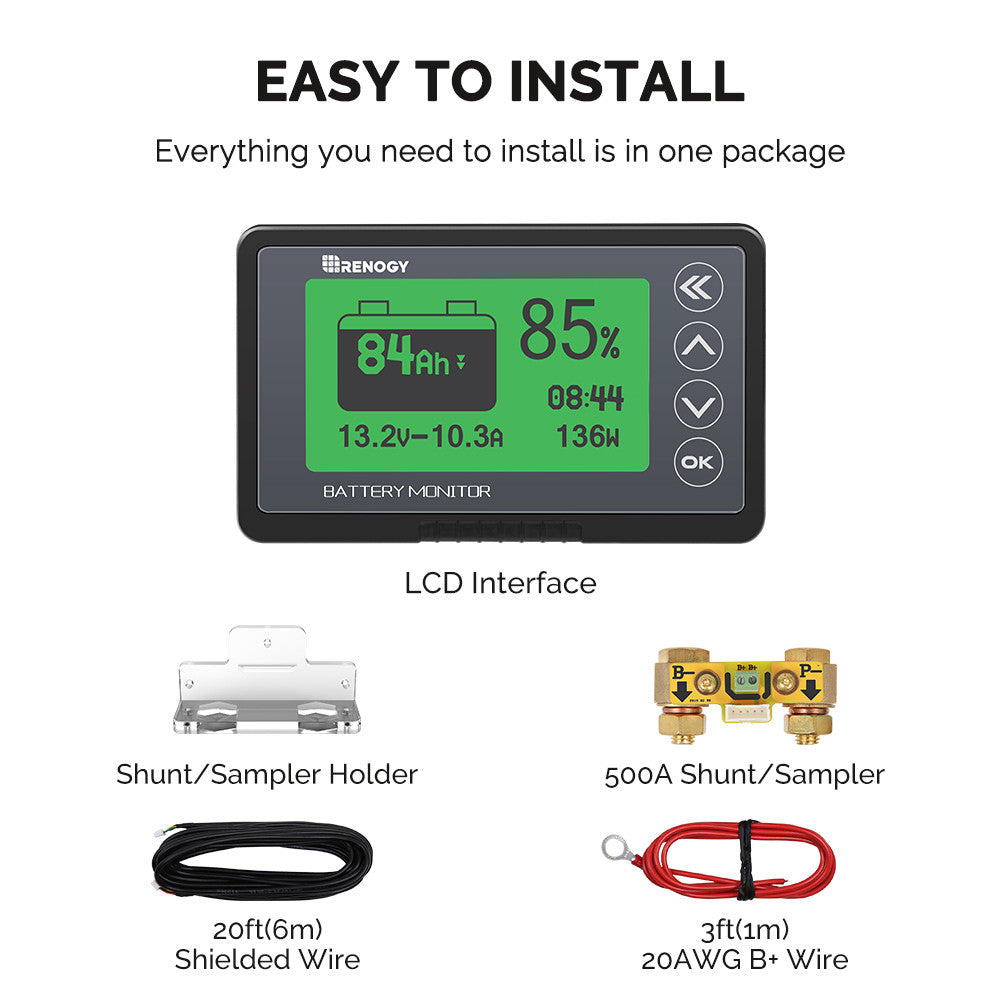

The package includes the LCD interface, 500A shunt, transparent shunt holder, 20 ft shielded wire, and B+ wire. The shunt holder makes it very convenient to mount the shunt while the long shielded wire allows you to monitor the status of your battery from a distance.



NOTE

The Renogy Battery Monitor can't be exposed to the sun for a long time or in the environment with large amounts of ultraviolet radiation when using or storing in winter (< -10℃) and summer (>60℃) otherwise, the life span of the LCD will be shortened.



Package Includes

LCD Interface

LCD Interface

1 x

500A Shunt/Sampler

500A Shunt/Sampler

1 x

Shielded Wire

Shielded Wire

1 x

B+ Wire

B+ Wire

1 x

Shunt Holder

Shunt Holder

1 x


500A Battery Monitor with Shunt
Operation Specifications Operation Specifications
Working Voltagel 10-120V Compatible Battery

Lead Acid (AGM, GEL), Lithium Iron Phosphate,

Lithium-ion, Nickel-metal hybrid

Standby Dissipation 1-2mA Display

LCD with Green Backlight

brightness is adjustable

Working Dissipation 10-15mA Capacity Accuracy ±1%
Preset capacity value 0.1-9999.0 AH Current Accuracy ±1%
Backlight on current (>50A) 100mA Voltage Accuracy ±1%
Mechanical Specifications Certifications
Shielded Wire Length 20 ft/6 m ROHS YES
Weight (LCD Interface) 2.6 oz / 75 g Warranty

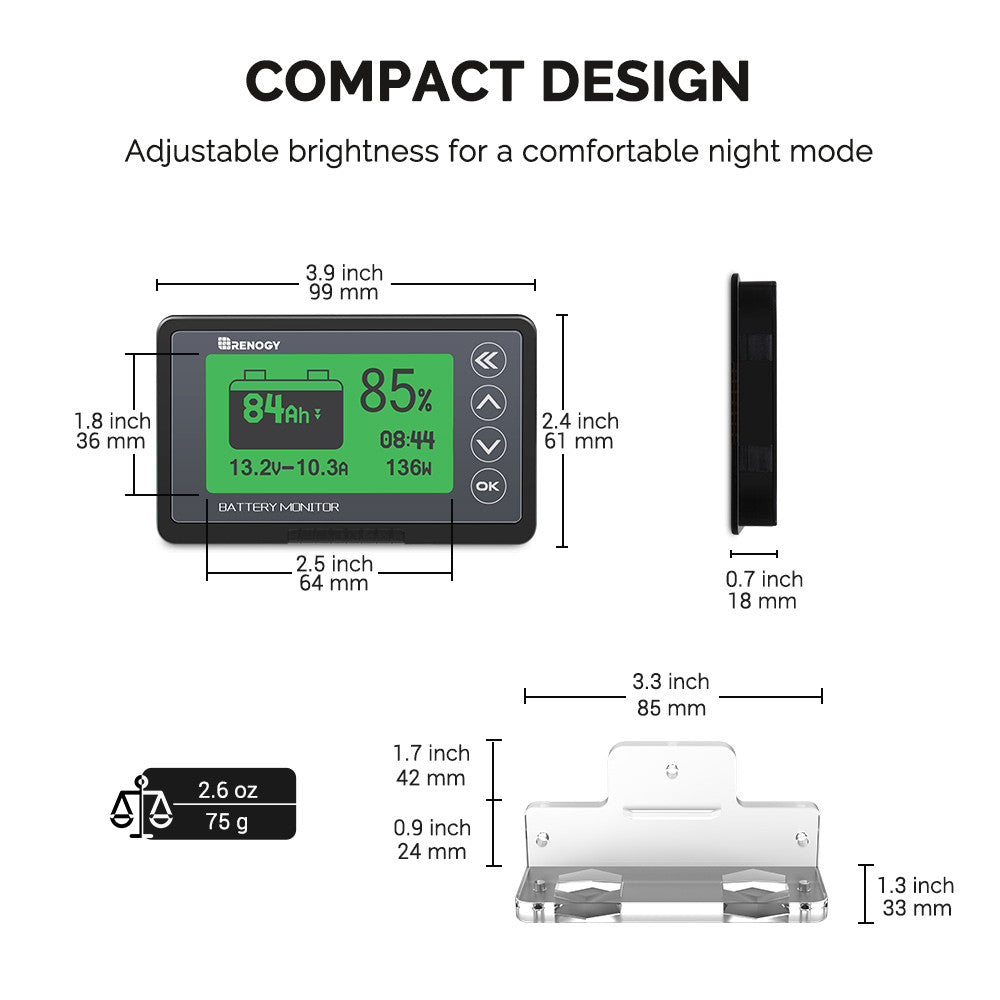

Size (LCD Interface) 3.9 x 2.4 x 0.7 in / 99 x 61 x 18 mm Material Warranty 1 Year
B+ Wire Length 3 ft/1 m
Temperature range 14-140°F(-10-60°C)

Note:

The Renogy Battery Monitor can't be exposed to the sun for a long time or in the environment with large amounts of ultraviolet radiation when using or storing in winter (< -10℃) and summer (>60℃) otherwise, the life span of the LCD will be shortened.


1. Is there a purpose to having both the Renogy 500A Battery Monitor and the Bluetooth Module?


The Battery Monitor is a good idea for anyone without a smartphone or who doesn’t mind staying close to their system to keep tabs. This monitor can also work with all sorts of other battery applications, such as golf carts, electric scooters, medical devices, etc.

The Bluetooth Module caters to anyone with a smartphone or tablet and those who want a bit more freedom in keeping tabs on their system.

Renogy LifePO4 Battery has an RJ45 communication port connected with BT-2 and monitors the battery data directly from the APP.

Lead-acid battery has no communication port, and the Bluetooth module detects battery data from the charge controller.

You may find more from BATTERY MONITOR VS BLUETOOTH MODULE: WHAT'S BEST TO MONITOR YOUR SYSTEM?

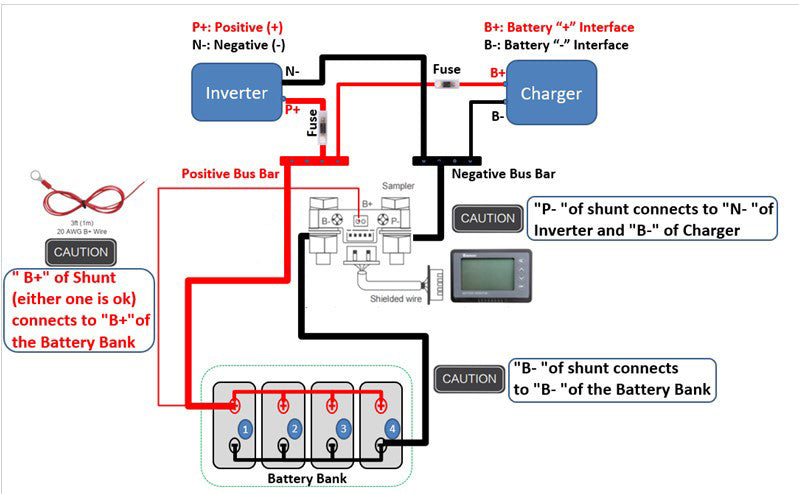

2. Can I monitor more than two batteries with one Renogy Battery Monitor?

Yes. Please follow the instruction carefully when you connect the system.

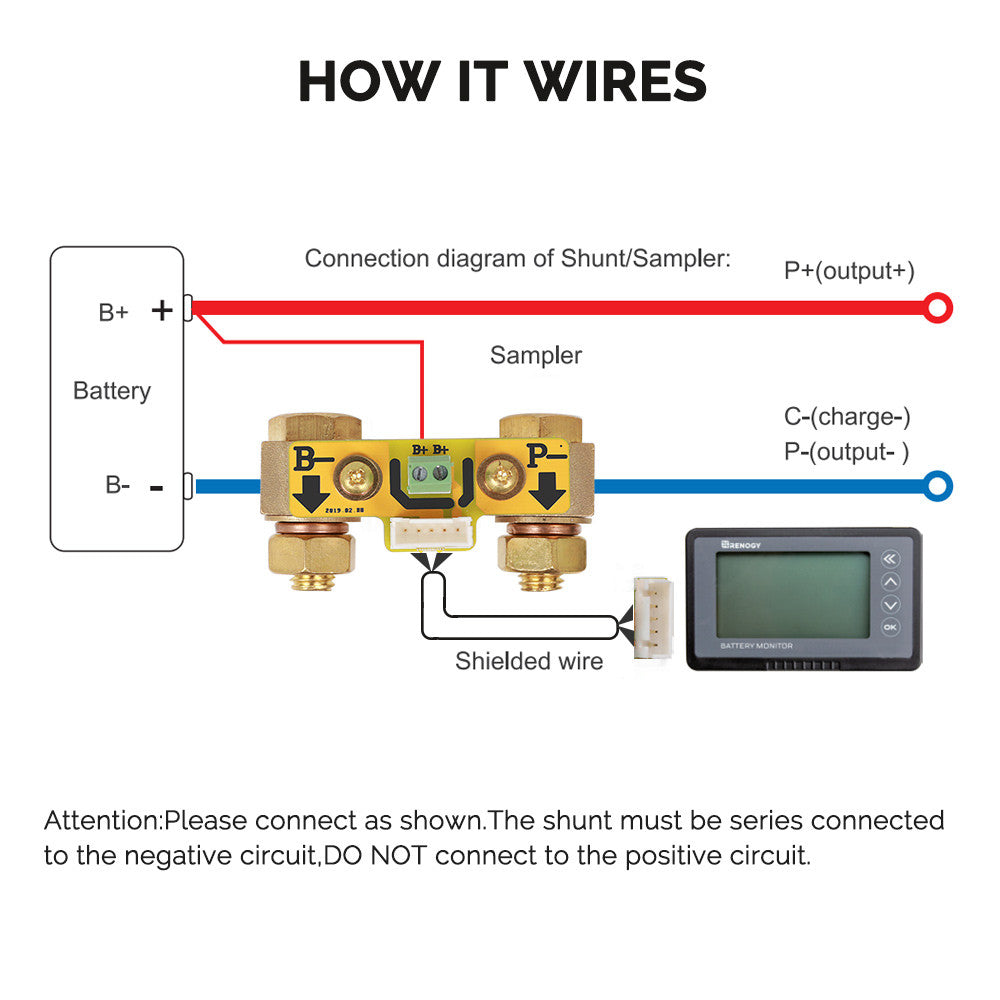

3. How to wire and calibrate the battery monitor?

Please find more information from the Video
More questions about your off-grid power system? Learn more from Renogy Learning Center!
