Description
The Renogy 300W 12V Premium Kit is the most economical choice for the off-grid adventurer. With the ability to access energy wherever there is sun, the options for your journey are limitless.
The Rover Li 40A MPPT Charge Controller included in this kit features multi-phase synchronous rectification and Maximum Power Point Tracking technologies, which increase charging efficiency, Our new Bluetooth module is also included which can be paired to the Renogy DC Home smart phone App. The Renogy DC Home smart phone App allows users to remotely monitor and change their photovoltaic system's parameters with a few simple swipes on their smartphone or tablet.
The included 100W Solar Panels (2 options available) are not only sleek in size and weight, but are made of high efficiency monocrystalline solar cells. For convenience, this kit also consists of four sets of mounting Z-Brackets, one 20ft 10AWG MC4 Adaptor Kit, one 8ft 8AWG Tray Cable, fusing components for your controller and battery.
This Premium Kit is perfect for installation on an RV, boat, or camper. It can also be installed in a ground mount system next to an off-grid campsite, making it an ideal choice for many off-grid applications.
If you have any questions regarding this product, please submit a case !
Key Features
Efficient- Monocrystalline panels come with high-efficiency cells Cell efficiency: Monocrystalline 21%
- Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments
- Rover charge controller brings peak conversion efficiency of 98%, high Tracking efficiency of 99%
- EL tested solar modules; no hot-spot heating guaranteed
- TPT back sheet ensures smooth performance over a long period of time
- IP65 rated junction box provides complete protection against environmental particles and low pressure water jets
- 4-Stage battery charging process for a rapid, efficient, and safe battery charging
- RS-232 port compatible for extra features
- Compatible with Renogy Bluetooth Module and Renogy BT APP for remote monitoring
- Pre-drilled holes on the back of the panel allow for fast mounting and securing
- Comes equipped with an MC4 Inline fuse and ANL fuse components for protecting your charge controller and battery
DOWNLOAD LINKS
Package Includes
|

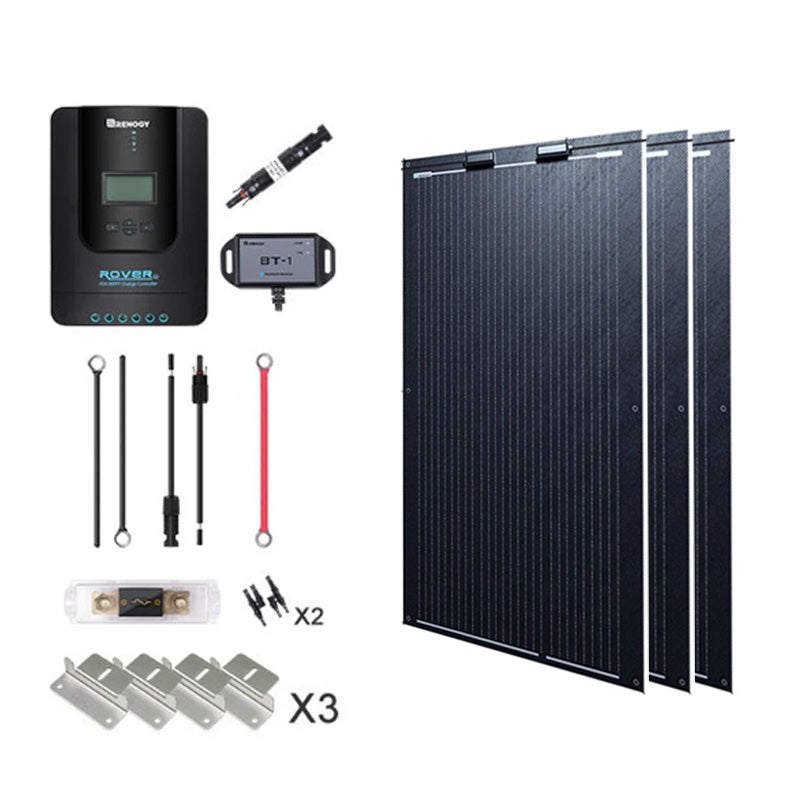

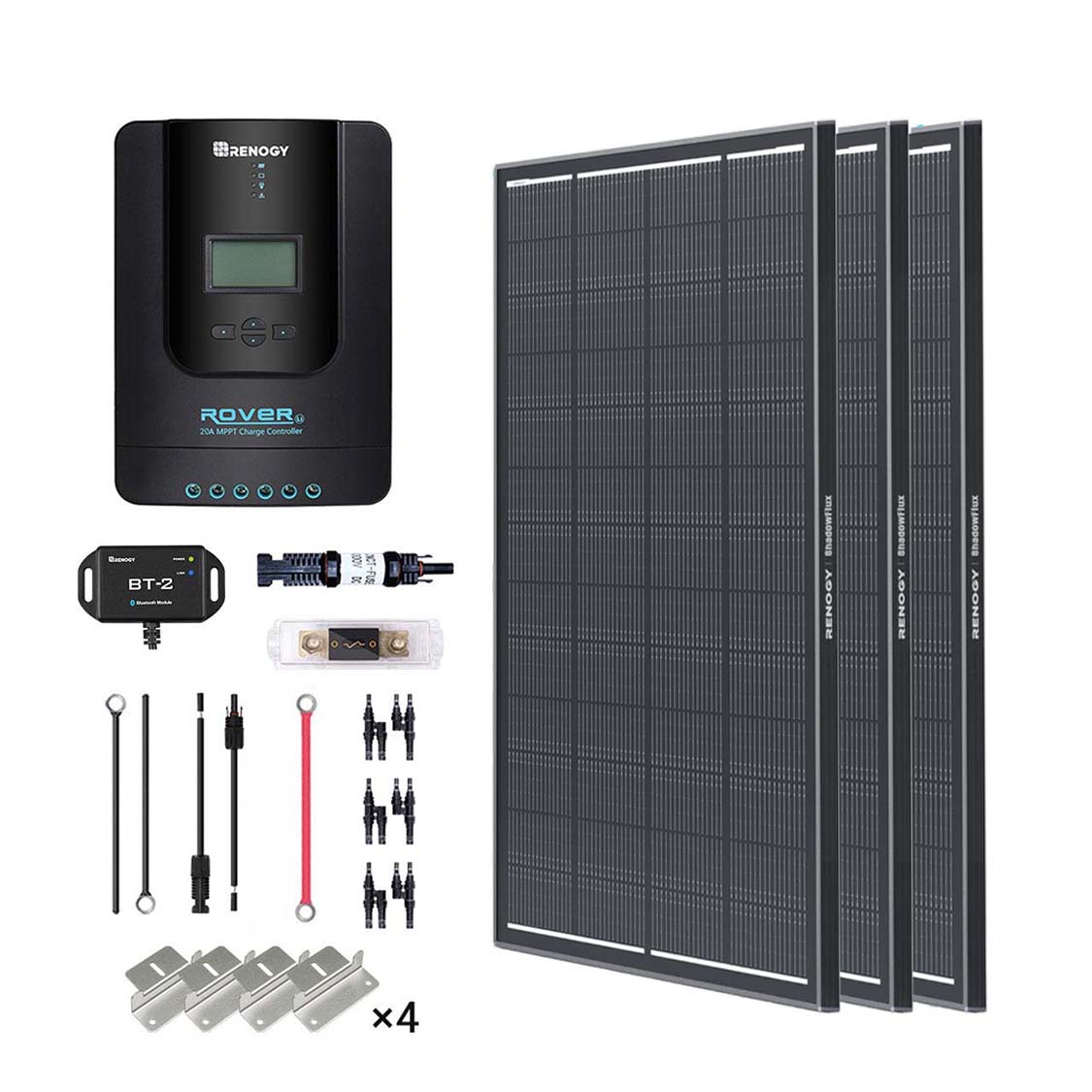

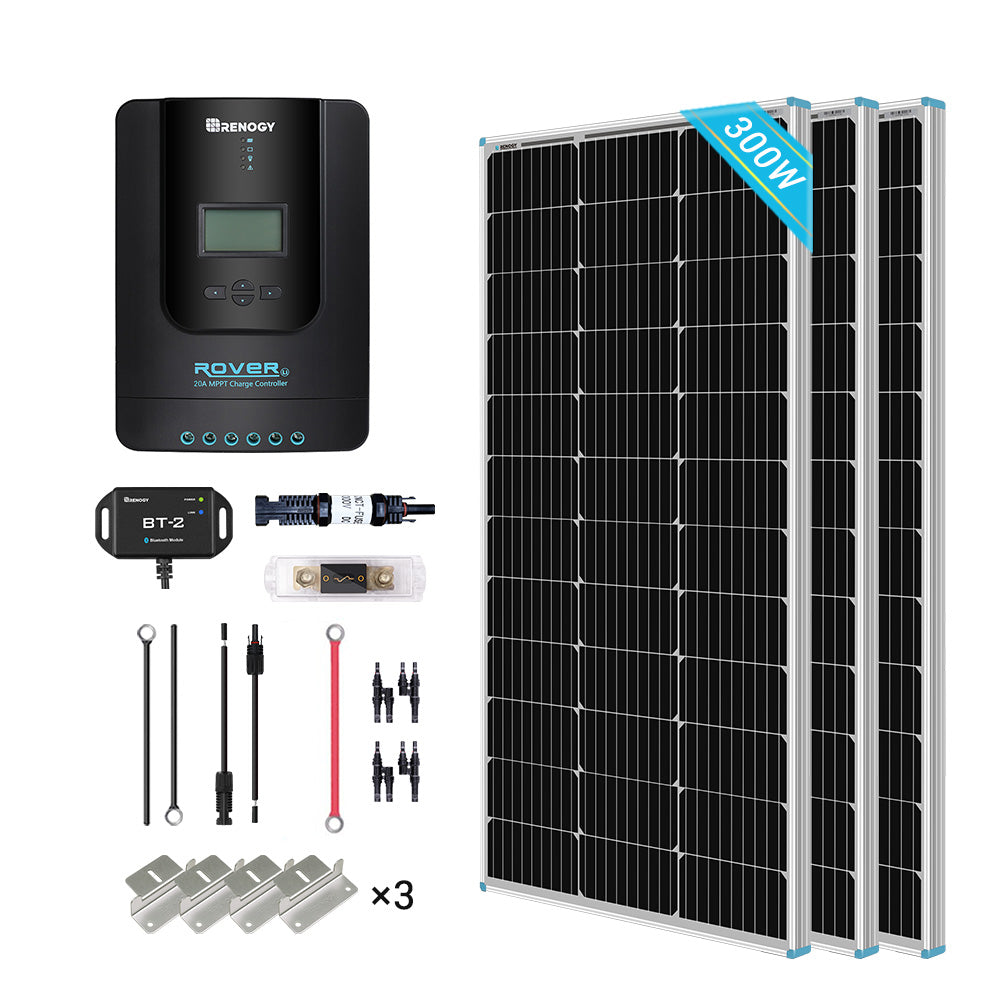

100W Compact Panel OR 100W Flexible Panel
3 x |
Rover 40A MPPT Charge Controller
1 x |
|
1 x |
(not included in ETFE Flexible panel kits)
3 x |
|
1 x |
10A MC4 and 40A ANL Fuse
1 x |
|
MC4 Branch Connectors MMF+FFM Pair (not included in ETFE Flexible panel kits)
2 x |
1 x |
|
100W Compact Design Regid Panel (Optional) |
100W ETFE Flexible Panel (Optional) |
|---|---|
| Maximum Power: 100W | Maximum Power: 100W |
| Maximum System Voltage:600V DC | Maximum System Voltage:600V DC |
| Open-Circuit Voltage (Voc): 22.3V | Open-Circuit Voltage (Voc): 22.5V |
| Short-Circuit Current (Isc): 5.86A | Short-Circuit Current (Isc): 5.75A |
| Optimum Operating Voltage (Vmp): 18.6V | Optimum Operating Voltage (Vmp): 18.9V |
| Optimum Operating Current (Imp): 5.38A | Optimum Operating Current (Imp): 5.29A |
| Weight: 14.3lbs/6.5kg | Weight: 4.2lbs (1.9kg) |
| Dimensions: 42.4 X 20.0 X 1.38 In(107.6 x 50.9 x 3.5cm) | Dimensions: 48x21.5x0.08 In (121.9 x 54.6 x 0.2 cm) |
| 20ft 10AWG MC4 Adaptor Kit (A pair) | Renogy 10A MC4 Fuse Holder w/Fuse |
|---|---|
| Length: 20ft | Rated Current: 10A |
| AWG: 10 | Rated Voltage: 1000 V DC |
| Rating Voltage: 600/1000V | Contact Material: Copper, Silver Plated |
| Temperature: -40°F to +185°F | Replaceable Fuse: Cylindrical PV Fuse (10x38mm) |
| Mounting Z Brackets (Set) | Renogy 8ft 8AWG Tray Cables (A pair) |
|---|---|
| Eight Long Cap Bolts and Four Short Bolts | Rating Voltage: 600/1000V |
| Four Spring Washers and Four Washers | Length: 8ft |
| Four Z Shape Solar Panel Brackets | AWG: 8 |
| Four Nuts | Temperature: -40°F to +185°F |
| ANL 40A Fuse Set | Solar Panel MC4 Branch Connectors (Pair) |
|---|---|
| Current Rating: 40A | Withstanding voltage: 1000V DC(TUV), 600V(UL) |
| Voltage Rating: 72V | Temperature: -40°F to +194°F |
| Interrupt Capacity: 240A (48V) | Contact Material: Copper, silver plated |
| Contact Resistance: 1m | Unmating Force:147.51Ft·lb |
| 40A Rover Charge Controller | BT-1 Bluetooth Module |
|---|---|
| Nominal System Voltage: 12V/24V Auto Recognition | Max Solar Input Voltage: 100 VDC |
| Rated Battery Current: 40A | Mounting Oval: 0.30 x 0.18in |
| Rated Load Current: 20A | Net Weight: 3.08 lb. |
| Max. PV Input Short Current: 50A | Discharge circuit voltage drop: ≤ 0.15V |
| Max. Battery Voltage: 32V | Overall Dimension: 8.27 x 5.94 x 2.34 in |

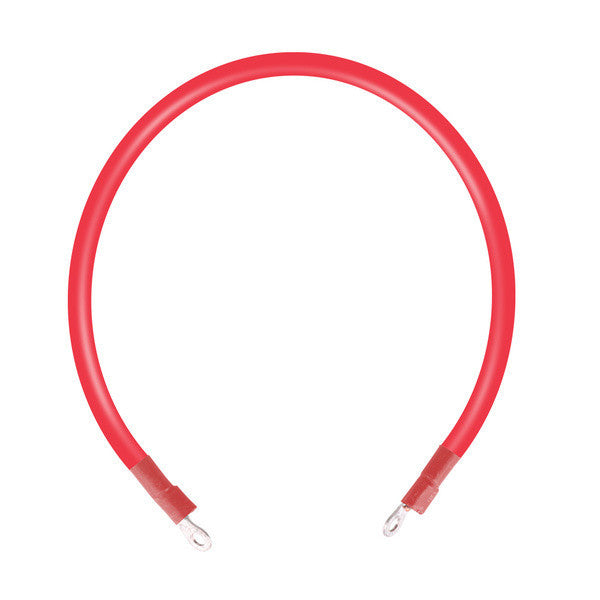

| Renogy 2FT 8AWG ANL Fuse Cable | |
|---|---|
| Length: 2ft | |
| AWG: 8 | |
| Rating Voltage: : AC Uo/U 0.6/1 KV, DC 1.8KV | |
| Temperature: -40°F to +194°F |
Warranty Information
| Panels |
25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate 5-year material and workmanship warranty |
| Accessories | 1-year material warranty |
Certification
 |
 |
|||
 |
|||
| Please click the links below to download the manuals: | |||
| 100W Compact Design Regid Panel | |||
| 100W ETFE Flexible Panel | |||
| BT-1 Bluetooth Module | |||
| 40A Rover Charge Controller | |||
| Mounting Z Brackets | |||
