100 Watt 12 Volt Monocrystalline Solar Starter Kit
100 Watt 12 Volt Monocrystalline Solar Starter Kit is backordered and will ship as soon as it is back in stock.


Description
The Renogy 100W Solar Power Starter Kit is perfect for new customers wanting to get a start in solar. The Starter Kit is great for off-grid applications; such as RVs; trailers; boats; sheds; and cabins — providing many benefits; including; but not limited to; quiet power production and grid independence. Adding a monocrystalline solar panel kit can extend your travels further then ever before.

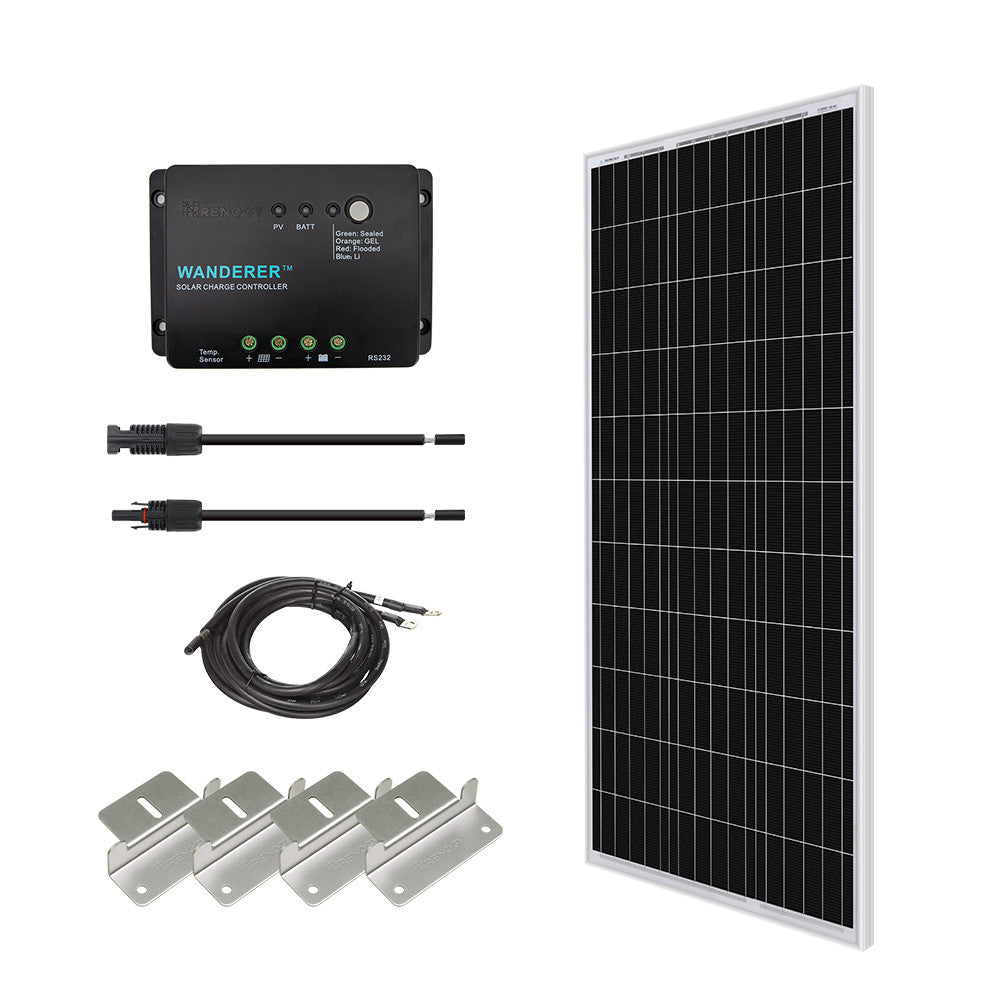

This solar kit comes with the tools necessary for a new system: one Renogy 100W 12V Mono Solar Panels; one 30A PWM Wanderer Charge Controller; one 20ft 10AWG Solar Adaptor Kit; one 8ft 10AWG Tray Cable; and one set of Z-brackets. Start your solar adventure with a Renogy Starter Kit.
If you have any questions regarding this product, please submit a case.
Key Features
Efficient- High solar cell efficiency : Monocrystalline 18.4%
- Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments
- EL tested solar modules; no hot-spot heating guaranteed

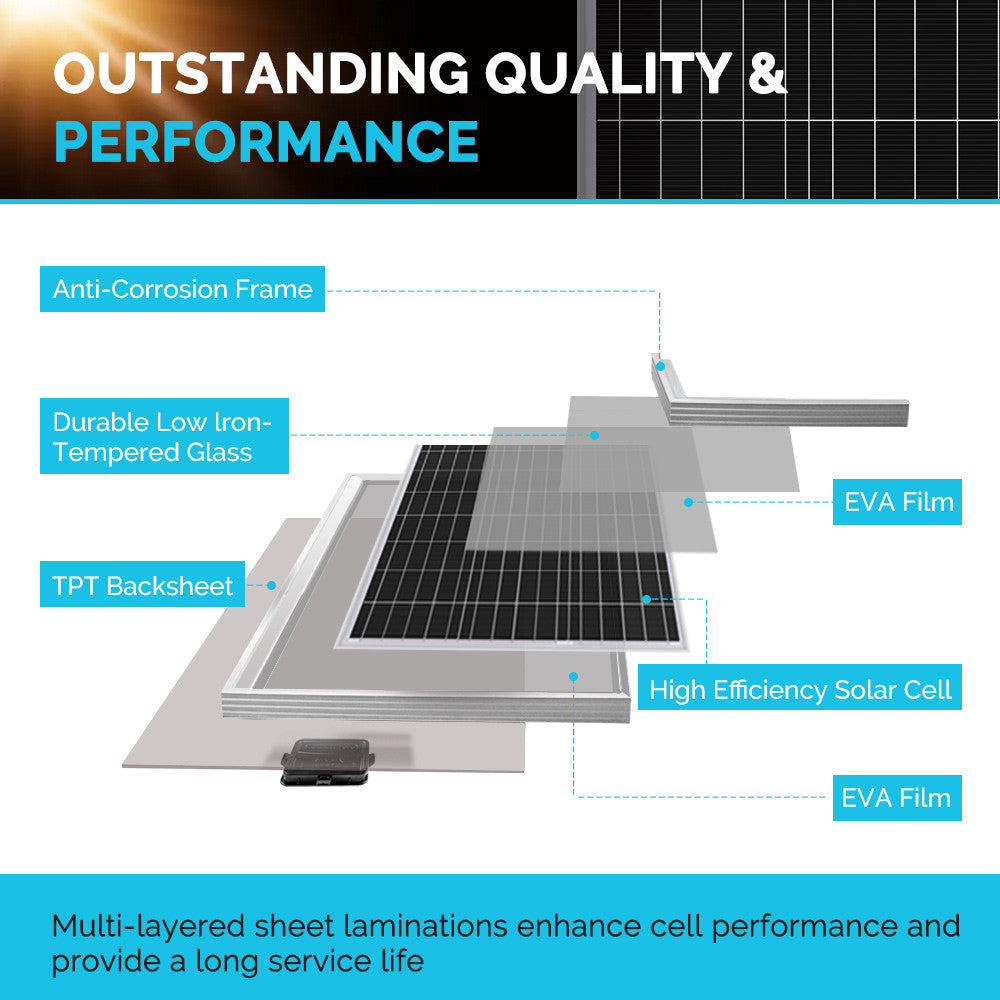

- Corrosion-resistant aluminum frame for extended outdoor use; allowing the panels to last for decades
- TPT back sheet ensures smooth performance over a long period of time

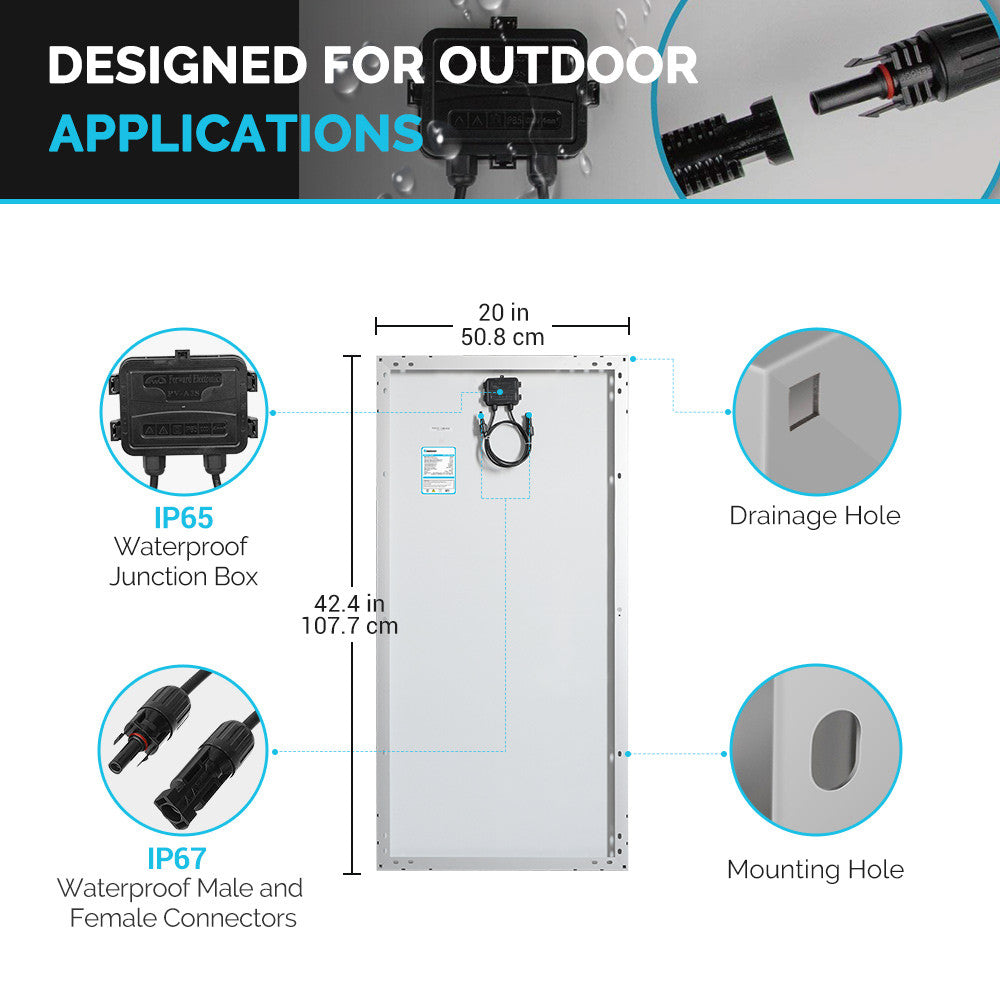

- IP65 rated junction box provides complete protection against environmental particles and low pressure water jets
- Sealed; Gel and Flooded charging algorithim ready
- 4-Stage battery charging process for a rapid; efficient; and safe battery charging
- The Renogy Wanderer is equipped with multiple electronic protections; overcharging; overload; short-circuit and reversed polarity
- Pre-drilled holes on the back of the panel allow for fast and secure mounting
- With the Renogy Wanderer 30A PWM Charge Controller; you can expand your system up to a maximum of 400W.
Package Includes
100W Monocrystalline Panel(Compact Design) 1 x |
Renogy Wanderer 30A PWM Charge Controller 1 x |
1 x |

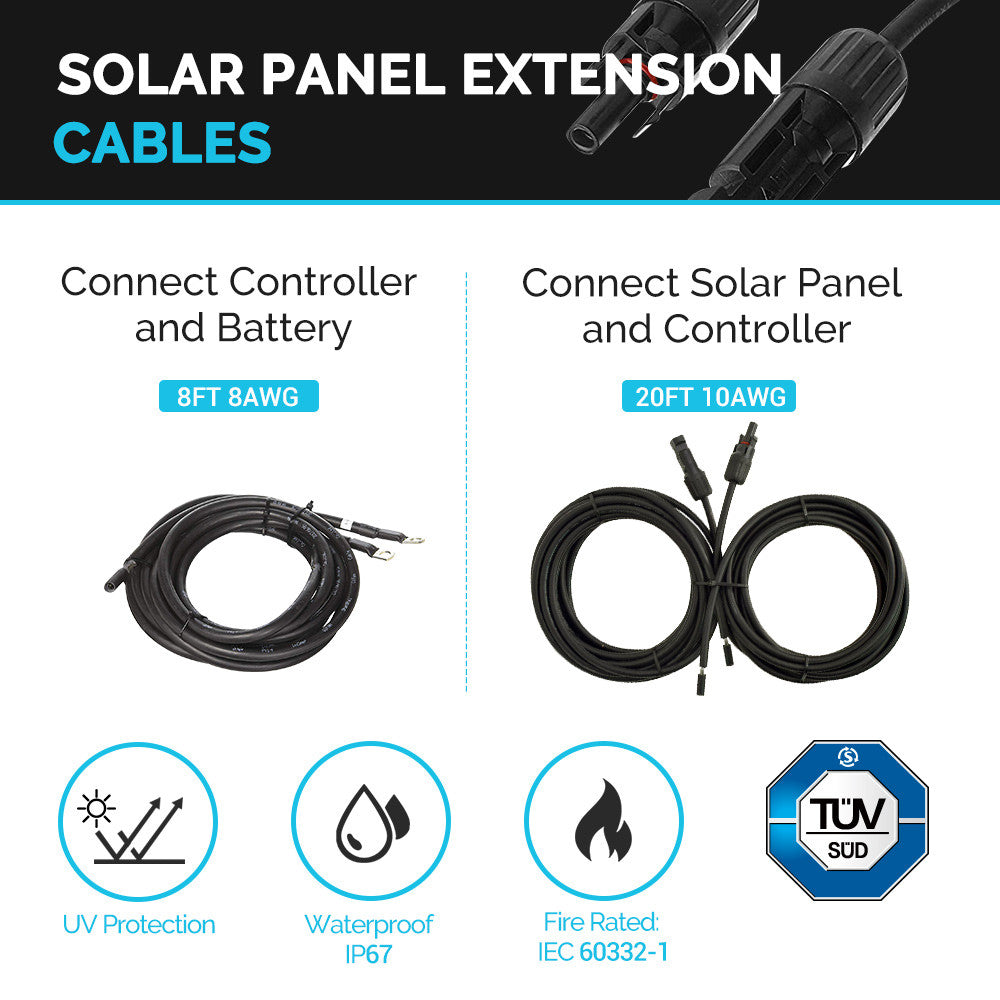

Renogy 20ft 10AWG Solar Adaptor Kit (A pair) 1 x |
Renogy 8ft 10AWG Tray Cables (A pair) 1 x |

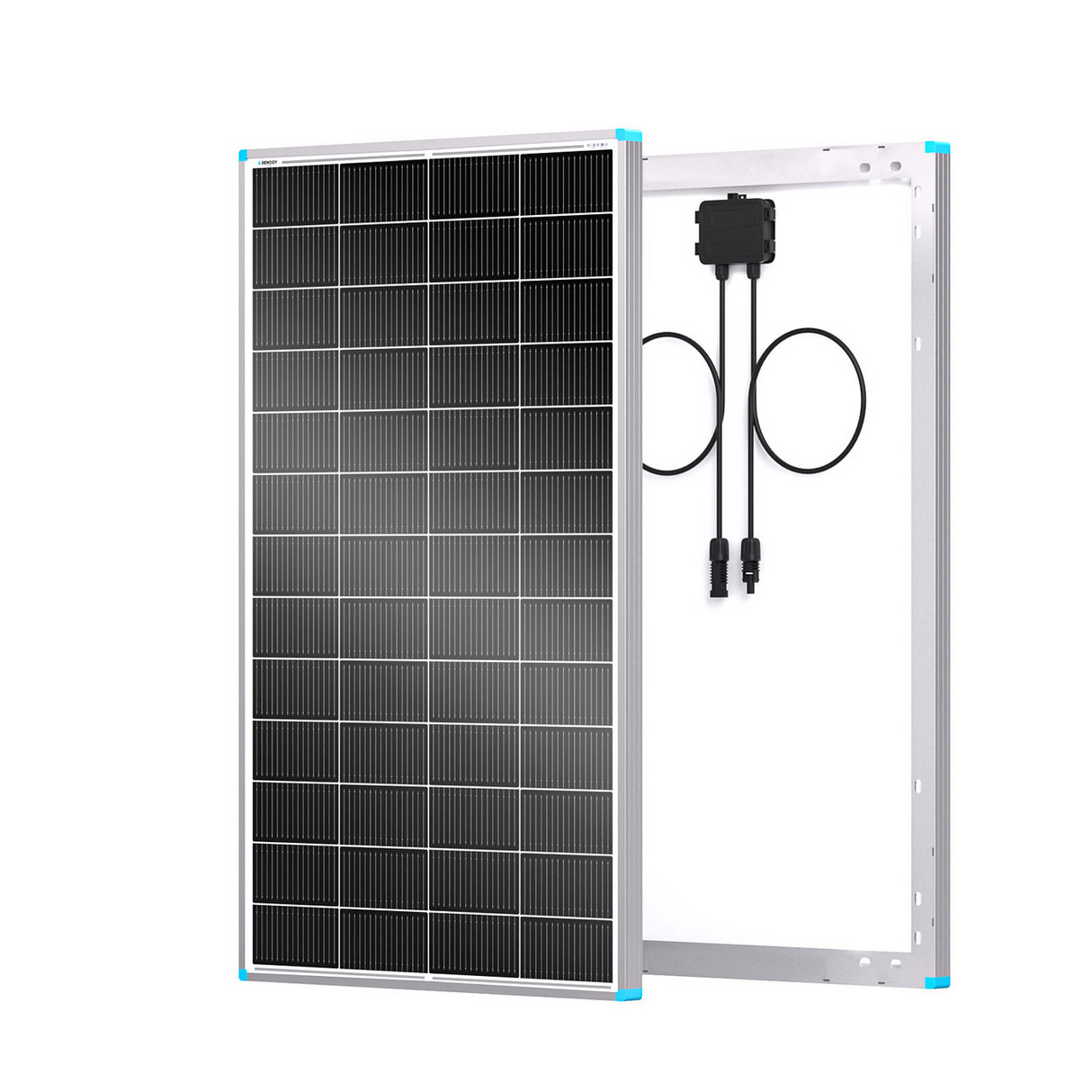

Renogy 100W Monocrystalline Solar Panel |

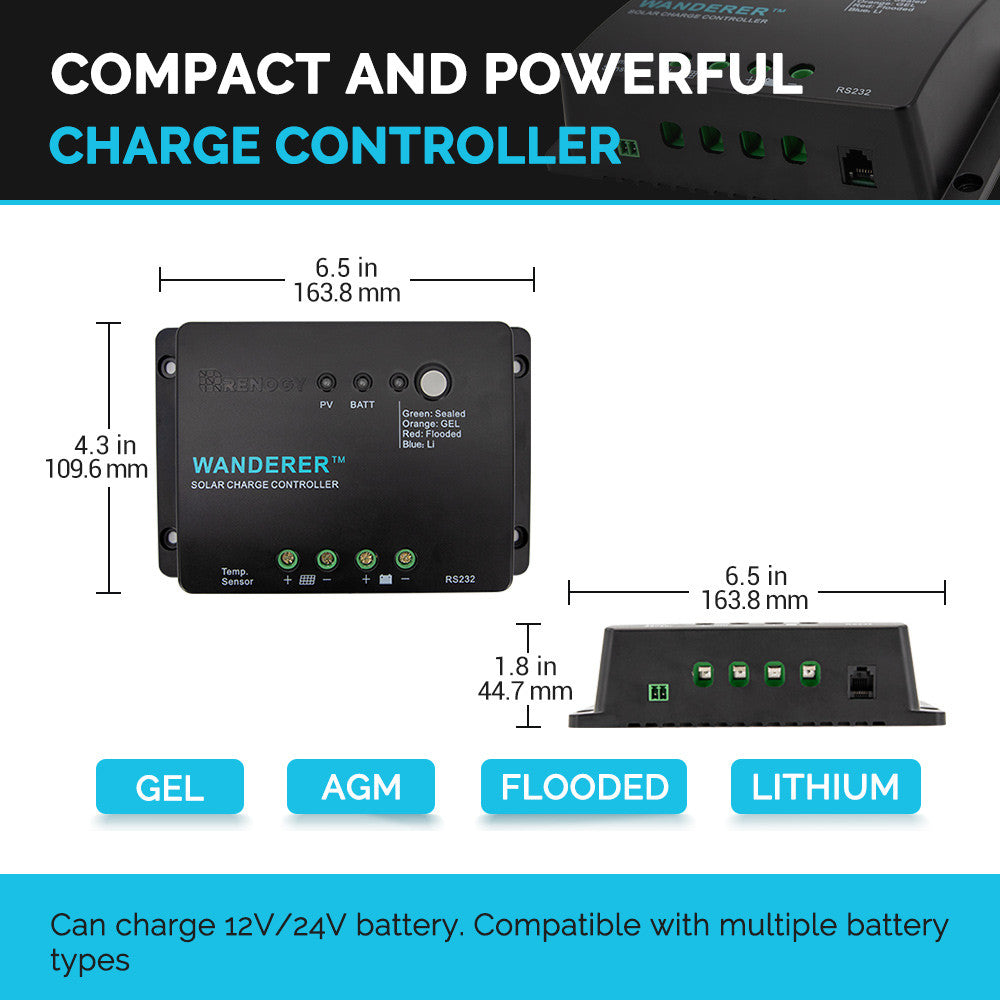

The Renogy Wanderer - 30A PWM Negative-Ground Charge Controller |
---|---|
Maximum Power: 100W | Norminal Voltage: 12VDC |
Maximum System Voltage:600V DC (UL) | Rated Charge Current: 30A |
Open-Circuit Voltage (Voc): 21.6V | Max. PV Input Voltage: 25 VDC |
Short-Circuit Current (Isc): 6.24A | Max. PV Input Power: 400W (12V) |
Optimum Operating Voltage (Vmp): 17.9V | |
Optimum Operating Current (Imp): 5.72A | |
Weight: 14.3lbs(6.5kg) | |
Dimensions: 42.2 X 19.6 X 1.38 in(1074x498x35mm) |

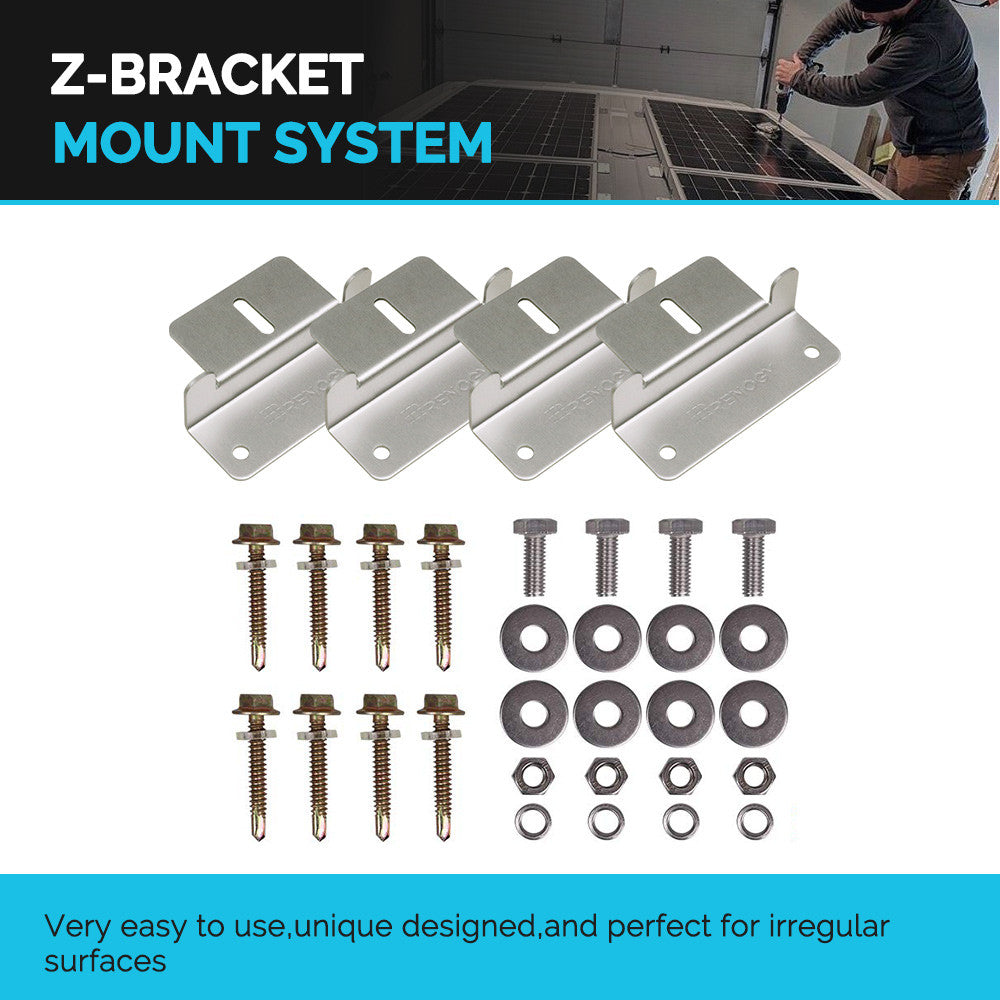

Renogy 8ft 10AWG Tray Cables (A pair) | Mounting Z Brackets (Set) |
---|---|
Length: 8ft | Eight Long Cap Bolts and Four Short Bolts |
AWG: 10 | Four Spring Washers and Four Washers |
Rating Voltage: 600/1000V | Four Z Shape Solar Panel Brackets |
Temperature: -40°F to +185°F | Four Nuts |
Renogy Adaptor Kit (Set) | |
---|---|
Length: 20ft | |
AWG: 10 | |
Rating Voltage: 600/1000V | |
Temperature: -40°F to +185°F |
Warranty Information
Panels |
25-year transferable power output warranty: 5 year/95% efficiency rate; 10 year/90% efficiency rate; 25-year/80% efficiency rate 5-year material and workmanship warranty |
Accessories | 1-year material warranty |
Certification
![]() |
|||
![]() |
|||
![]() |
|||
Please click the links below to download the manuals: | |||
30A PWM Wanderer Li Charge Controller | |||
Mounting Z Brackets |
