10.24kWh Off-Grid Power Kit | 3000W Inverter, 60A MPPT

SKU: RBT200-Mx4-PUH3-RBM-RVR60-UK
£1,750.99 £2,602.99
Tax included. Free shipping.
+ 17500   Renogy Rays after purchase.
Log In About Rays

500A Battery Monitor: Ships on 23 January
  • Caravan / 4x4 trips → Mains-like 240V → 3000W pure-sine inverter-charger
  • Remote camps & cabins → All-day runtime → 10.24kWh LiFePO₄ battery bank
  • Aussie sun → Efficient harvest → Rigid monocrystalline panels + 60A MPPT
  • Rough roads & heat → Safe & durable → Grade-A LiFePO₄ with full BMS
  • DIY builds → Easy install & expand → Pre-matched kit + system monitor
Solar
Quantity:
Payment Methods
Delivery Methods
Delivery time: 3-6 business days. (Excludes LTL shipping.) Free Shipping
Description
Includes
Specs
Downloads
Reviews

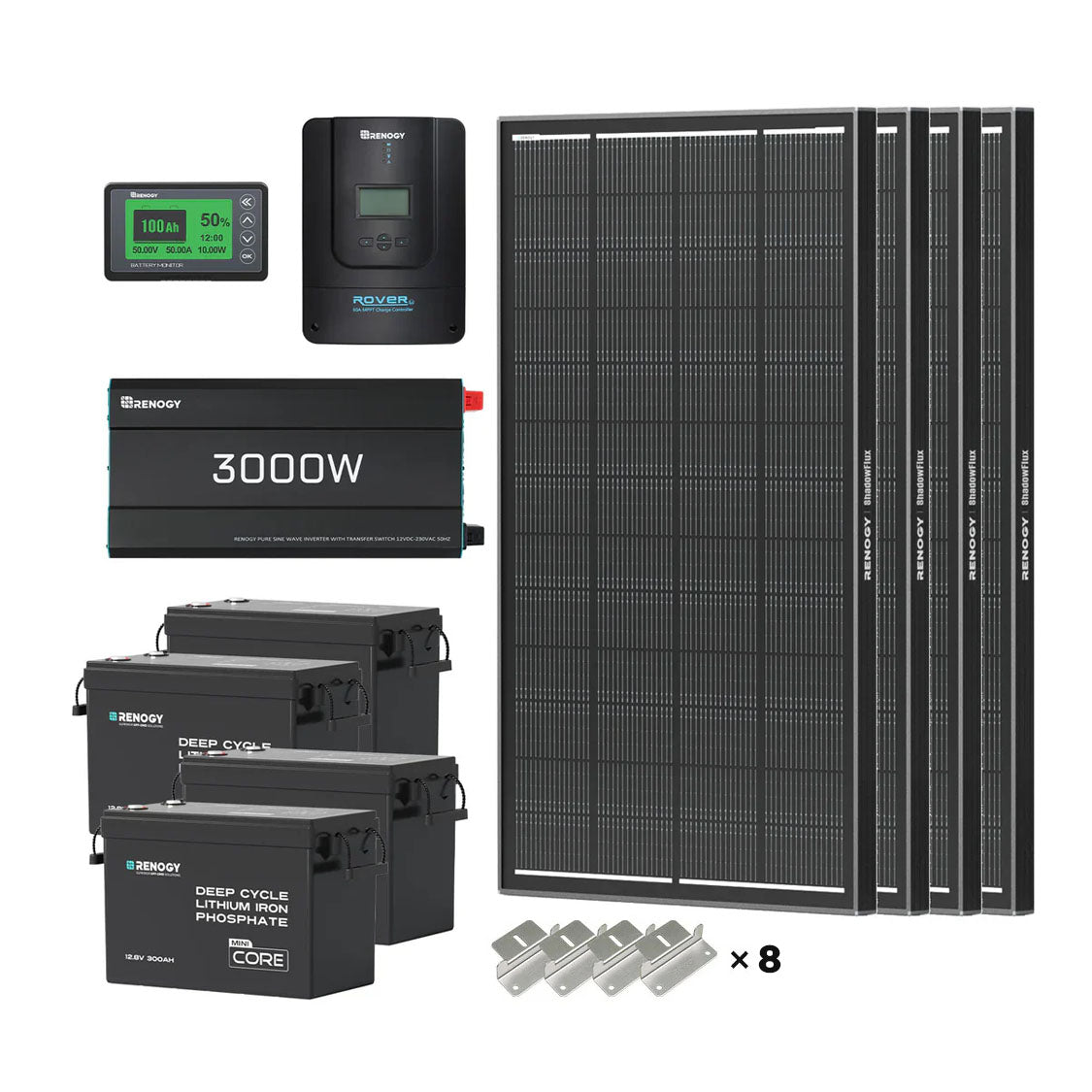

Renogy 10.24kWh Off-Grid Caravan Power Kit

Ready to travel further without the hookup? This high-capacity 12V system pairs a 10.24kWh LiFePO₄ bank (4×200Ah, compact IP65) with a 3000W pure-sine inverter-charger for home-like 230/240V power on the road. The Rover 60A MPPT and optional 4×200W N-Type solar (800W) recharge fast in sun, while the RBM500 shunt monitor shows true state-of-charge—no guesswork. With grid-priority and 50ms UPS, you get seamless power at caravan parks and quieter, cleaner off-grid days with less generator time. Perfect for caravans, Class B vans and 4×4 touring, from weekend escapes to extended adventures.

200W ShadowFlux N-Type Solar Panel (ONLY with Solar panel option)

The solar panels feature anti-shading technology for consistent performance. 25% efficiency with anti-hotpsot tech for less overheating. 7% smaller, 10% lighter than other panels for easy install.

4×200Ah LiFePO₄ (Core Mini)

Feature: 12.8V 200Ah each; 200A BMS; low-temp charge/discharge cut-off; IP65; up to 1/3 smaller than like-for-like lead-acid; UN38.3/FCC/RoHS/UKCA; 5-year warranty Advantage: With 4 in parallel, each shares ~65A under big loads—lower heat, smaller voltage dip Benefit: Stable operation for 3000W AC appliances (coffee maker/microwave) and longer battery life

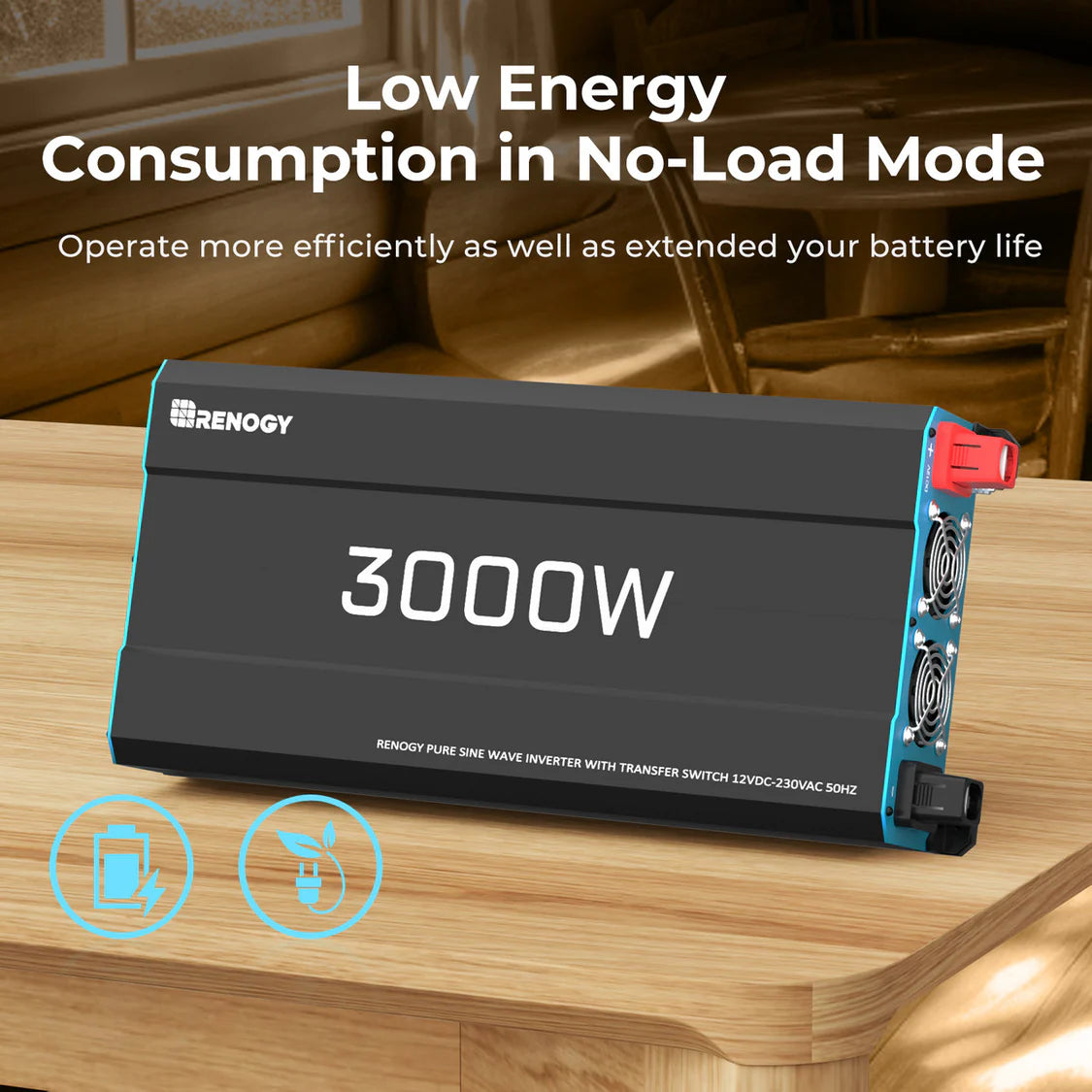

3000W Pure-Sine Inverter-Charger

Feature: 3000W continuous; 50ms UPS; Grid Priority; internal DC fuse & full electronic protections Advantage: Plug into mains at parks for automatic charge/supply; seamless fallback to battery on outage Benefit: Home-like AC experience with no annoying flicker—great for living and working on the road

500A Battery Monitor with Shunt

Feature: True SOC, amps/volts/watts, history & alarms; ultra-low standby draw Advantage: Far more accurate than voltage-only estimates; enables precise load/solar budgeting Benefit: No more guesswork; avoid deep discharge and extend battery lifespan

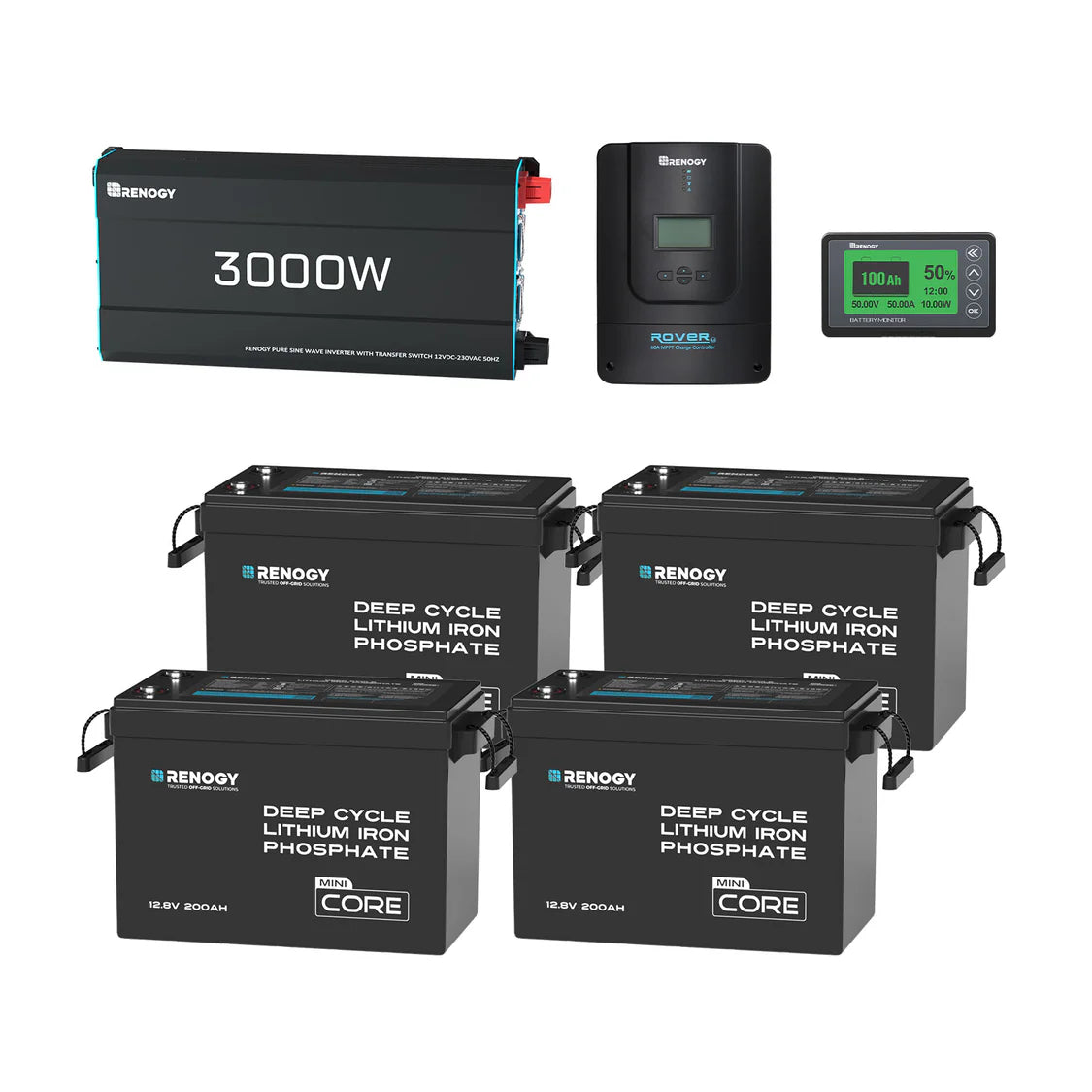

Package includes ( No Solar)

Renogy 3000W 12V Pure Sine Wave Inverter

x 1

Renogy 12V 60A DC-DC On-Board Battery Charger with MPPT

x 1

500A Battery Monitor

x 1

Renogy Core Mini 12.8V 200Ah LiFePO4 Battery

x 4

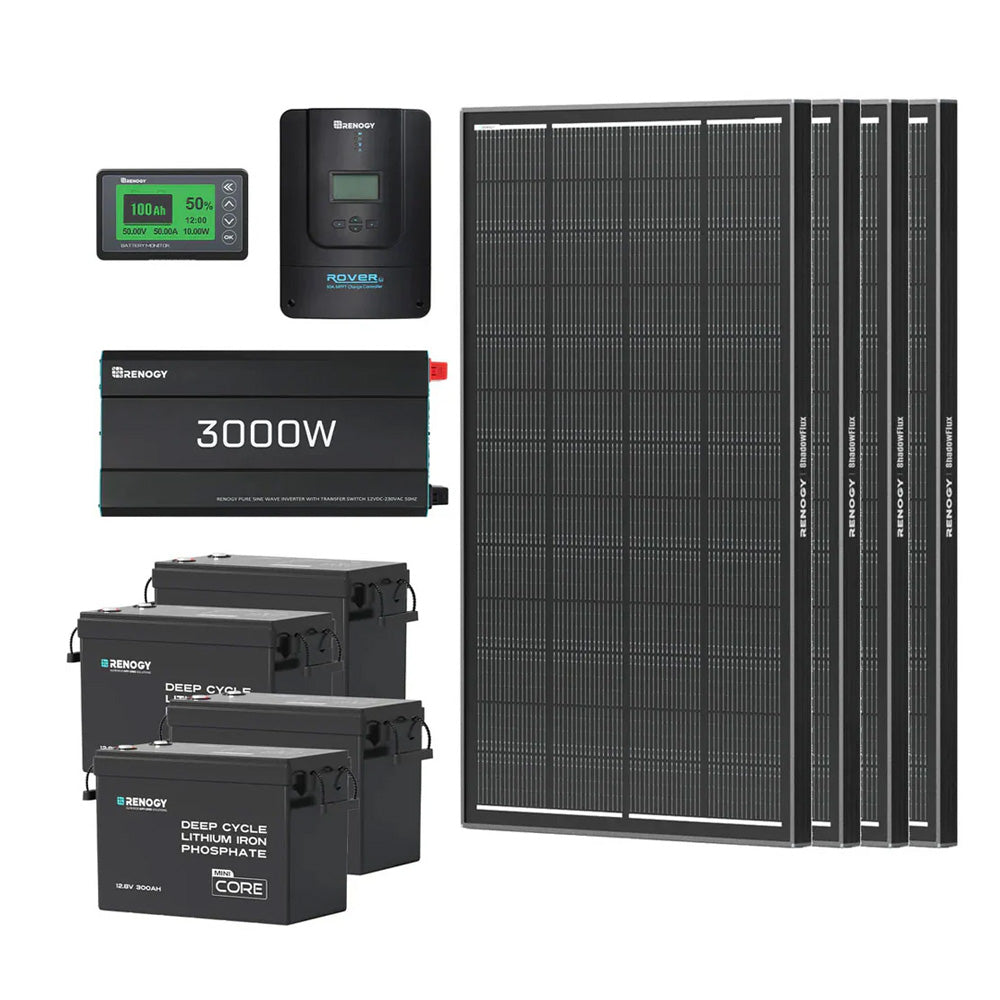

Package includes ( With Solar)

Renogy 3000W 12V Pure Sine Wave Inverter

x 1

Renogy 12V 60A DC-DC On-Board Battery Charger with MPPT

x 1

500A Battery Monitor

x 1

200W ShadowFlux Anti-Shading Solar Panel

x 4

Renogy Core Mini 12.8V 200Ah LiFePO4 Battery

x 4

Specification

200W ShadowFlux Anti-Shading N-Type Solar Panel

Max Power at STC
200W
Open Circuit Voltage
36.5V
Short Circuit Current
6.86A
Optimum Operating Voltage
31.3V
Optimum Operating Current
6.38A
Maximum System Voltage
1000VDC
Maximum Series Fuse Rating
15A
Module Efficiency
20.7%
Operating Temperature
-40°F~185°F / -40℃~85℃
Dimensions
1262*764*30mm/
49.69*30.08*1.18inch
Weight
10.81kg/23.83lb

Renogy 3000W 12V Pure Sine Wave Inverter

Continuous Power
3000W
Surge Power (Peak Power)
6000W
Input Voltage
12VDC
Output Voltage
220VAC±10
Input Voltage Range
11-16Vdc
Static Current
1.5A
Output Frequency (Nominal)
50Hz±0.3
Output Wave form
Pure Sine Wave
Low Voltage Shutdown
10Vdc
High Voltage Shutdown
16.3Vdc
Battery supply & AC main transfer time
Within 50mS
Maximum Efficiency
90%
Working Temperature
0°C~40°C
Dimensions
482*220*92 mm
Weight
6.4Kg

12.8V 200Ah Core Mini Deep Cycle Lithium Iron Phosphate Battery

Rated Capacity
200Ah (0.5C, 25℃)
Voltage
12V
Cycle Life (0.5C/1C, 25℃)
5000 Cycles (80% DOD, 80% EOL)
Energy
2560Wh
Operation Temperature Range
Charge: 32°F to 131°F (0°C to 55°C); Discharge: -4°F to 149°F (-20°C to 65°C)
Storage Temperature Range
-20°C to 60°C (-4°F to 140°F)
Operation Relative Humidity
5% to 95%
Voltage Range
10V to 14.6V
Maximum Continuous Charge Current
100A
Maximum Continuous Discharge Current
200A
Peak Discharge Current
380A@10s
Dimension (L x W x H)
15.12×7.64×9.96 in/384×194×253 mm
Weight
42.44 lbs / 19.25 kg
Terminal Bolt Size
M8×1.25×12 mm & M8×1.25×16 mm
Protection Rating
IP65
5-year prorated material and workmanship warranty
Yes

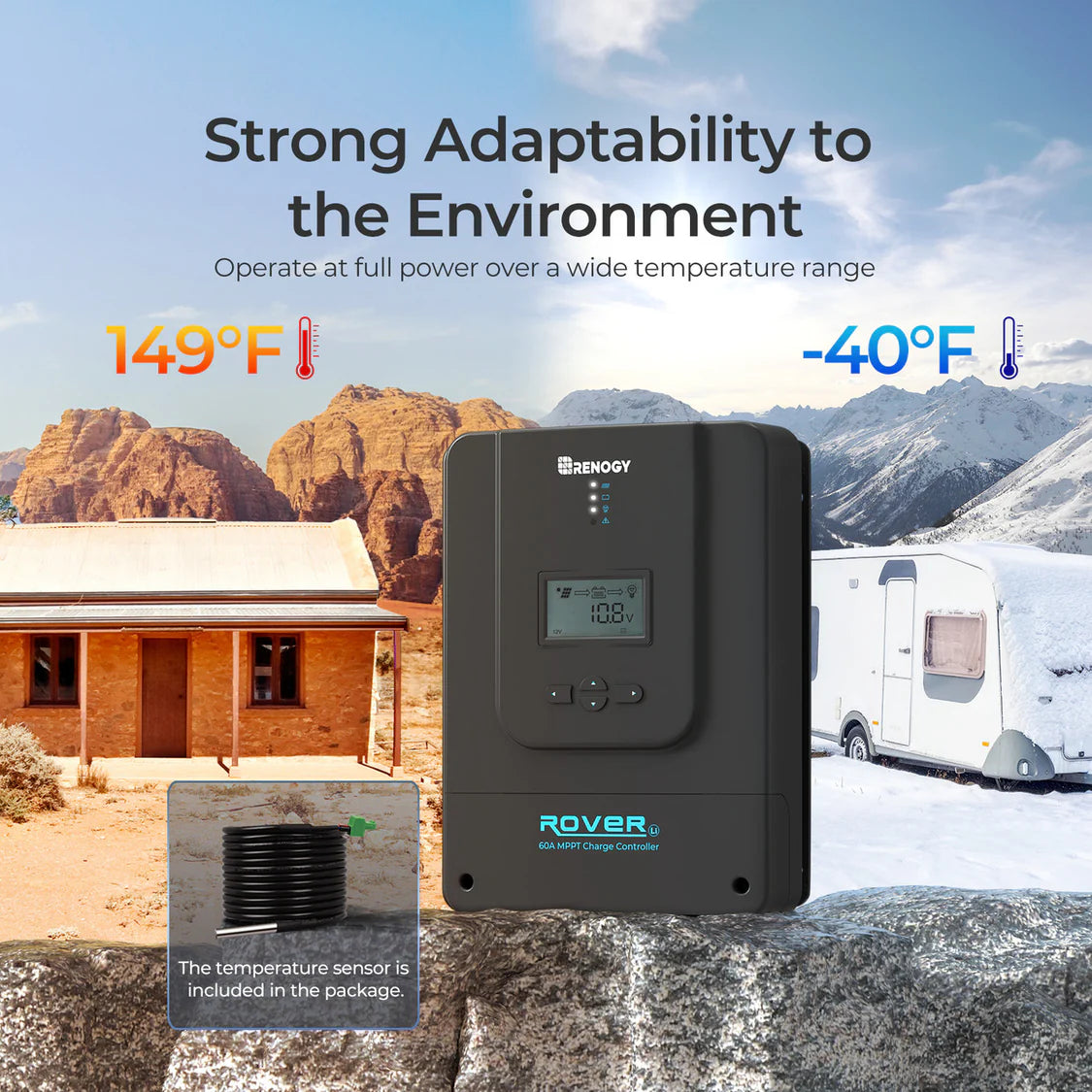

ROVER 60 AMP MPPT SOLAR CHARGE CONTROLLER

Nominal Voltage
12V/24V/36V/48V Auto Recognition (for non-lithium batteries)
Rated Charge Current
60A
Rated Load Current
20A
Max. PV Input Power
800W/12V; 1600W/24V; 2400W/36V; 3200W/48V
Max. PV Input Voltage
140VDC
Self-Consumption
0.7W-1.2W
Operating Temperature
-31 °F to 113 °F (-35 °C to 45 °C )
Temperature Compensation
-3mV/°C/2V (default)
Dimensions
285 x 205 x 102mm (11.22 x 8.07 x 4.00in)
Weight
7.9lbs
Enclosure
IP32
Terminals
25mm2 4AWG
Certification
CE / ROHS
Compatible bluetooth
Renogy BT-1 Bluetooth module
