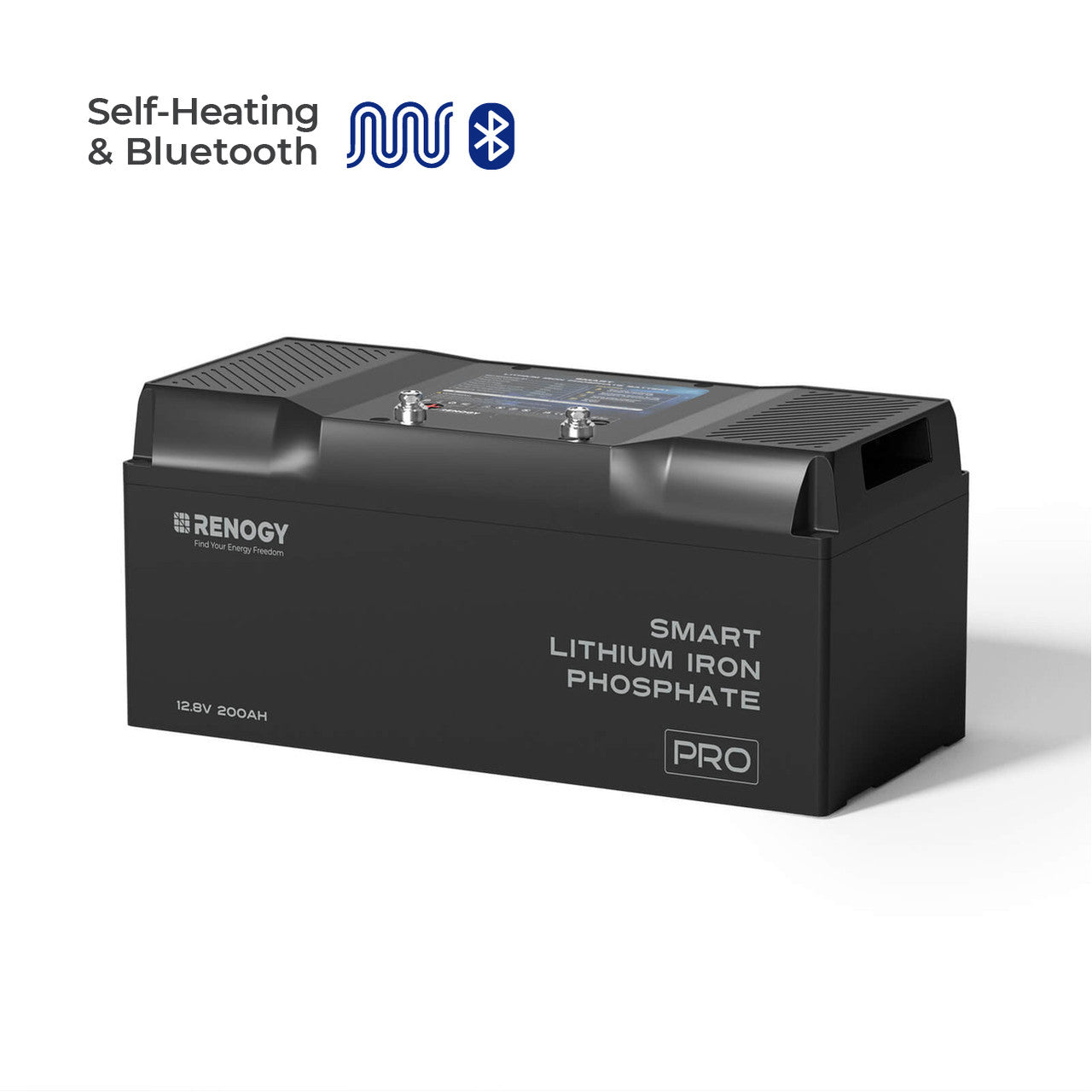

Pro-12V 200Ah Deep Cycle Lithium Iron Phosphate Battery w/Bluetooth & Self-heating Function

SKU: RBT12200LFP-BT-MB-UK
£499.99 £948.99
Tax included. Free shipping.
+ 4990   Renogy Rays after purchase. Learn more

Member Deal - Bestseller Extra 6% Off
valid until 2025-08-04
RNGHS6
  • • 2-in-1 12V 200Ah LiFePO4 battery with self-heating and Bluetooth.
  • • Double active safety features provide complete protection and peace.
  • • Flame-retardant casing prevents vertical burning within 10 seconds.
  • • Easy Bluetooth connectivity with Renogy app for monitoring.
  • • Waterproof, dust-proof (IP67), and corrosion-resistant (ISO 9227).
  • • Supports parallel connections for up to 8 units, for expandable storage.
Options
Quantity：
Enjoy payments with
Return & refund policy

What is Renogy's Return Policy?

Return within 30 Days

You may return your product(s) to Renogy within 30 days of delivery. The item(s) must be in the original packaging, be unused, undamaged, and unmodified. A refund will be issued after the returned item is inspected by Renogy.

Start a Member ReturnStart a Guest Return

Renogy will pay for the return shipping label for items that fall within the following categories:

  • Carrier damage/ warehouse mishandling
  • Defective product
  • Incorrect product was delivered
  • Additional product(s) you did not order were delivered

For any other reason not listed, customers are responsible for any return shipping fees. Renogy will NOT accept returns with any modifications to the product as it voids our warranty. Any modified products returned to Renogy will be shipped back to you at your own expense.

Return after 30 Days

Return requests outside of 30 days require special authorization. You can submit a case through our online portal to request a late return.

Submit a Case

FAQs

Can I exchange my Renogy order?

Renogy does not offer exchanges. If you purchase the wrong item by mistake, you will need return the item and place a separate order for the correct one. The return shipping expenses shall be borne by you.

Where is my refund?

Once we have confirmed that the return requirements are met, we will issue a full refund within 2-5 business days. Actual deposit times may vary according to your banking institution. Additionally, an email notification will be sent out when the refund is issued.

What about defective or faulty items?

We stand behind all of our products. If the item(s) you received is defective or flawed in any way, please submit a case  on our online portal and describe the issue you are encountering.

----

Click here to view the full content of Return & Refund Policy.

Description
Includes
Specs
Downloads
FAQ
Reviews

I'd Like to Power Up...

4x4 Off-Road Trips
Campervan / Sheds
Catamaran/5th wheel

Dive into Overland Travel

Embarking on an overland adventure is no easy feat, but the Renogy 12V 200Ah Pro LiFePO4 Battery ensures that you have reliable, safe power for the journey. Built to withstand splashes, heat, vibrations, and more, it lets you reach your destination fully refreshed.

Upgrade Your Off-Grid Retreats

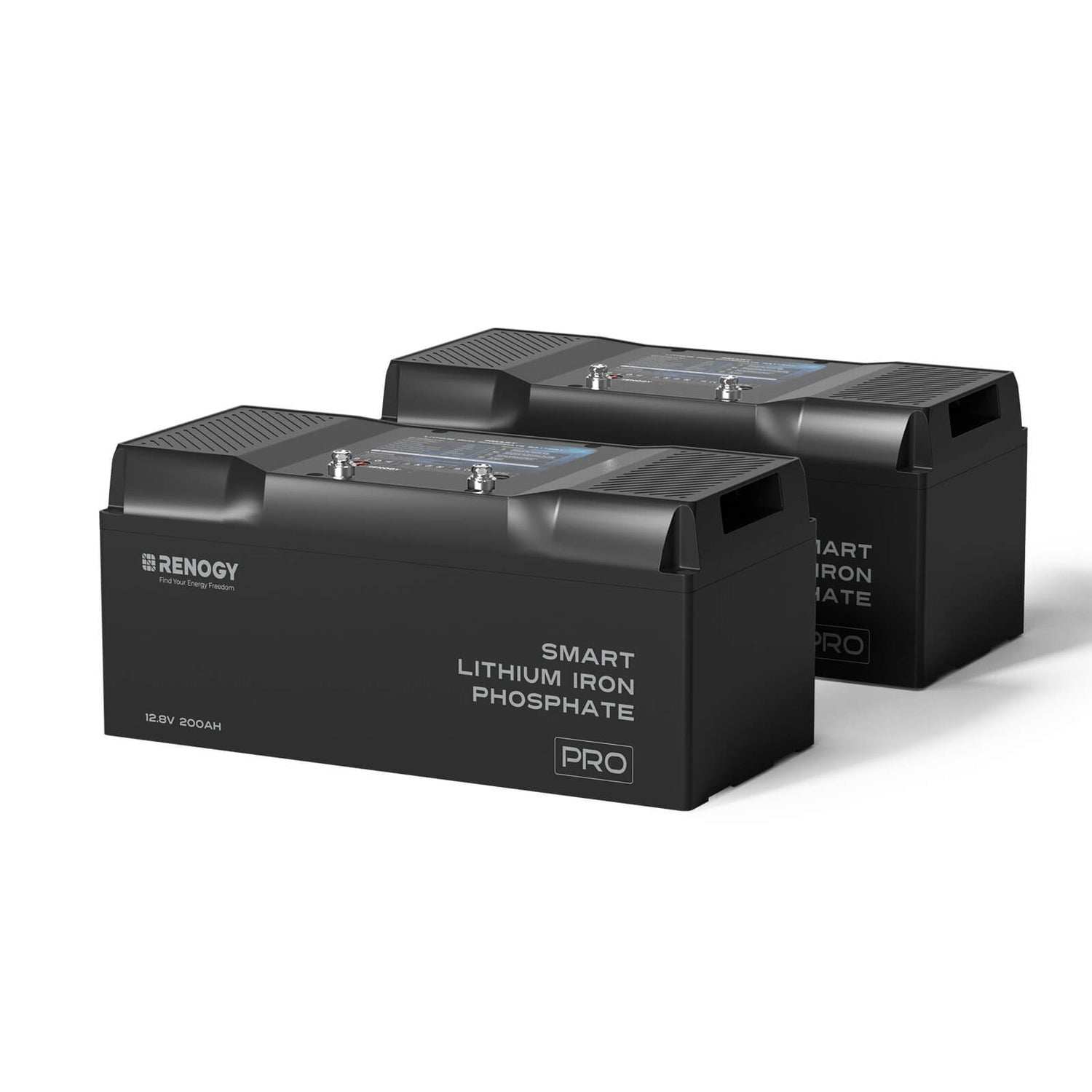

Power your campervans or sheds with the Renogy 12V 200Ah Pro LiFePO4 Battery (pack of 2). Keep everything running smoothly—lights, food, phones—no matter where you are, even without shore power.

Bold Adventures Start Here

Whether you're cruising on a catamaran or towing a 5th wheel trailer, the Renogy 12V 200Ah Pro LiFePO4 Battery Bundle (Pack of 4) transforms the outdoor experience with powerful, reliable energy.

Discover Pro-Level Safety

Renogy’s safest 12V 200Ah LiFePO4 battery is designed for all-weather living, offering unmatched protection and performance.

Find Added Comfort in Your 4WD

Enjoy the comfort of home even when you are miles away from your familiar place. A 12V 200Ah Pro LiFePO4 battery can pump out max. 2.56kWh of power to juice up devices longer before hitting your goal.

Primary Safety: 60+ EV-Grade BMS Protection

The 12V 200Ah Pro battery features an automotive-grade BMS, offering over 60 protection alerts for greater reliability and precise monitoring to reduce electrical and thermal hazards in any environment.

Secondary Safety: Active Backup Protection

For the first time, our 12V 200Ah Pro LiFePO4 battery features active backup protection. It helps to cut off the circuit 40x faster than conventional passive protection when a MOSFET switch fails, keeping the battery from overheating and bringing more damage.

Brave the Cold for Winter Journeys

For winter outdoor enthusiasts, the self-heating Renogy 12V 200Ah Pro LiFePO4 battery is a must-have. With charging currents above 6A, it automatically heats up to ensure safe charging in sub-zero temperatures, keeping your essentials powered through the cold.

Robust Power Even in Heatwaves

The Renogy 12V 200Ah Pro series is equipped with a fire-resistant casing (UL94 V-0), offering outstanding protection against fire hazards, making it ideal for living off the grid in warmer climates or remote areas.

Performance You Can Count On

With advanced safety features, the Renogy 12V 200Ah Pro ensures exceptional performance while extending battery lifespan, giving you reliable power when you need it most.

Over-the-Air Update

Stay ahead with the Renogy 12V 200Ah Pro—simply connect via Bluetooth to the Renogy app and receive future updates for enhanced functionality.

UL-Listed Cells

The Renogy 12V 200Ah Pro battery uses EV-class cells and a comprehensive battery management system, ensuring you get safe, dependable power.

Certified Safety

The Renogy 12V 200Ah Pro LiFePO4 Battery has passed rigorous testing to meet high standards, offering you a safe and reliable power source.

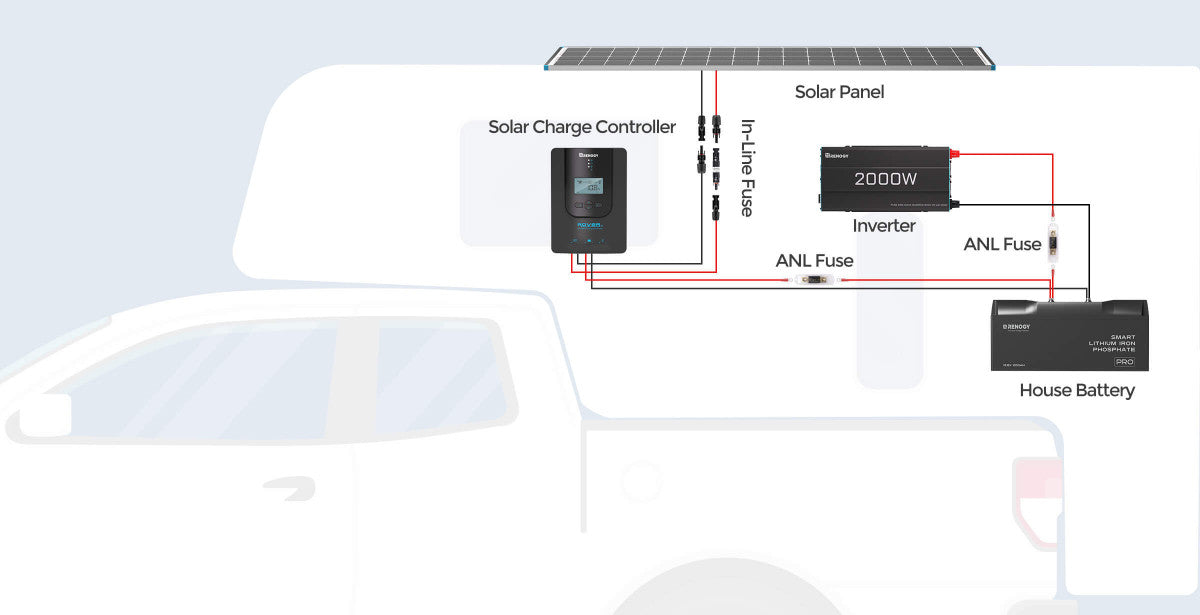

Get Power Ready for Off-Road Trips

Complete your 4x4 build with this tough 12V 200Ah Pro LiFePO4 Battery along with our popular solar panel, charge controller, and inverter to go the extra mile effortlessly.

Dimensional Reference Guide

Before installing the battery, please note that you need to leave 1.97-3.94 in (50-100 mm) for the top of the battery; the side with busbars needs to be left at least 7.87 in (200 mm).

Package Includes

Pro - 12V 200Ah Lithium Iron Phosphate Battery

x 1

Terminal Bolts (M8 x 1.25 x 12 mm)

x 2

Long Terminal Bolts (M8 x 1.25 x 16 mm)

x 2

User Manual

x 1

Renogy One Core (Optional)

x 1

Renogy 12V 200Ah Pro Deep Cycle Lithium Iron Phosphate Battery

Electrical Specifications

Rated Capacity (0.5C, 25°C)
200Ah
Nominal Voltage
12.8V
Energy
2560Wh
Cycle Life (0.5C/1C, 25℃)
5000 Cycles (80% DOD, 80% EOL)

Charging Parameters

Voltage Range
10V to 14.8V
Maximum Continuous Charge Current
200A

Discharging Parameters

Maximum Continuous Discharge Current
200A
Peak Discharge Current
270A@30s

Temperature Parameters

Charge Temperature
-4°F to 131°F (-20°C to 55°C)
Discharge Temperature
-4°F to 140°F (-20°C to 60°C)
Storage Temperature Range
-13°F to 149°F / -25°C to 65°C
Operation Relative Humidity
10% to 95%

Mechanical Specifications

Dimension (L x W x H)
18.4 x 8.4 x 8.2 in / 467 x 212 x 208 mm
Weight
50.7 lb / 23 kg
Terminal Bolt Size
M8 x 1.25 x 12 mm
Long Terminal Bolt Size
M8 x 1.25 x 16 mm
Protection Rating
IP67

Warranty

Warranty
7-year material warranty

Certifications

Certifications
UL, MSDS, UN38.3, FCC, PSE, CE, UKCA

Renogy One Core (Optional)

Operating Voltage
8-35 VDC (5 VDC for USB Type-C)
Power Consumption at 12V
Operating, WiFi On, 100% illumination: 3.2 W; Operating, WiFi On, 50% illumination: 2.4 W; Operating, WiFi On, 0% illumination: 1.9 W; Off, logger still active: 1.5 W
Communication
IEEE 802.11 a/b/g; 2.4GHz & 5GHz; Bluetooth LE and Bluetooth Mesh; Zigbee 3.0 (IEEE 802.15.4); RS-485 & CAN
Touch Screen
4 inches (480 x 480p)
Operating Temperature
-20℃ to 70℃
Operating Humidity
0% to 95% RH
Operating Altitude
Less than 5000m above sea leve
Installation
Flush mount
Dimensions
106 x 106 x 26.6 mm
Weight
128g
Certification
CE, FCC, RoHS, TSCA, BQB, IC-ID
Warranty
2 years

Resources Download

Warranty

Download

User Manual

Download

Frequently Asked Questions

1. What is the cycle life of this battery?

The cycle life of this battery is 5000 cycles (0.5C, 25℃) with an 80% depth of discharge (DOD) and 80% end of life (EOL).

2. What is the grade and type of cell inside this battery?

The battery contains prismatic, EV-grade Class A cells for optimal performance and longevity.

3. What is the IP protection rating of this battery?

The battery is rated IP67, meaning it is both water-resistant and dust-proof.

4. What are the advantages of this battery?

60+ EV-grade BMS protection, Active backup protection, V-0 flame-resistant casing, IP67 protection rating, EV-grade Class A cells, Bluetooth communication capability, Self-heating with overheat protection

5. What does the double active safety system mean?

The Double Active Safety Design combines 60+ Battery Management System (BMS) protections and active backup protection to prevent damage from electrical abuse and other risks, ensuring safety for both the battery and your system.

6. What is the active backup protection?

Active backup protection is a feature that quickly responds to potential risks like overvoltage or overheating, using newly integrated self-control fuses for faster activation compared to traditional fuses, even if other components fail.

7. To ensure the battery’s cycle life, what is the recommended depth of discharge (DOD)?

We recommend not exceeding an 80% depth of discharge (DOD) to ensure optimal battery life.

8. What are the installation requirements for the battery?

The installation environment should be clean, cool, and well-ventilated. Avoid oil, dirt, or debris to prevent leakage and short circuits.

9. How can the battery be connected?

The battery can only be connected in parallel, with a maximum of 8 batteries in parallel.

10. Can the battery communicate with the Renogy APP/Renogy ONE M1/Renogy ONE Core?

Yes, the battery has built-in Bluetooth and can communicate with the Renogy app, Renogy ONE M1, and Renogy ONE Core for easy monitoring and control.

11. Can I use this battery with other brands of batteries in parallel?

No, batteries connected in parallel must be the same brand, type, voltage, and capacity to ensure proper operation.

12. Before connecting the batteries in parallel, are there any principles to follow to make the battery pack charge and discharge balanced?

Ensure the initial state of the batteries is the same. It’s recommended to fully charge each battery separately and allow them to rest for 30 minutes to ensure a voltage difference of less than 0.1V before connecting.

13. Does the battery automatically enter shelf mode when not used for a long time?

No, the battery does not enter shelf mode automatically when unused. It requires manual activation if needed.

14. What is the self-discharge rate of this battery?

The self-discharge rate of this battery is less than 3% per month.

15. I accidentally over-discharged the battery, resulting in under-voltage protection. What kind of charger should I use to charge the battery?I accidentally over-discharged the battery, resulting in under-voltage protection. What kind of charger should I use to charge the battery?

Disconnect the wiring cables from the battery immediately.

16. What kind of charger should I choose to charge this battery?

Use a charger specifically designed for 12V LiFePO4 batteries.

17. Does the battery have a self-heating function? If so, what are the working conditions of the battery's self-heating function?

Yes, the battery includes a self-heating function.

18. How do I store the battery?

To store the battery properly:
