RNGM8
1 9

Core - 12V 100Ah Trolling Motor Group 24 LiFePO4 Battery w/ Bluetooth

SKU: RBT12100LFP-TM-BT-UK
£219.99 £299.99
Tax included. Free shipping.
+ 2190   Renogy Rays after purchase. Learn more

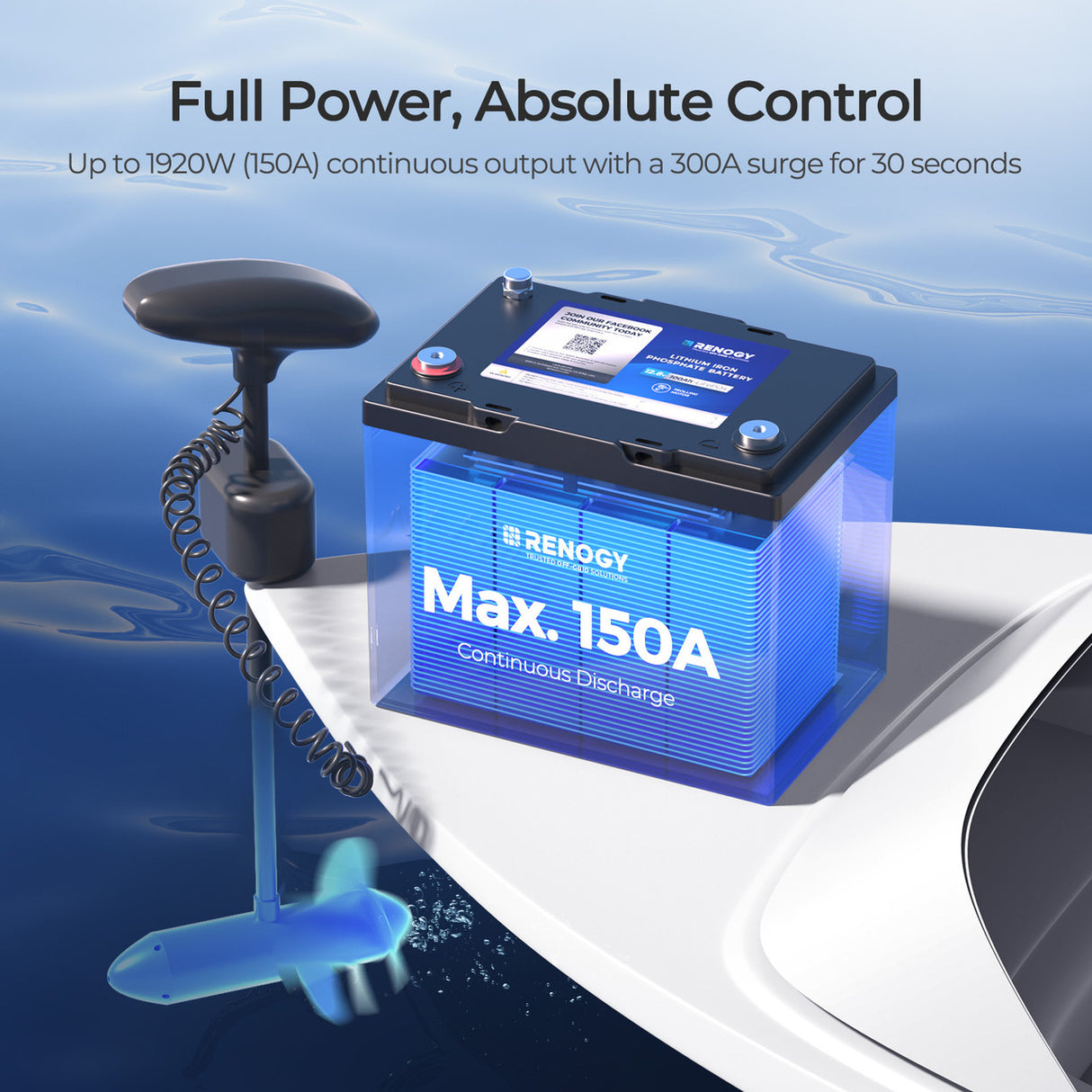

  • • 150A continuous, 300A @30s discharge. Supports 12V-36V trolling motors.

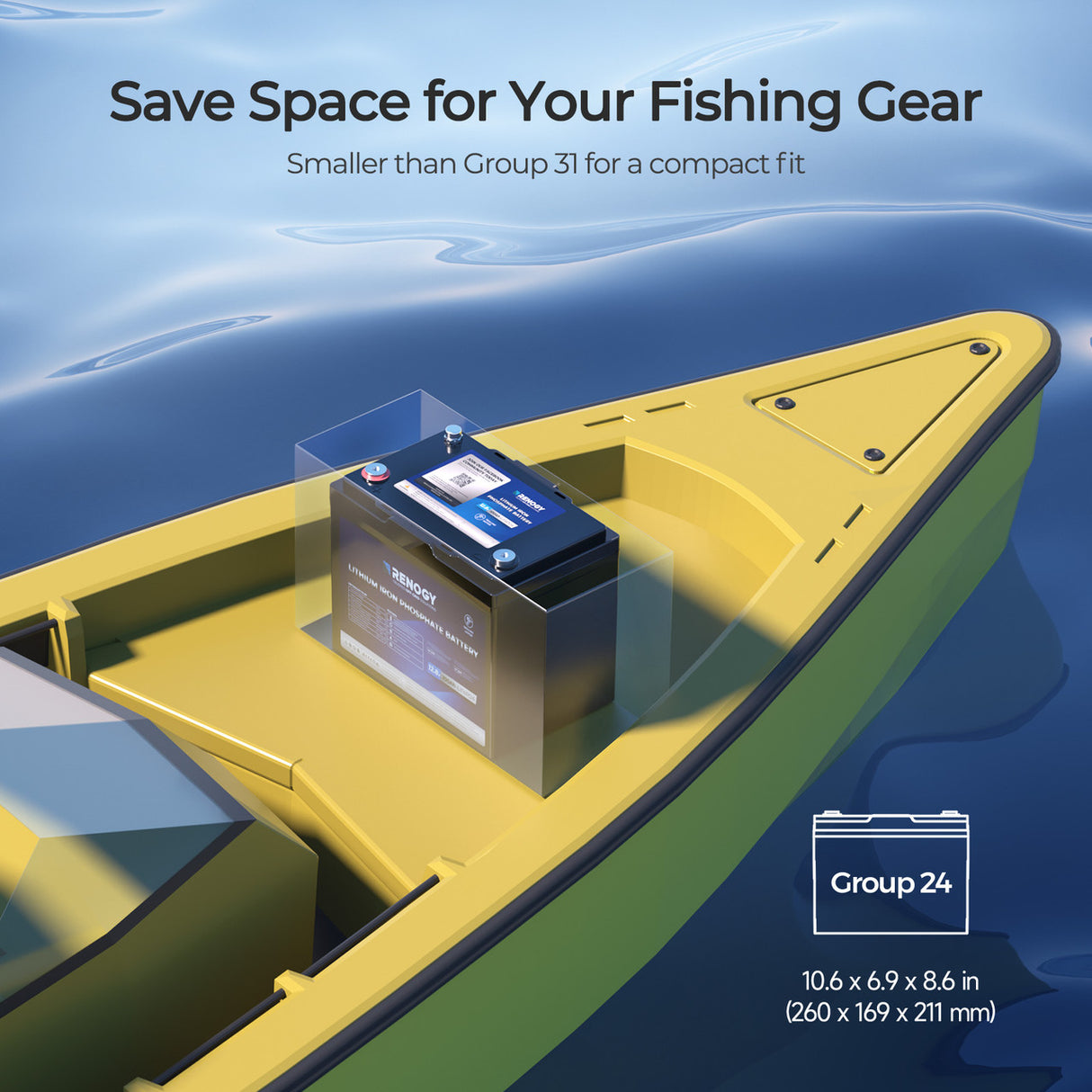

  • • 9.9 kg, half lead-acid weight. Group 24, 1/3 smaller than Group 31.
  • • IP67 waterproof with marine-grade protection.

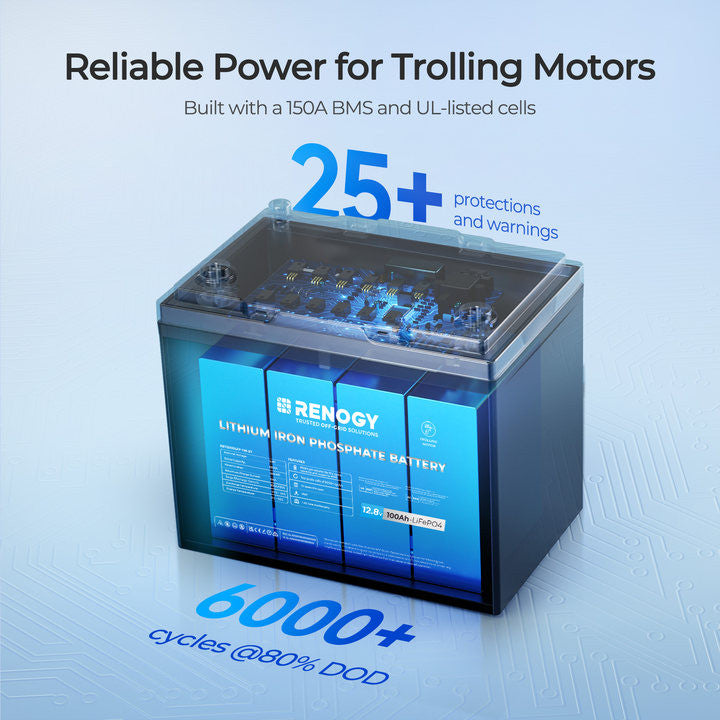

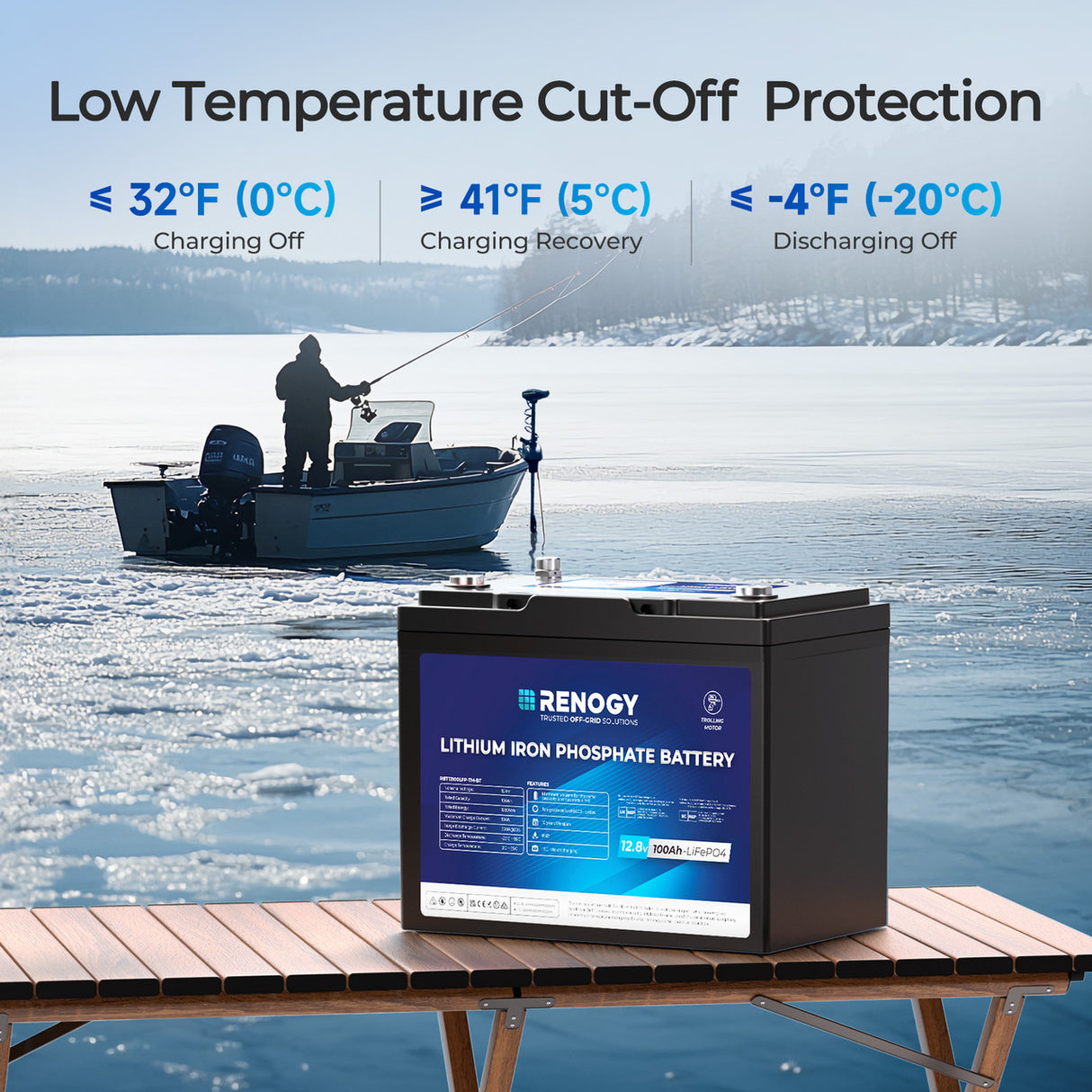

  • • Bluetooth 5.3 for remote monitoring. 150A BMS with low-temp cut-off.
  • • Compatible with electric outboards, workshops, RVs, and off-road systems.
Quantity：
Enjoy payments with
Return & refund policy

What is Renogy's Return Policy?

Return within 30 Days

You may return your product(s) to Renogy within 30 days of delivery. The item(s) must be in the original packaging, be unused, undamaged, and unmodified. A refund will be issued after the returned item is inspected by Renogy.

Start a Member ReturnStart a Guest Return

Renogy will pay for the return shipping label for items that fall within the following categories:

  • Carrier damage/ warehouse mishandling
  • Defective product
  • Incorrect product was delivered
  • Additional product(s) you did not order were delivered

For any other reason not listed, customers are responsible for any return shipping fees. Renogy will NOT accept returns with any modifications to the product as it voids our warranty. Any modified products returned to Renogy will be shipped back to you at your own expense.

Return after 30 Days

Return requests outside of 30 days require special authorization. You can submit a case through our online portal to request a late return.

Submit a Case

FAQs

Can I exchange my Renogy order?

Renogy does not offer exchanges. If you purchase the wrong item by mistake, you will need return the item and place a separate order for the correct one. The return shipping expenses shall be borne by you.

Where is my refund?

Once we have confirmed that the return requirements are met, we will issue a full refund within 2-5 business days. Actual deposit times may vary according to your banking institution. Additionally, an email notification will be sent out when the refund is issued.

What about defective or faulty items?

We stand behind all of our products. If the item(s) you received is defective or flawed in any way, please submit a case  on our online portal and describe the issue you are encountering.

----

Click here to view the full content of Return & Refund Policy.

Description
Includes
Specs
Downloads
FAQ
Reviews

Inside the Renogy 12V 100Ah Trolling Motor LiFePO4

Real-Time Monitoring with Bluetooth 5.3

The built-in Bluetooth 5.3 enables real-time power tracking via the Renogy App, allowing you to access information such as system overview, fault alerts, and battery status.

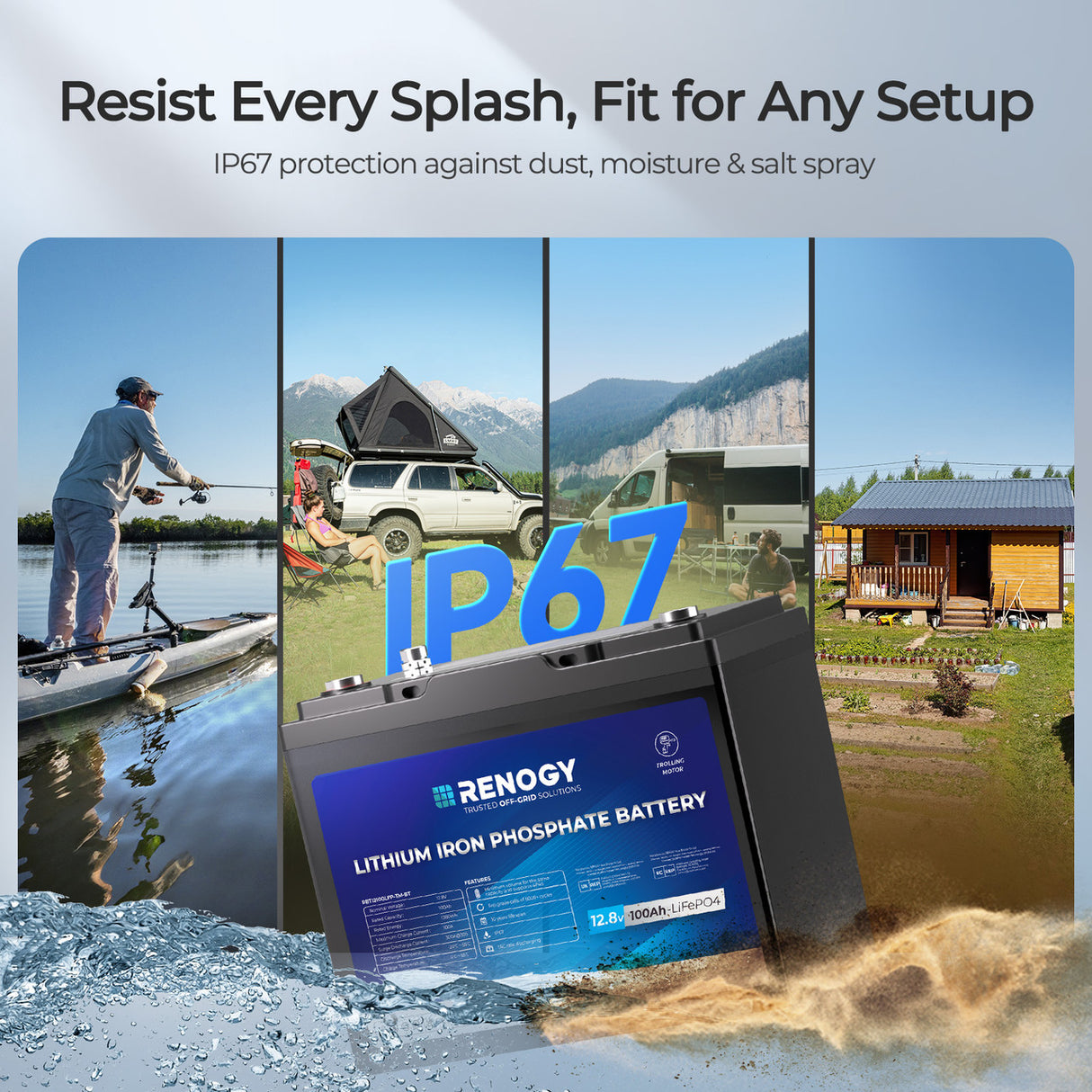

Ready for Any Environment

Renogy’s rugged design offers advanced safety, superior moisture resistance for outdoor use, longer life span, and seamless real-time monitoring – all in one compact battery.

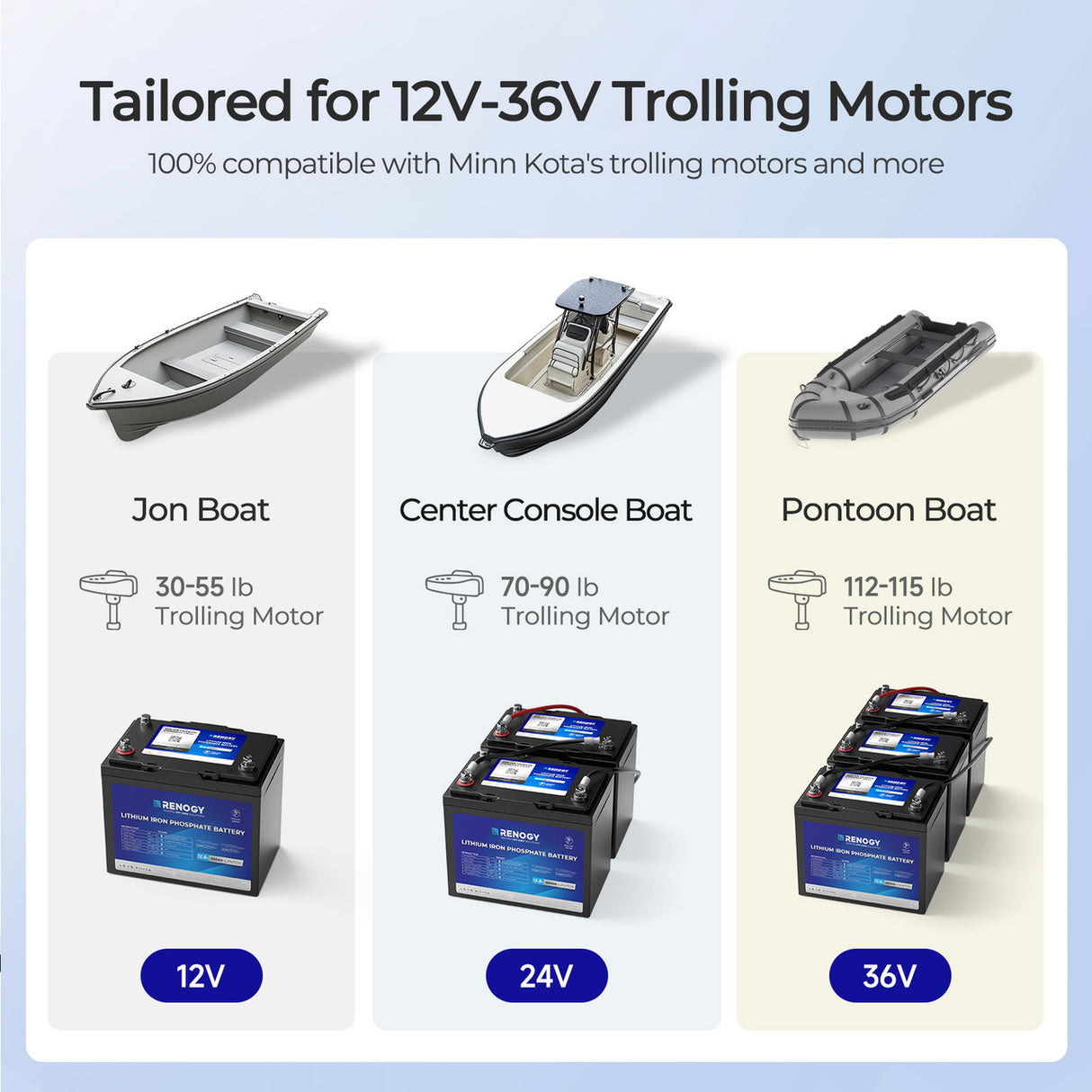

Made for Trolling Motors

Fully compatible with Minn Kota and other major trolling motor brands. Run a single battery for 30-55 lb motors, two in series for 70-90 lb motors, or three in series for 112-115 lb motors.

Scalable Power, Flexible Setup

Build your ideal power system with up to 4 batteries in series and 4 in parallel (4P4S), delivering up to 20.48kWh. Great for trolling motors, RVs, workshops, and off-road systems. Can adapt to various setup.

World-Class Standards, Rigorously Tested

The Renogy 12V 100Ah Trolling Motor LiFePO4 Battery meets global safety certifications, including MSDS, UN38.3, IC, FCC, CE, PSE, RCM, RoHS, and UKCA. Each unit undergoes thorough testing to ensure the reliable performance you can trust.

Package Includes

12V 100Ah Lithium Iron Phosphate Battery

x 1

Long Terminal Bolts

x 2

Insulating Sleeve

x 2

User Manual

x 1

Certifications

RCM, MSDS, UN38.3, FCC, CE, PSE, IC, RoHS, and UKCA
YES

Warranty

5-year material warranty
YES
Rated Capacity (0.5C, 25°C)
100Ah
Nominal Voltage
12.8V
Energy
1280Wh
Cycle Life (0.5C/1C, 25℃)
5000 Cycles (80% DOD)
Operation Temperature Range
Charge: 32°F to 131°F (0°C to 55°C) Discharge: -4°F to 131°F (-20°C to 55°C)
Storage Temperature Range
32°F to 113°F (0°C to 45°C)
Operation Relative Humidity
5% to 95%
Voltage Range
10.8V to 14.8V
Maximum Continuous Charge Current
100A
Maximum Continuous Discharge Current
150A
Peak Discharge Current
300A@30s
Dimension (L x W x H)
260x168×209 mm/10.24x6.61x8.23in
Weight
9.9 kg / 21.83 lbs
Terminal Bolt Size
M8 x 1.25 x 12 mm
Protection Rating
IP67

Resources Download

Warranty

Download

Frequently Asked Questions

I have 4 Renogy 100W 12V solar panels. Will these work with this LiFePO4 battery, or is the wattage too high?

Yes, but make sure that your solar charge controller is suitable for the output of your solar panels. Do not connect the solar panels directly to the batteries without using a solar charge controller. Contact us if you have any questions regarding the sizing of the solar charge controller for your system.

Can this battery be connected in series to build a 48-volt system?

Yes. Renogy 12V Core Series batteries can be connected in series to increase the voltage for an off-grid 24V, 36V, or 48V system. You can also connect the batteries in series first and then connect battery sets (same models required) in parallel to achieve a maximum capacity of up to 20.48 kWh.

How many Renogy 12V 100Ah Trolling Motor batteries can I connect at most?

The Trolling Motor batteries support versatile connections, including series, parallel, and series-parallel connection. You can connect up to 4 batteries in series, 4 in parallel, or 16 in the series-parallel connection. Batteries of the same model and similar capacity are required.

How long will the Renogy Trolling Motor batteries last?

Renogy 12V 100Ah Trolling Motor Batteries are capable of delivering 6000 cycles with a recommended 80% depth of discharge (DOD).

How to recharge my LiFePO4 batteries?

Whether you prefer charging batteries via solar, a DC-DC battery charger, or an AC-DC charger, we highly recommend a solar charge controller/charger that is compatible with lithium iron phosphate batteries.
