Pro 12.8V 135Ah/200Ah/500Ah Underseat Lithium Iron Phosphate Battery

SKU: RBT12135LFP-SHBT-UK
£702.99
Tax included. Shipping Policy.
+   Renogy Rays after purchase.
Log In About Rays

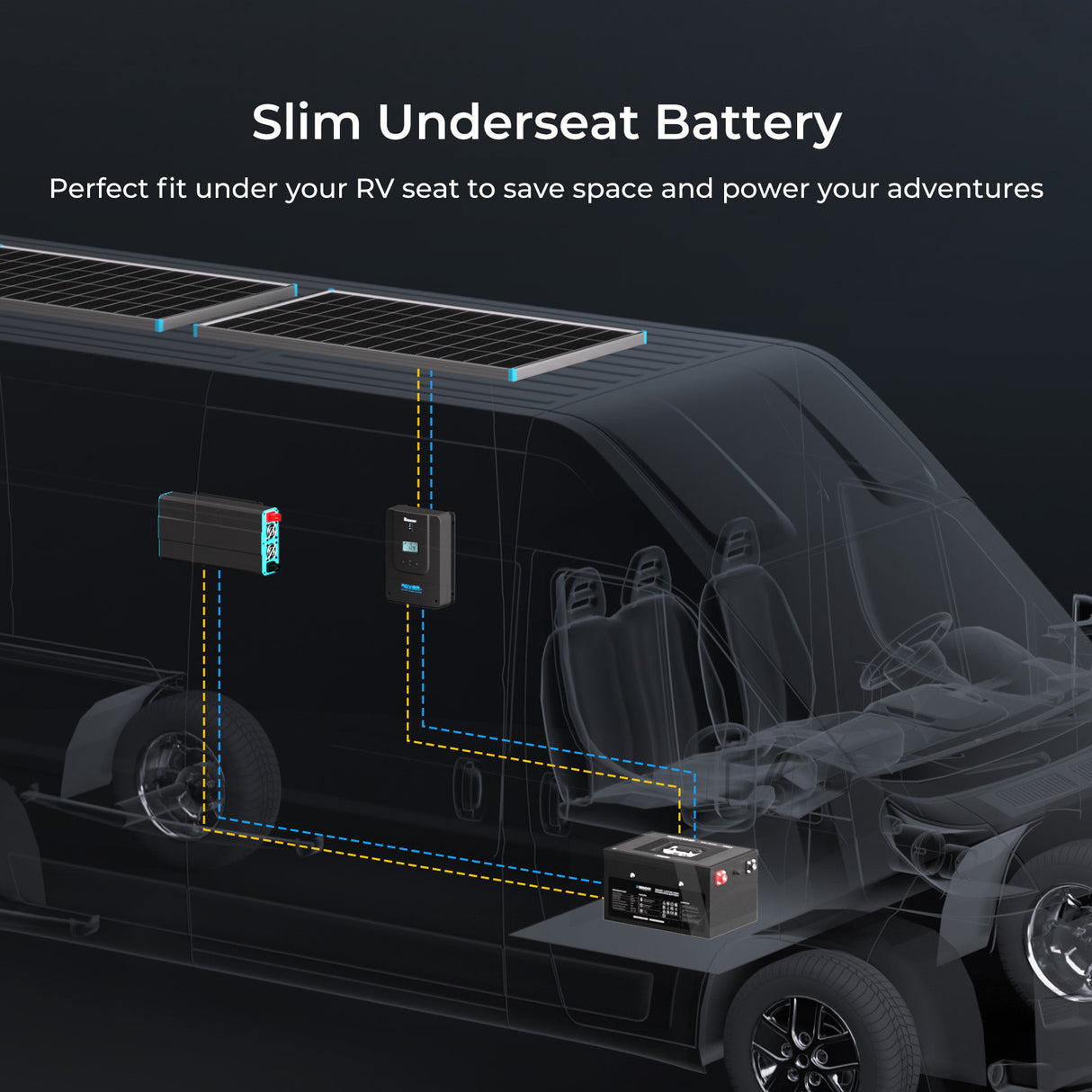

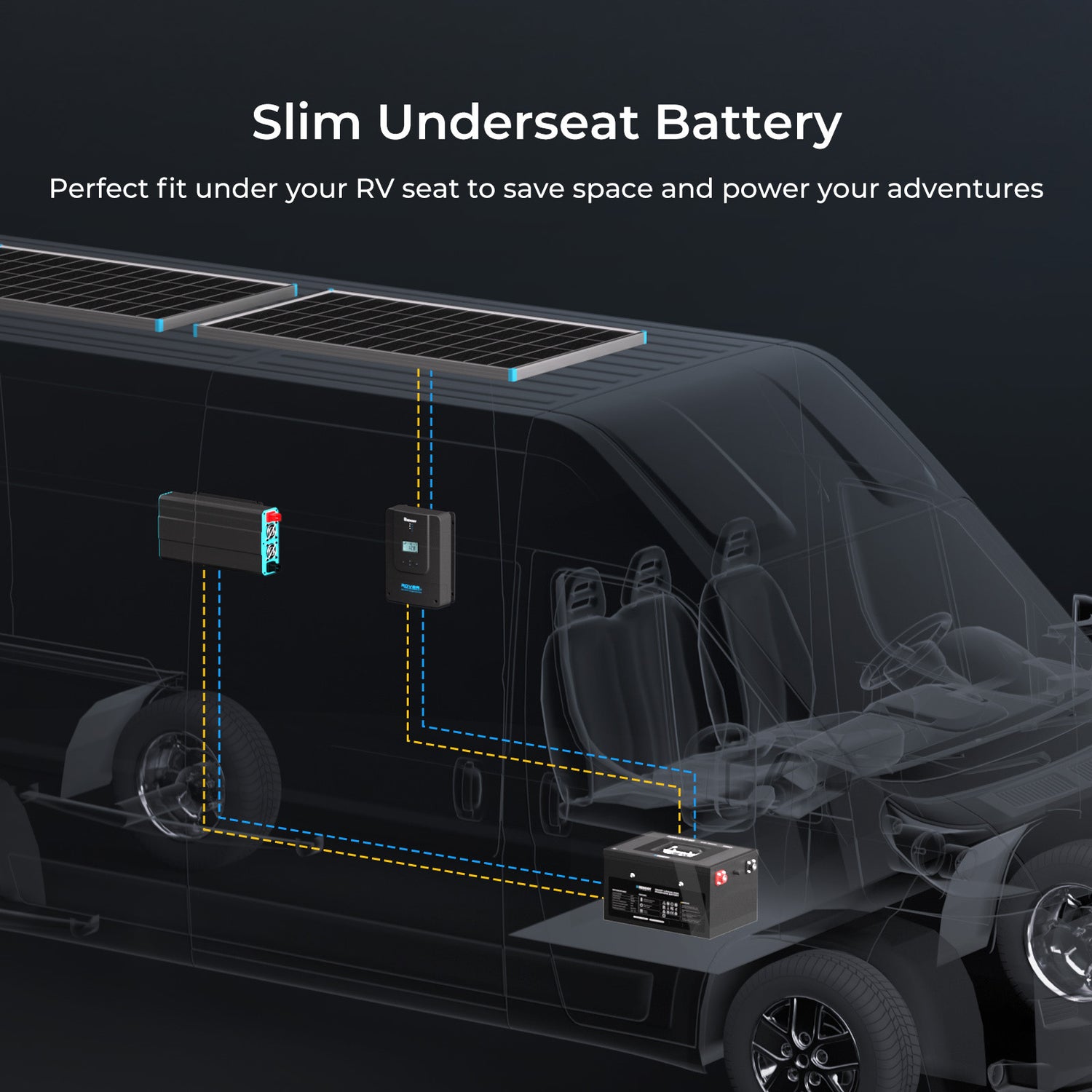

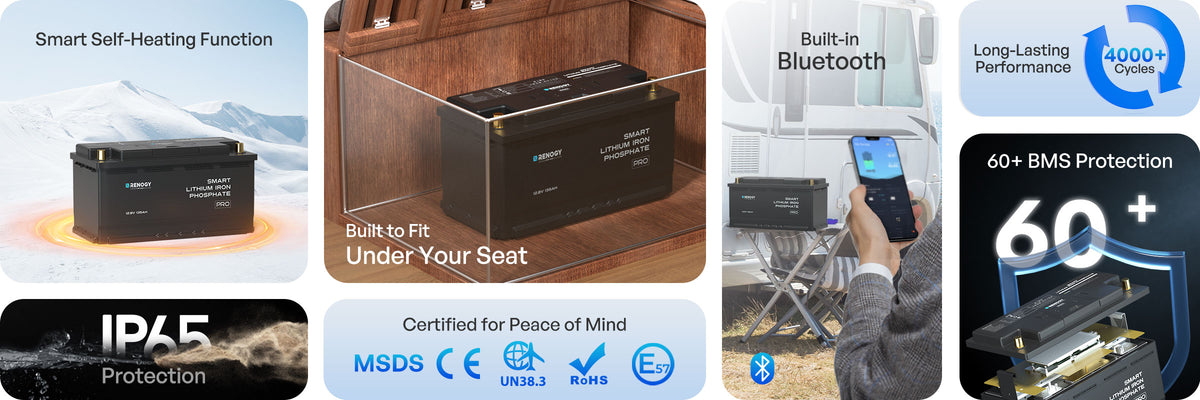

  • Compact size fits under RV seats while delivering strong, safe power

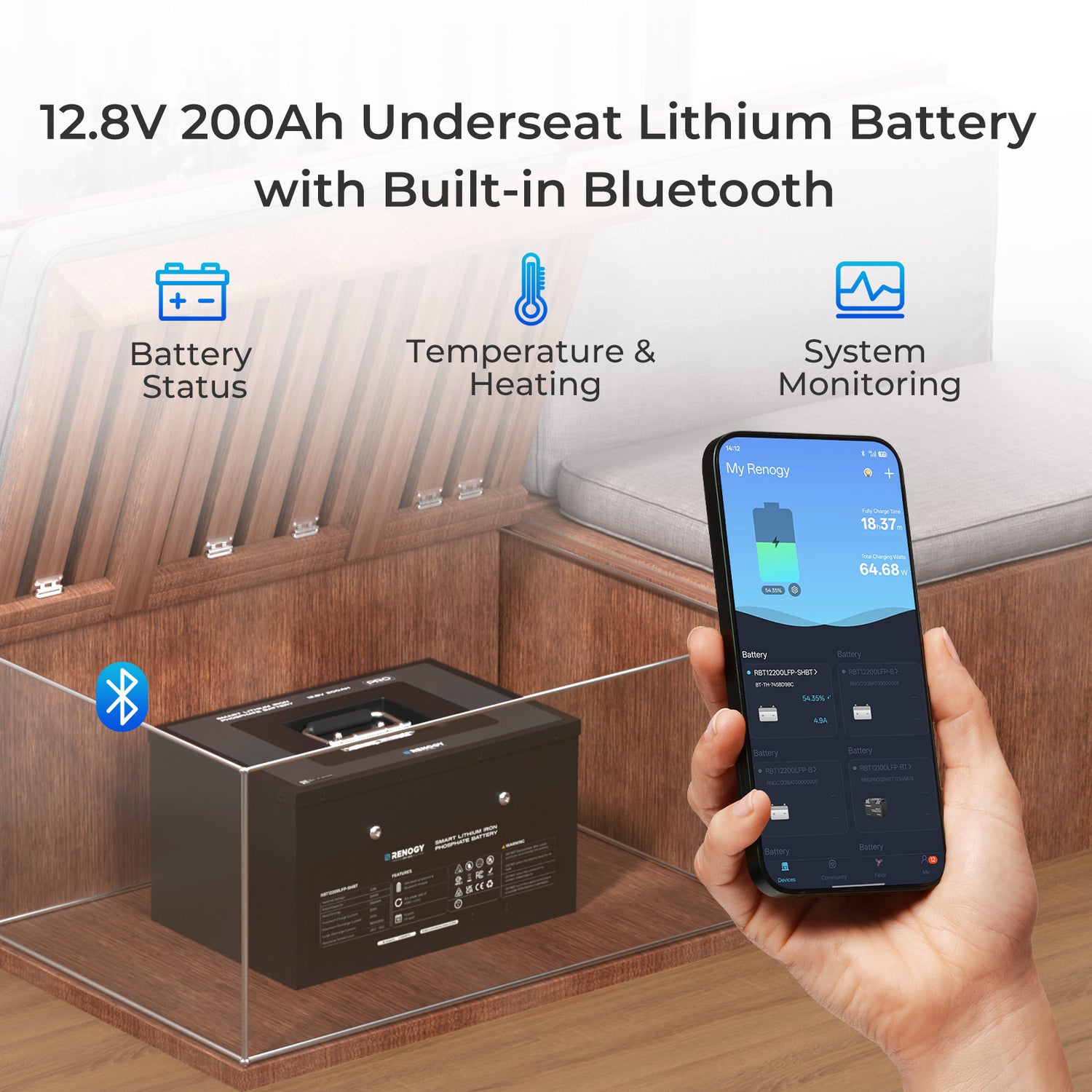

  • Built-in Bluetooth gives real-time battery updates via Renogy app
  • Automotive cells enable up to 200A charge/discharge, 4000+ cycles

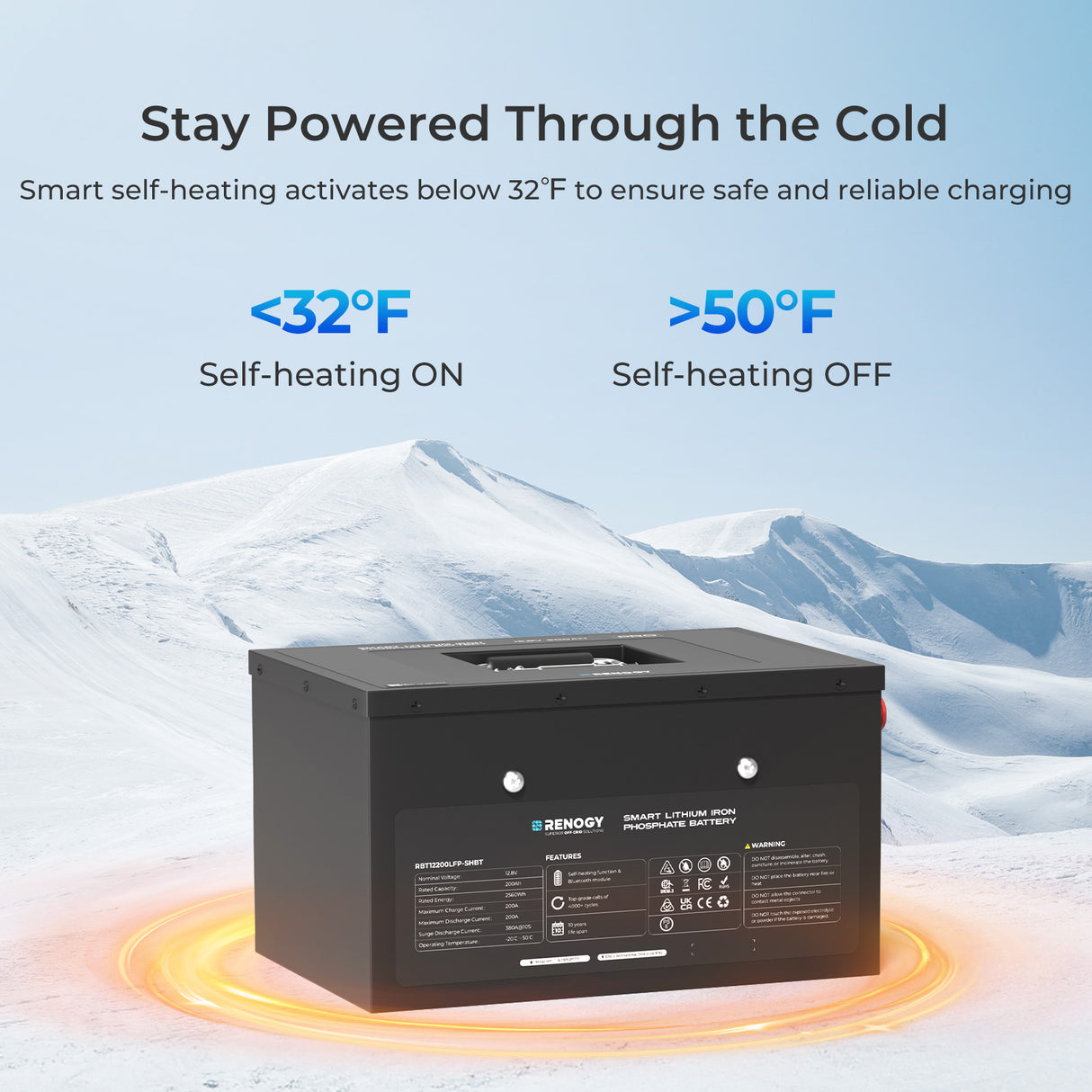

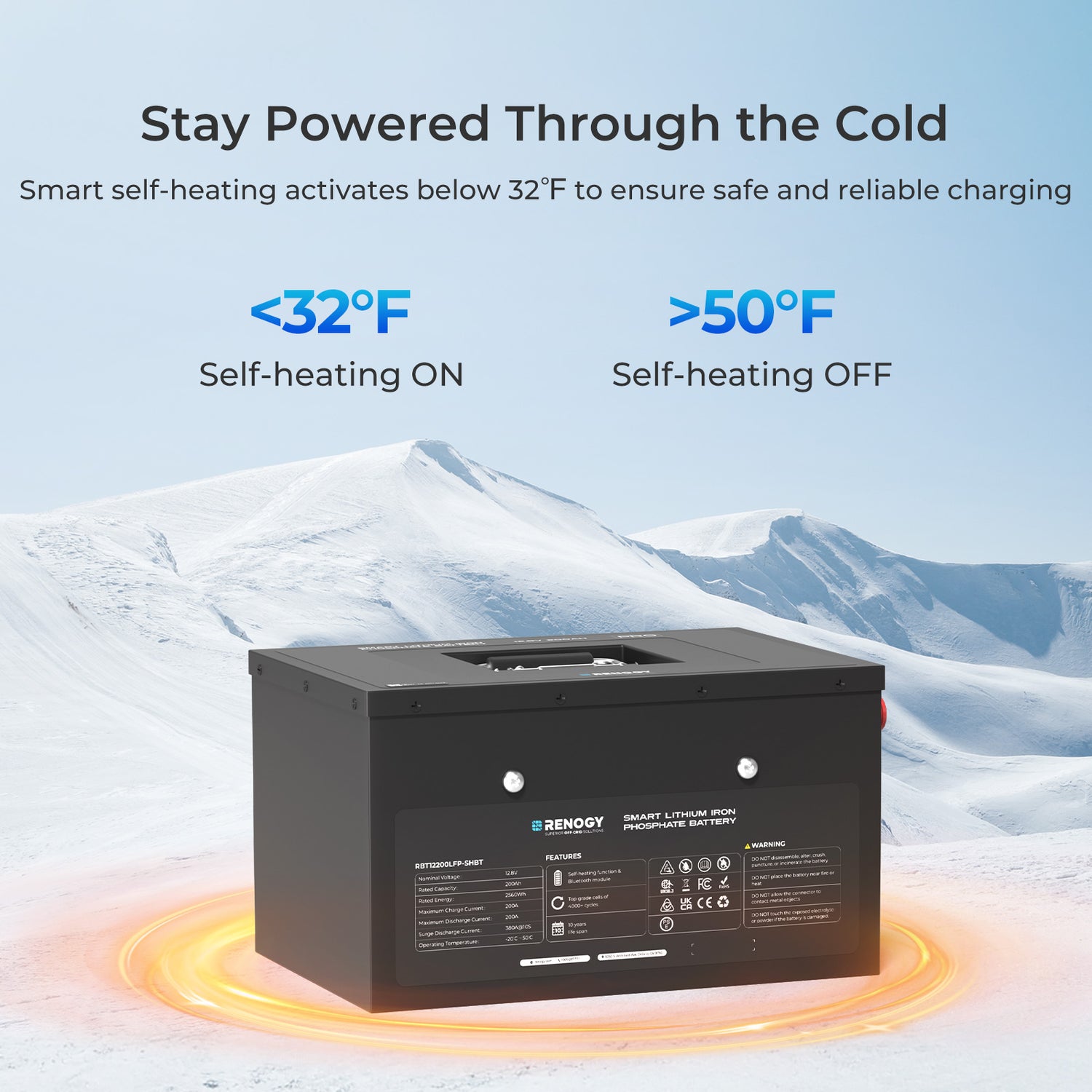

  • Self-heating allows safe cold-weather charging down to -20°C
  • Smart BMS with 60+ protections ensures safety and stable output
Option
Free Shipping on All Products
30-Day Return & Refund Service



6% OFF Coupon for New Subscriber
Lifetime Customer Support Contact us: +44 3300589559
Show More Benefits Show Less
Quantity：
Payment Methods
Delivery Methods
Delivery time: 3–6 business days. (Excludes LTL shipping.) Free Shipping
Description
Includes
Specs
Downloads
Reviews
135Ah
200Ah
500Ah

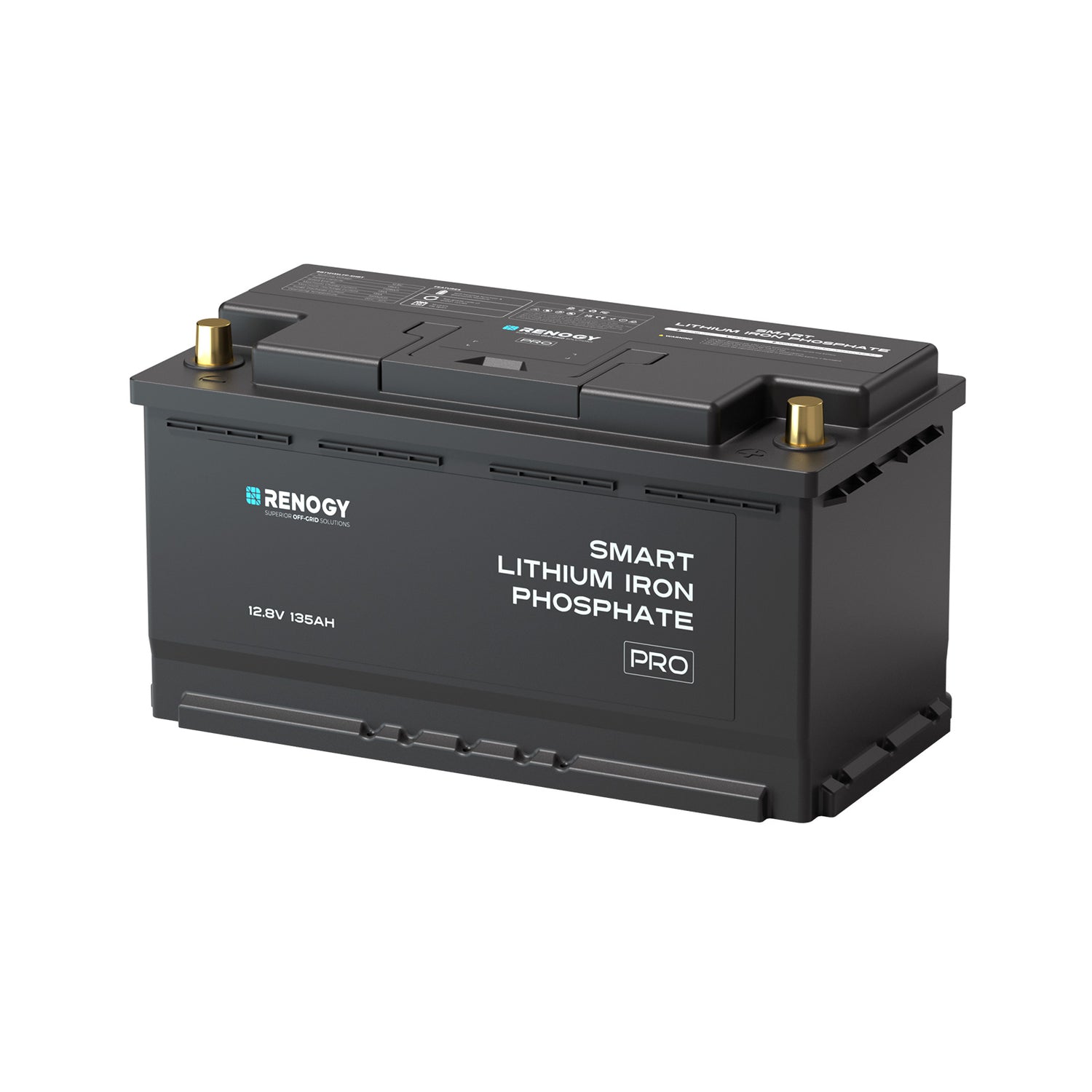

12.8V 135Ah Pro Series Underseat Lithium Iron Phosphate Battery

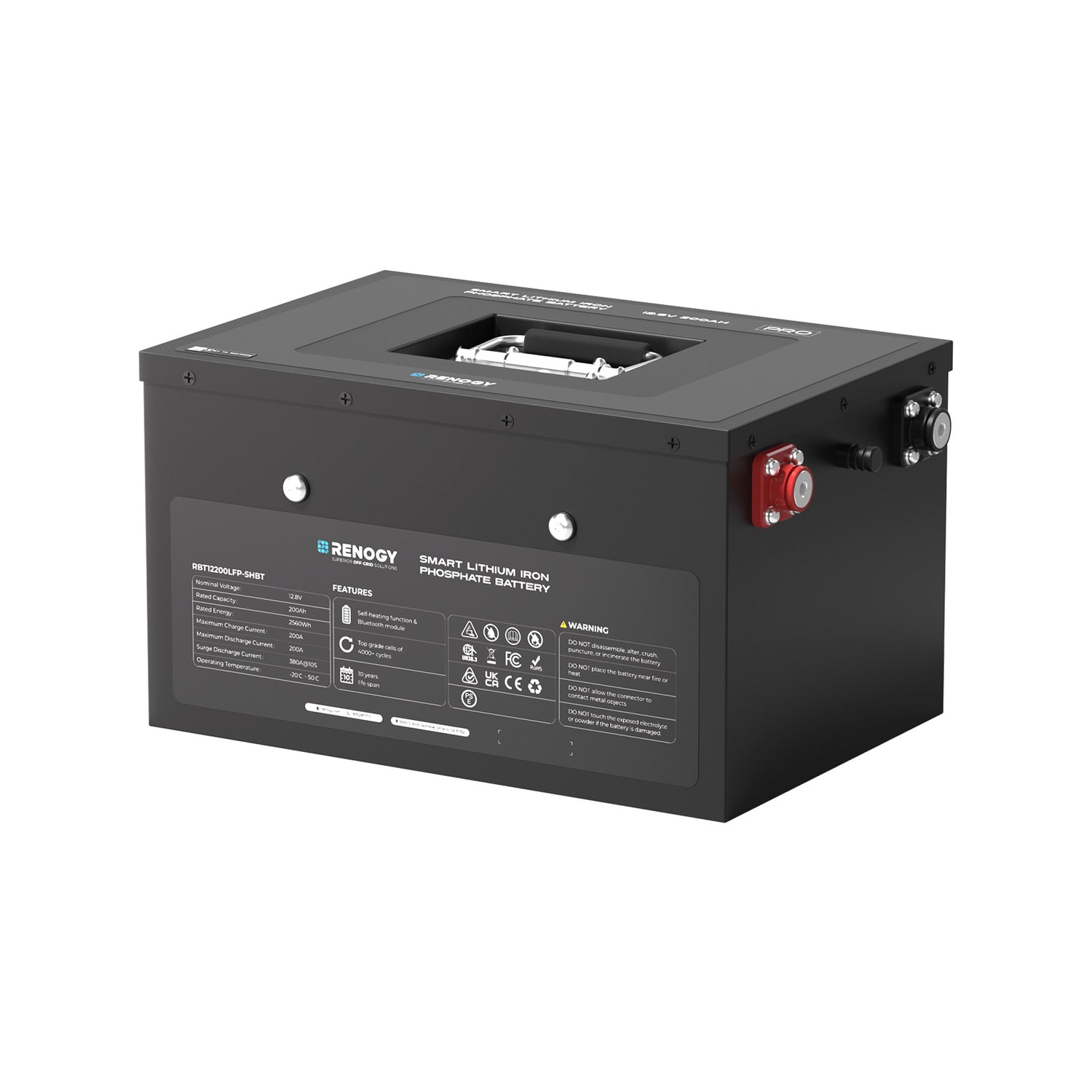

12.8V 200Ah Pro Series Underseat Lithium Iron Phosphate Battery

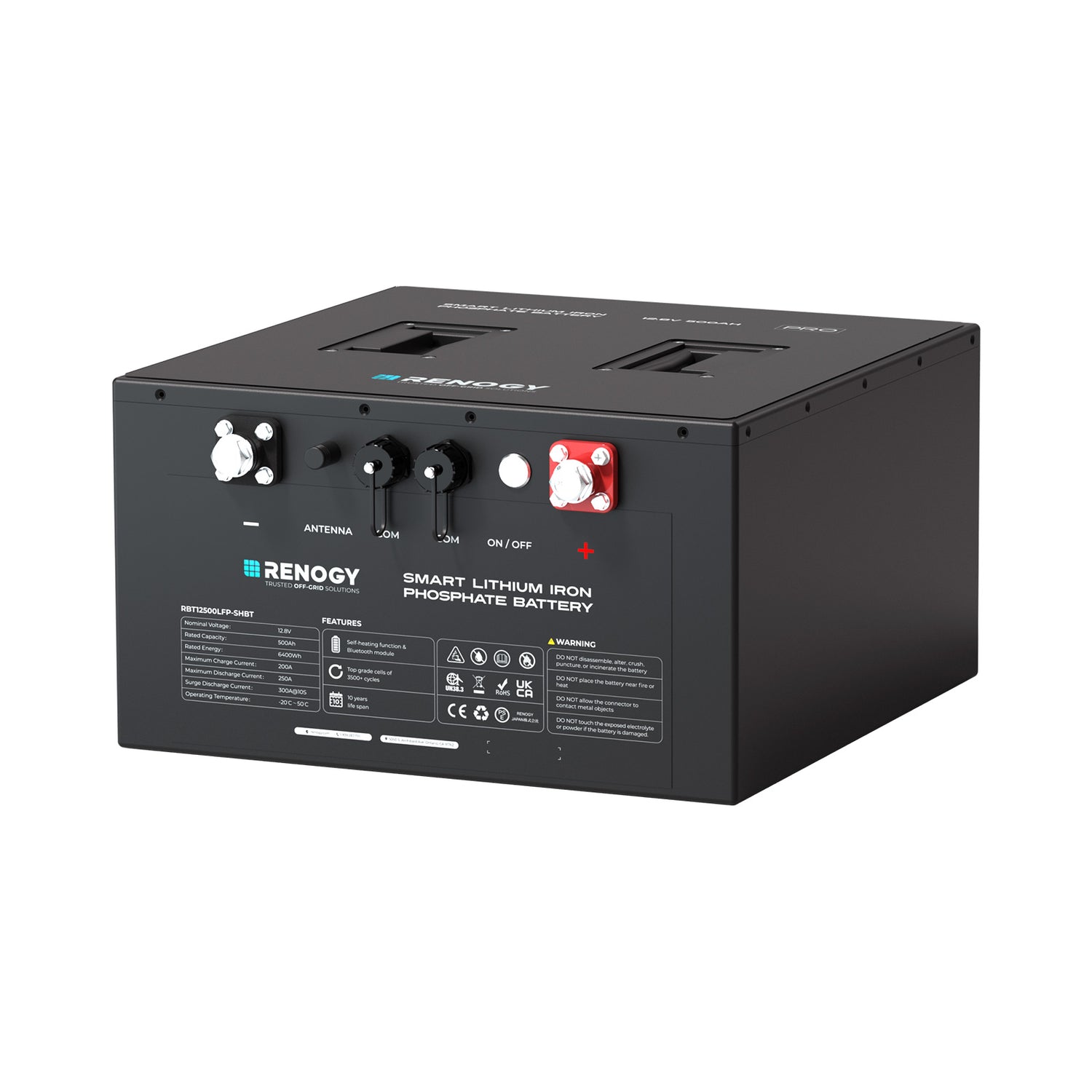

12.8V 500Ah Pro Series Underseat Lithium Iron Phosphate Battery

Versatile Power for Life Off the Grid

Designed for RVs and beyond-from cabins to boats, it delivers dependable energy wherever life takes you.

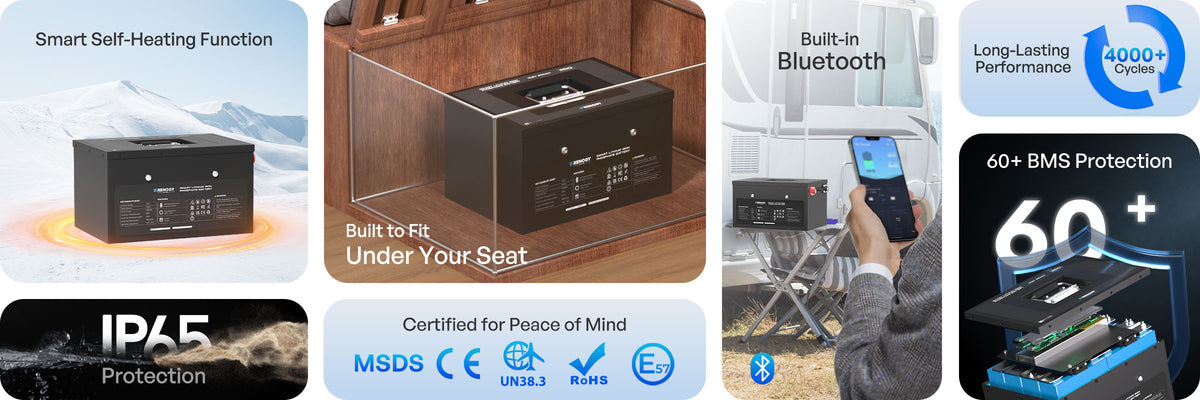

Powerful Built-In Features

Integrated Bluetooth offers seamless connectivity while the self-heating function keeps your battery operating reliably even in freezing temperatures.

135Ah
200Ah
500Ah

Power Made Easy on the Move

Compact yet powerful. Two 135Ah batteries keep your iphone, freezer, and devices running for weekend getaways.

Power Made Easy on the Move

Step up your power game. Two 200Ah batteries provide reliable energy for multi-day road trips.

Power Made Easy on the Move

Go further and stay longer. Two 500Ah batteries power heavy-duty appliances and home-like comfort on the road.

135Ah
200Ah
500Ah

Effortless Power for Your Tiny Sheds

Keep the lights on and charge your essentials. A simple solution for relaxing weekend retreats.

Effortless Power for Your Tiny Sheds

Power up electric tools and kitchen gear. Perfect balance of work and leisure in your cabin life.

Effortless Power for Your Tiny Sheds

Effortless Power for Your Tiny Sheds

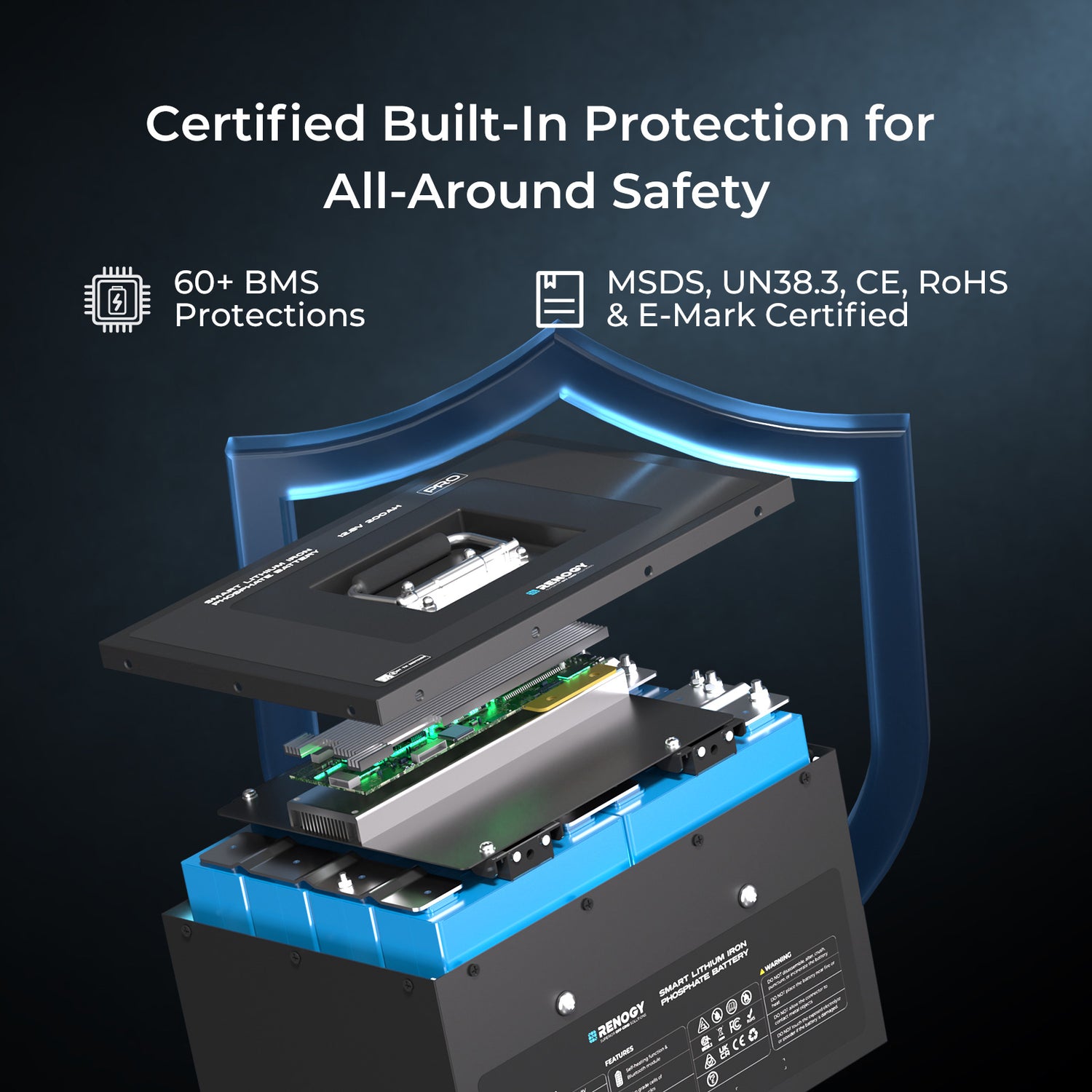

Safeguard Your Power on Every RV Journey

Equipped with 60+ lavers of battery protection and certified to meet strict safety standards for worry-free use.

135Ah
200Ah
500Ah

Package Includes

Package Includes

Package Includes

Package Includes

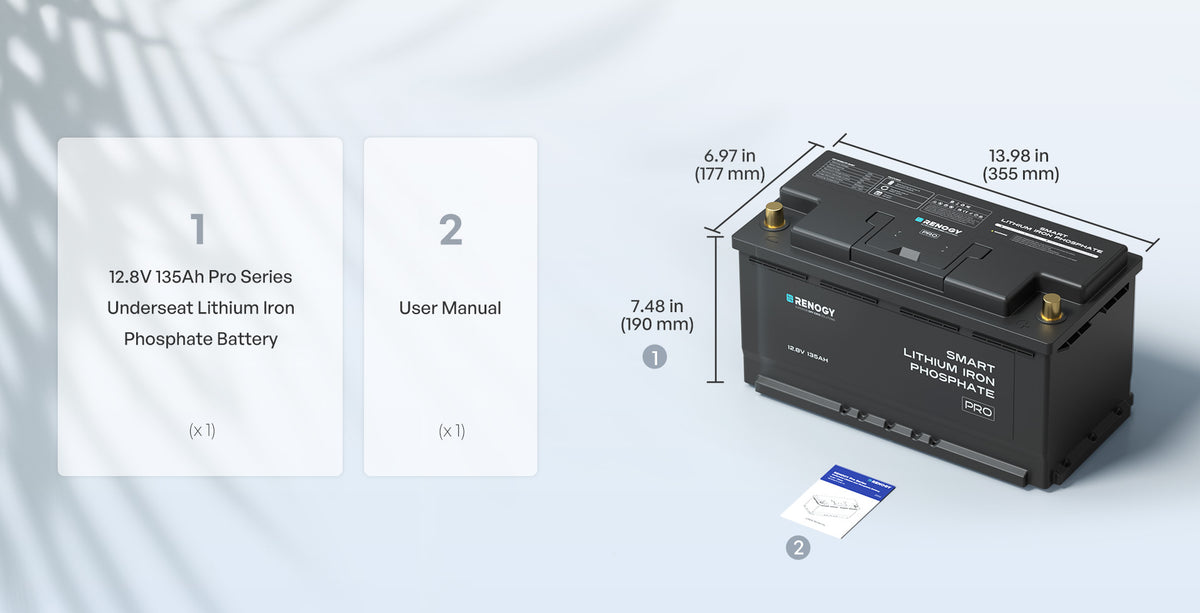

135Ah Underseat Lithium Battery

12.8V 135Ah Pro Series Underseat Lithium Iron Phosphate Battery

x 1

User Manual

x 1

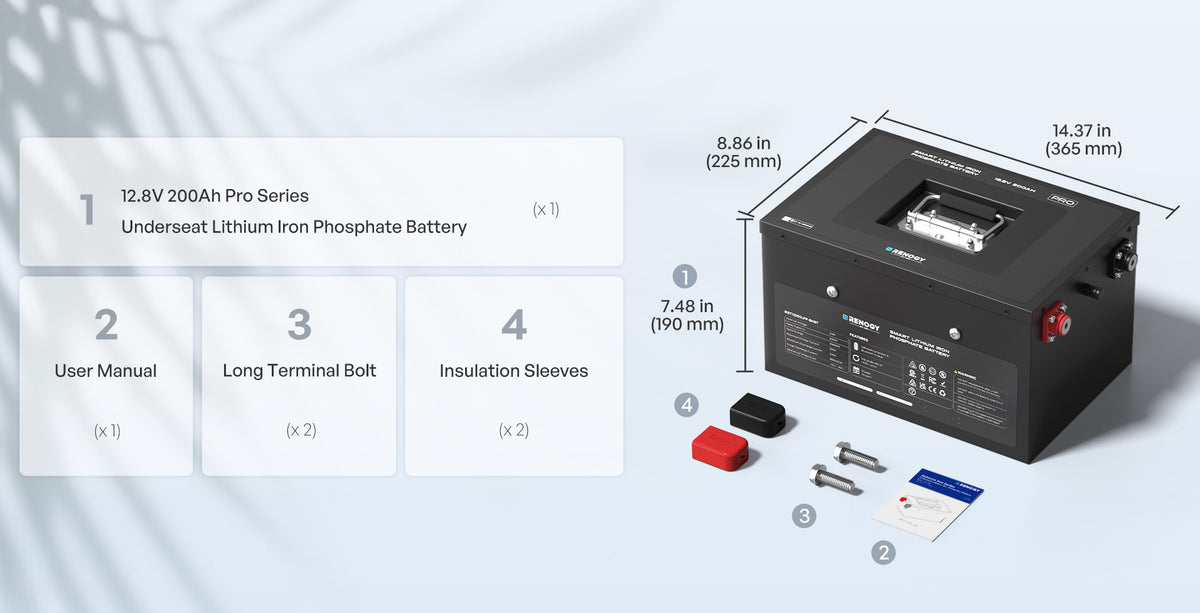

200Ah Underseat Lithium Battery

12.8V 200Ah Pro Series Underseat Lithium lron Phosphate Battery

x 1

User Manual

x 1

Long Terminal Bolt

x 2

Insulation Sleeves

x 2

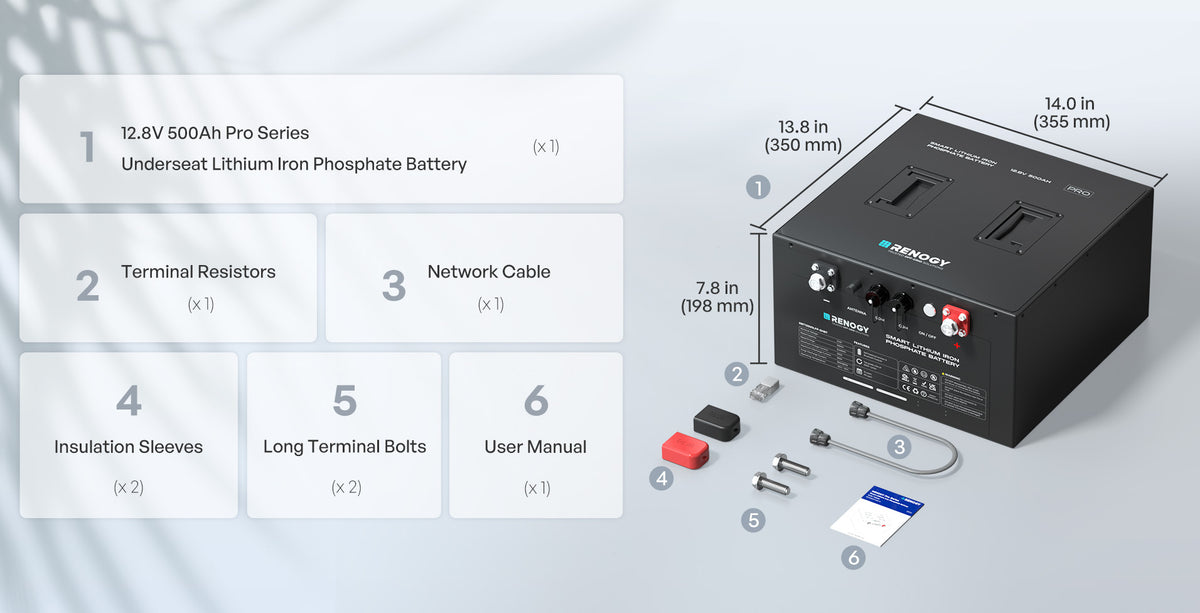

500Ah Underseat Lithium Battery

12.8V 500Ah Pro Series Underseat Lithium lron Phosphate Battery

x 1

User Manual

x 1

Terminal Resistors

x 1

Network Cable

x 1

Insulation Sleeves

x 2

Long Terminal Bolt

x 2

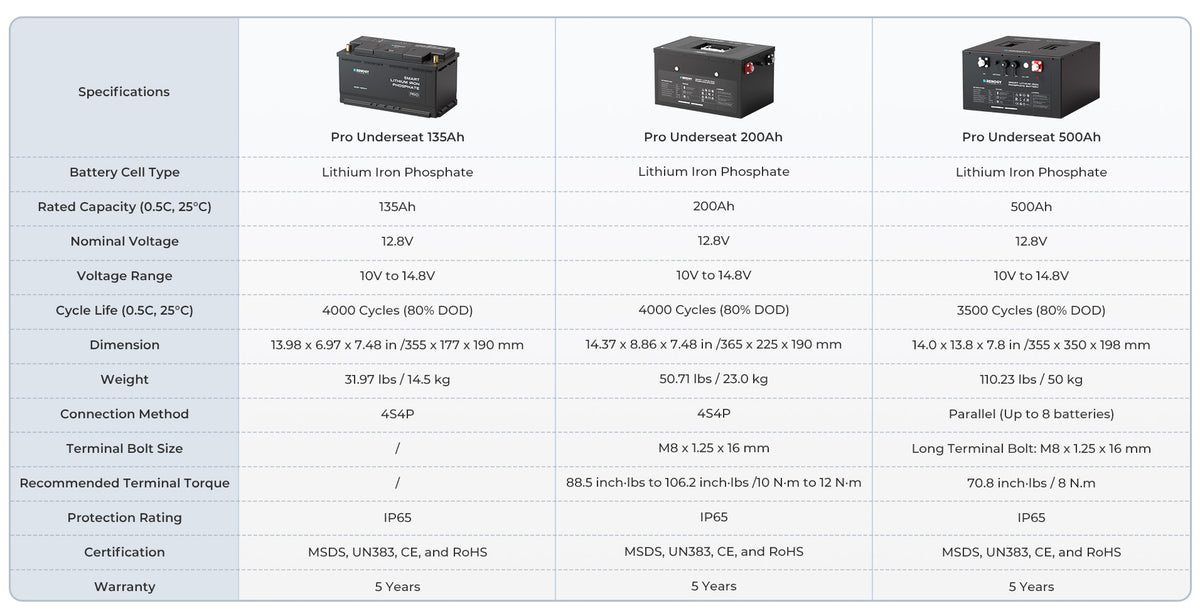

Specification

135Ah Underseat Lithium Battery

Battery Cell Type: Lithium Iron Phosphate
Rated Capacity (0.5C, 25°C): 135Ah
Nominal Voltage: 12.8V
Voltage Range: 10V to 14.8V
Cycle Life (0.5C, 25°C): 4000 Cycles (80% DOD)
Dimension: 13.98 x 6.97 x 7.48 in / 355 x 177 x 190 mm
Weight: 31.97 lbs / 14.5 kg
Connection Method: 4S4P
Protection Rating: IP65
Certification: MSDS, UN383, CE, and RoHS
Charge Voltage: 14.4V
Maximum Continuous Charge Current: 135A
Maximum Continuous Discharge Current: 135A
Peak Discharge Current: 350A@3S
Charge Temperature Range: -4°F to 131°F (-20°C to 55°C)
Discharge Temperature Range: -4°F to 122°F (-20°C to 50°C)
Storage Temperature Range: -13°F to 149°F (-25°C to 65°C)
Operation Relative Humidity: 10% to 95%

200Ah Underseat Lithium Battery

Battery Cell Type: Lithium Iron Phosphate
Rated Capacity (0.5C, 25°C): 200Ah
Nominal Voltage: 12.8V
Voltage Range: 10V to 14.8V
Cycle Life (0.5C, 25°C): 4000 Cycles (80% DOD)
Dimension: 14.37 x 8.86 x 7.48 in / 365 x 225 x 190 mm
Weight: 50.71 lbs / 23.0 kg
Connection Method: 4S4P
Terminal Bolt Size: M8 x 1.25 x 16 mm
Recommended Terminal Torque: 88.5 inch·lbs to 106.2 inch·lbs / 10 N·m to 12 N·m
Protection Rating: IP65
Certification: MSDS, UN383, CE, and RoHS
Charge Voltage: 14.4V
Maximum Continuous Charge Current: 200A
Maximum Continuous Discharge Current: 200A
Peak Discharge Current: 380A@10S
Charge Temperature Range: -4°F to 131°F (-20°C to 55°C)
Discharge Temperature Range: -4°F to 122°F (-20°C to 50°C)
Storage Temperature Range: -13°F to 149°F (-25°C to 65°C)
Operation Relative Humidity: 10% to 95%

500Ah Underseat Lithium Battery

Battery Cell Type: Lithium Iron Phosphate
Rated Capacity (0.5C, 25°C): 500Ah
Nominal Voltage: 12.8V
Voltage Range: 10V to 14.8V
Cycle Life (0.5C, 25°C): 3500 Cycles (80% DOD)
Dimension: 14.0 x 13.8 x 7.8 in / 355 x 350 x 198 mm
Weight: 110.23 lbs / 50 kg
Connection Method: Parallel (Up to 8 batteries)
Terminal Bolt Size: Long Terminal Bolt: M8 x 1.25 x 16 mm
Recommended Terminal Torque: 70.8 inch·lbs / 8 N.m
Protection Rating: IP65
Certification: MSDS, UN383, CE, and RoHS
Charge Voltage: 14.4V
Maximum Continuous Charge Current: 200A
Maximum Continuous Discharge Current: 250A
Peak Discharge Current: 300A@10S
Charge Temperature Range: -4°F to 131°F (-20°C to 55°C)
Discharge Temperature Range: -4°F to 140°F (-20°C to 60°C)
Storage Temperature Range: -4°F to 113°F (-20°C to 45°C)
Operation Relative Humidity: 10% to 95%
