Description

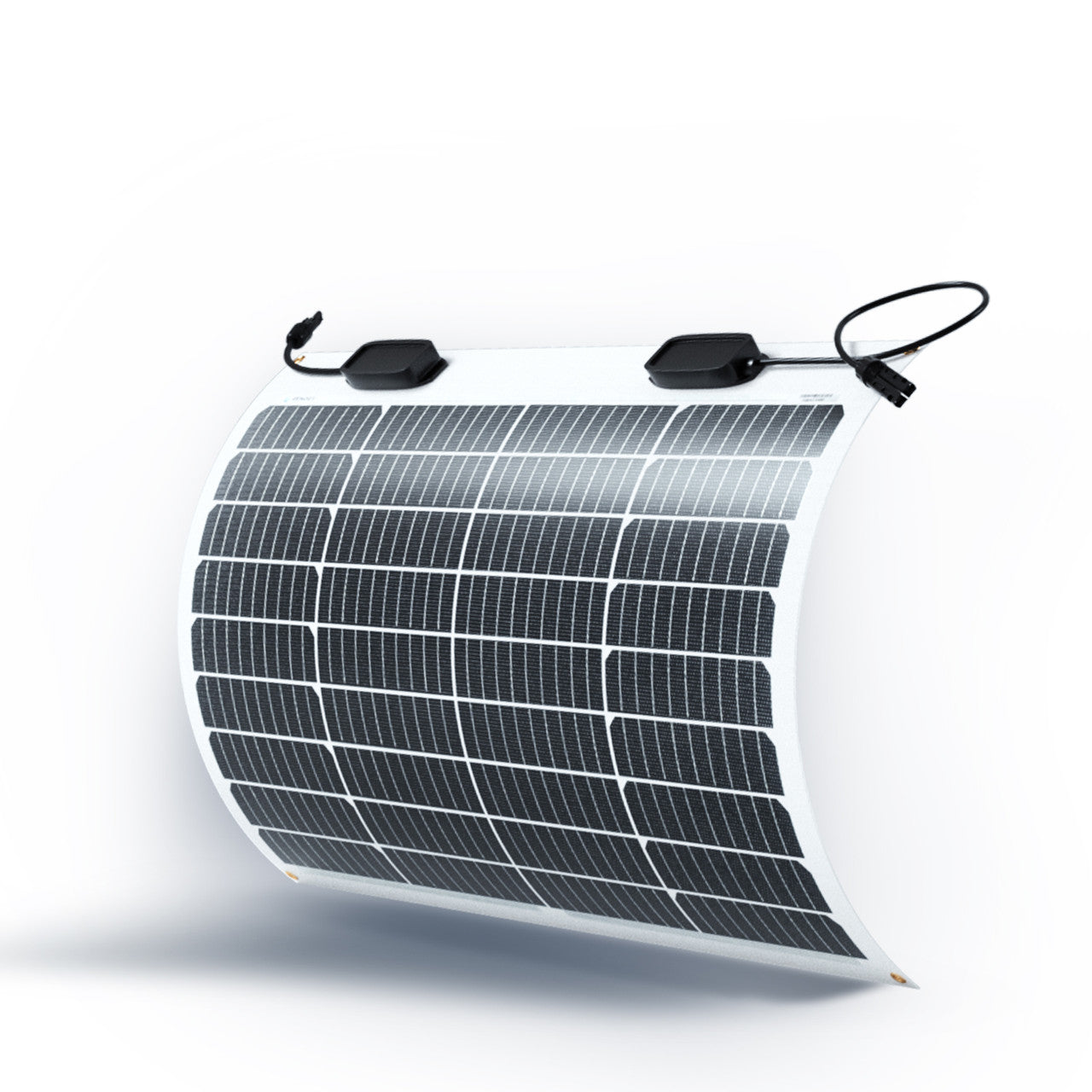

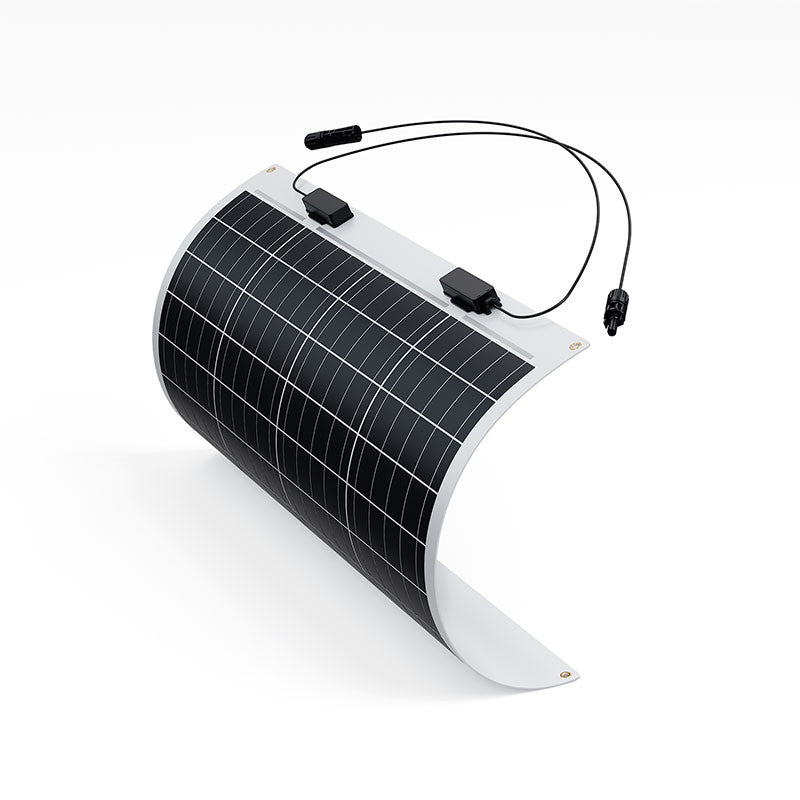

Lightweight and thin, with the capability to bend up to 248 degrees, the Renogy 50 Watt Flexible Monocrystalline Solar Panel is the perfect solution for your energy-independent journey!
With an IP68 rated waterproof junction box and IP67 rated solar connectors, it delivers weatherproof performance, ready for marine and outdoor use. Weighing in at just 3.1 lb, this highly flexible solar panels weigh 75% less than its traditional 50W counterpart, making it an ideal alternative for load-sensitive structures and uneven surfaces. Perfect for RVs, Campers, Boats, and many other scenarios.
Mounting Recommendation: The Renogy flexible solar panels must be mounted using silicone structural adhesive on the backside of the panel, grommets are only to be used for non-mobile applications. For detailed installation methods, please consult a local contractor/professional installer.
There are two versions currently shipped, please rest assured that this does not affect use.
If you have any questions regarding this product, please submit a case.
Key Features

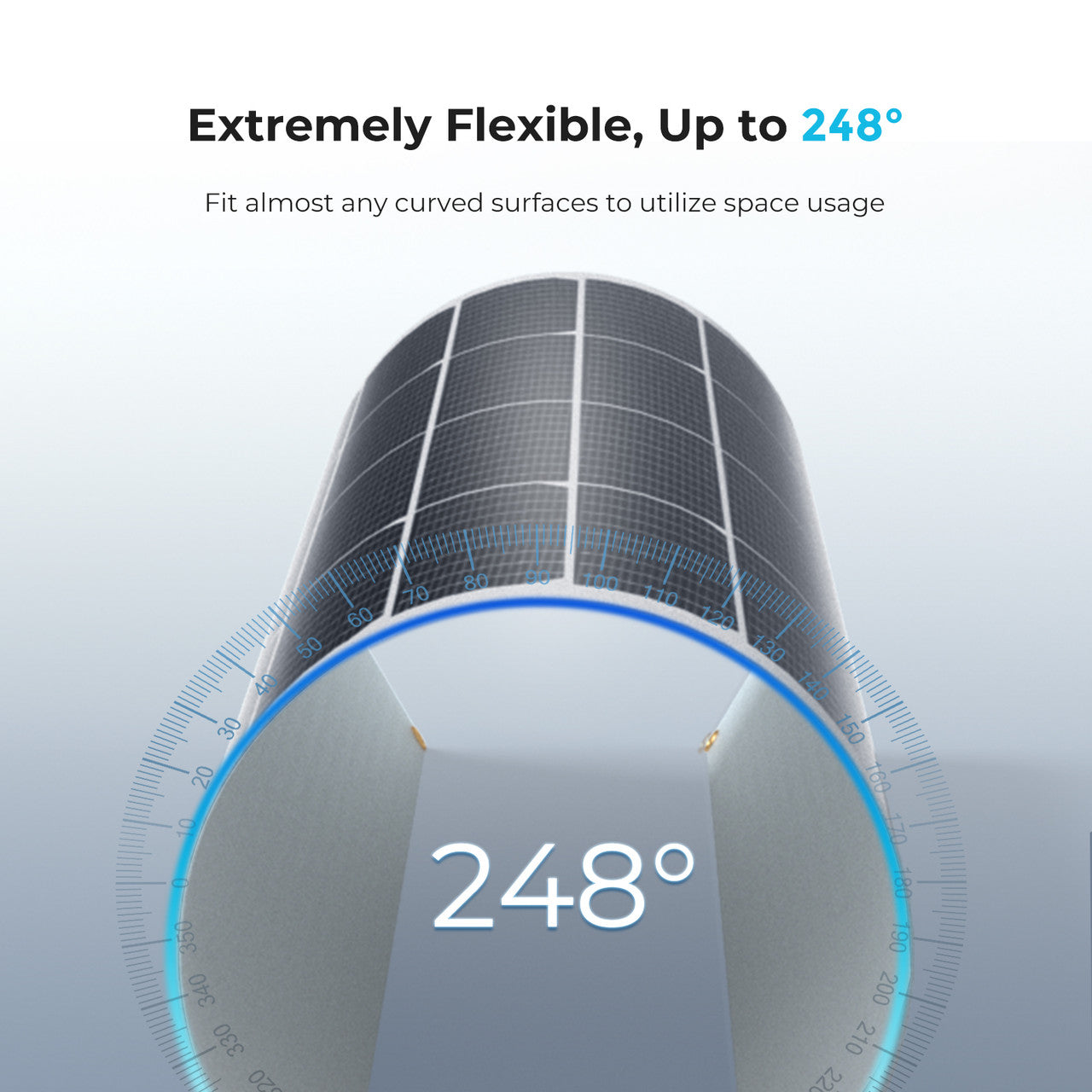

Extremely Flexible- The 50 watt solar panel can bend up to 248 degrees, which allows the panel to be mounted on curved surfaces. They’re designed to minimize mounting issues associated with curved surfaces.

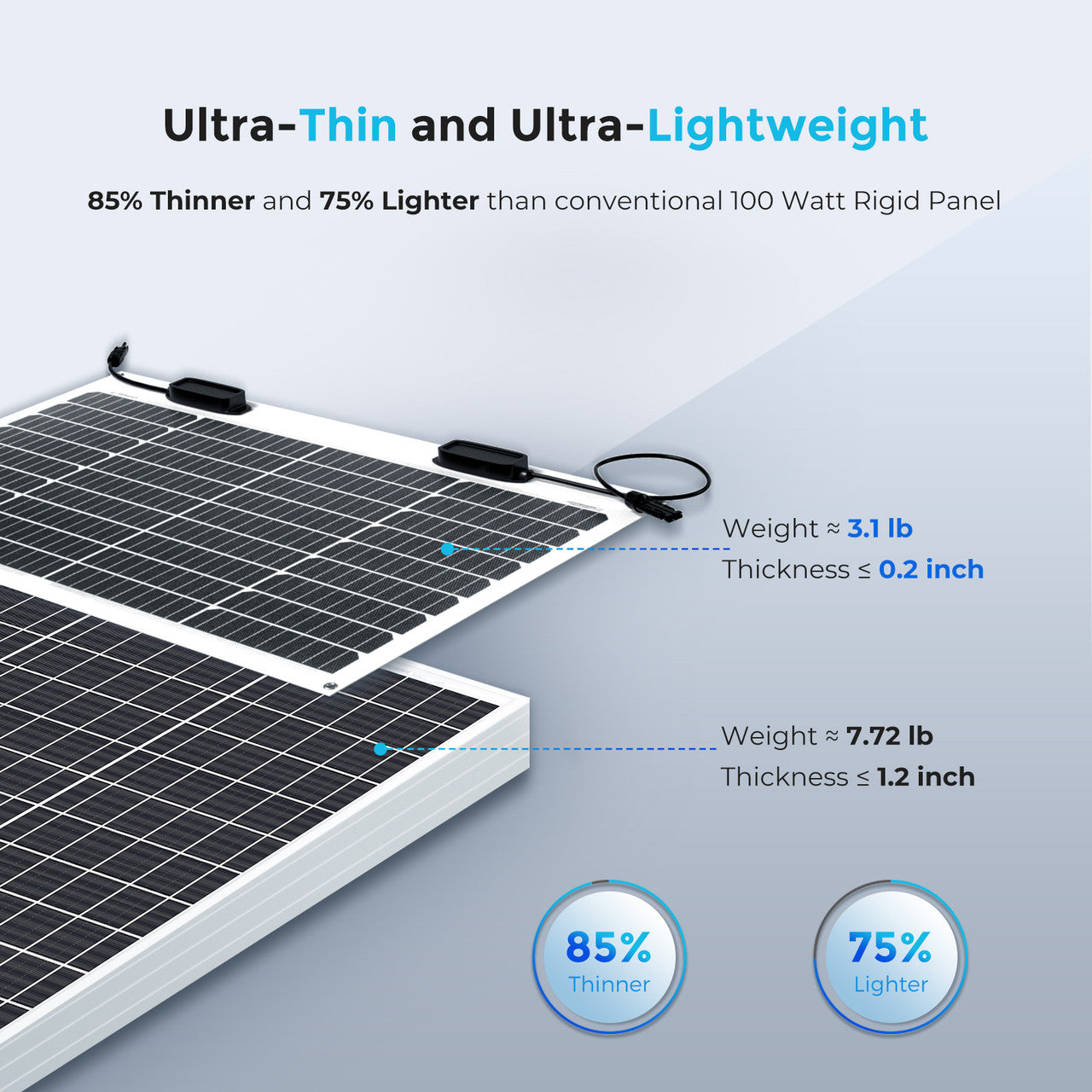

- Weighing only 3.1 lb, this lightweight flexible panel is 60% lighter than its rigid counterpart. Travel light with solar, embrace possibilities.
- It's only 0.2 inch thick! A stunning 85% thinner than its rigid counterpart. Sleek and unobtrusive, they’re the perfect solar panels for RVs, boats, and other scenarios.

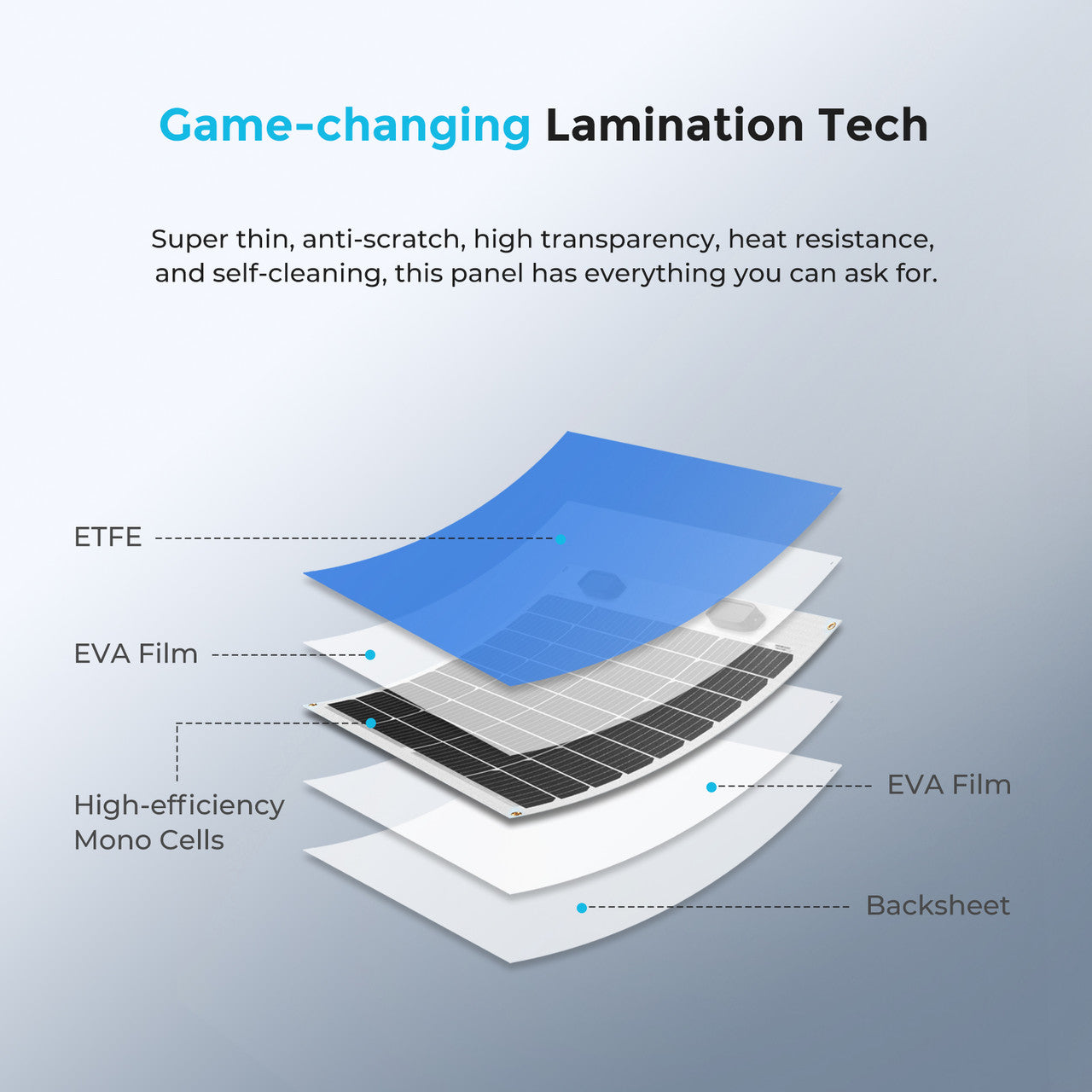

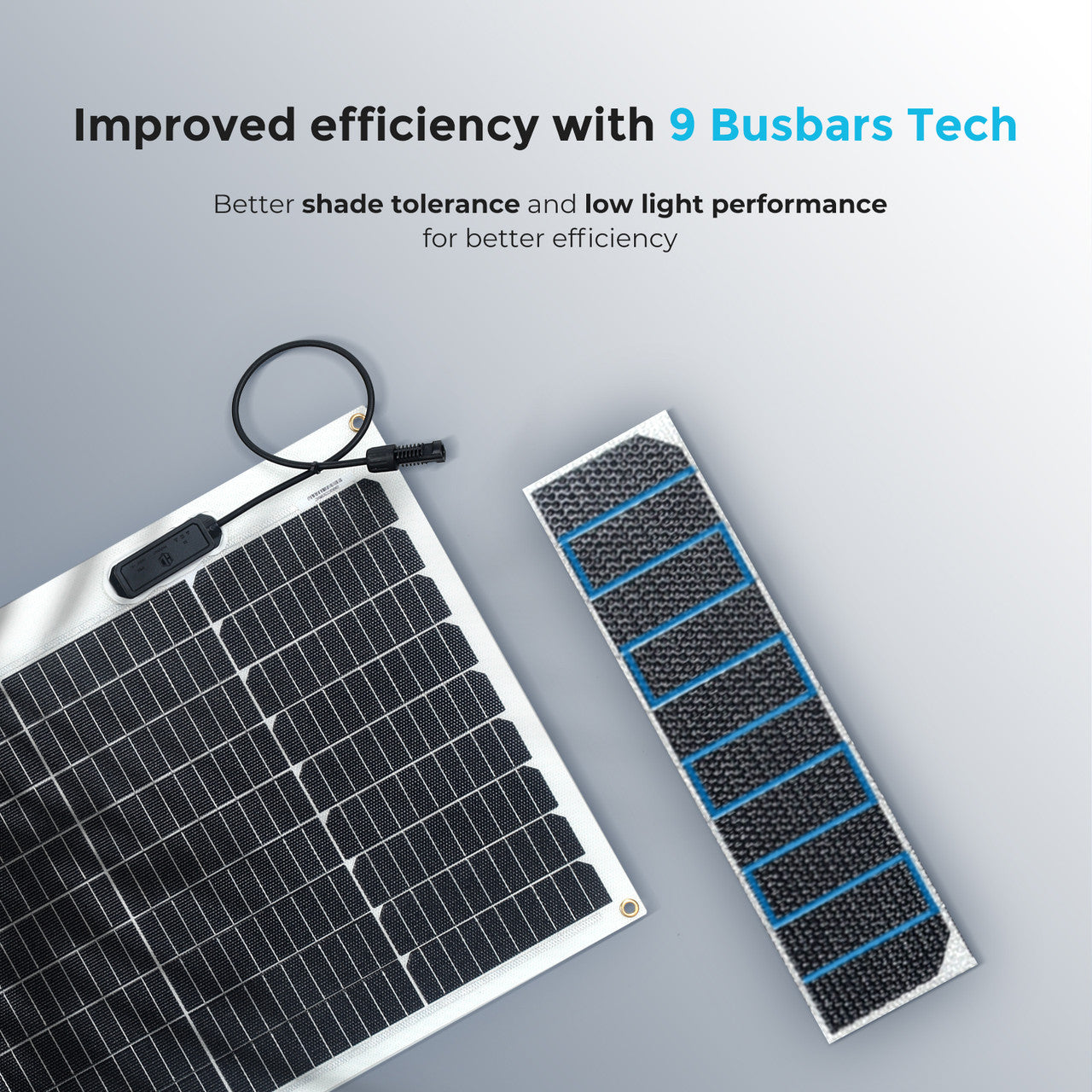

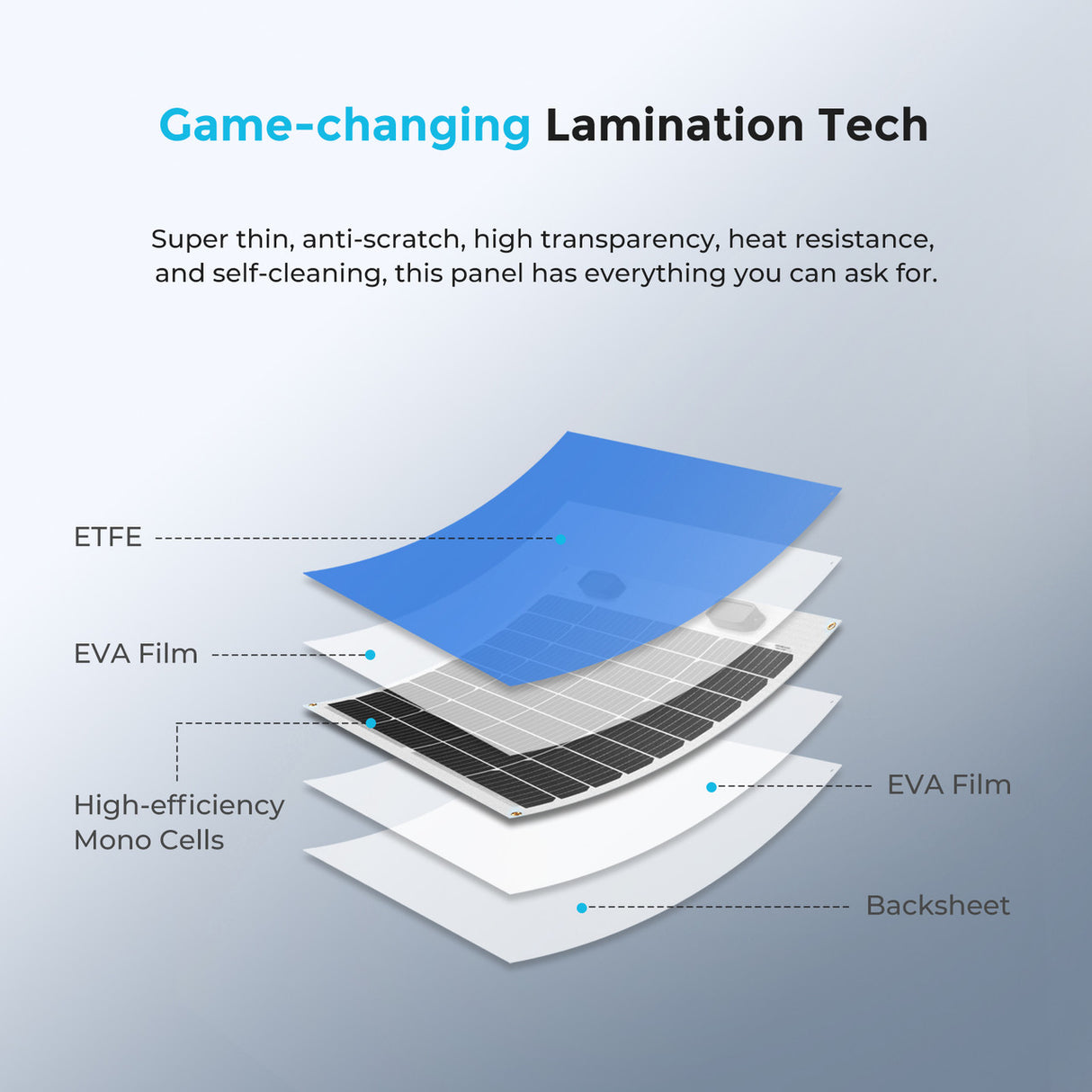

- All Renogy 50 watt flexible solar panels adopt PERC cells, Half-Cell cut, advancing lamination structure, and 9 Busbars technology to ensure stable and reliable performance. Provide an extended period of work time without damage.

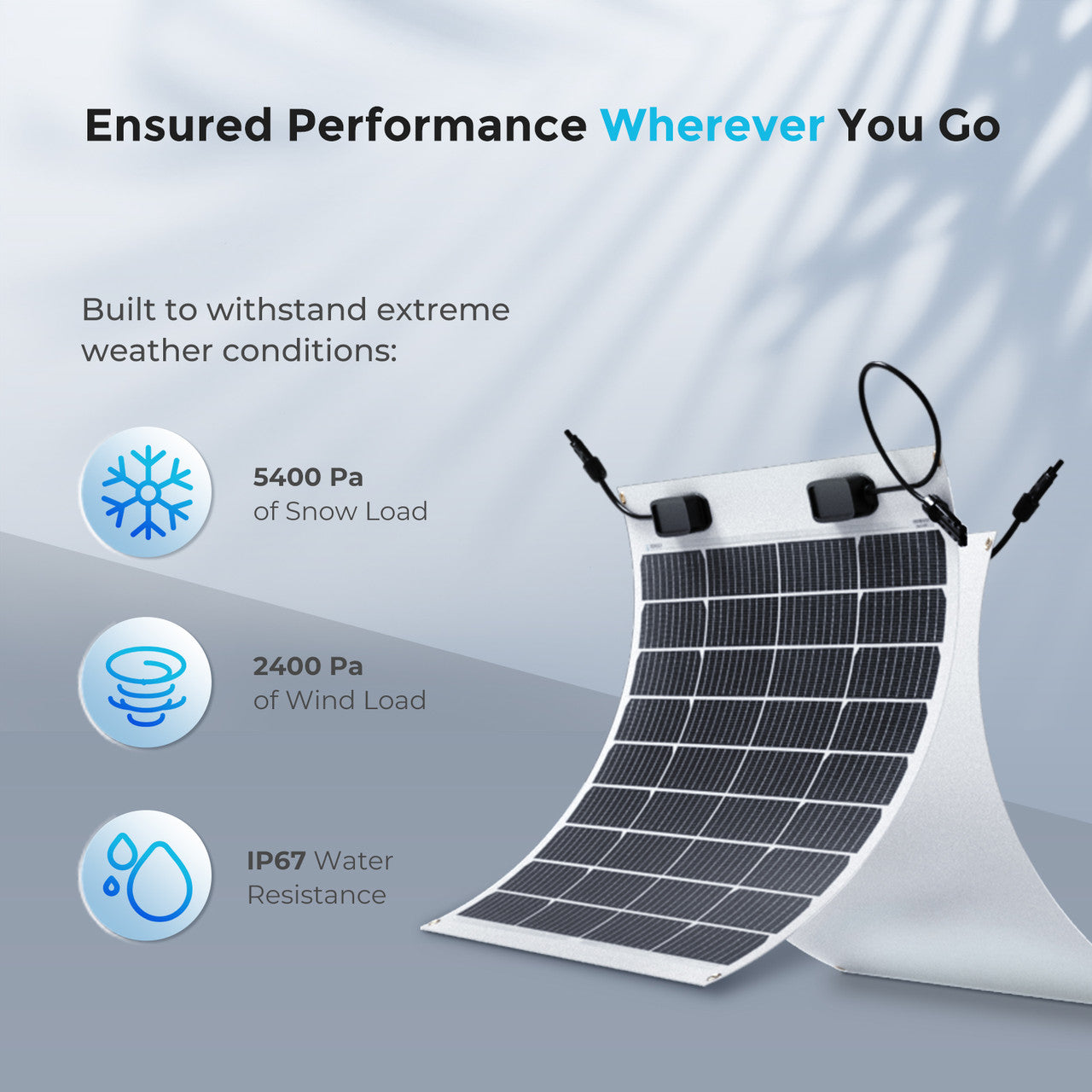

- Rigorously tested, Renogy flexible solar panels can withstand extreme winds of up to 2400 Pa and snow loads of up to 5400 Pa. Fearless of extreme climates, backup your brave journey.

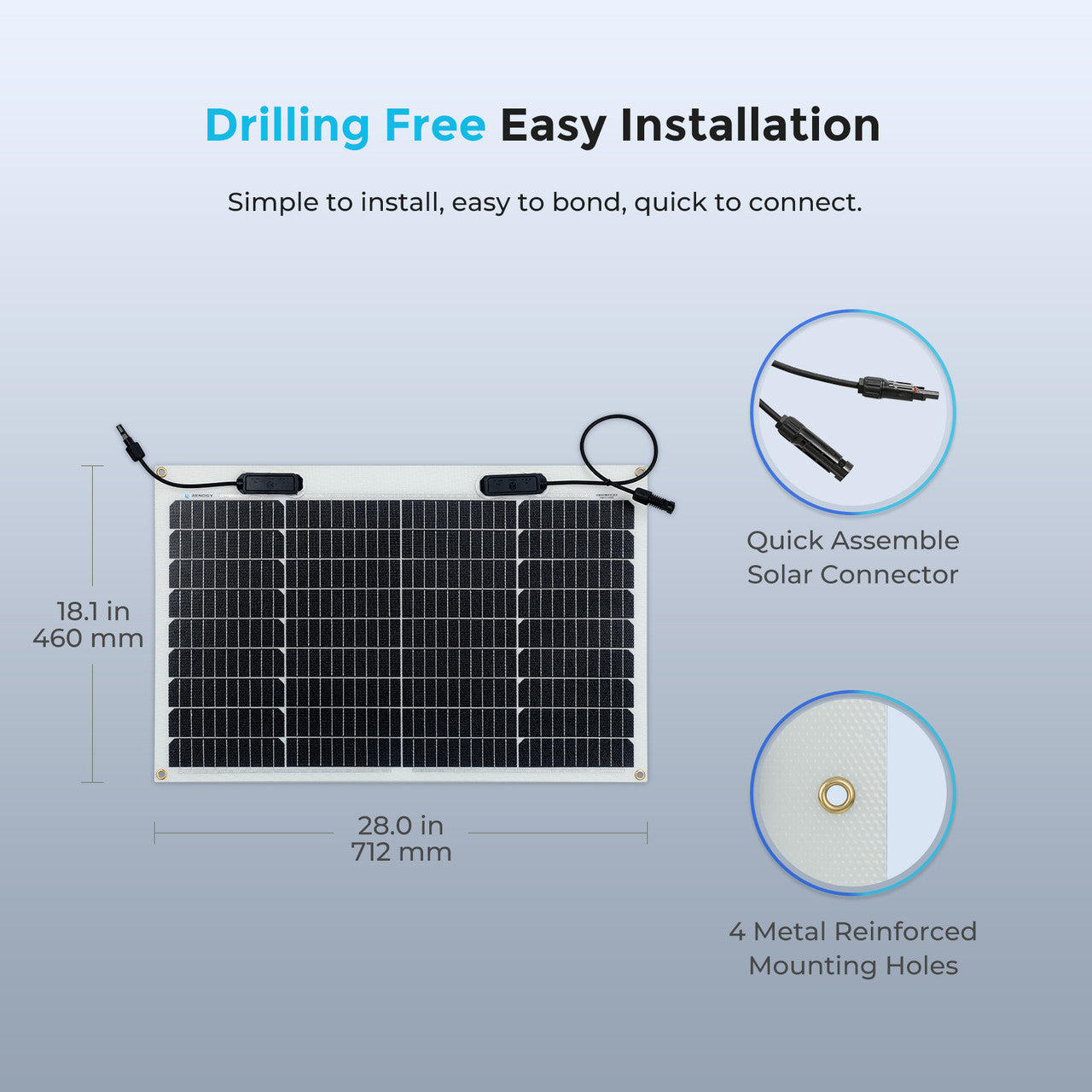

- This panel has four metal reinforced mounting holes locating each corner, making installation simple and easy comparing to other bendable solar panels. You can also mount it using silicone adhesive or even Velcro, so they can be placed in the sun when your vehicle is parked in the shade.
Package Includes
|
Renogy 50W Flexible Solar Panel
1 x
|
| Mechanical Data | |
|---|---|
| Solar Cell Type : Monocrystalline (6.5 x 1.6 in) | Number of Cells: 36 (4 x 9) |
| Output Cables: 12 AWG (Negative length: 450mm/17.7 in) Positive length: 150mm/5.9 in) | Connectors: Solar Connectors |
| Specifications | |
|---|---|
| Maximum Power at STC*: 50 W | Open-Circuit voltage (Voc): 24.3 V |
| Short-Circuit Current (Isc): 2.75 A | Optimum Operating Voltage (Vmp): 20.3 V |
| Optimum Operating Current (Imp): 2.47 A | Maximum System Voltage: 600 VDC (UL) |
| Maximum Series Fuse Rating: 15A | Module Efficiency: 15.3% |
| Operating Temperature: -40°F to 185°F(-40ºC to +85ºC) | Dimensions: 28.03x18.11x0.16in/712x460x4mm |
| Weight: 2.98lb/1.35kg | Output Leads (Pair): 12 AWG (Negative Length: 1.48 ft, Positive Length: 0.49 ft) |

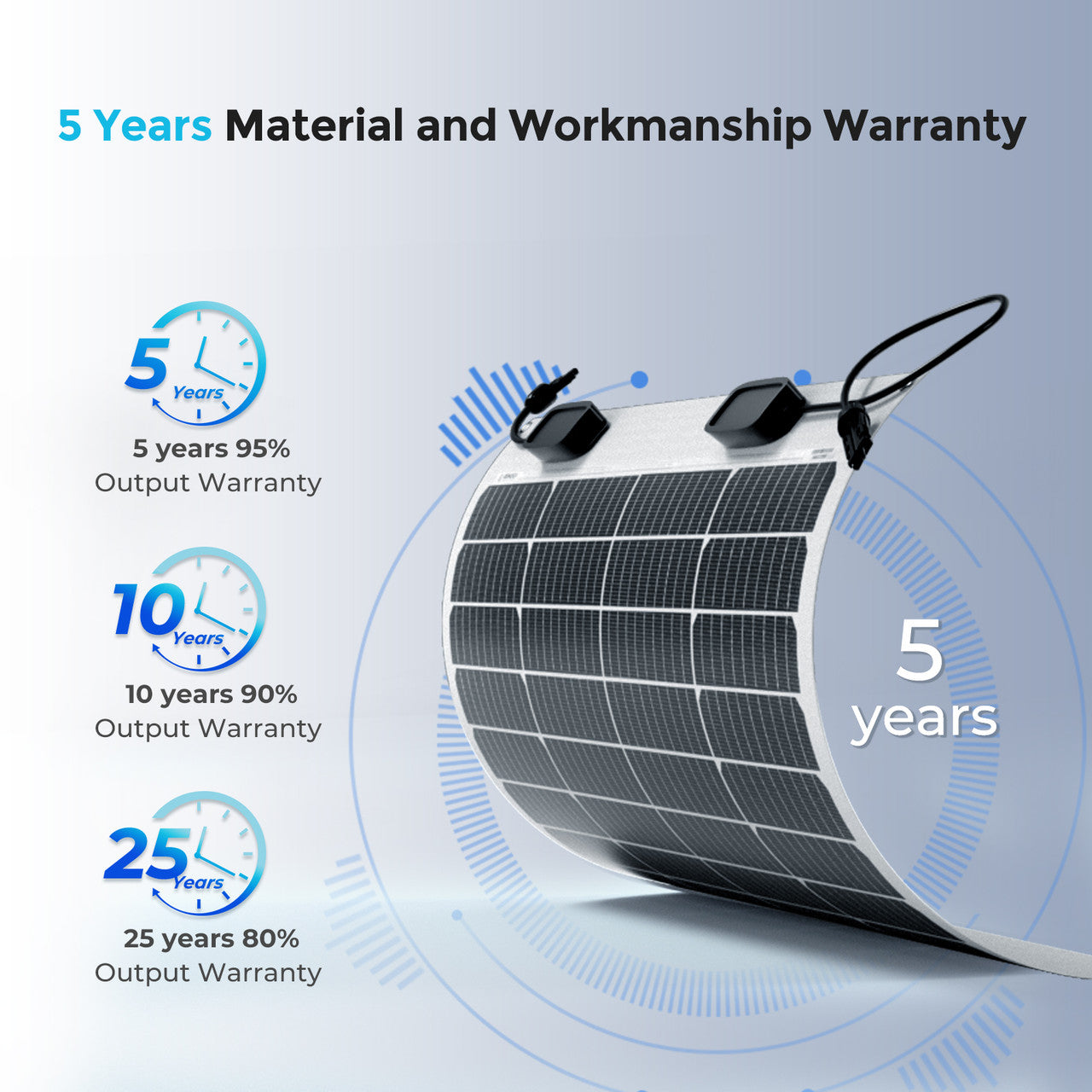

Warranty Information
| Panels |
5 year 95% output warranty 10 year 90% output warranty 25 year 80% output warranty 5-year material and workmanship warranty |
Certification
 |
 |
|||
 |
|||
 |
|||
| Please click the link below and refer to the installation guideline: | |||
| Flexible Panel Installation Guideline | |||
