20A/30A/40A/60A/100A ANL Fuse Set w/ Fuse
20A/30A/40A/60A/100A ANL Fuse Set w/ Fuse - 20A is backordered and will ship as soon as it is back in stock.
20A/30A/40A/60A/100A ANL Fuse Set w/ Fuse
Description

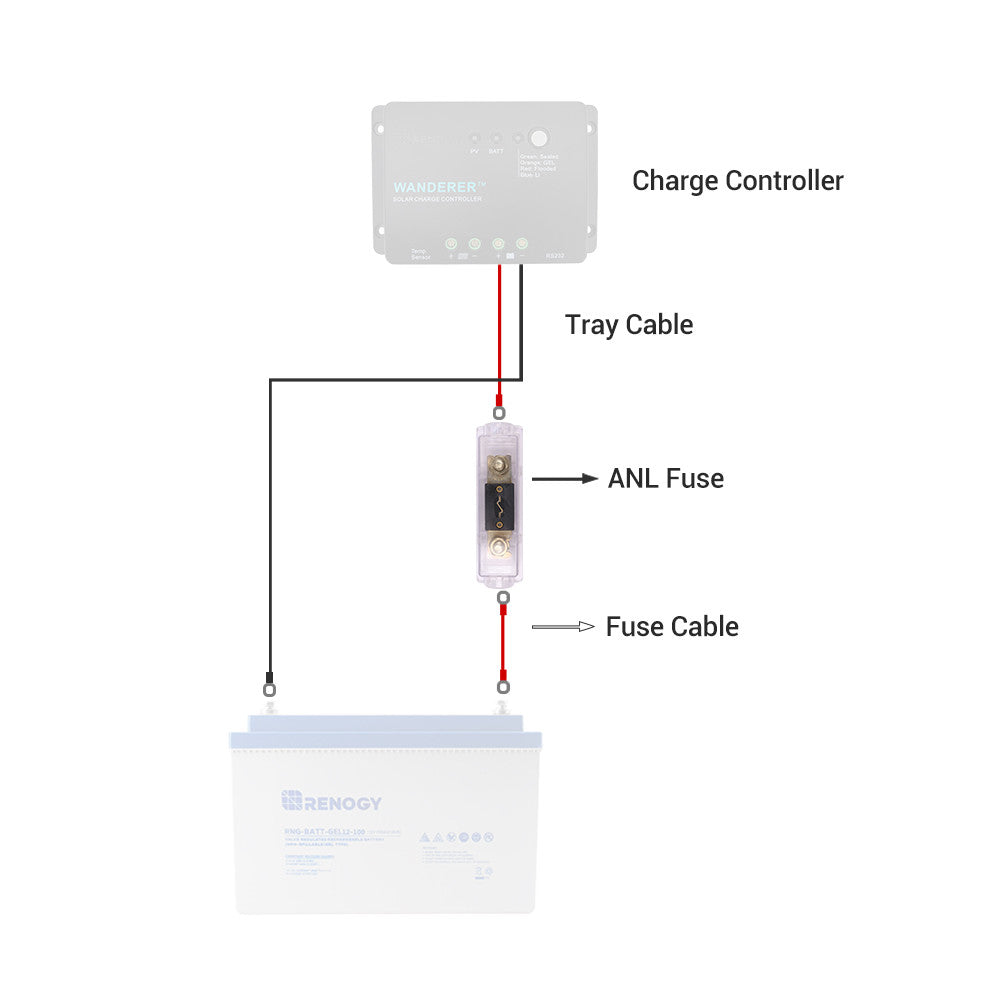

The Renogy ANL fuse will protect the charge controller; wire; and battery from over-current. This product is composed of alloy and brass copper materials and comes with a clear protective non-conductive resistant cover. This fuse set is ideal for custom installation.
If you have any questions regarding this product, please submit a case.
Key Features
Ease of use- ● Visible through clear window to easily identify open status
- ● For use with RENOGY ANL Fuse Block

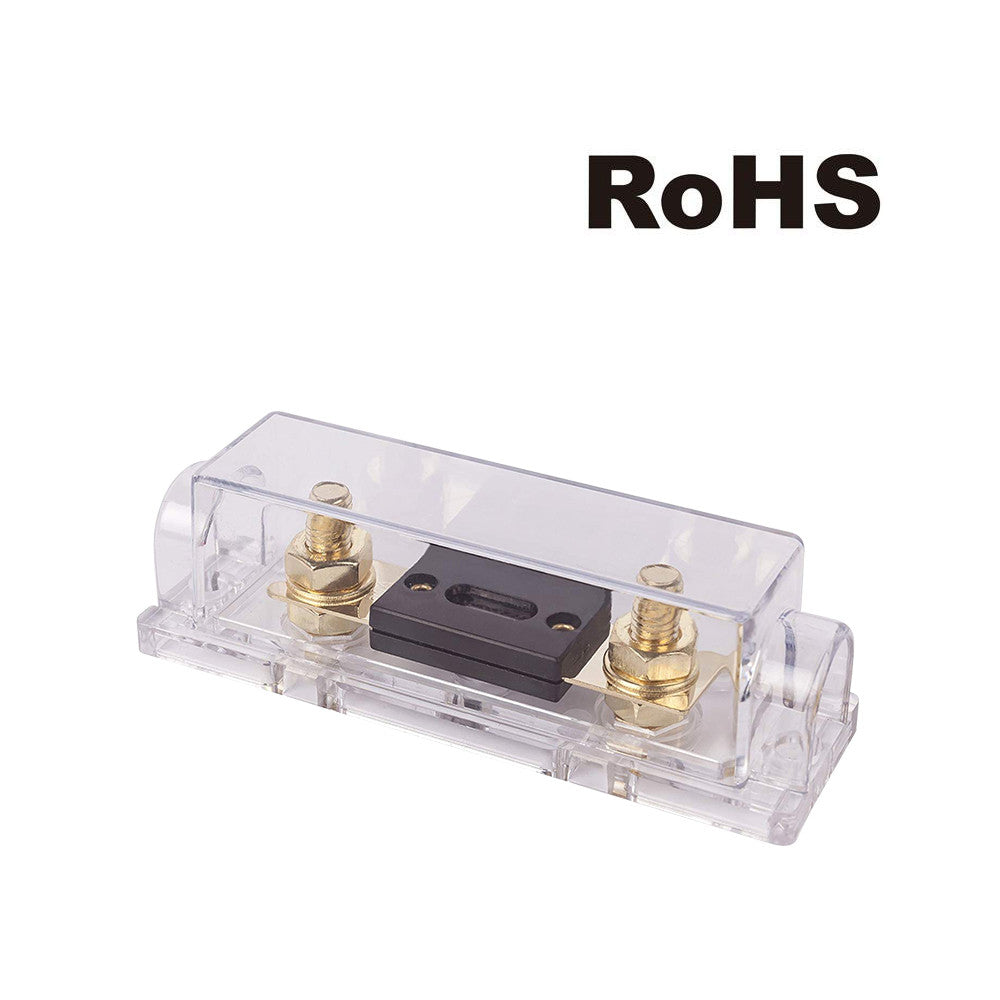

- ● RoHS compliant
- ● Compatible with all the 20/30/40/60/100 ANL fuses
- ● Gold/Nickel plated terminal contact for corrosion resistance
- ● Ignition protected

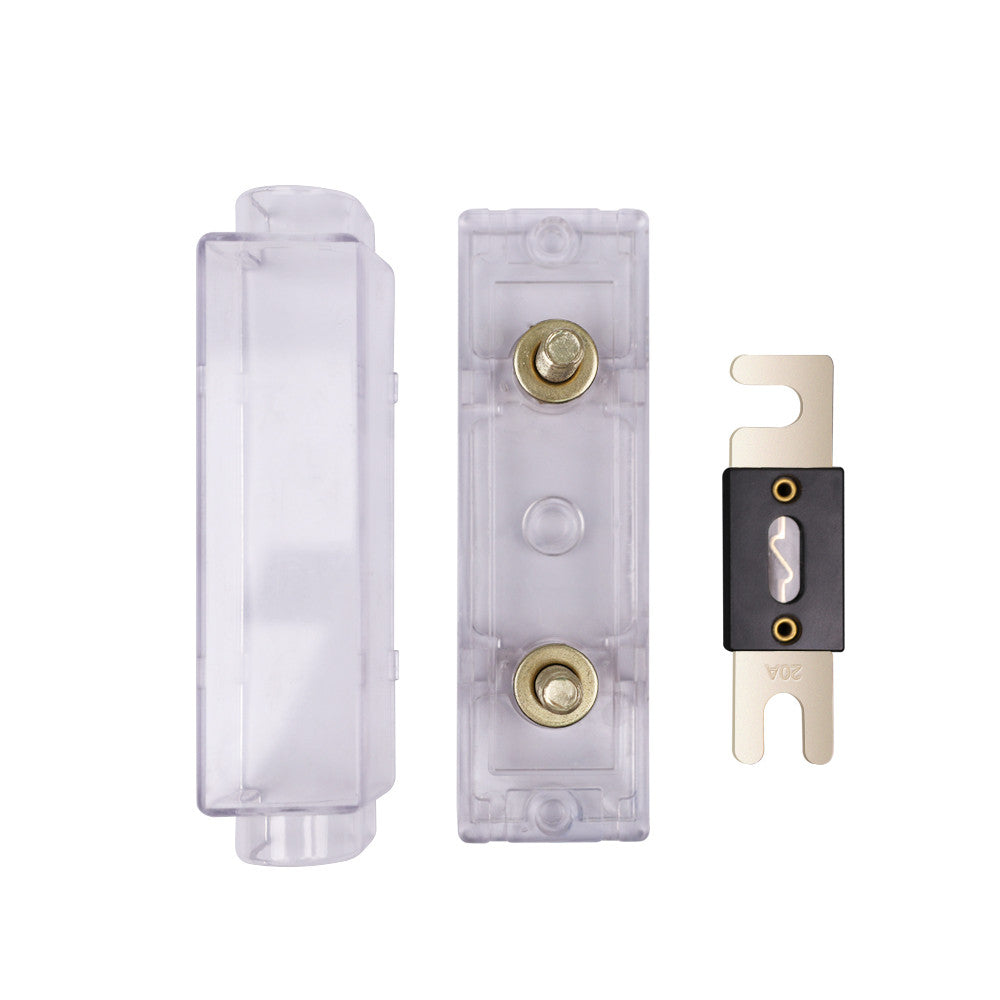

Package Includes
|
Renogy 20A/30A/40A/60A/100A ANL Fuse Set w/ Fuse
1 x
|
| Renogy 20A ANL Fuse Set (Included Fuse) | |
|---|---|
| Current Rating: 20A | Voltage Rating: 72V |
| Interrupt Capacity: 180A (48V) |
| Renogy 30A ANL Fuse Set (Included Fuse) | |
|---|---|
| Current Rating: 30A | Voltage Rating: 72V |
| Interrupt Capacity: 200A (48V) |
| Renogy 40A ANL Fuse Set (Included Fuse) | |
|---|---|
| Current Rating: 40A | Voltage Rating: 72V |
| Interrupt Capacity: 240A (48V) |
| Renogy 60A ANL Fuse Set (Included Fuse) | |
|---|---|
| Current Rating: 60A | Voltage Rating: 72V |
| Interrupt Capacity: 360A (48V) |
| Renogy 100A ANL Fuse Set (Included Fuse) | |
|---|---|
| Current Rating: 100A | Voltage Rating: 72V |
| Interrupt Capacity: 500A (48V) |
Warranty Information
| Panels |
25-year transferable power output warranty: 5 year/95% efficiency rate; 10 year/90% efficiency rate; 25-year/80% efficiency rate 5-year material and workmanship warranty |
| Accessories | 1-year material warranty |
Certification
 |
 |
 |
