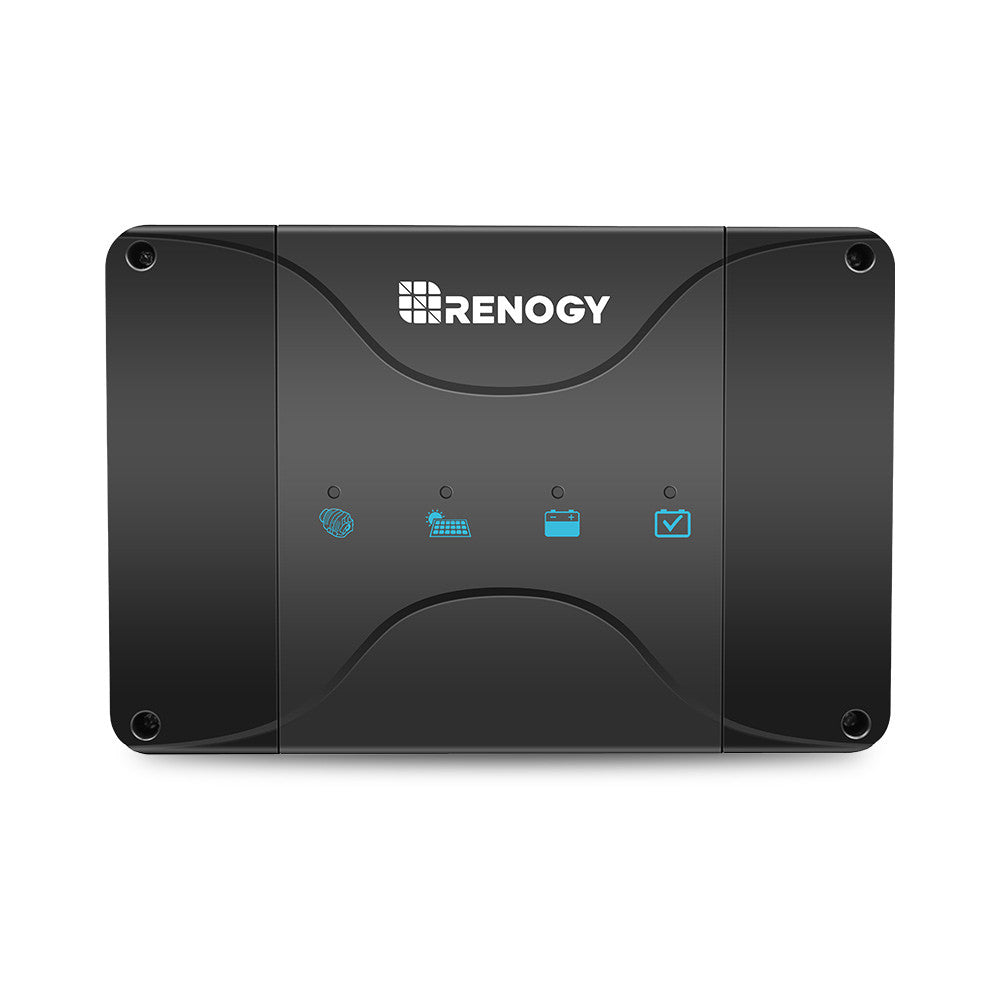

DCC30S 12V 30A Dual Input DC-DC On-Board Battery Charger with MPPT

DCC30S 12V 30A Dual Input DC-DC On-Board Battery Charger with MPPT
starts- reviews
SKU: RBC30D1S
£155.99 - £175.49
x
Options *

Availability:

Please allow up to 1 to 2 business days for processing and 3 to 5 business days for shipping. BT2 is out of stock now, will be shipped by 2022-6-30.

DESCRIPTION

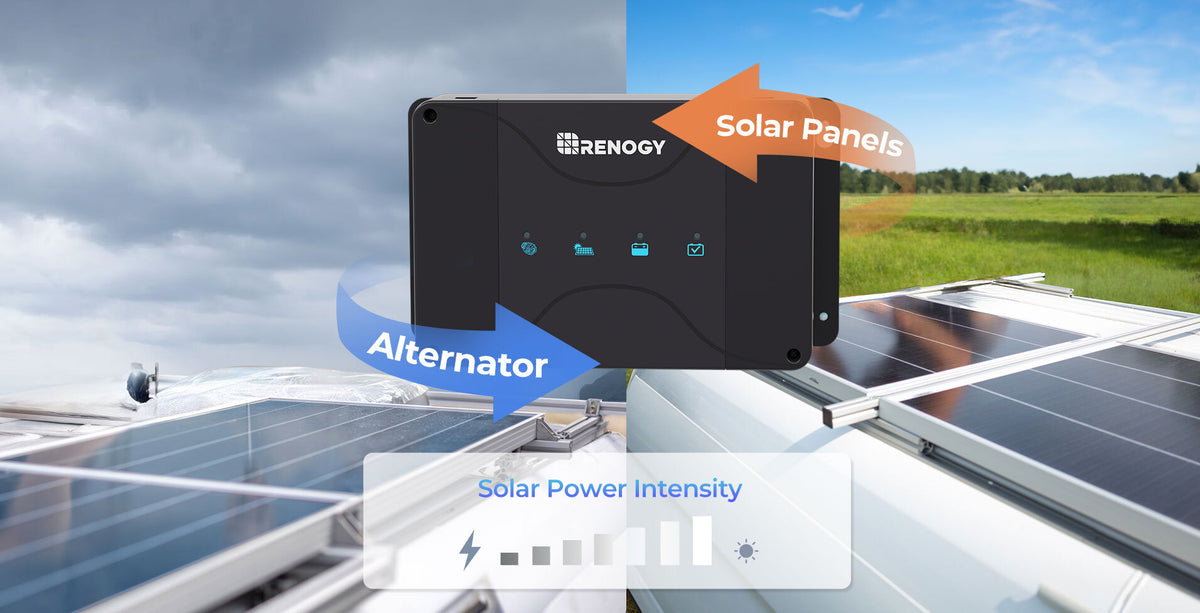

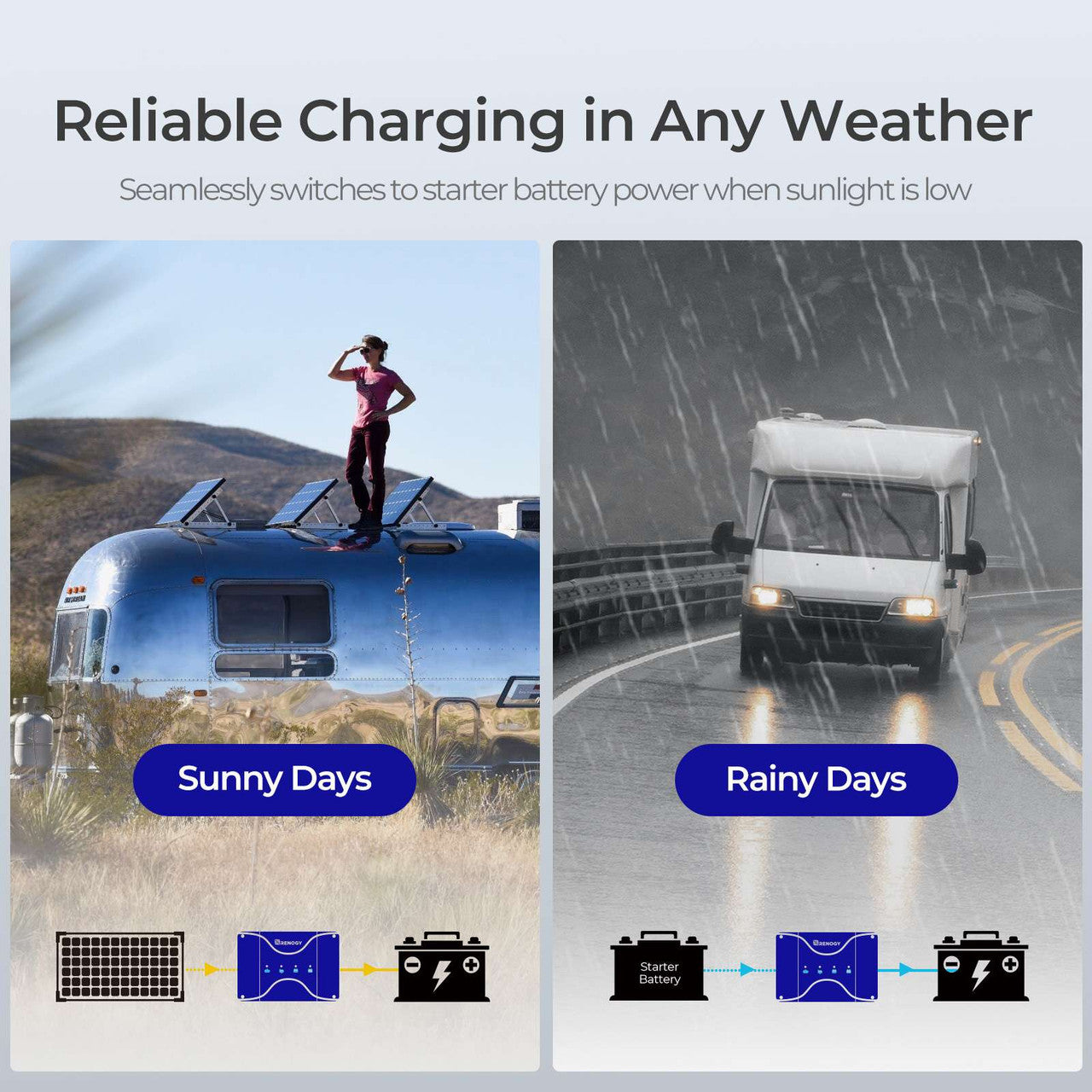

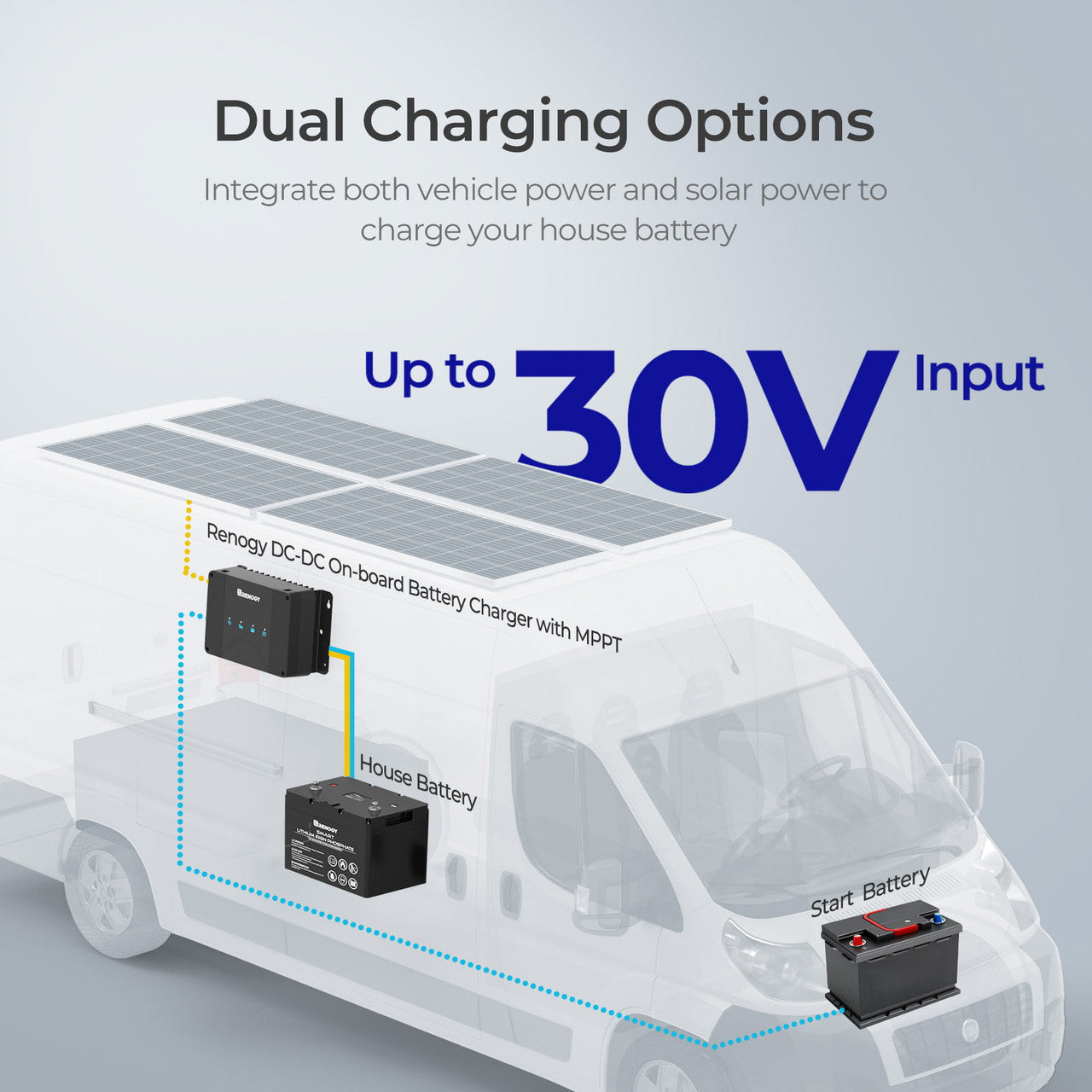

【Multi-input for Battery Charging】 Renogy DC-DC On-Board Battery Charger is designed to charge service batteries from a starting battery linked to an alternator or by utilizing solar panels connected directly to the unit, offering multiple charging options and ensuring your battery stay fully charged.

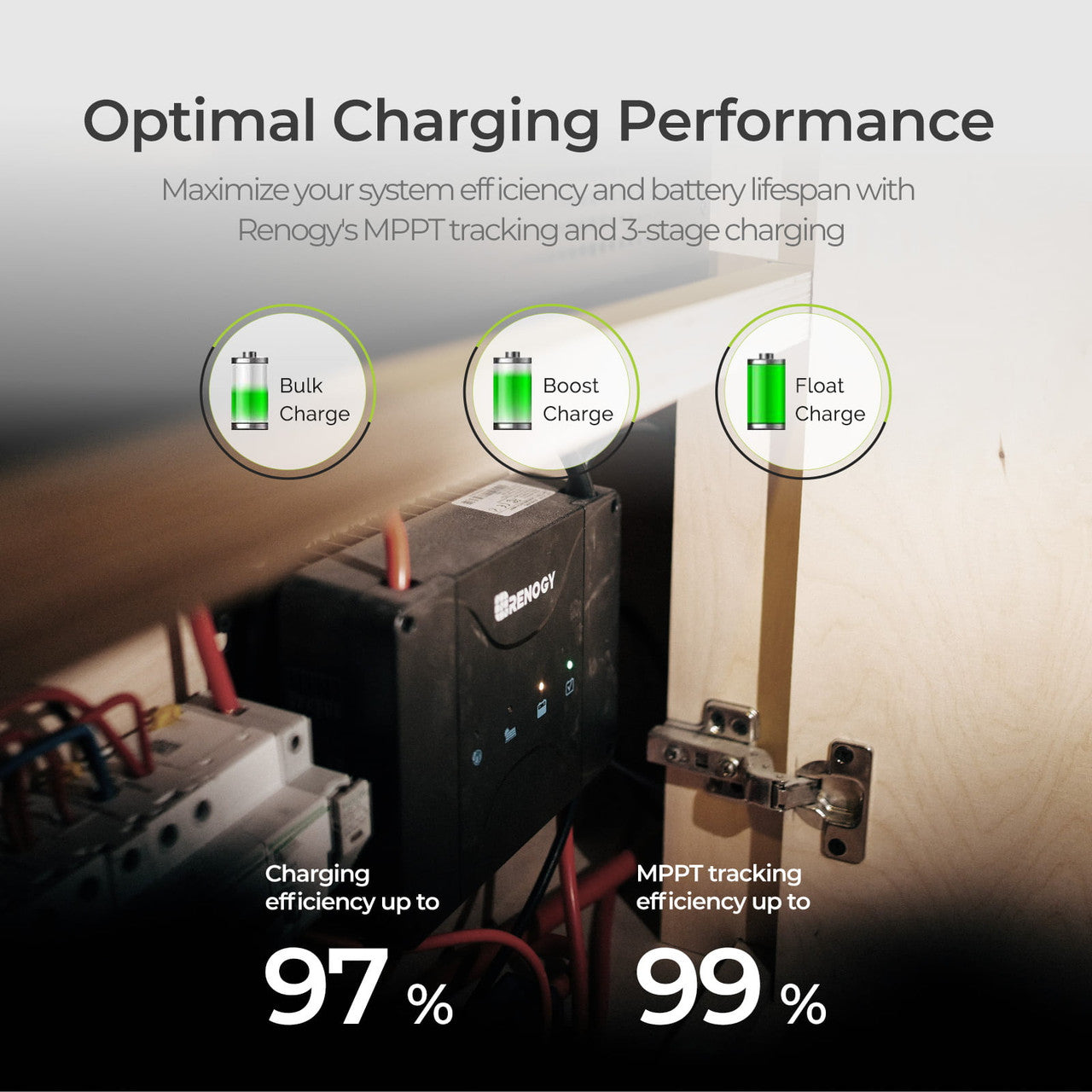

【3-phase MPPT Charging Technology】 With Built-in Maximum Power Point Tracking (MPPT), Renogy DC-DC On-Board Battery Charger will charge your service batteries with maximized solar power, providing 3-phase charging (Bulk, Boost and Float) to regulate the whole charging and ensure the batteries will be accurately charged at the correct voltage levels to 100%.

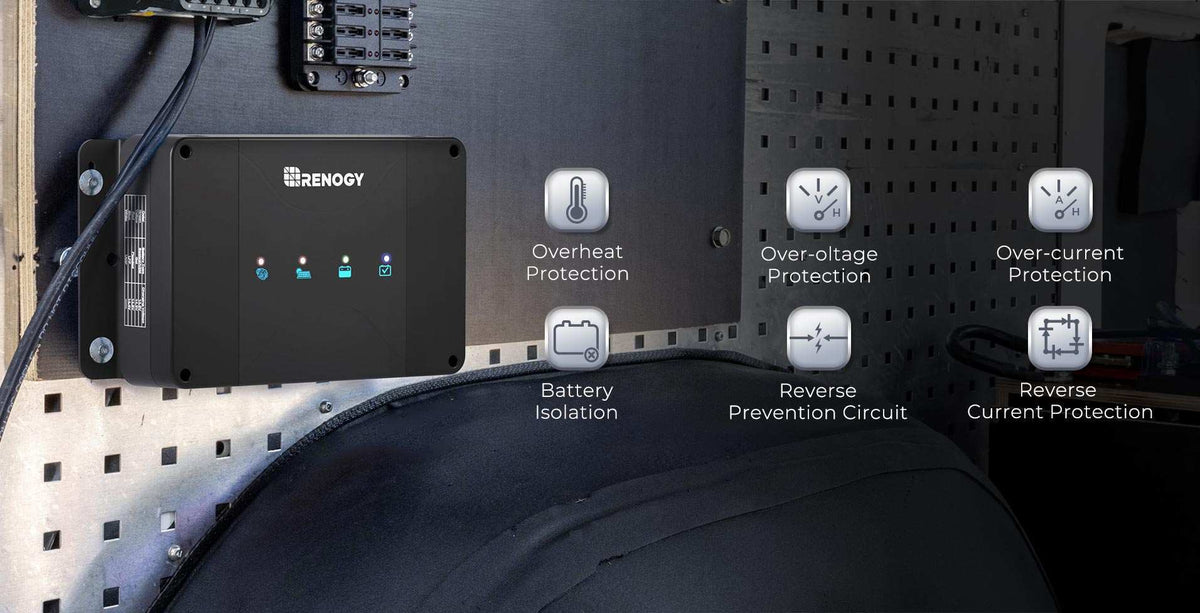

【Multiple Protections】 Renogy DC-DC On-Board Battery Charger has multiple intelligent protections includes battery isolation, over-voltage protection, battery temperature protection, over-current protection, overheat protection, reverse current protection, solar panel and alternator reverse polarity protection, guaranteeing charging safety and protecting your batteries.
【Light & Small, Ready to be Set Up】 With only 244mm in length, 145mm in height, and 1.42kg in weight, Renogy DC-DC On-Board Battery Charger is ready to be installed and adapt to any tiny narrow installation space, resolving your concern from limited room in your vehicle.

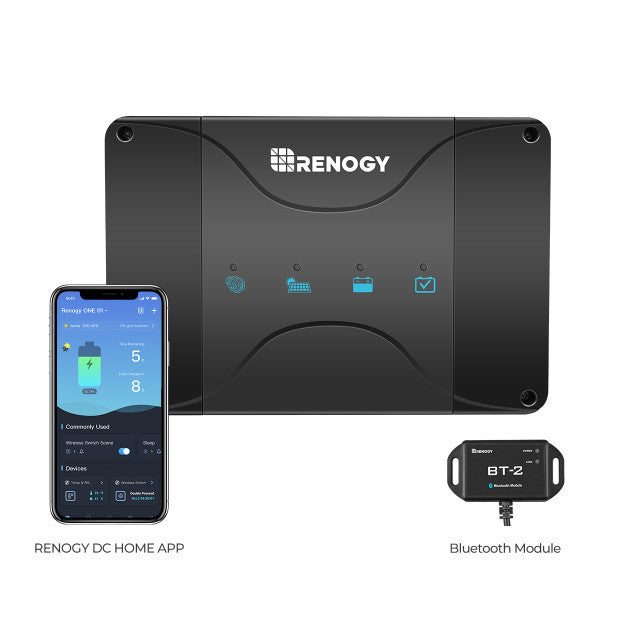

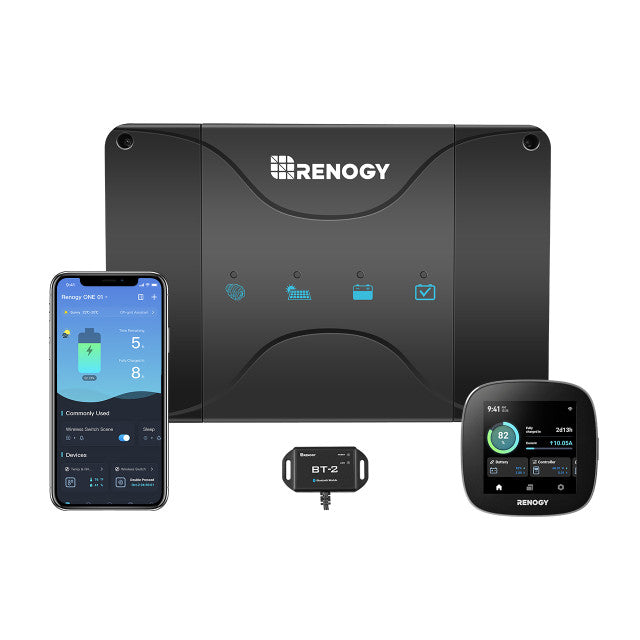

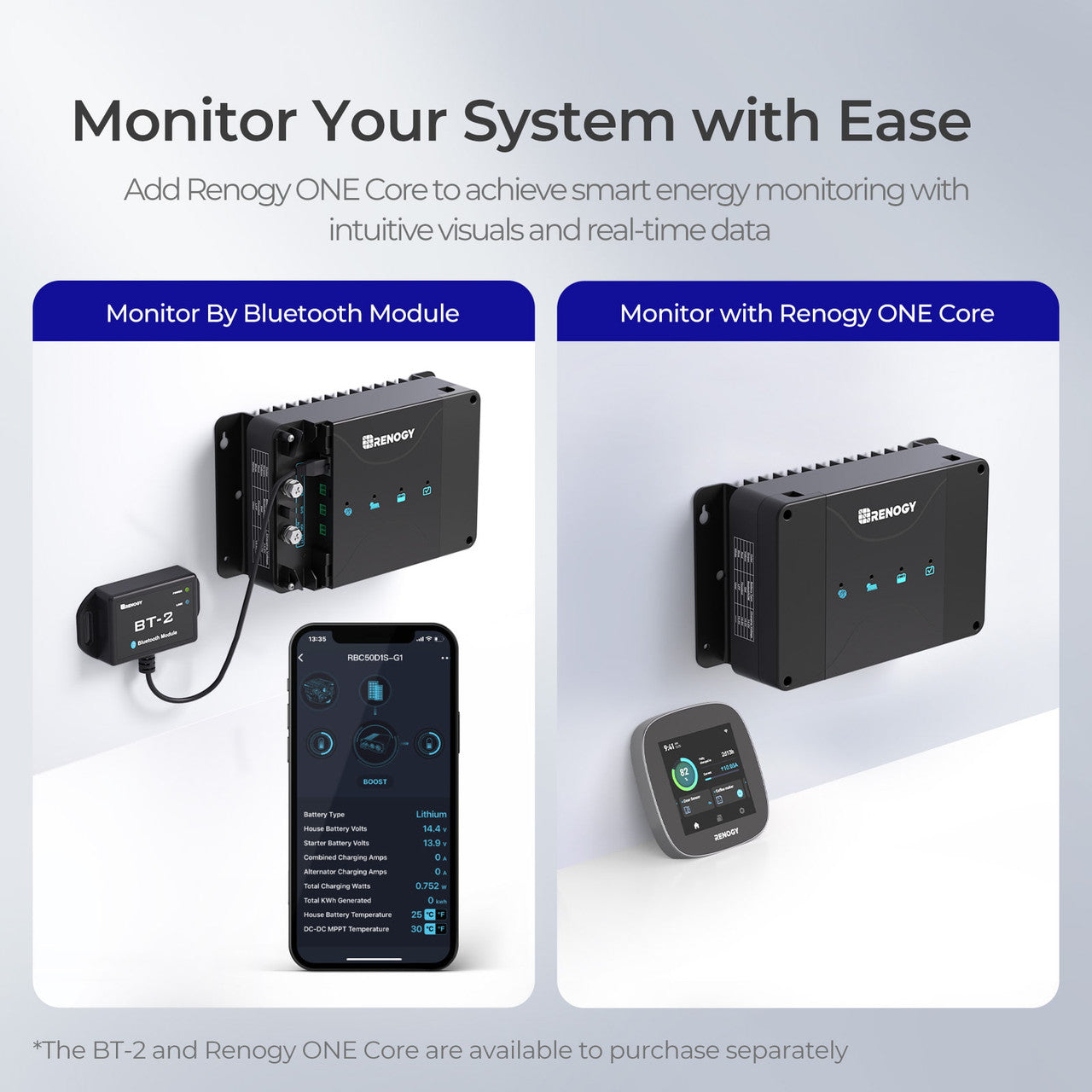

【RJ45 Communication Port Featured】 Bluetooth Monitoring Ready! Exclusively available with the BT-2 Bluetooth Module accessory and Renogy DC Home App available on the IOS and Google Play Stores, you can monitor this device remotely and simply through your phone and stay constantly updated.

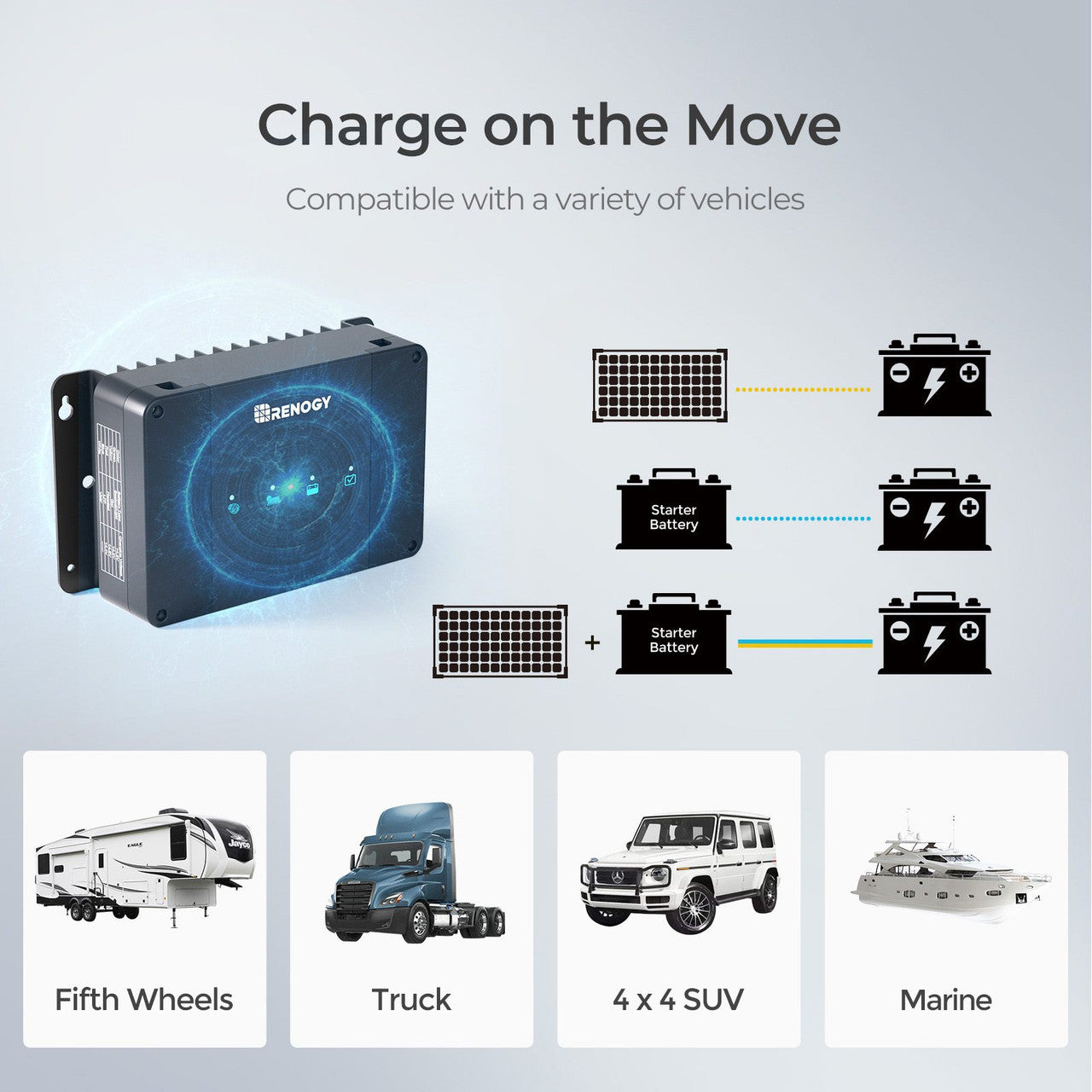

Renogy's DC to DC MPPT on-board Battery Charger is designed to give you options! This multi-stage, multi-input battery charger can charge a service battery from a starting battery linked to an alternator or by utilizing solar panels connected directly to the unit. While your vehicle's alternator prioritizes your starting battery, this unit will allow your solar system to charge your service battery first! It's the smart way to keep yourself fully charged and off-grid longer! And with multi-stage charging and multi-chemistry functionality, Renogy's DC to DC MPPT Charger has you covered whether you're using Flooded, Gel, AGM, or Lithium batteries. With RJ45 communication port featured, you can unlock monitoring features exclusively using the BT-2 Bluetooth Module and Renogy DC Home App, control and monitor the device remotely through your phone in real time.

If you have any questions regarding this product, please submit a case.

Sturdy Design for UltraSafe

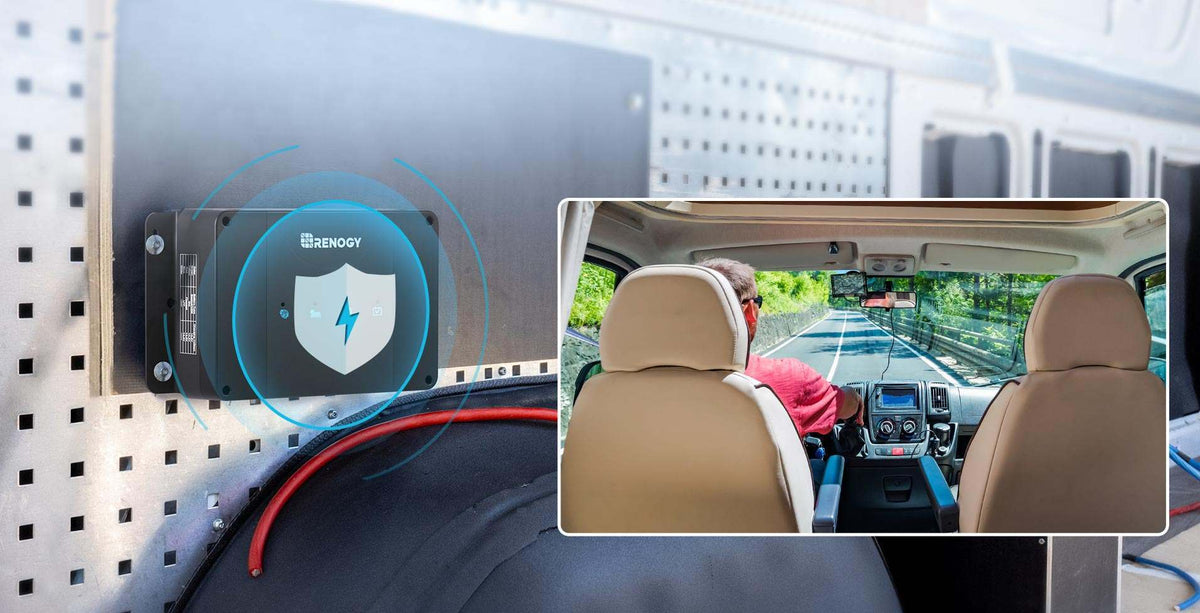

Comes with sturdy compact design, this Renogy DC-DC On-Board Battery Charger with MPPT can be safely and easily connected to any 12-volt system and allows safe operation in any position or portable devices without the worry of incorrect connections or sparks.

Built-in MPPT Maximizing Solar Power

WIth Built-in Maximum Power Point Tracking (MPPT) technology, this battery charger with MPPT maximizes the solar power when charging from solar panels, and ensures that the loads receive maximum current to be used.

Multi-alternator Compatibility

This Renogy DC-DC On-Board Battery Charger with MPPT is compatible with both traditional and smart alternators. For smart alternator, an IGN Port is featured to connect the Vehicle Ignition for auto-trigger once it detects the vehicle is started.

Built-in Voltage Sensitive Relay (VSR)

When connected with two batteries, it is vital to be able to isolate the two start and service batteries for charging safety. Renogy Dual Input DC-DC On Board MPPT Battery Charger with its built-in VSR allows vehicle owners to enjoy the benefits of fully charged deep cycle service batteries while reliably isolating it to the engine starting battery with one easy-to-install charging system.

Temperature Monitor and Voltage Adjust

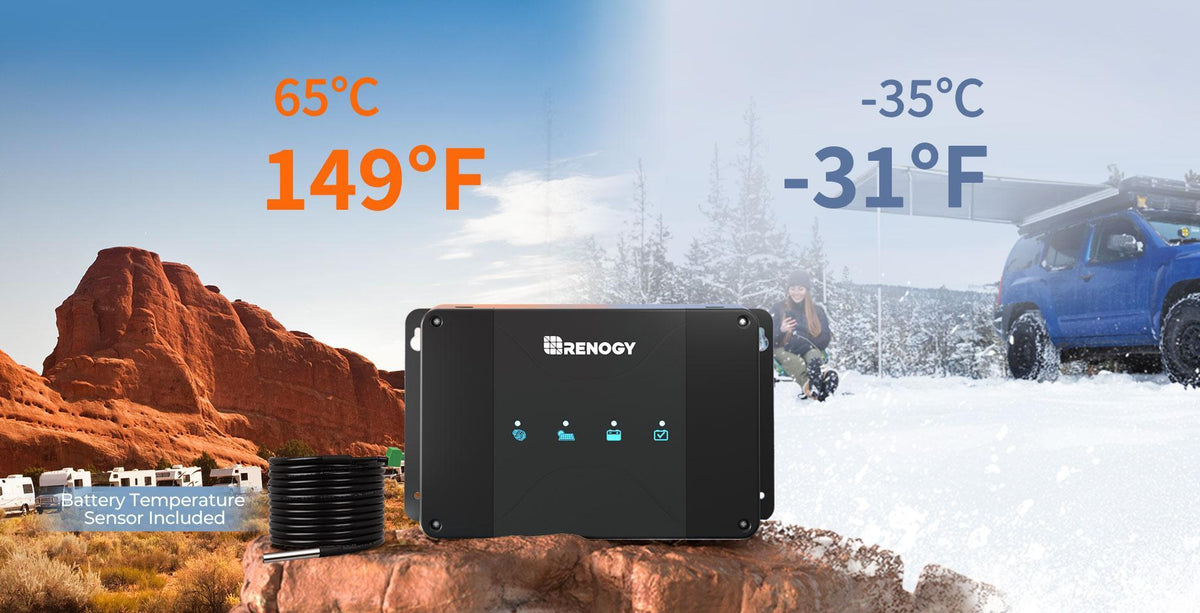

Featured with Remote Temperature Sensor Port, the Voyager can measure the temperature at the battery in real-time and uses this data for very accurate temperature compensation for both too high or low battery temperature, and thus adjust charging voltage to assure stable and constant charging to the battery.

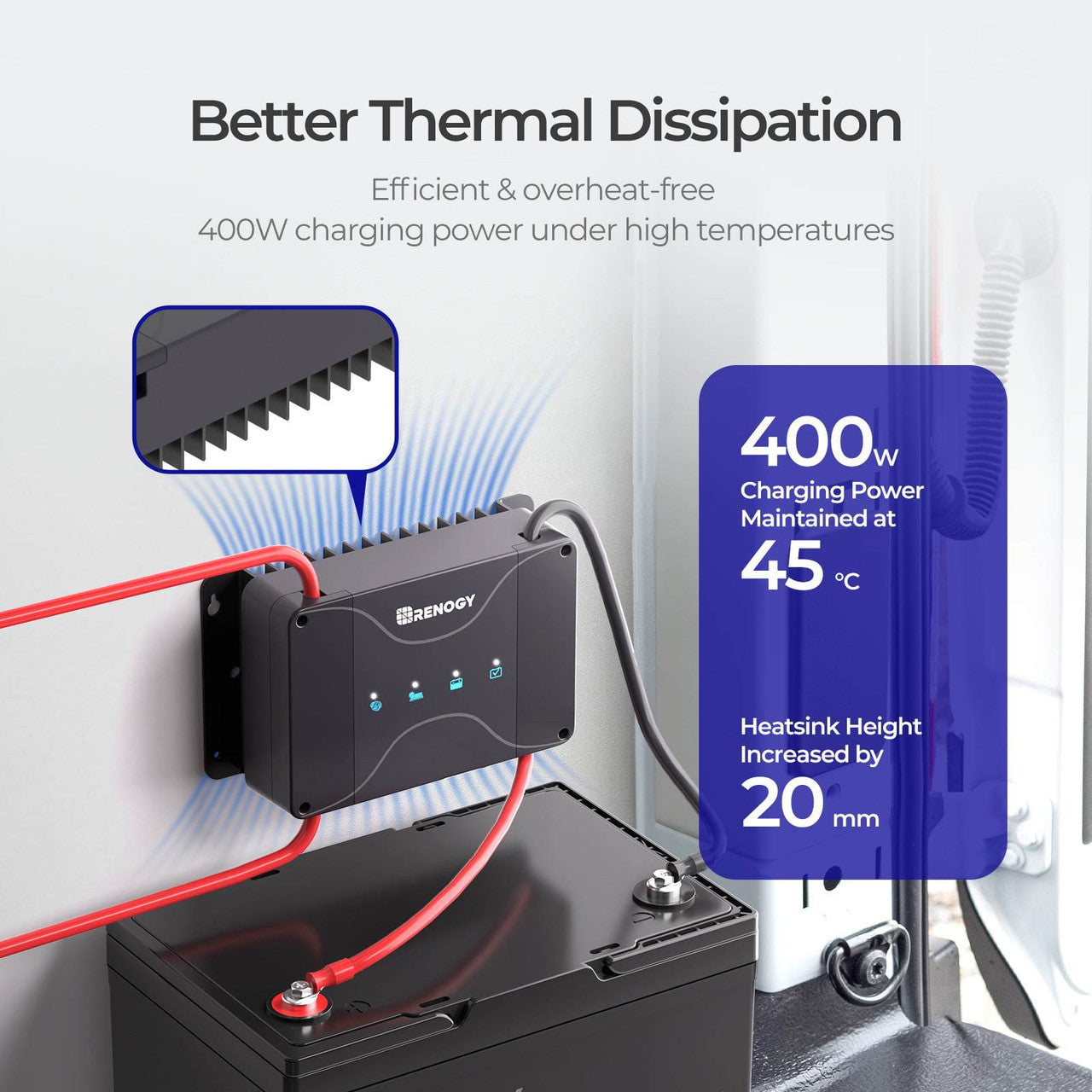

Silent and Efficient Heat Dissipation

This Renogy DC-DC On-Board Battery Charger with MPPT was specially die-cast aluminum designed for efficient and ZERO dB noiseless heat dissipation.

This diagram shows the whole connection of the DC-DC On-Board Battery Charger.

An external fuse is required for installation.

NOTE
  • If you have any questions regarding this product, please submit a ticket for troubleshooting assistance.


Package Include

Battery Charger

Battery Charger

1 x

Battery Temperature Sensor

Battery Temperature Sensor

1 x

IGN Signal Wire

IGN Signal Wire

1 x

RS485 Communication Cable

RS485 Communication Cable

1 x

Option: Renogy BT-2 Bluetooth module

Renogy BT-2 Bluetooth module

1 x

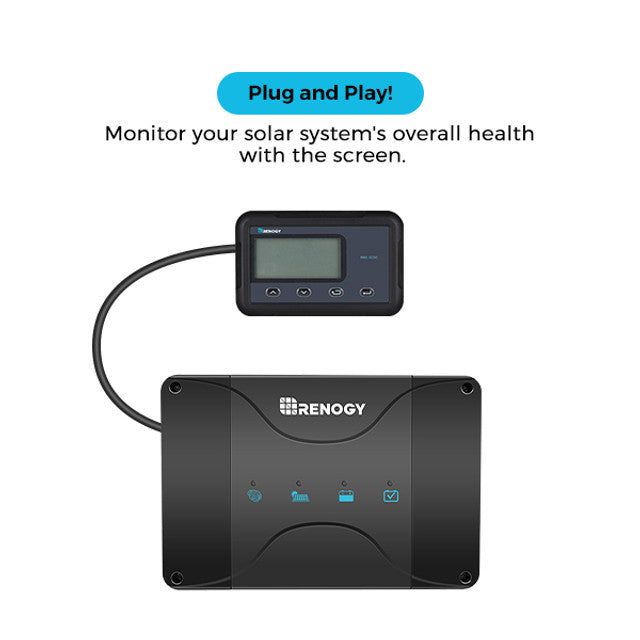

Option: Monitoring Screen for DC-DC MPPT Battery Charger Series

Monitoring Screen for DC-DC MPPT Battery Charger Series

1 x


Specifications
System Voltage : 12VDC Battery Voltage Range : 9-16VDC
Maximum Charging Current : 30A
Battery Types : SLD/AGM, GEL, FLD, LISER
Backup Battery Charging Mode : MPPT Charging Efficiency : Up to 97%
Max. Solar Input Voltage : 25V Maximum Solar Input Power : 400W
Alternator Input Voltage : Traditional Alternator: 13.2-16VDC  Smart Alternator (Euro 6): 12-16VDC Maximum Alternator Input Power : 400W
Self-consumption : 60mA Operating Temperature Range : -31°F~149°F / -35°C~65°C
Dimensions : 9.6 x 5.7 x 3.0 in / 244 x 145 x 77 mm Weight : 3.13 lbs / 1.42 kg
OPTIONS: BT-2 BLUETOOTH MODULE
Communication Protocol: RS485 Port Type: RJ45
Input Voltage: 5V or 12V Protection Grade: IP54
Standby Power Consumption: 0.04W Operating Power Consumption: 0.05W
Communication Range: ≤82ft Serial Baud Rate: Fixed Baud Rate 9600bps
Cable Length: 5.00 m (16.4 ft) Dimensions: 2.65 X 1.38 X 0.55 in (67.3 X 35 X 14 mm)
Installation Dimensions: 67.3 φ3.5mm(2.66 φ 0.14in) Operation Temperature: -20℃~85℃(-4°F to 185°F)
Weight: 130g (4.58oz)
OPTIONS: MONITORING SCREENMechanical Specifications
Supply Voltage: 5VDC Communication Port: RJ45 (RS485 Protocol)
Supply Current: 30mA Display: Backlit LCD
Power Consumption: <1W User Interface: 4 Front Menu Buttons
Operating Temperature Range: -4°F~113°F / -20°C~45°C Mounting System: Wall Mount
Voltage Accuracy: ±0.1V Dimension: 2.76 x 4.33 x 1.25 inch / 70 x 110 x 31.8 mm
Current Accuracy: ±0.1A Weight: 0.14 lbs / 62 g
  Wire Length: 16.4ft / 5m
  Certifications: FCC


Warranty Information

Material and workmanship warranty 2 Year


Certification


1. What type of alternator is this on-board battery charger compatible with?

This battery charger is compatible with both traditional and smart alternators. However, since standard/traditional alternator has a fixed voltage when charging, while smart alternator has a controlled charging output based on operating conditions, it is required to connect the charger to the smart alternator through the Vehicle Ignition Port by the IGN Signal Wire comes with the package.
2. What will happen if the service battery is fully charged?

This Renogy's DC to DC MPPT on-board Battery Charger has a built-in Voltage Sensitive Relay (VSR), thanks to which the charger will Trickle Charge the service battery and maintain its fully charged status, and will also Trickle Charge the starting battery via solar panels. The VSR also ensures reliable isolation between the starting battery and service battery, avoiding charging interference.

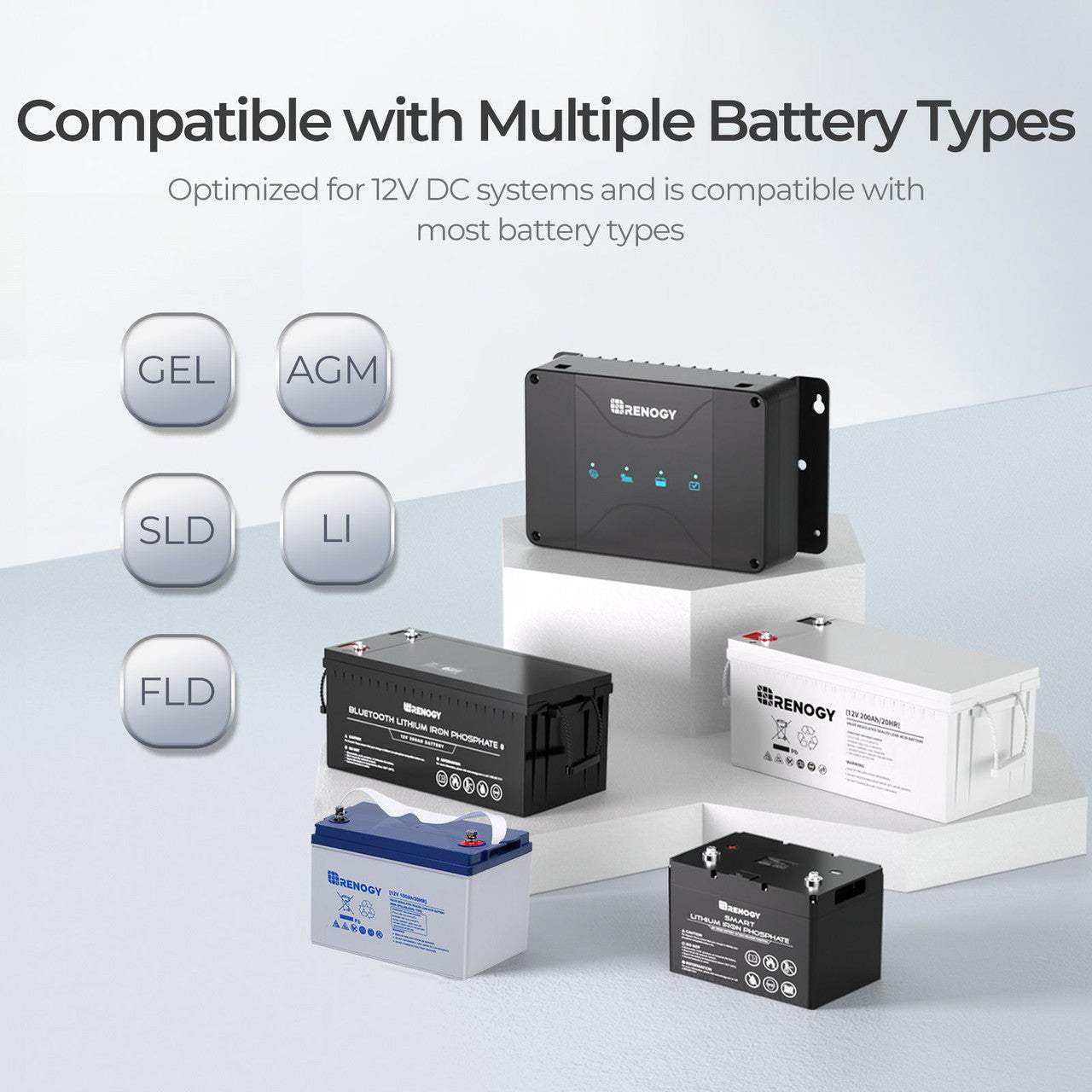

3. What types of battery does the charger support?

This controller supports Gel, AGM, Flooded, and Lithium battery, but please make sure to set the correct battery type once it is installed. For battery settings please refer to the Manual Book on page 12&15.
4. How do I set the battery since there is no display screen?

To change the battery type you will need to press the push button that is located on the PV+ and ALT+ side of the DCDC, then continue to press the button and the LED will display different colors with each representing a single type of battery. Please refer to the manual on page 15 for Battery Type LED.
NOTES


1. Do not reverse the polarity since the reverse polarity of the battery connections can cause injury and damage to the device.

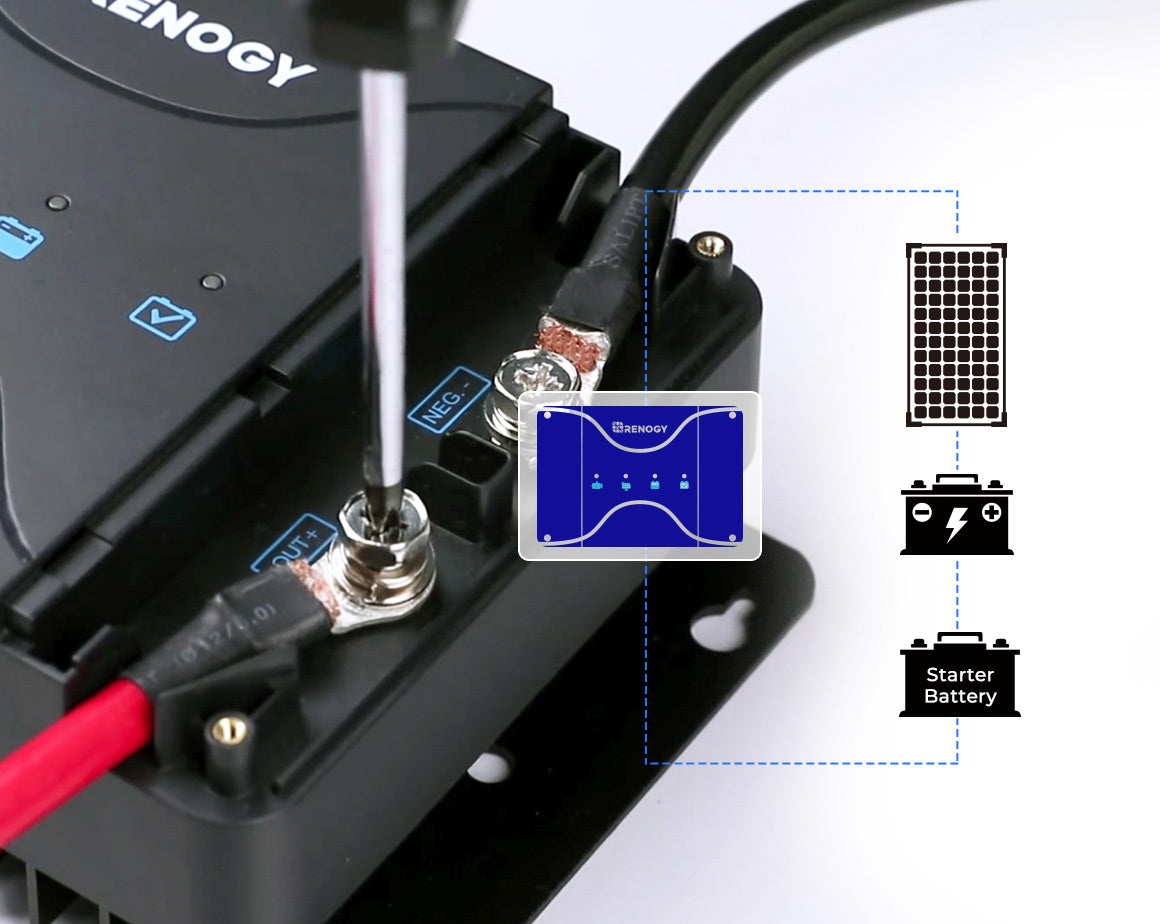

2. When connecting the charger and the battery, make sure the battery poles are clean when connecting the terminals, select a sufficient cross-section for the connection cable, tighten the nuts and bolts with proper torque as loose connections may cause overheating.

3. Be careful not to over-torque the terminals on the DCDC as over-torquing may cause irreparable damage (Do not exceed 16 N-m / 3.3 ft-lb).

4. Use the following cable colors:

Red: positive connection

Black: negative connection

5. If the battery charger is connected to the starting battery and solar panels at the same time, the maximum input current will be 15A for each; if the battery charger only connects one of the two DC inputs, the maximum input current will be 30A.
