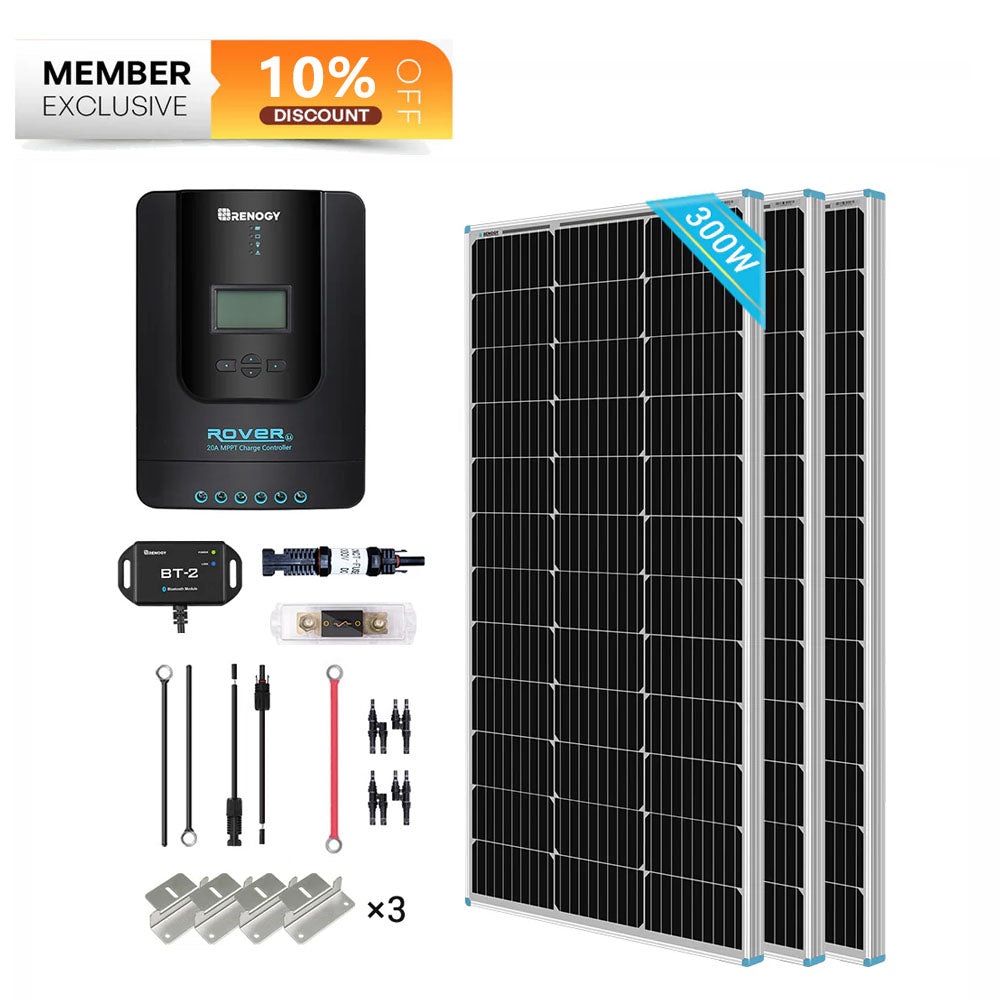

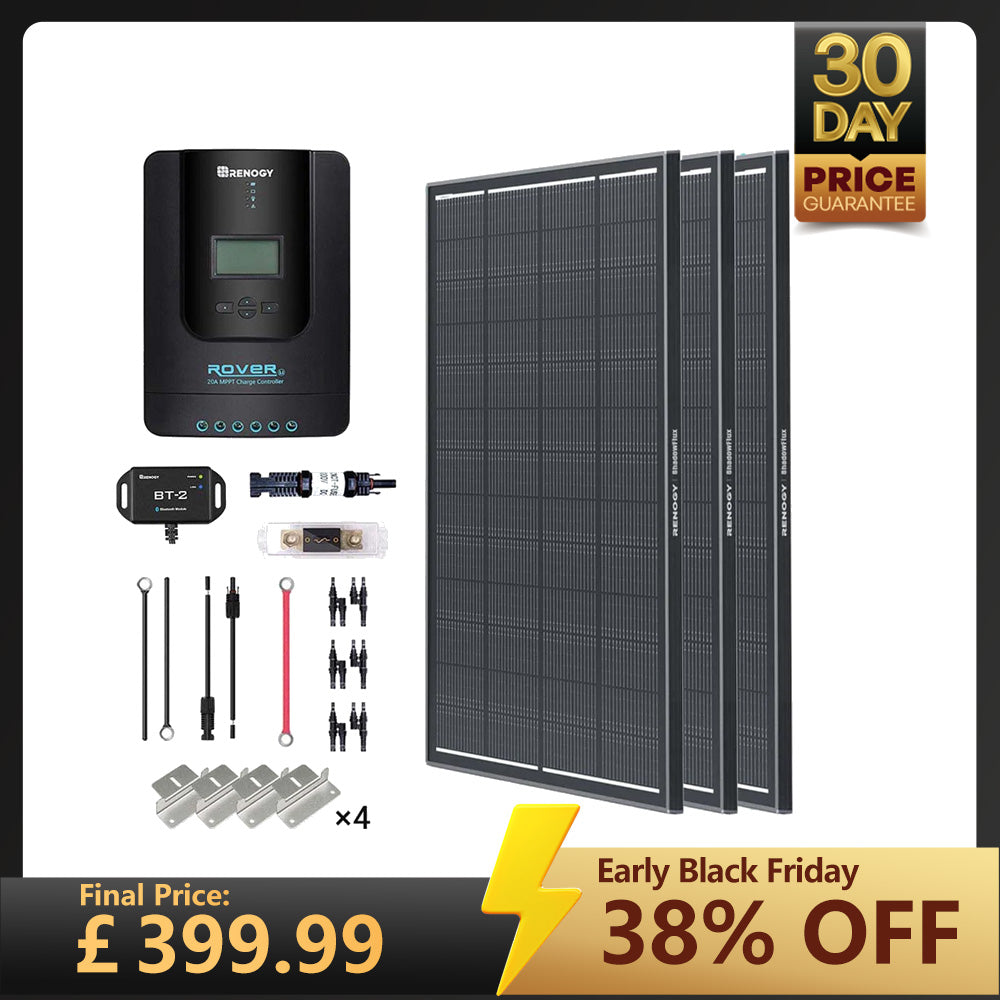

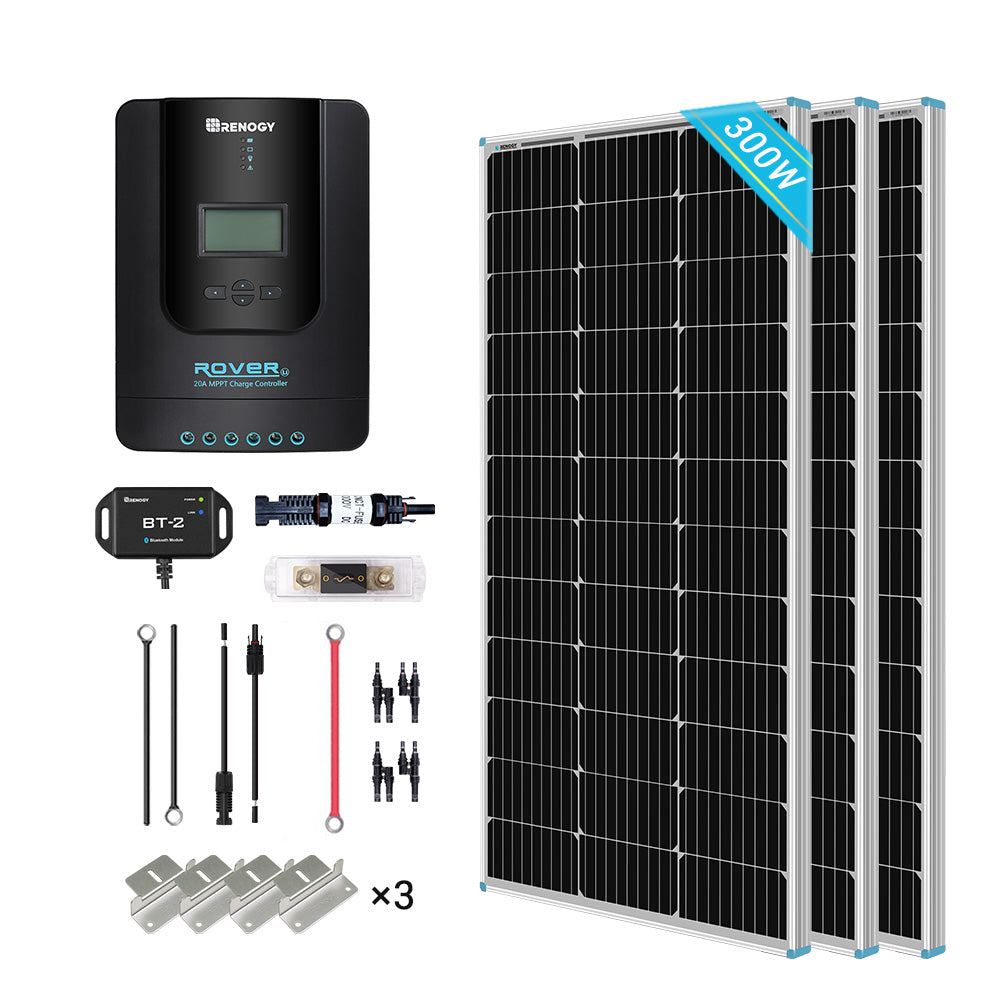

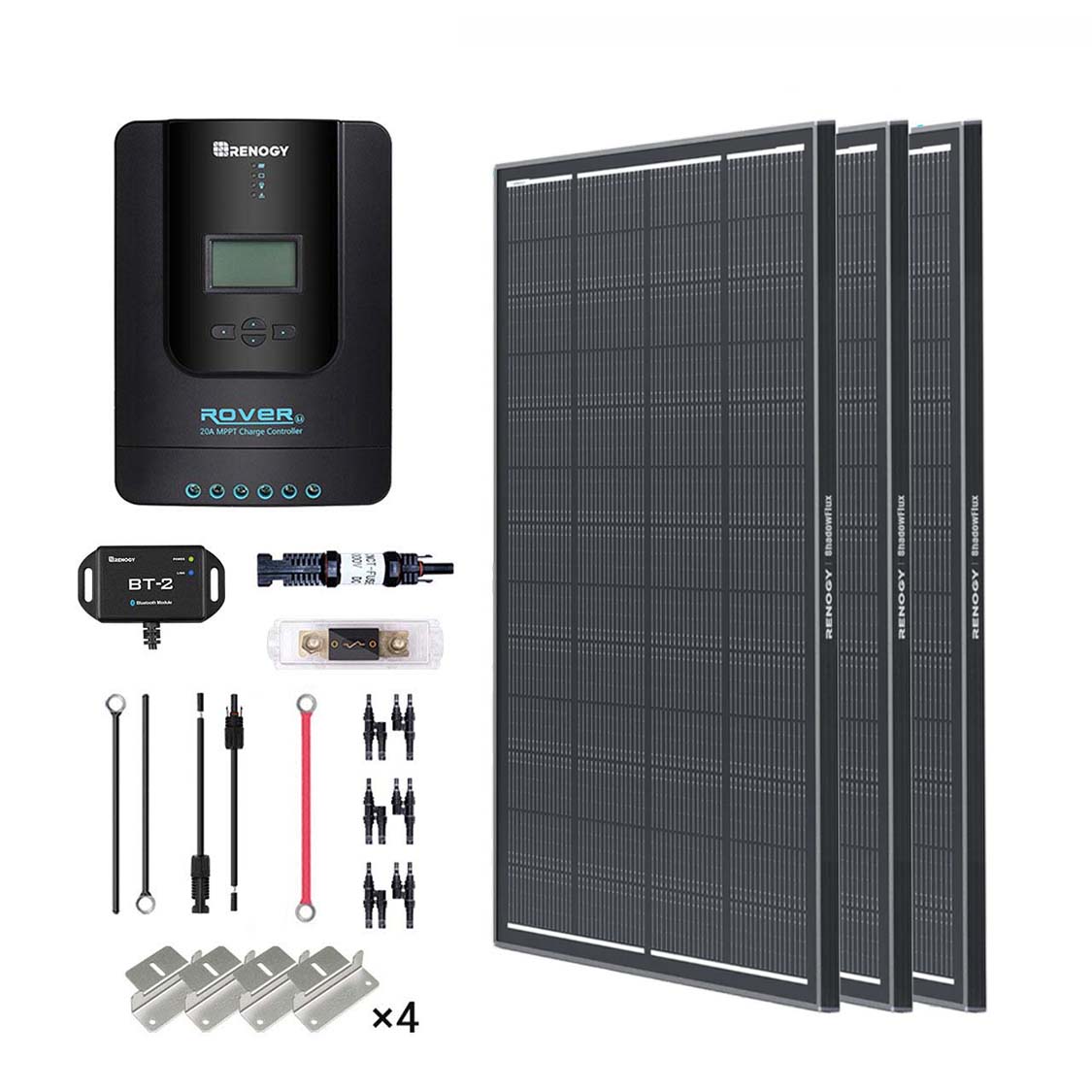

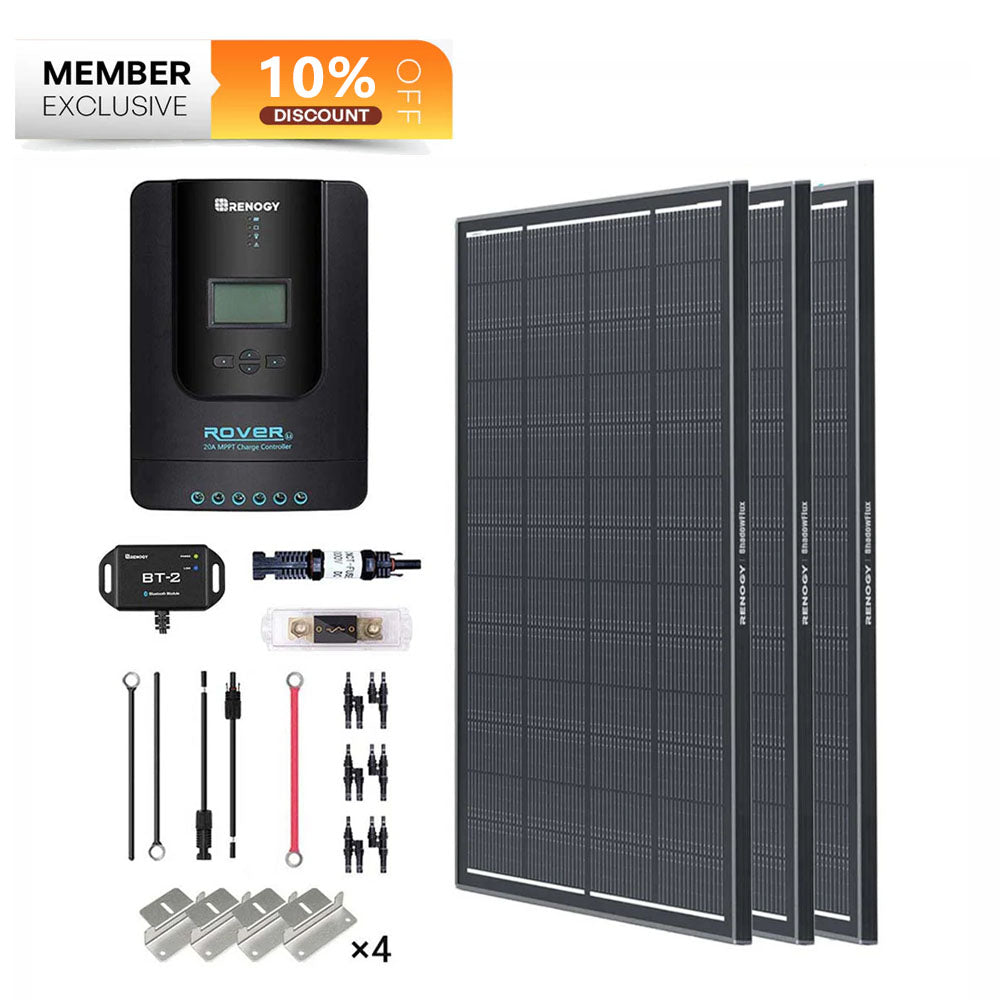

300W/360W 12V/24V Monocrystalline Solar Premium Kit w/Rover 40A Charger Controller

SKU: RNG-KIT-PREMIUM360DC-RVR40-UK
£409.99 £639.99
Tax included. Free shipping.
+ 4090   Renogy Rays after purchase.
Log In About Rays

Rectangle List
Quantity:
Payment Methods
Delivery Methods
Delivery time: 3-6 business days. (Excludes LTL shipping.) Free Shipping
Description
Includes
Specs
Downloads
Reviews

120W ShadowFlux Anti-shading N-Type Solar Panel

Revolutionize your solar setup with the market’s first N-Type solar panel, powered by advanced ShadowFlux anti-shading technology for stable, uninterrupted performance—day or night.

Cell-Level Shadow Management Technology

Innovative cell optimization minimizes energy loss, ensuring every cell operates at its full potential.

Safety every minute, efficiency every day

The Renogy Solar Premium Kit offers outstanding safety with a variety of certified accessories, guaranteeing an efficient solar system featuring globally renowned solar panels and a fully certified MPPT Charge Controller.

High-quality PERC solar panels

With a half-cell 9BB design, Renogy's PERC solar panel boasts a 22.5% higher cell efficiency. Crafted with premium materials, including a TPT backsheet and aluminum frame, the panel is protected from harsh environmental conditions over its lifetime.

Charge Controller with 8 built-in protections

The Renogy Rover Solar Charge Controller boasts 8 built-in protections, actively monitoring voltage, current, and load changes. These include overtemperature, low-temperature, reverse current, reverse polarity, short-circuit, overload, overcharging, and overdischarging safeguards for efficient and safe battery charging.

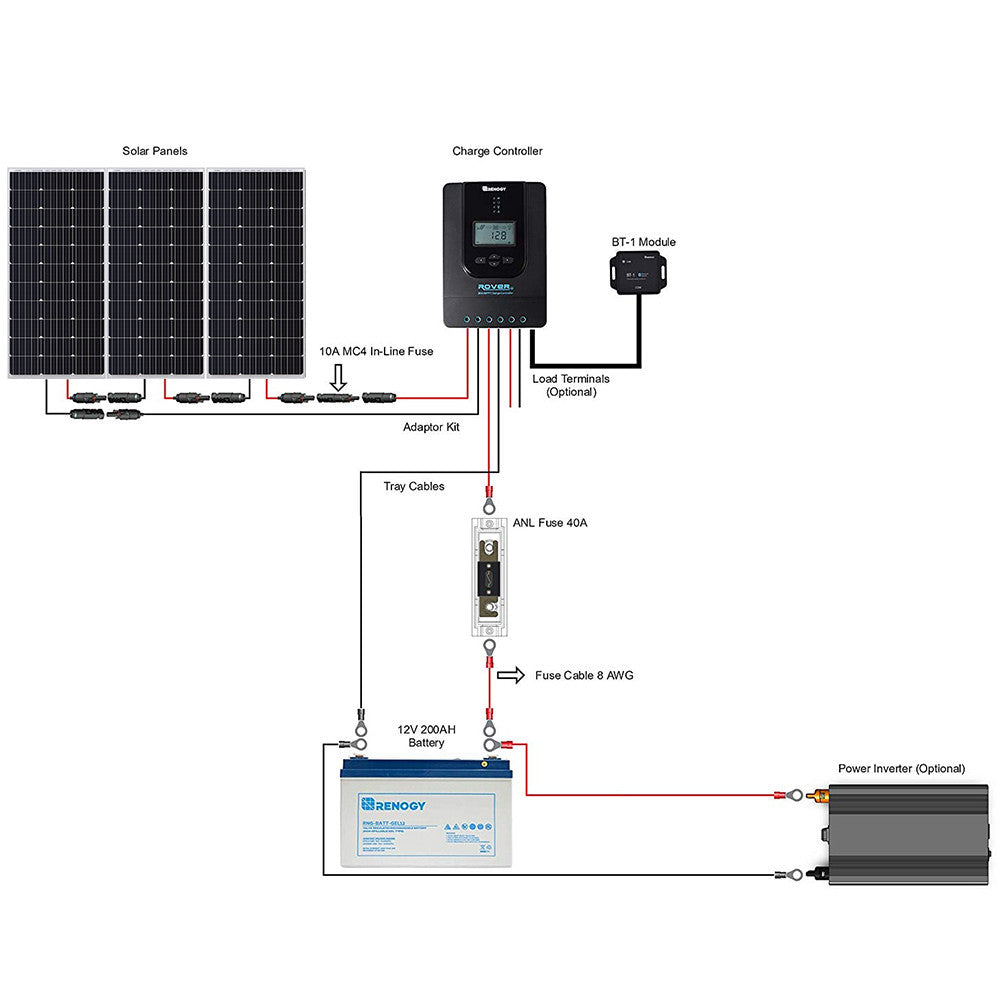

Renogy Fuse Solution

The Renogy Solar Premium Kit offers a reassuring fuse solution, comprising a fuse cable, ANL Fuse, and in-line fuse.

Package Includes

120W Rigid Panel(x3) or 100W Rigid Panel(x3) or 100W Flexible Panel(x3)

x 3

Rover 40A MPPT Charge Controller

x 1

20ft 10AWG AK 8ft 8AWG Tray Cable

x 1

Mounting Z Brackets (Set) (not included in ETFE Flexible panel kits)

x 3

BT-1 Bluetooth Module

x 1

10A MC4 and 40A ANL Fuse

x 1

MC4 Branch Connectors MMF+FFM Pair (not included in ETFE Flexible panel kits)

x 2

1FT 8AWG ANL Fuse Cable

x 1

Specification

120W ShadowFlux Anti-Shading N-Type Solar Panel

Max Power at STC
120W
Open Circuit Voltage
33.69V
Short Circuit Current
4.57 A
Optimum Operating Voltage
28.89V
Optimum Operating Current
4.21A
Maximum System Voltage
1000VDC
Maximum Series Fuse Rating
15A
Operating Temperature
-40°F~185°F / -40℃~85℃
Dimensions
1052*578*30mm/41.42*22.76*1.18inch
Weight
6.80kg/15.87lb
Material and workmanship warranty
5-year warranty
Performance Warranty
25-year 80% output warranty

100 Watt TOPcon Solar Panel Module Performance

Max Power at STC
100W
Module Efficiency
20%
Open Circuit Voltage
22.79V
Short Circuit Current
5.31A
Optimum Operating Voltage
19.97V
Optimum Operating Current
5.01A
Maximum System Voltage
600VDC
Maximum Series Fuse Rating
15A
Operating Temperature
-40°F~194°F / -40℃~90℃
Dimensions
865x578x30mm/34.1x22.8x1.2in
Weight
5.9kg/13.0lbs
Output Cables
14 AWG (1.96 ft long)
Cell Type
Monocrystalline (6.3 x 6.3 in)
Number of Cells
36 (3 x 12)

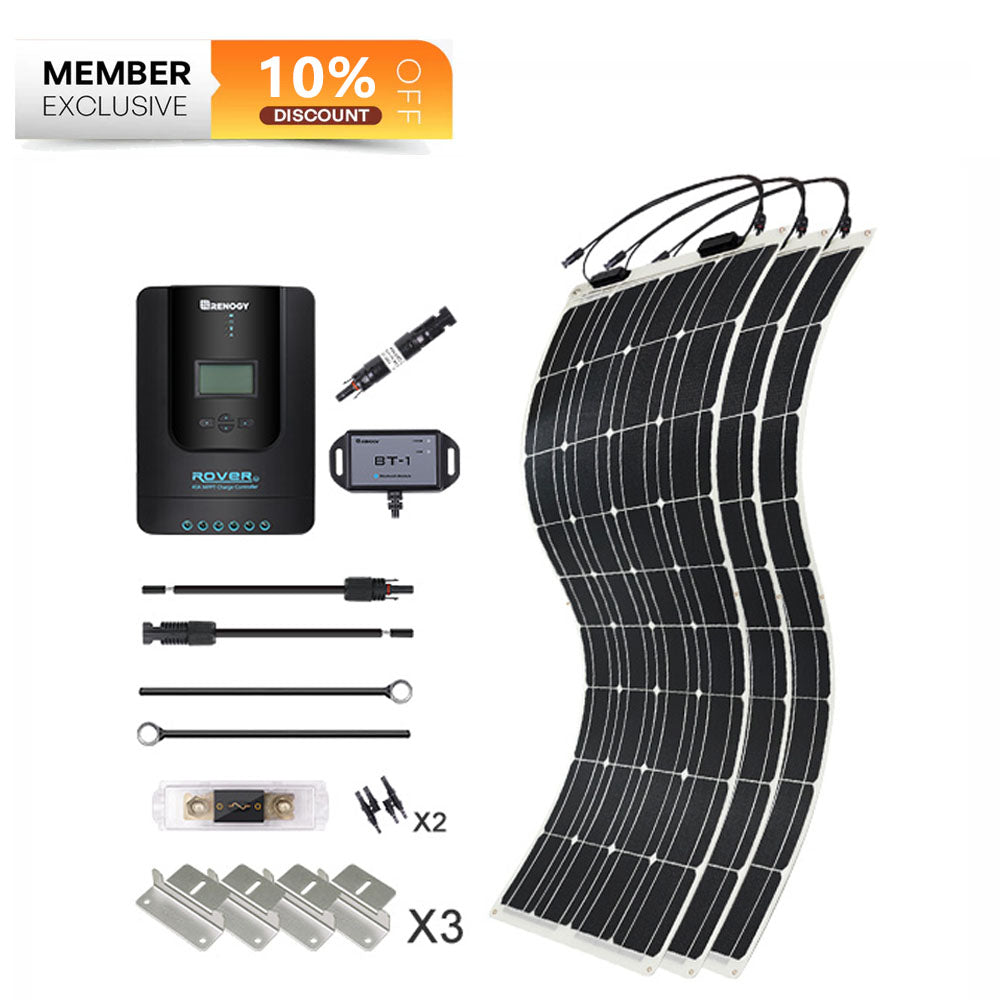

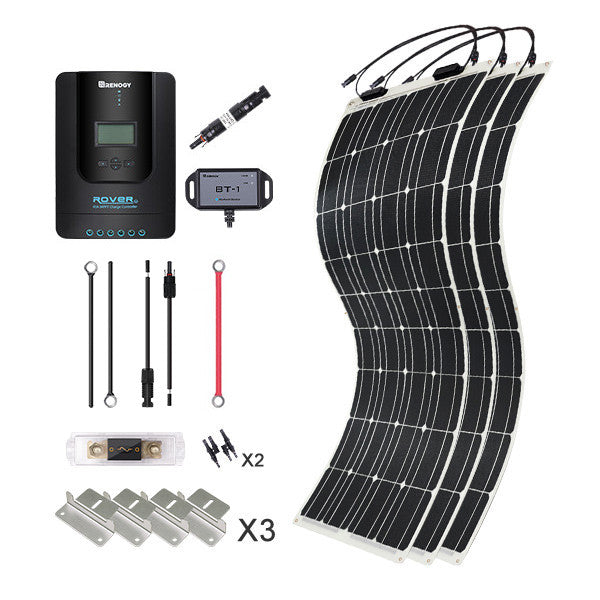

100W ETFE Flexible Panel (Optional)

Maximum Power
100W
Maximum System Voltage
600V DC
Open-Circuit Voltage (Voc)
22.5V
Short-Circuit Current (Isc)
5.75A
Optimum Operating Voltage (Vmp)
18.9V
Optimum Operating Current (Imp)
5.29A
Weight
4.2lbs (1.9kg)
Dimensions
48x21.5x0.08 In (121.9 x 54.6 x 0.2 cm)

20ft 10AWG MC4 Adaptor Kit (A pair)

Length
20ft
AWG
10
Rating Voltage
600/1000V
Temperature
-40°F to +185°F

Renogy 10A MC4 Fuse Holder w/Fuse

Rated Current
10A
Rated Voltage
1000 V DC
Contact Material
Copper, Silver Plated
Replaceable Fuse
Cylindrical PV Fuse (10x38mm)

Mounting Z Brackets (Set)

Eight Long Cap Bolts and Four Short Bolts
Four Spring Washers and Four Washers
Four Z Shape Solar Panel Brackets
Four Nuts

Renogy 8ft 8AWG Tray Cables (A pair)

Rating Voltage
600/1000V
Length
8ft
AWG
8
Temperature
-40°F to +185°F

ANL 40A Fuse Set

Current Rating
40A
Voltage Rating
72V
Interrupt Capacity
240A (48V)
Contact Resistance
1m

Solar Panel MC4 Branch Connectors (Pair)

Withstanding voltage
1000V DC(TUV), 600V(UL)
Temperature
-40°F to +194°F
Contact Material
Copper, silver plated
Unmating Force
147.51Ft·lb

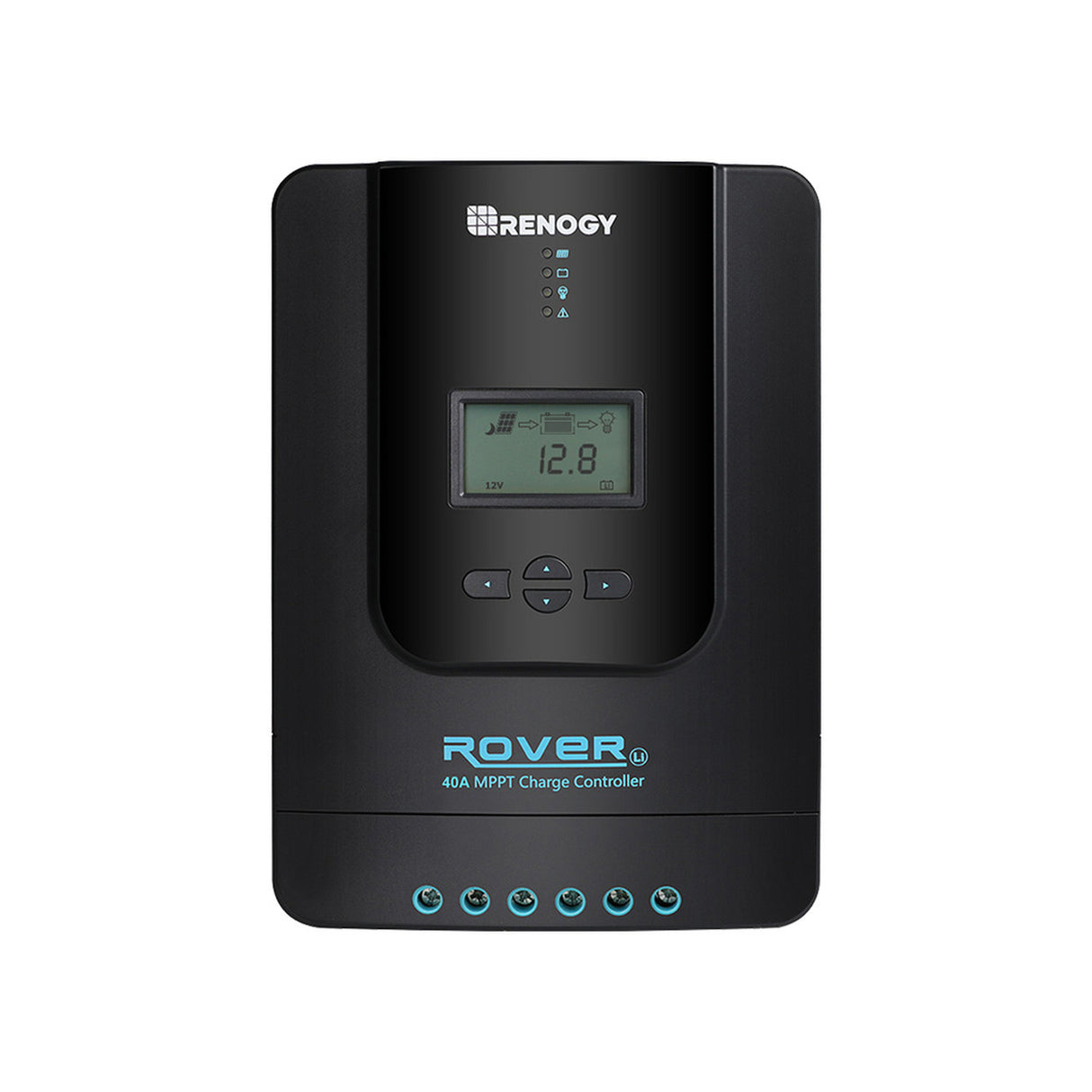

40A Rover Charge Controller

Nominal System Voltage
12V/24V Auto Recognition
Rated Battery Current
40A
Rated Load Current
20A
Max. PV Input Short Current
50A
Max. Battery Voltage
32V

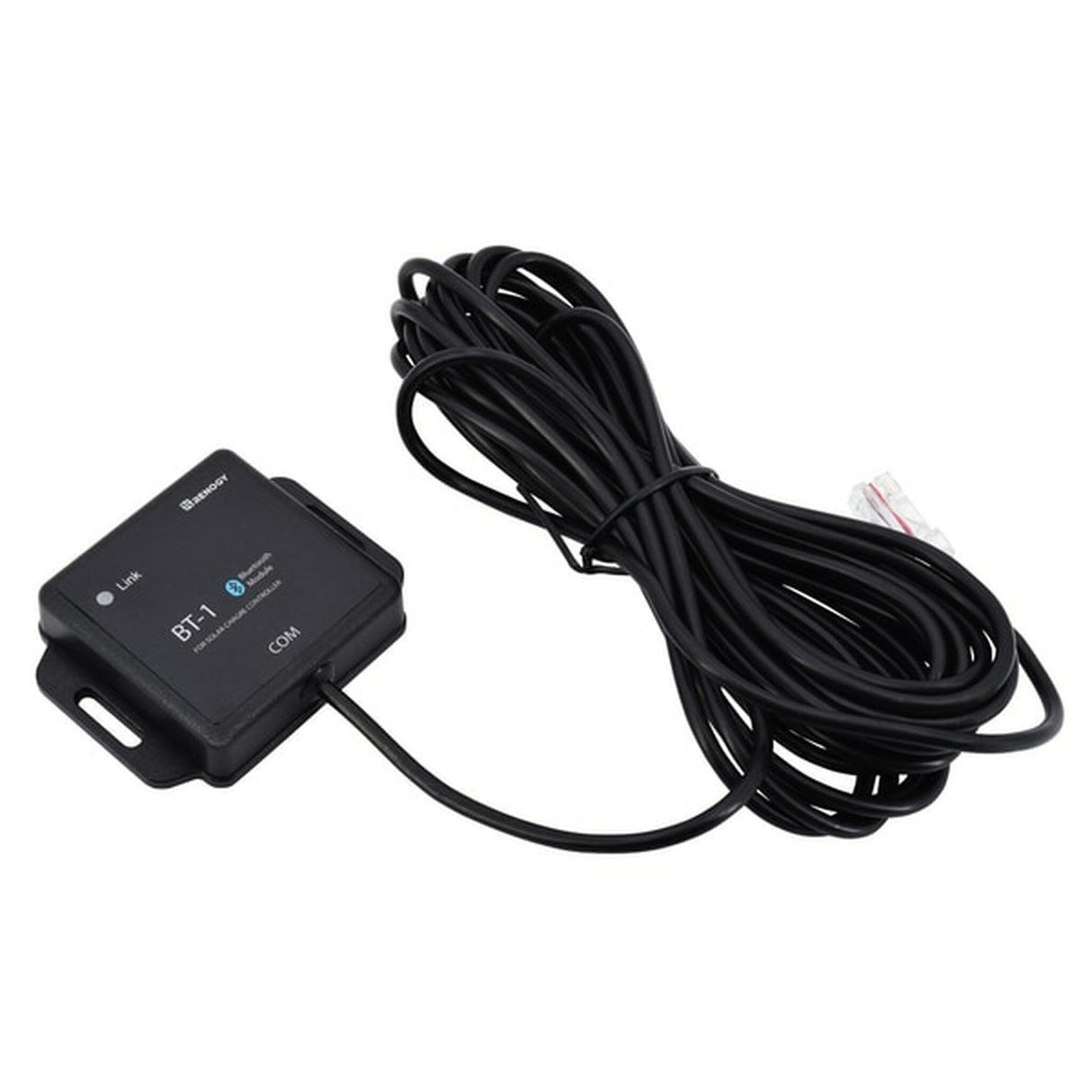

BT-1 Bluetooth Module

Max Solar Input Voltage
100 VDC
Mounting Oval
0.30 x 0.18in
Net Weight
3.08 lb.
Discharge circuit voltage drop
≤ 0.15V
Overall Dimension
8.27 x 5.94 x 2.34

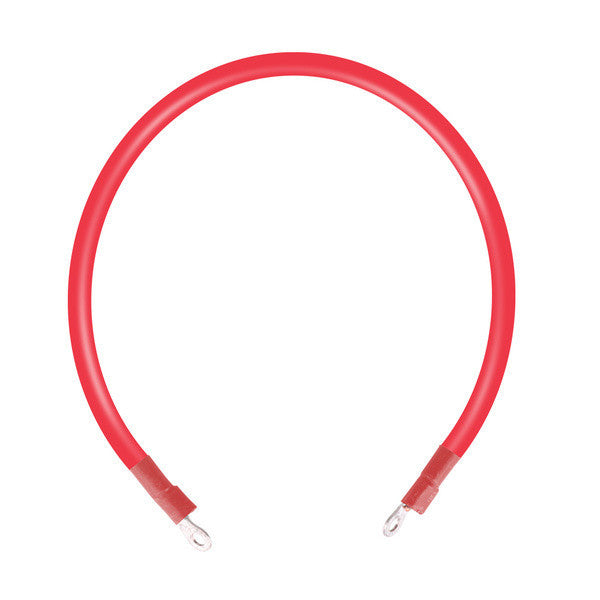

Renogy 2FT 8AWG ANL Fuse Cable

Length
2ft
AWG
8
Rating Voltage
AC Uo/U 0.6/1 KV, DC 1.8KV
Temperature
-40°F to +194°F

Warranty Information

Panels
25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate 5-year material and workmanship warranty
Accessories
1-year material warranty
