500A Battery Monitor with Shunt/Sampler (Coulomb meter)

SKU: RBM500-UK

Bestseller - This item will ship on January 23th.

£59.99 £89.99
Tax included. Free shipping.
+ 590   Renogy Rays after purchase.
Log In About Rays

First Order 5% Off Sitewide or 8% Off £1000+
valid until 2026-01-03
WELCOME5S
  • 【1% Accuracy in Measurement】 Shunt-type monitor design provides much more accurate real-time voltage and current draw measurement.
  • 【Protect the batteries】 With High and low capacity alarm functions, our battery monitor with shunt will alarm, and backlight and voltage value will flash simultaneously to protect the batteries from getting over-discharged.
  • 【Fit for all battery】 Compatible with various battery types, including Lead Acid (AGM, GEL), Lithium Iron Phosphate, Lithium-ion, Nickel-metal hybrid.

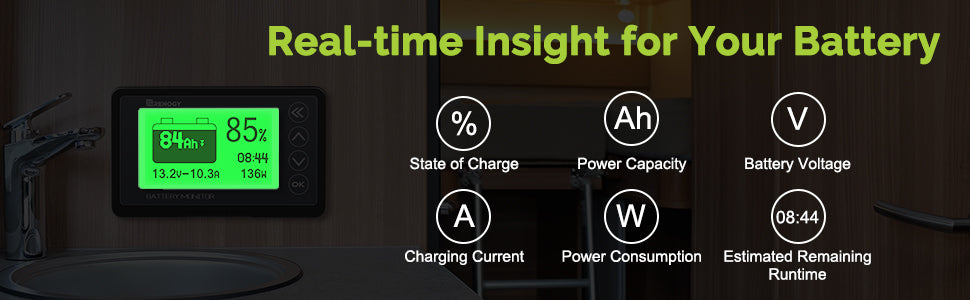

  • 【Easy to read】 Displays multiple electronic parameters, including Voltage, Current, Consumed Power, Battery Capacity, and battery degradation rate with a customized brightness high-definition Backlight Display.
  • 【Easy to Install】 The transparent shunt holder simplifies mounting, while the 20ft shielded cable enables remote monitoring of battery status.
Free Shipping on All Products
30-Day Return & Refund Service



6% OFF Coupon for New Subscriber
Lifetime Customer Support Contact us: +44 3300589559
Show More Benefits Show Less
Quantity：
Payment Methods
Delivery Methods
Delivery time: 3-6 business days. (Excludes LTL shipping.) Free Shipping
Description
Includes
Specs
Reviews

The Renogy Battery Monitor is designed to monitor performance for most kinds of batteries. Its high-precision measurements will eliminate the guesswork from battery usage and improve your battery bank's overall performance and longevity!

It is a universal battery monitor that you can use with voltage ranging from 10V to 120V and up to 500A.

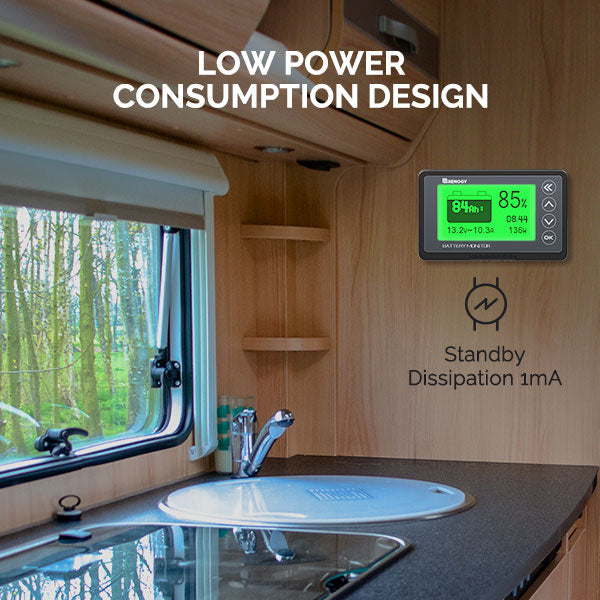

LOW POWER CONSUMPTION DESIGN

The backlight will automatically shut down when the charging current is ＜100mA and only 1 mA Standby Dissipation. This battery monitor is equipped with data storage capacity. It automatically saves the last testing data when its power is off.

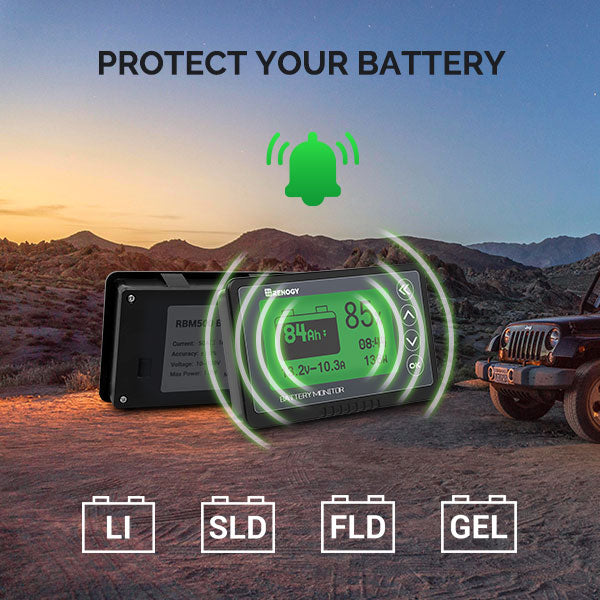

PROTECT YOUR BATTERY

This monitor gives you high precision current detection and accurate battery state of charge. You can also set an alarm for high or low current voltage. When the alarm is activated, the backlight and voltage value will be shown on the screen to alert you on what to do when you reach the cut-off voltage.

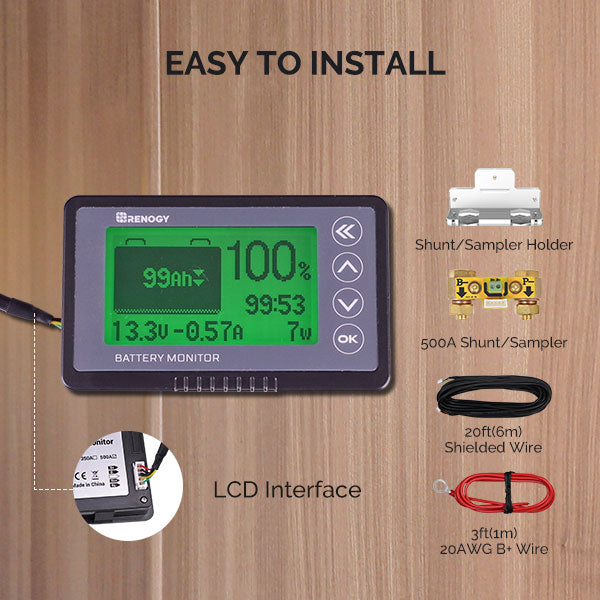

EASY TO INSTALL

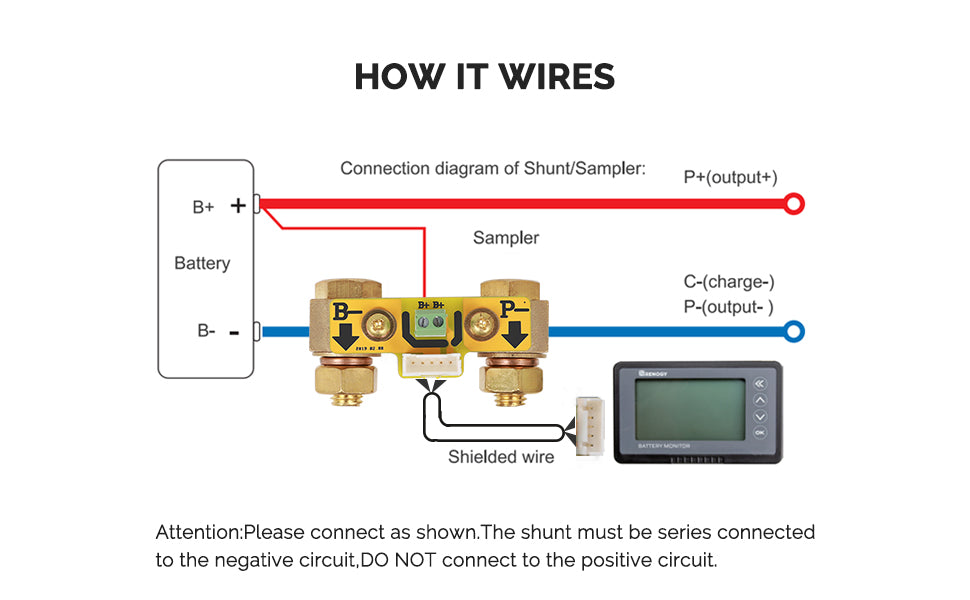

The package includes the LCD interface, 500A shunt, transparent shunt holder, 20 ft shielded wire, and B+ wire. The shunt holder makes it very convenient to mount the shunt while the long shielded wire allows you to monitor the status of your battery from a distance.

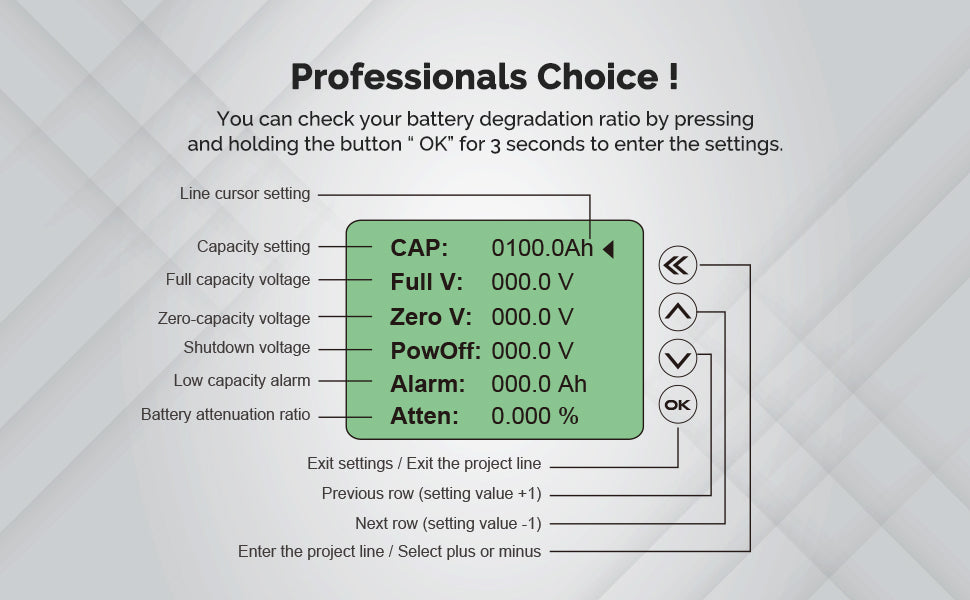

Monitor your battery degradation with Renogy Battery Monitor!

It is of extreme importance to achieve accurate predictions of the remaining battery lifetime under various operating conditions. With the Renogy New Battery Monitor (RBM500-G3), you will be able to monitor the battery degradation to ensure reliable operation and timely maintenance.

Package Includes

LCD Interface

x 1

500A Battery Monitor

x 1

Shielded Wire

x 1

B+ Wire

x 1

Shunt Holder

x 1

Operation Specifications

Working Voltage
10-120V
Standby Dissipation
1-2mA
Working Dissipation
10-15mA
Preset capacity value
0.1-9999.0 AH
Backlight on current (>50A)
100mA
Compatible Battery
Lead Acid (AGM, GEL), Lithium Iron Phosphate, Lithium-ion, Nickel-metal hybrid
Display
LCD with Green Backlight (brightness is adjustable)
Capacity Accuracy
±1%
Current Accuracy
±1%
Voltage Accuracy
±1%

Mechanical Specifications

Shielded Wire Length
20 ft/6 m
Weight (LCD Interface)
2.6 oz / 75 g
Size (LCD Interface)
3.9 x 2.4 x 0.7 in / 99 x 61 x 18 mm
B+ Wire Length
3 ft/1 m
Temperature range
14-140°F(-10-60°C)

Warranty

warranty
2-year prorated material and workmanship warranty
ROHS
Yes
