Description

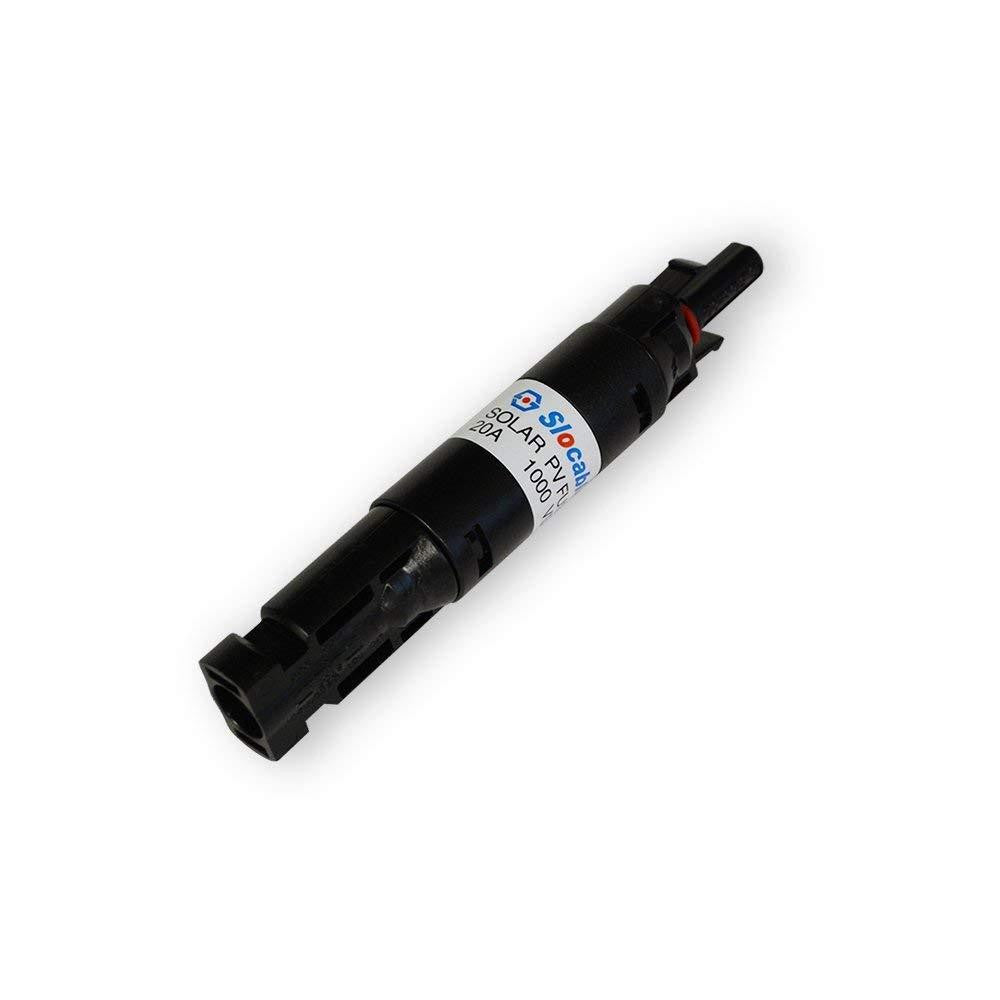

This product is a 10A/15A/20A/30A fuse embedded into a waterproof fuse holder. It features a male and female connector lead on each end; making it compatible for use with an Adaptor Kit and solar panel leads. This Fuse Holder is designed to provide complete single circuit protection to your solar power array. The fuses prevent large currents from damaging the solar panels. Purchase this product for extra protection on your system.
If you have any questions regarding this product, please submit a case.
Key Features
Ease of Use- Compatible with PV cables with different insulation diameters.
- Designed for a wide range of DC applications.
- Simple plug-and-play.
- Auto-lock equipment of male and female points render connections easy and reliable.
- Waterproof - IP67 Class Protection.
- Insulation material PPO.
- High current-carrying capacity
- Protection Class II
- Connector adopts touch and insertion of reed with inner-knob type
Package Includes
|
Renogy Solar Waterproof In-Line Fuse Holder w/ Fuse
1 x
|
| Renogy 10A Solar In-Line Fuse Holder Waterproof w/ Fuse | |
|---|---|
| Rated Current: 10A | Degree of Protection: IP2*/IP67 |
| Rated Voltage: 1000 V DC | Flame Class: UL94-V0 |
| Test Voltage: 6000V (50Hz;1 min) | Safety Class: II |
| Overvoltage Category: CATIII | Suitable Connector: Male and female Connector |
| Contact Resistance of Plug Connector:1mΩ | Insertion Force / Withdrawal Force: ≤50N / ≥50N |
| Contact Material: Copper; Silver Plated | Fuse Can Replace |
| Insulation Material: PPO | Temperature Range: -40 to +125°C |
| Renogy 15A Solar In-Line Fuse Holder Waterproof w/ Fuse | |
|---|---|
| Rated Current: 15A | Degree of Protection: IP2*/IP67 |
| Rated Voltage: 1000 V DC | Flame Class: UL94-V0 |
| Test Voltage: 6000V (50Hz;1 min) | Safety Class: II |
| Overvoltage Category: CATIII | Suitable Connector: Male and female Connector |
| Contact Resistance of Plug Connector:1mΩ | Insertion Force / Withdrawal Force: ≤50N / ≥50N |
| Contact Material: Copper; Silver Plated | Fuse Can Replace |
| Insulation Material: PPO | Temperature Range: -40 to +125°C |
| Renogy 20A Solar In-Line Fuse Holder Waterproof w/ Fuse | |
|---|---|
| Rated Current: 20A | Degree of Protection: IP2*/IP67 |
| Rated Voltage: 1000 V DC | Flame Class: UL94-V0 |
| Test Voltage: 6000V (50Hz;1 min) | Safety Class: II |
| Overvoltage Category: CATIII | Suitable Connector: Male and female Connector |
| Contact Resistance of Plug Connector:1mΩ | Insertion Force / Withdrawal Force: ≤50N / ≥50N |
| Contact Material: Copper; Silver Plated | Fuse Can Replace |
| Insulation Material: PPO | Temperature Range: -40 to +125°C |
| Renogy 30A Solar In-Line Fuse Holder Waterproof w/ Fuse | |
|---|---|
| Rated Current: 30A | Degree of Protection: IP2*/IP67 |
| Rated Voltage: 1000 V DC | Flame Class: UL94-V0 |
| Test Voltage: 6000V (50Hz;1 min) | Safety Class: II |
| Overvoltage Category: CATIII | Suitable Connector: Male and female Connector |
| Contact Resistance of Plug Connector:1mΩ | Insertion Force / Withdrawal Force: ≤50N / ≥50N |
| Contact Material: Copper; Silver Plated | Fuse Can Replace |
| Insulation Material: PPO | Temperature Range: -40 to +125°C |
Warranty Information
| Panels |
25-year power output warranty: 5 year/95% efficiency rate; 10 year/90% efficiency rate; 25-year/80% efficiency rate 5-year material and workmanship warranty |
| Accessories | 1-year material warranty |
Certification
 |
 |
 |
