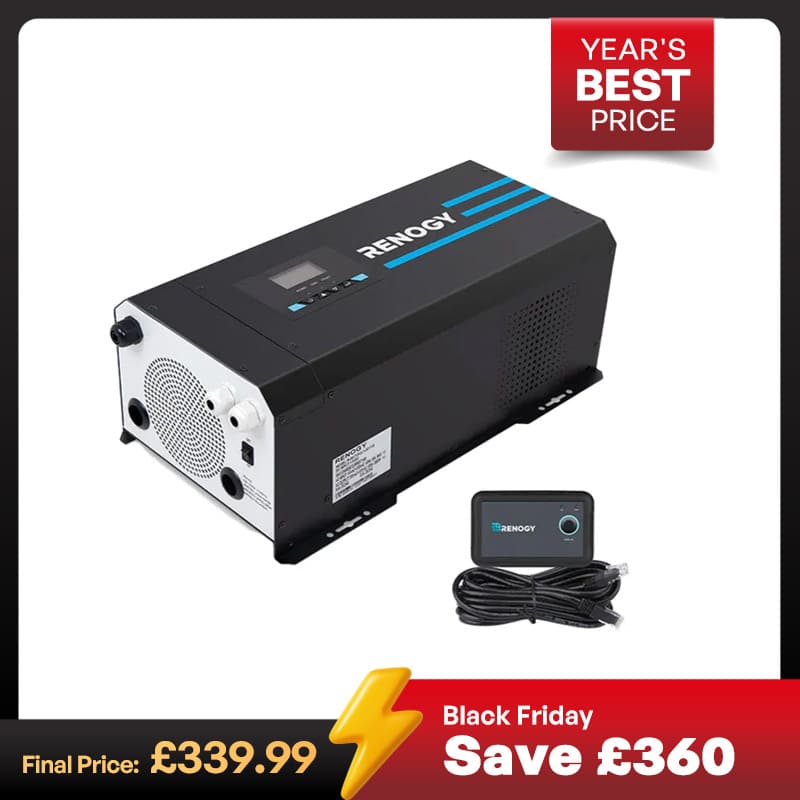

2000W 12V Pure Sine Wave Inverter Charger w/ LCD

SKU: R-INVT-PCL1-20123S-UK
£364.99 £699.99
Tax included. Free shipping.
+ 3640   Renogy Rays after purchase.
Log In About Rays

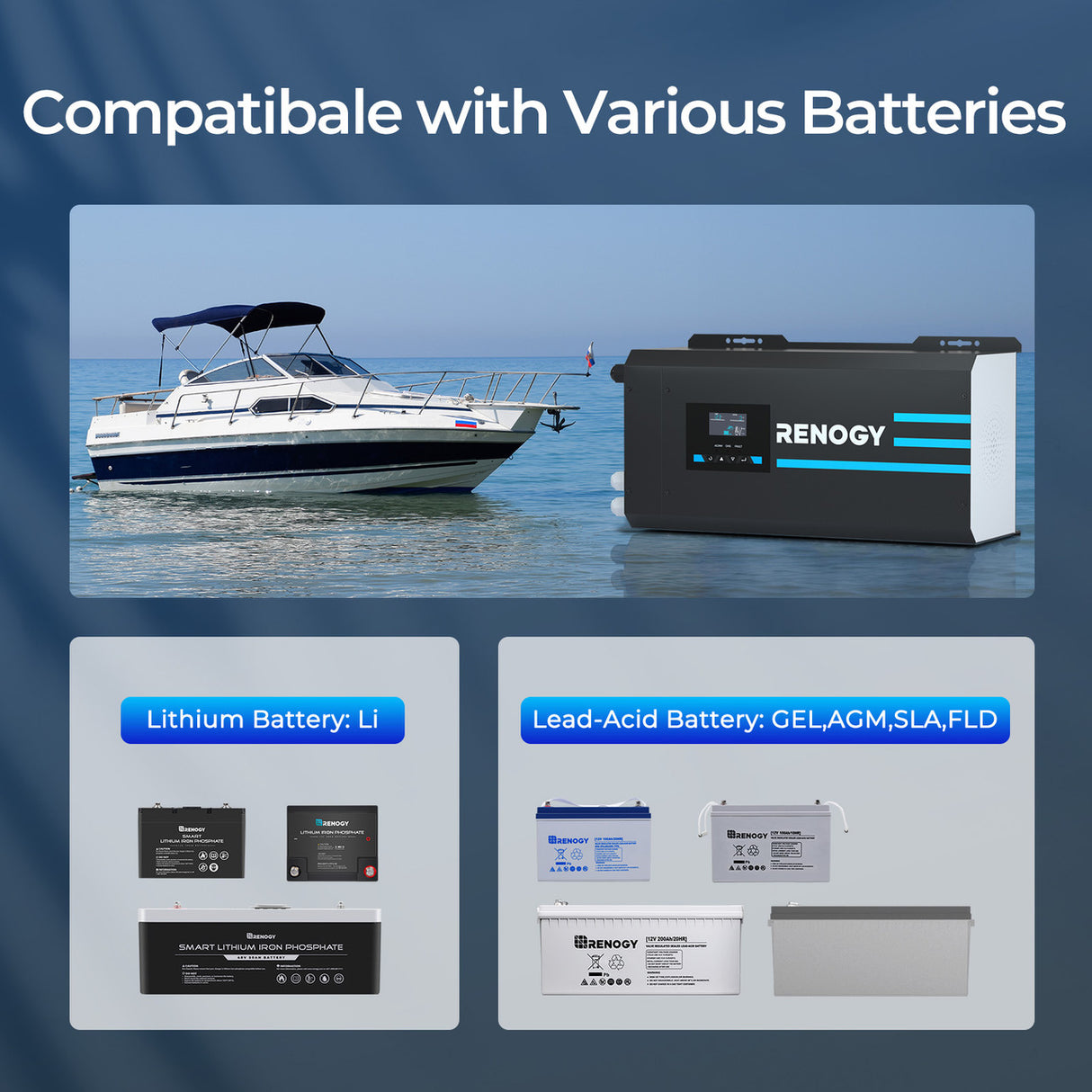

  • • Compatible with diverse battery types.
  • • 6000W peak output with over 90% conversion efficiency.
  • • Pure sine wave technology safeguards delicate appliances.
  • • 4-stage battery charging for optimal performance.
  • • Multiple electrical protections for enhanced safety.
Options
Quantity:
Payment Methods
Delivery Methods
Free Shipping on All Products

Shipping policy

We hope you enjoyed your online shopping experience with Renogy. Please read below for more information about our shipping.

Shipping Policies

1. All orders must have a valid street address. RENOGY does not accept PO Box address,; some items cannot be delivered to PO Boxes due to shipping restrictions.

2. Shipping times are calculated based on business days (Monday to Friday), excluding holidays and weekends.

3. Depending on your order, your items may arrive in multiple packages. Once your order is shipped, you can click Here to track your package.We understand that professional installation is often desired. However, we strongly suggest that you wait until receiving your complete order and verifying the condition of the products before scheduling any work to commence with your new Renogy products.

4.Packages cannot be rerouted after they have been shipped. If you need to change the address, please e-mail us at service.renogy.com.

5.If the outer packaging is damaged upon delivery, please refuse the package and contact us immediately. If refusing the delivery is not possible, please provide relevant pictures to facilitate our after-sales service.

6.We do not support Self-pickup Service from our warehouse. If you have such a need, please e-mail us at service.renogy.com.

7. We offer free delivery to the mainland United Kingdom. Due to warehouse restrictions, we are unable to deliver to Northern Ireland, Guernsey, Jersey, or other Channel Islands.

Order Processing and Transportation

Small Parcel: Order processing time is typically 1-2 business days.The transportation time is typically 2-4 business days.

LTL: Order processing time is typically 2-3 business days.The transportation time is typically 3-10 business days.

Please note:
The estimated time is for reference only and may be extended during major promotions, holidays, or other special circumstances.

30-Day Return & Refund Service



6% OFF Coupon for New Subscriber
Lifetime Customer Support Contact us: +44 3300589559
Show More Benefits Show Less
Description
Includes
Specs
Downloads
FAQ
Reviews

2000W 12V Pure Sine Wave Inverter Charger w/ LCD

The Renogy 2000W Pure Sine Wave Inverter Charger is ideal for RVs, campervans, and home backup systems, delivering 6000W peak power for appliances like fridges, washing machines, and air conditioners. It works as both a DC to AC converter and smart battery charger, with fast transfer time and pure sine wave technology to protect your electronics.

Effortless Surge Handling
Explicit Side Panel Design

Effortless Surge Handling

Capable of driving 1kW air conditioners, motors, refrigerators, and washing machines.

Explicit Side Panel Design

The terminals are well-organized for easy installation.

Efficient and Express Charge

Unlock the formidable potential of rapid charging, achieving automatic and optimal charging to 100% battery capacity.

Pure Sine Wave Technology

Advanced pure sine wave output ensures protection for sensitive appliances and quieter operation.

Excellent Performance in Extreme Temperatures

Experience unwavering performance that shines even in the harshest winters and the hottest summers.

Inverter Wired Remote Control

For off-grid convenience, this all-in-one inverter charger includes a remote control switch and a 5m cable, allowing you to control your system from afar and enjoy flexible installation options.

Intelligent LCD Display Panel

Stay informed about system status and input/output power information, ensuring optimal energy management and a seamless off-grid experience.

Wiring Diagram
Compact Size for RV

One-Stop Off-Grid Energy Solution

Seamless integration of Renogy solar panels, charge controllers, and batteries with the versatile pure sine wave output of the inverter. Reliable, efficient, and the ultimate one-stop solution for off-grid power needs.

Compact Size for RV

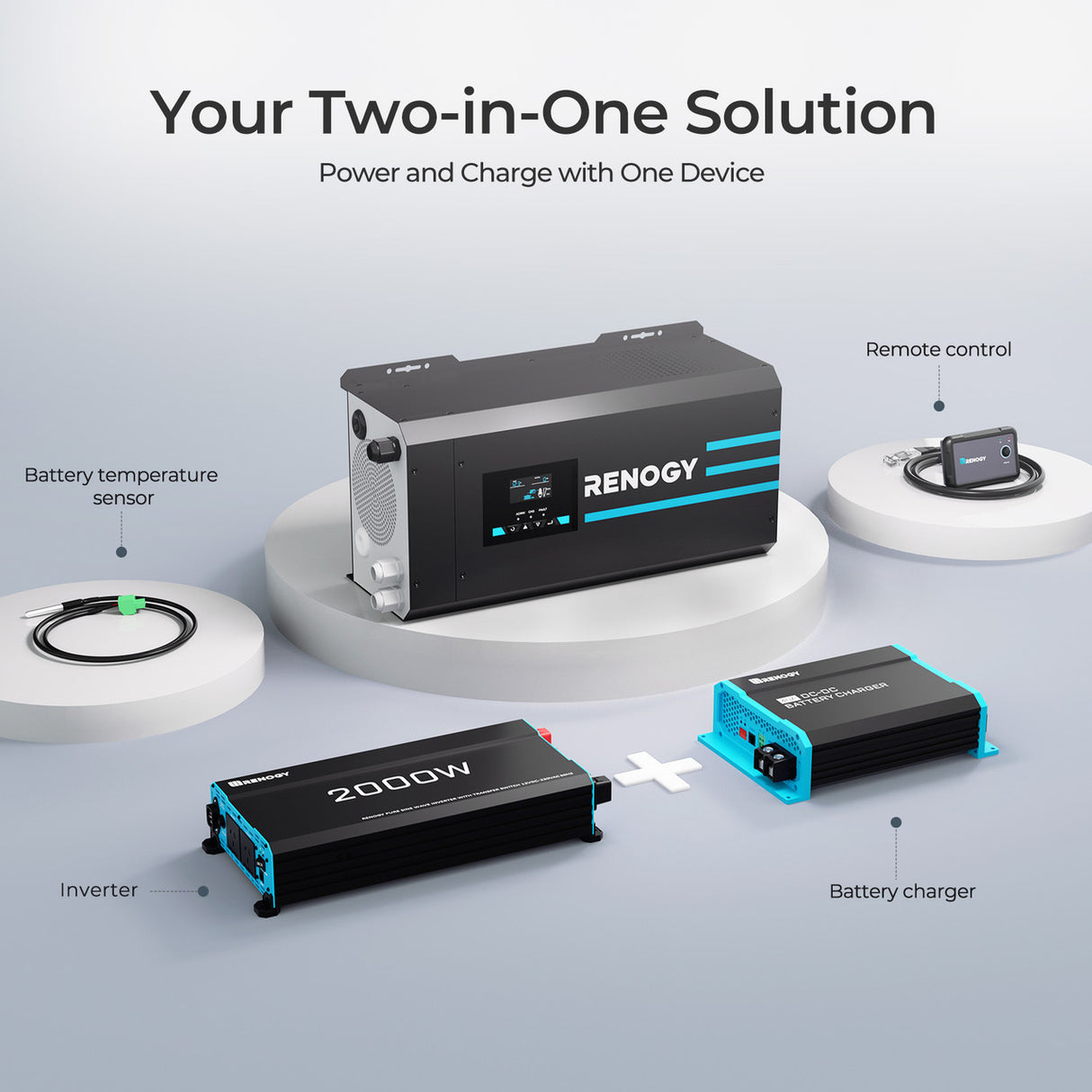

PACKAGE INCLUDES

inverter charger

x 1

remote control

x 1

SPECIFICATION

Renogy 2000W 12V Pure Sine Wave Inverter Charger

Rated output power
2000W
Surge Power (Peak Power)
6000W
Nominal Output Voltage RMS
230VAC (200~240VAC, 10V interval)
Output Frequency (Nominal)
50 Hz
Input Voltage Range
10-16Vdc
Output Wave form
Pure Sine Wave
Nominal Efficiency
90% Peak
No Load Power Consumption: Normal
<20W; Power Saving: <15W
Battery Types
GEL, AGM, SLA, FLD, CAL, LI, USER
Operating Temperature
0 ~ 40°C / 32 ~ 104°F
Dimensions
20.1 x 11.2 x 7.6 in / 510 x 285 x 193 mm
Weight
51.1 lbs / 23.2 Kg
Output Current
5-65A; configurable, 5A intervals
Optimal Efficiency
>85%C
Nominal Input Voltage
230 VAC

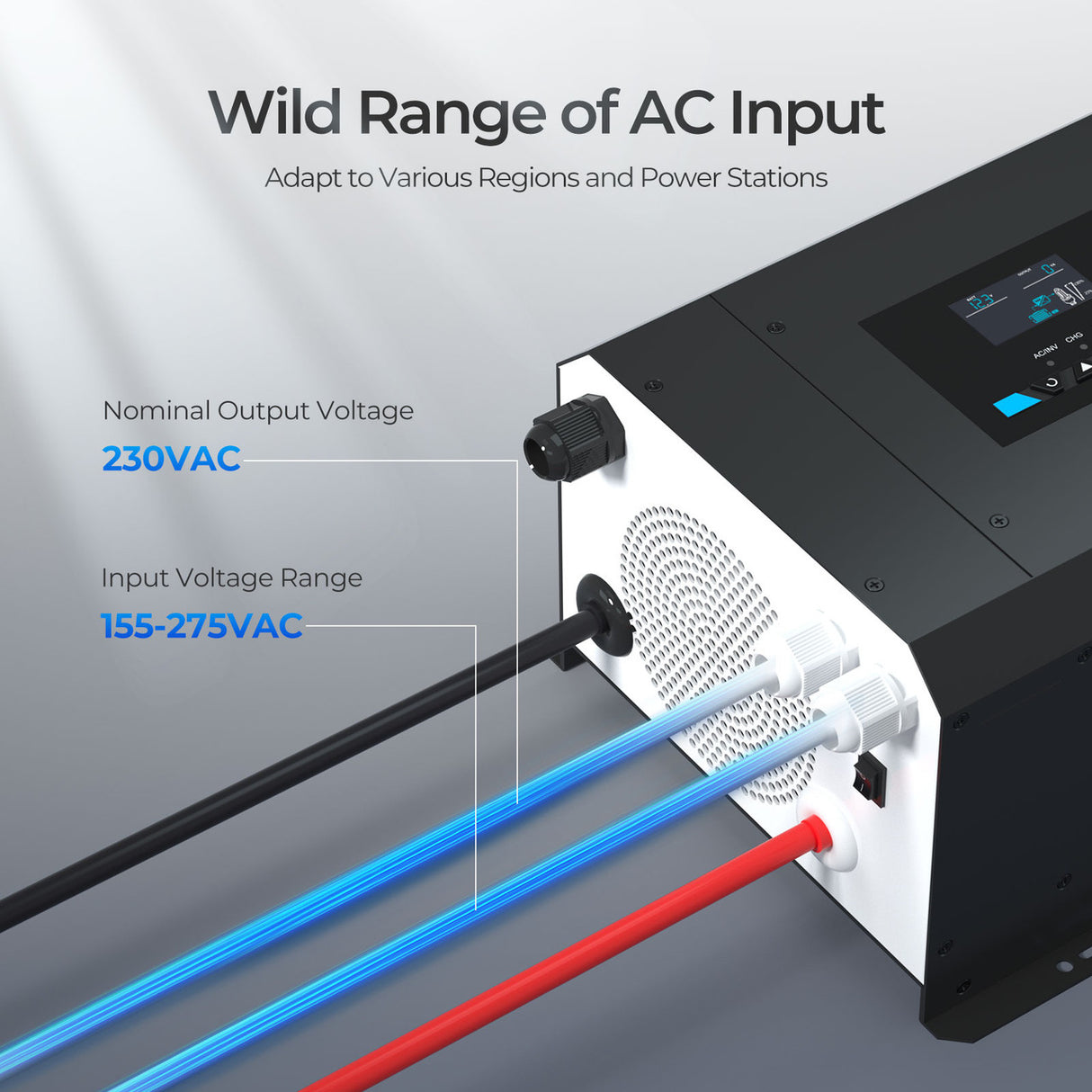

Input Voltage Range
155-275 VAC
Input Frenquency Range
40Hz - 70Hz
Input Wave Form
Pure Sine Wave (Utility or Generator)
Transfer Time
~ 10ms
Transfer Relay Rating
30A

Certifications

CE
YES

FAQ

1. Can I use the inverter charger with a 24V system?

No. This is 12V inverter charger, so this model can only work with 12V battery system.

2. Can I use this inverter charger to charge my batteries?

Yes. This inverter charger not only serves as a DC to AC converter for powering household appliances but also efficiently charges and maintains a battery bank when connected to shore power.

3. What size inverter should I buy?

1. Sizing the right power output. Inverters will be rated by a wattage value, telling you how many watts it can run at one time. For example, imagine you had a 500 Watt Fridge and 800 Watt Air Conditioning. These two items would be 1300 Watts and would require an inverter with a higher wattage than 1300W. Renogy 2000W and 3000W inverter will meet your power needs. 2. Check your battery voltage. The DC voltage rating on the inverter will tell you what battery bank it is compatible with. For example, a 12V battery bank will require an inverter that is compatible with 12V DC input. 3. Size your installation spaces. What area or space will you set your inverter? Make sure the inverter will fit in the space you have in mind with enough room around it for proper ventilation and no fire hazards.

4. Do I need Modified Sine Wave, or Pure Sine Wave?

Modified sine wave inverters are older technology and generally less expensive. They can be used for many standard appliances but may cause trouble with delicate electronics or audio equipment. Some equipment may work but run hotter than normal. Pure sine wave inverters are a bigger investment, but much more versatile. a) Output voltage wave form is pure sine wave with very low harmonic distortion and clean power like utility-supplied electricity. b) Inductive loads like microwave ovens and motors run faster, quieter and cooler. c) Reduces audible and electrical noise in fans, fluorescent lights, audio amplifiers, TV, Game consoles, Fax, and answering machines. d) Prevents crashes in computers, weird print out, and glitches and noise in monitors.

5. Can this inverter charger work with lithium batteries?

Yes, as long as the lithium battery is rated for 12V applications.

6. Can I use the Bluetooth Module to monitor the inverter charger from my phone? Which Bluetooth Module should I buy?

We apologise, but there is no Bluetooth module compatible with this inverter.
