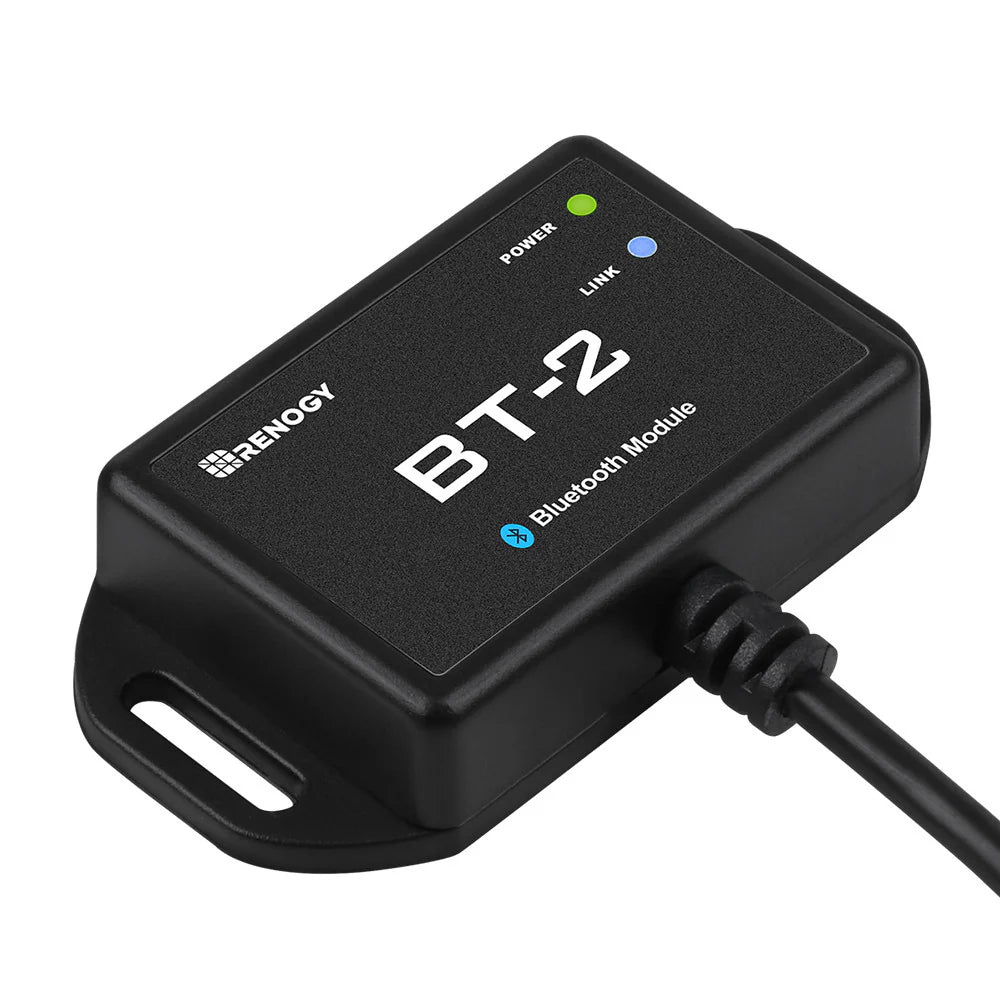

BT-2 Bluetooth Module for Renogy Products w/ RS485 Port

BT-2 Bluetooth Module for Renogy Products w/ RS485 Port
starts- reviews
SKU: RCM-BT2-UK
4 (1)
£29.99
x
rays-icon  reward Renogy Rays
help

Availability:

Please allow up to 1 to 2 business days for processing and 3 to 5 business days for shipping.



Description

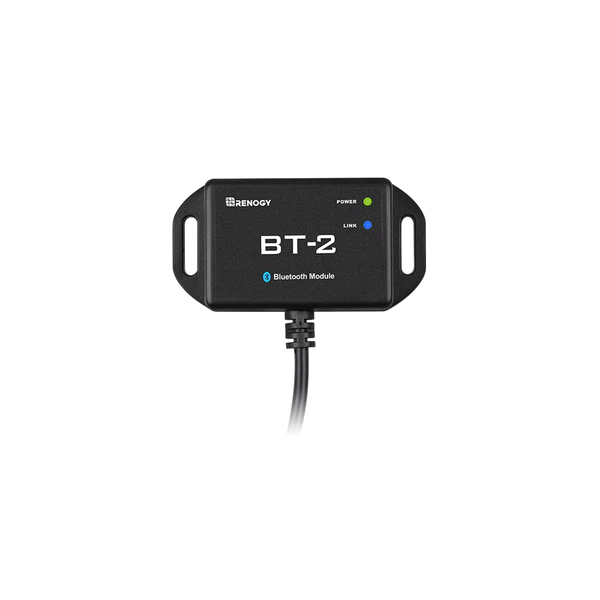

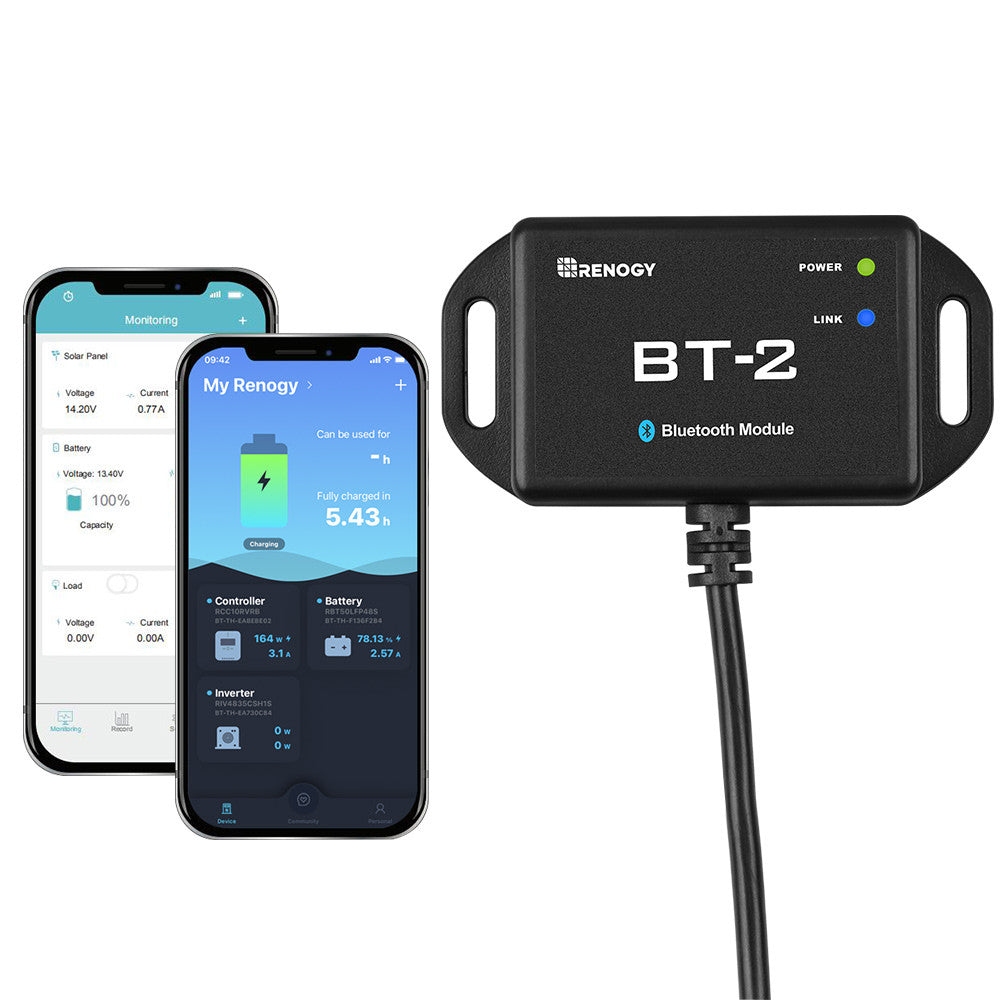

The Renogy BT-2 is the new generation Bluetooth module for select Renogy solar charge controllers, DC-DC battery chargers, smart lithium batteries, and inverters. Powered by its RJ45 communication port, the BT-2 provides wireless monitoring of the system data and allows users to change parameters through the Renogy DC Home smartphone App.

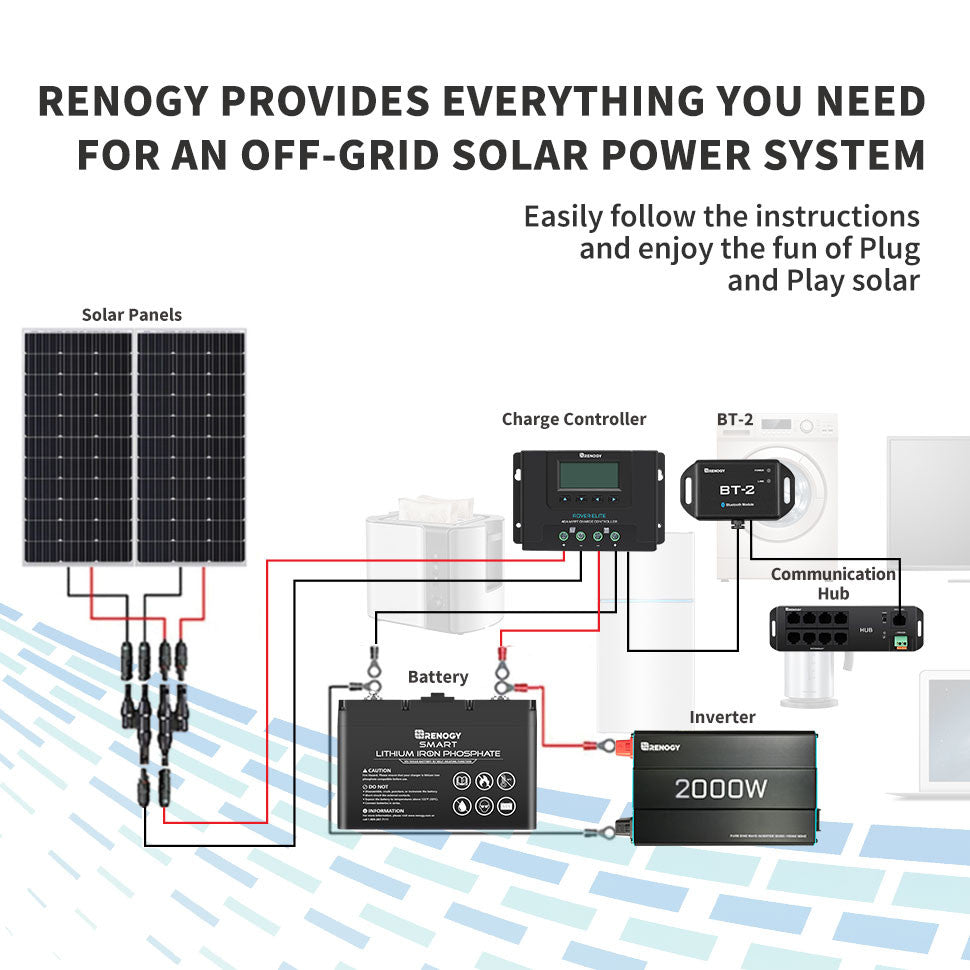

The Renogy DC Home App can help make your off-grid power system smarter by giving you access to configure, monitor, update, and diagnose your Renogy products from the convenience of your smart phone or tablet.

If you have any questions regarding this product, please submit a case.

Key Features

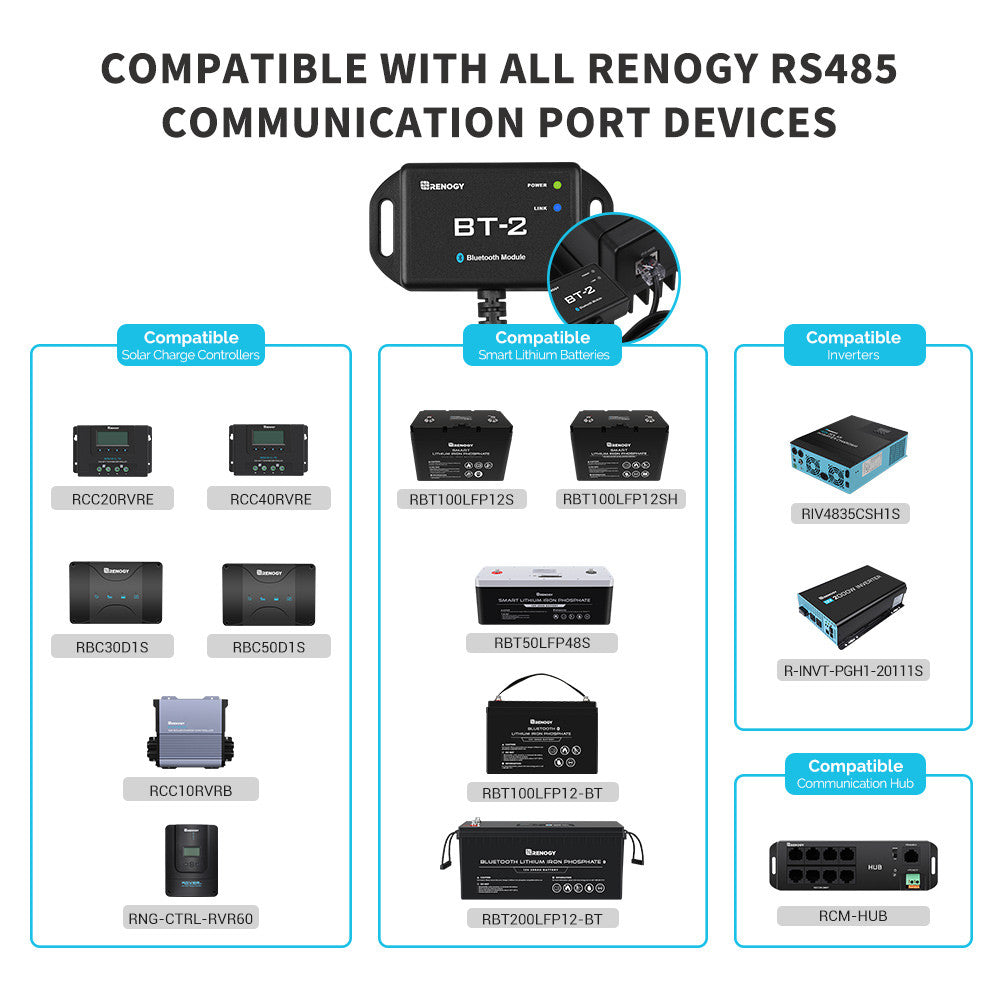

  • 【Precise Control Over Your Devices】 Compatible with all Renogy RS485 communication port products includes the Rover Elite MPPT Solar Charge Controller, Smart Lithium Batteries, Pure Sine Wave Inverter with Power Saving Mode, and Dual DC-DC MPPT Battery Charger.

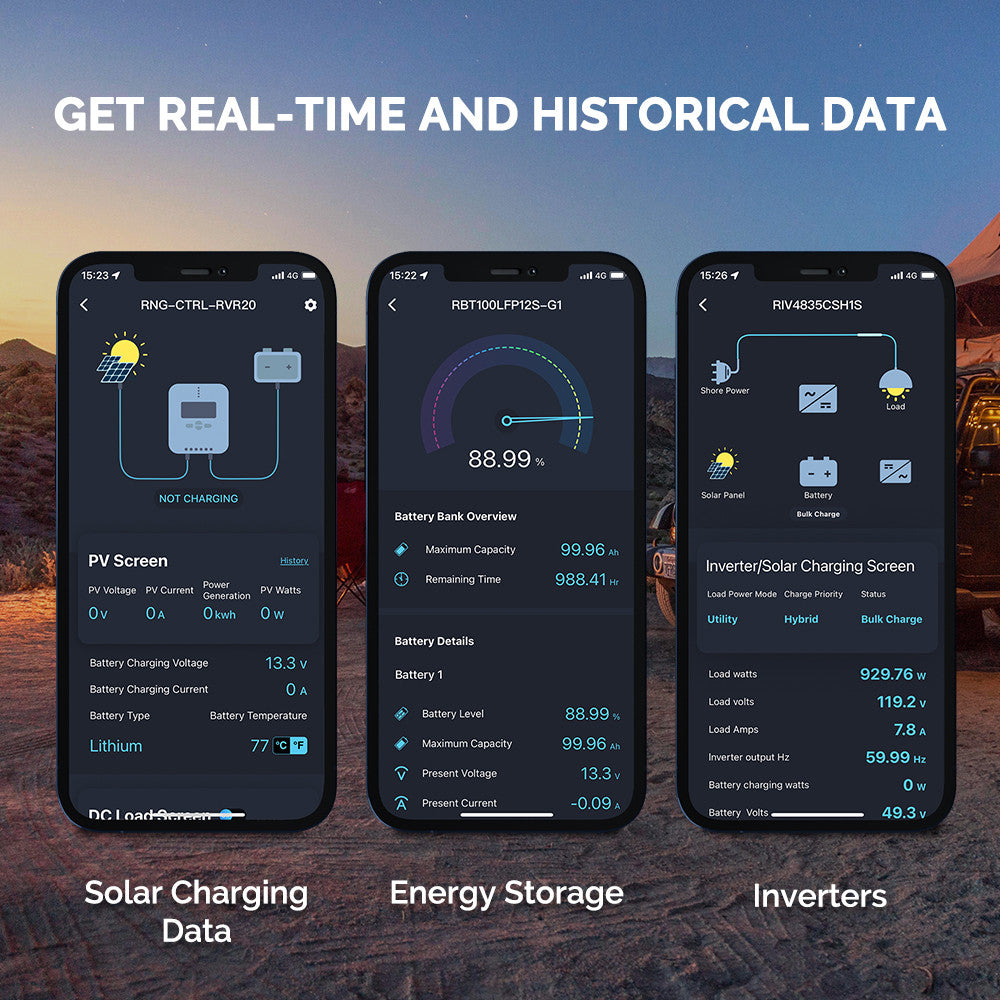

  • 【Real-time Insight】 Get real-time and historical data via Bluetooth Module and Renogy DC Home App. Bluetooth 4.2 and BLE technology provides fast and uninterrupted communication.
  • 【User-friendly】 Easily connect the Bluetooth Module to the RS485 communication port, and follow the App instructions. The Bluetooth Module is powered by solar energy, and the ultra-low-power dedicated chip will allow signal range up to 82ft.



DOWNLOAD LINKS


Package Includes

Renogy BT-2 Bluetooth module

Renogy BT-2 Bluetooth module

1 x




Specifications
Communication Protocol: RS485 Port Type: RJ45
Input Voltage: 5V or 12V Protection Grade: IP54
Standby Power Consumption: 0.04W Operating Power Consumption: 0.05W
Communication Range: ≤82ft Serial Baud Rate: Fixed Baud Rate 9600bps

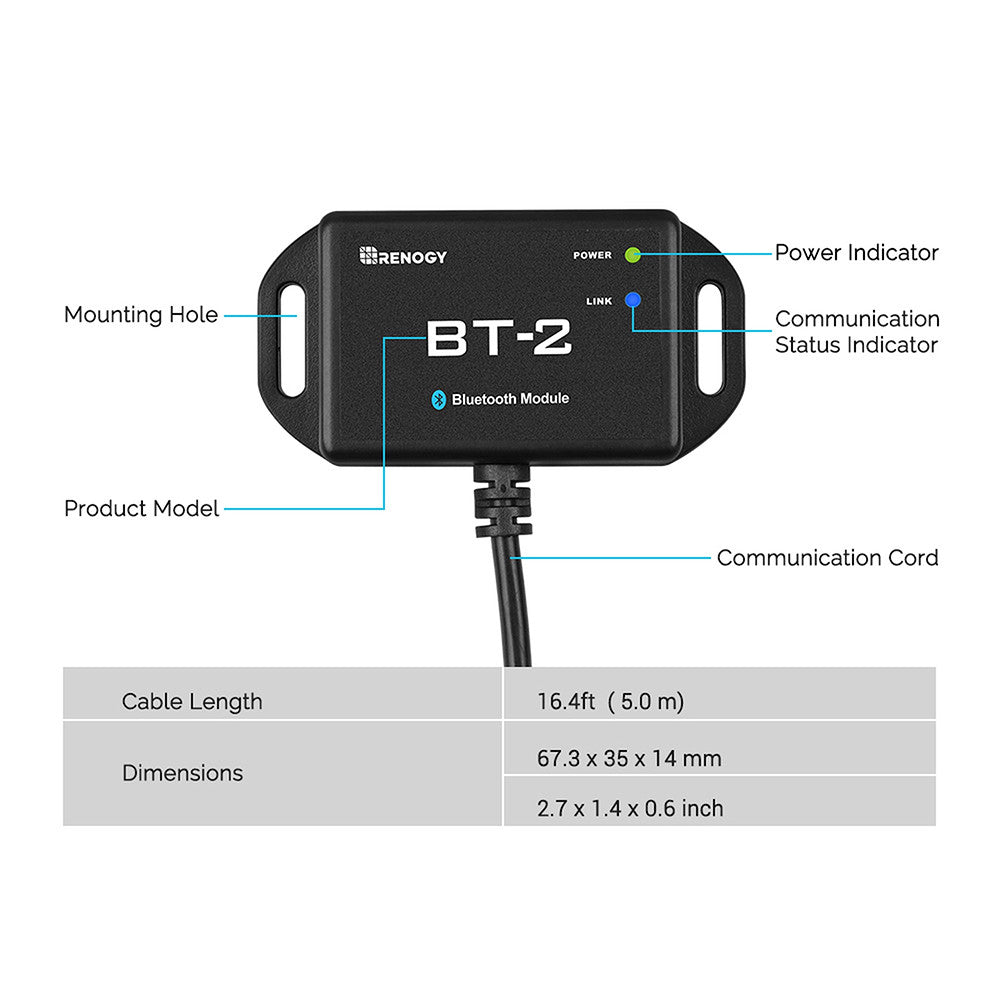

Cable Length: 5.00 m (16.4 ft) Dimensions: 2.65 X 1.38 X 0.55 in (67.3 X 35 X 14 mm)
Installation Dimensions: 67.3 φ3.5mm(2.66 φ 0.14in) Operation Temperature: -20℃~85℃(-4°F to 185°F)
Weight: 130g (4.58oz)


Warranty Information

Accessories 1-year material warranty


Certification


BT-2 Bluetooth Moudule Manual
BT-1 Bluetooth Module


Please click the links below to download Renogy App manuals:
Renogy DC-Home App for Renogy products with communication ports




Review Hide Reviews

Useful for battery monitoring, app could be better

Damian Haworth on Dec 28th 2022

I use this for monitoring my Smart 100Ah 12V LiFePO4 battery to make sure I'm making the most out of it. Seems to have very good range, I can monitor the battery from upstairs, so the signal's going through the kitchen ceiling and a couple of walls and connection is not a problem. The app it connects to (DC Home) could be a little better, the History feature doesn't appear to be available for the battery, whereas I can see historical data for my 40A MPPT controller via my BT-1 no problem. The 'Estimated SOC' on the MPPT via the app is WAY off, so I need this BT-2 to accurately monitor my battery's State of Charge (SOC).
