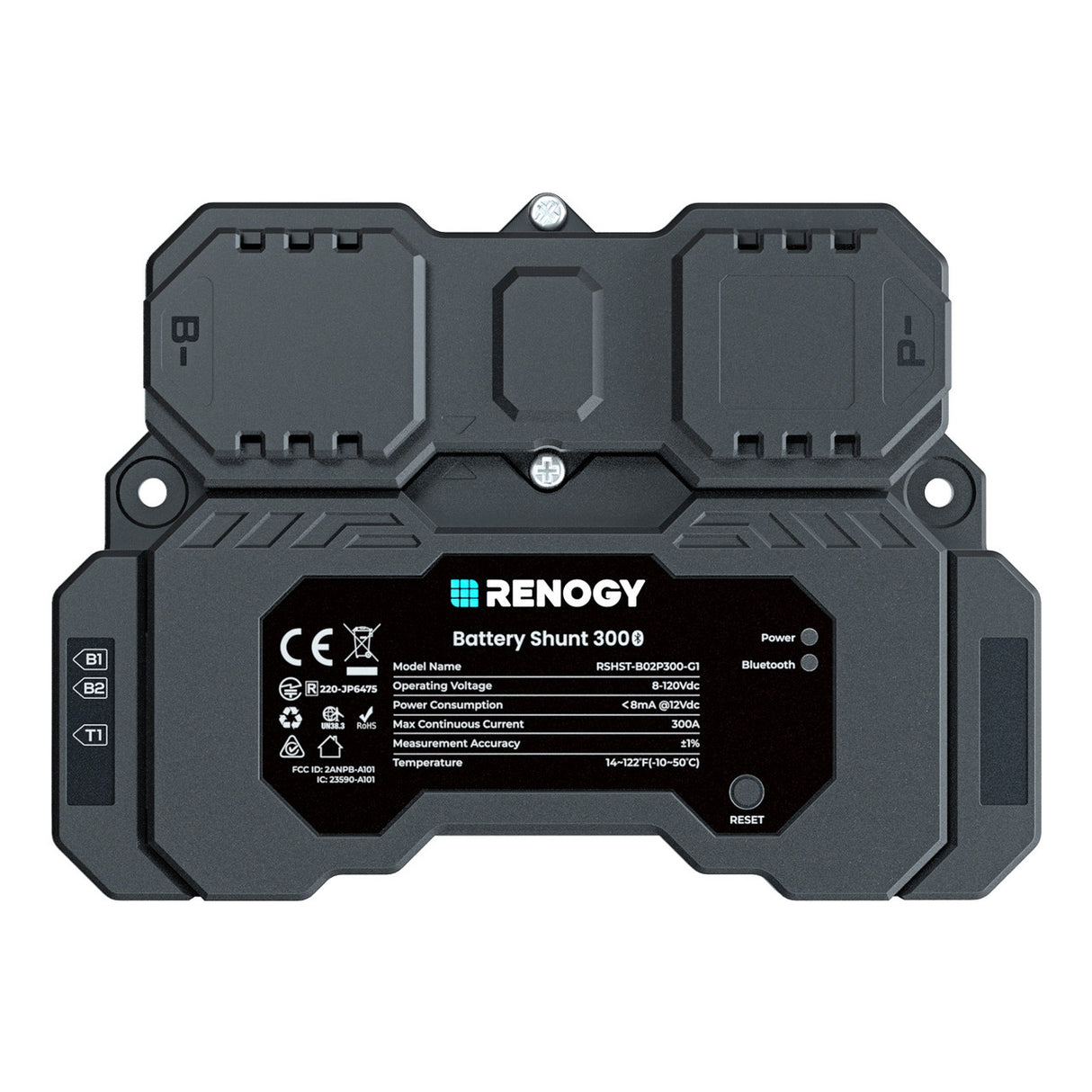

Renogy Battery Shunt 300

SKU: RSHST-B02P300-UK
£89.99 £119.99
Tax included. Shipping Policy.
+   Renogy Rays after purchase.
Log In About Rays

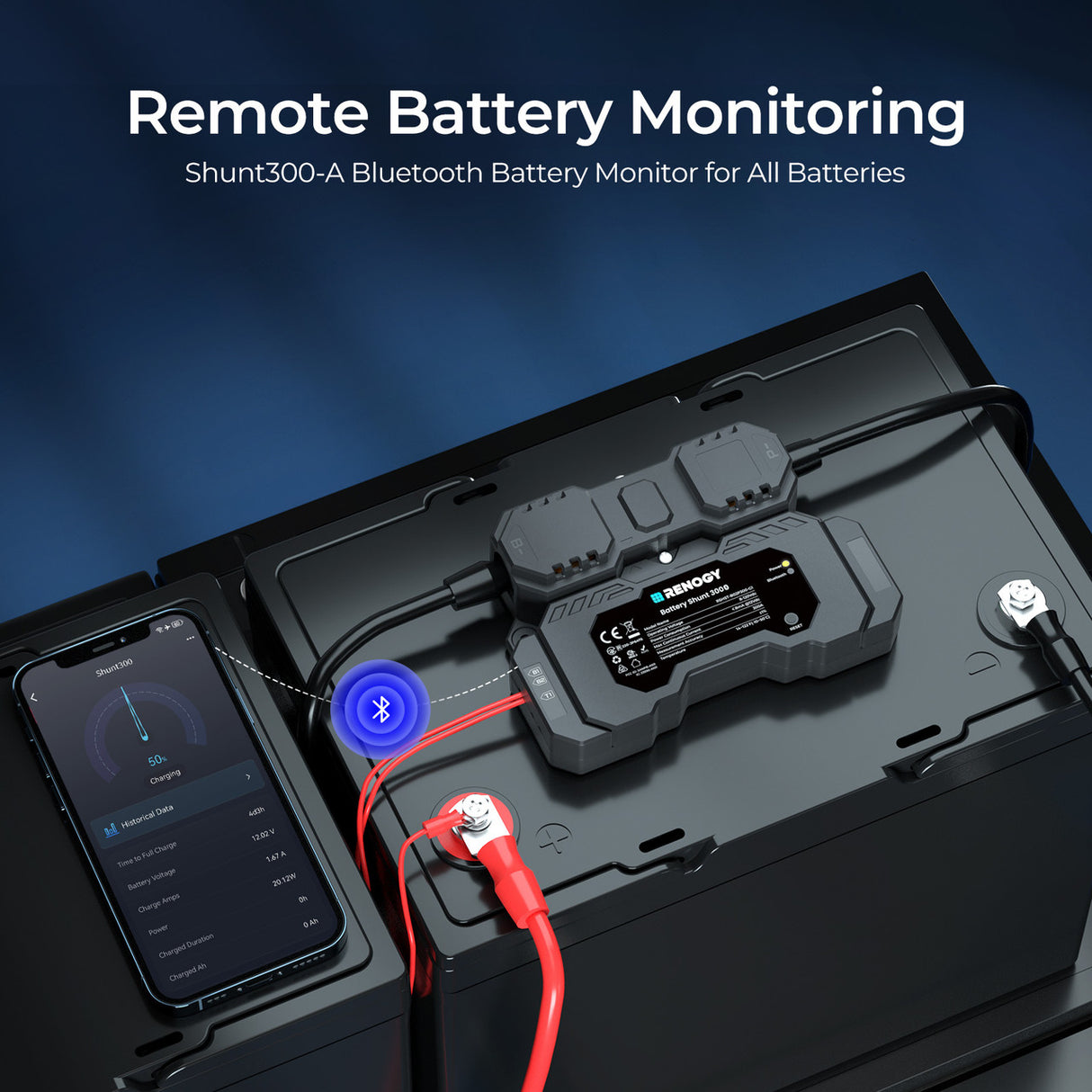

  • -Remote monitoring and control via Renogy ONE/DC Home App.
  • -Compatible with various batteries：Lead Acid, LFP, Li-ion, and Ni-MH.
  • -Displays State of Charge, temperature, and starter battery voltage.
  • -Records historical data and issues alerts via DC Home app.
Free Shipping on All Products
30-Day Return & Refund Service



6% OFF Coupon for New Subscriber
Lifetime Customer Support Contact us: +44 3300589559
Show More Benefits Show Less
Quantity：
Payment Methods
Delivery Methods
Delivery time: 3–6 business days. (Excludes LTL shipping.) Free Shipping
Description
Includes
Specs
Downloads
FAQ
Reviews

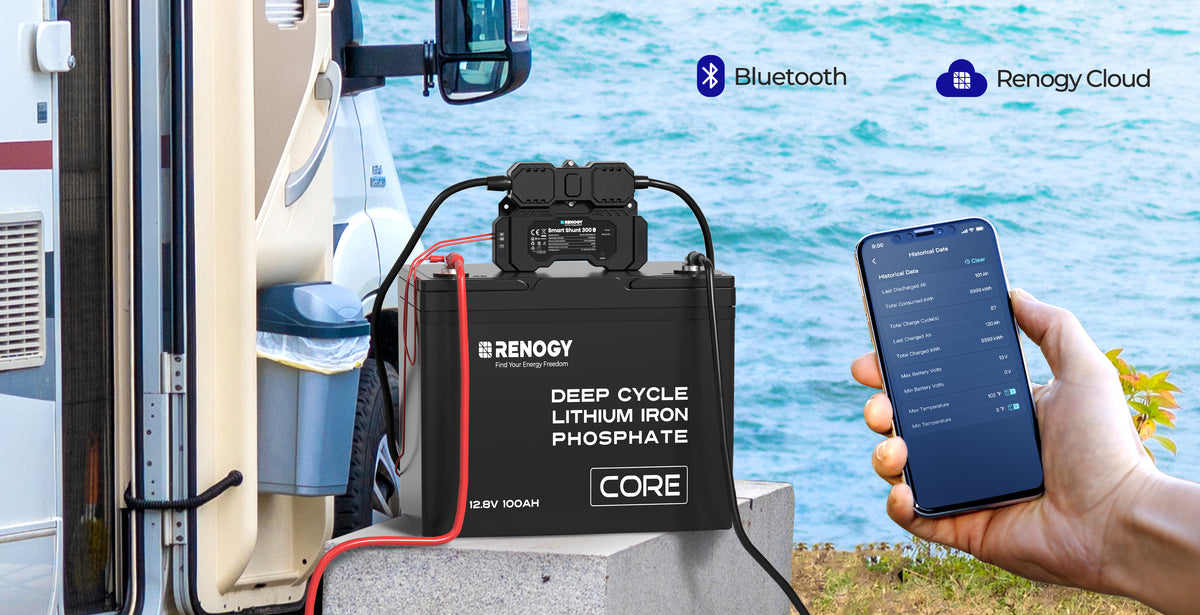

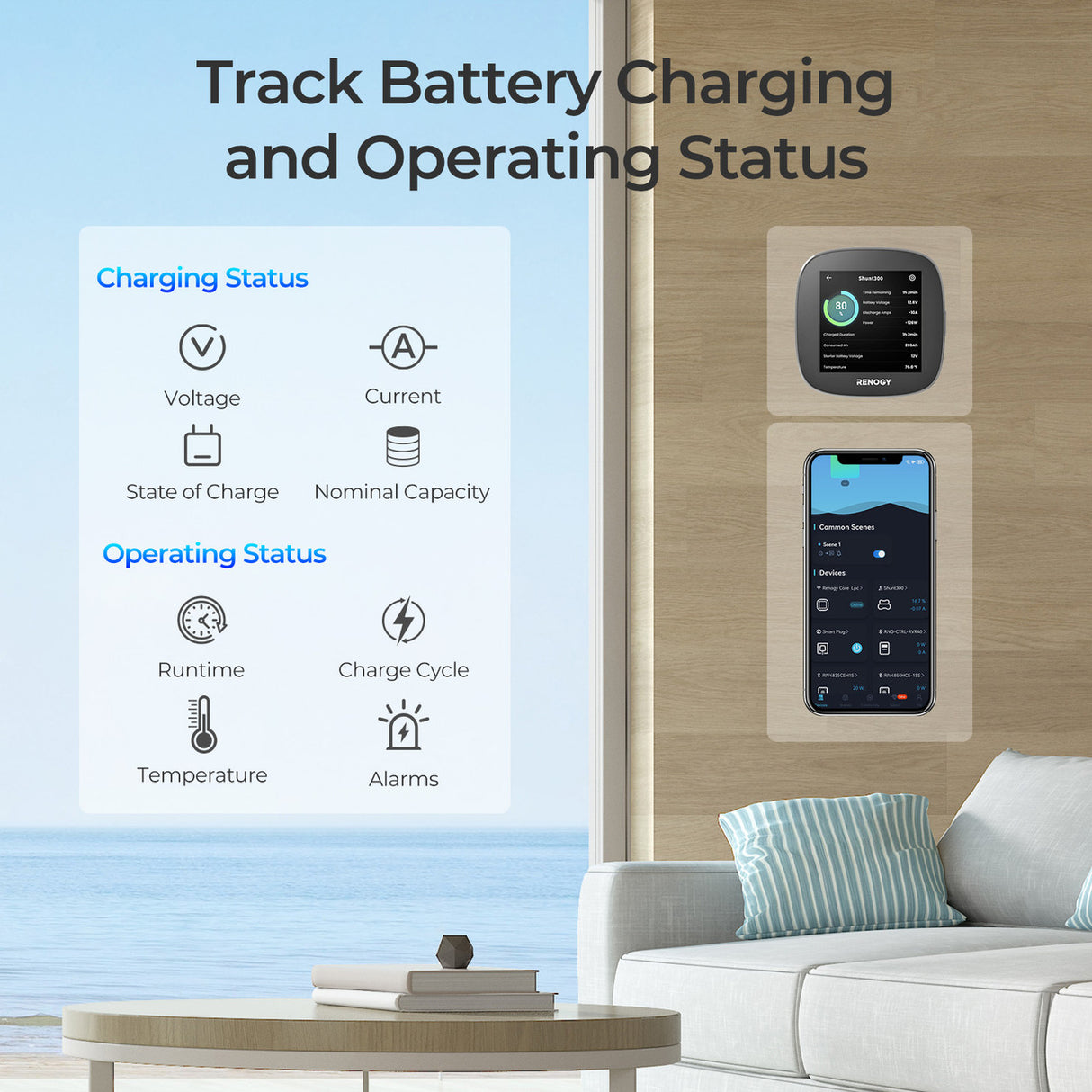

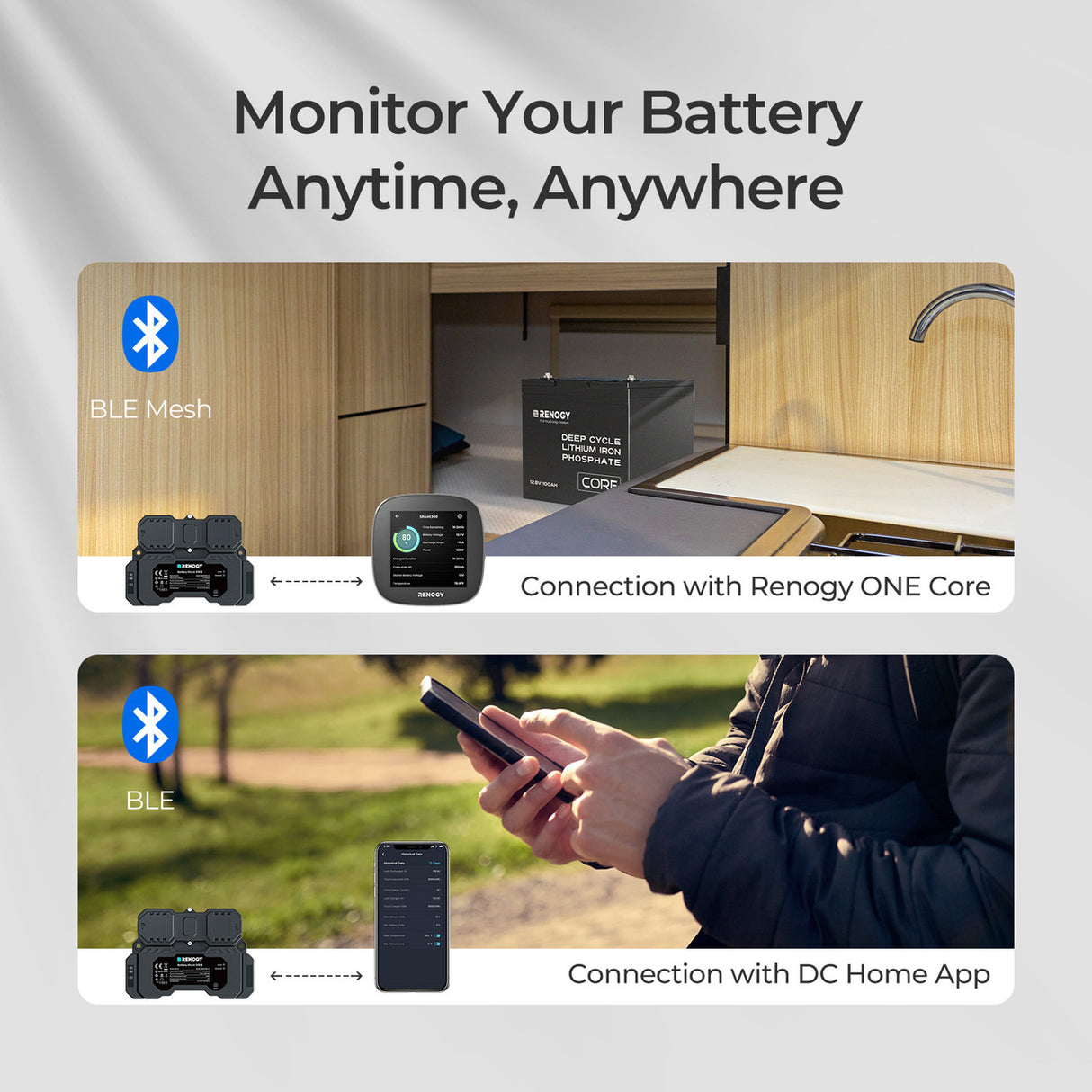

Check Your Battery Charging Level Anytime Anywhere

Ensures precise battery monitoring via the Renogy ONE Core and DC Home App.

Data Analysis
Batteries Compatibility
Trusted Performance
Temperature Sensor

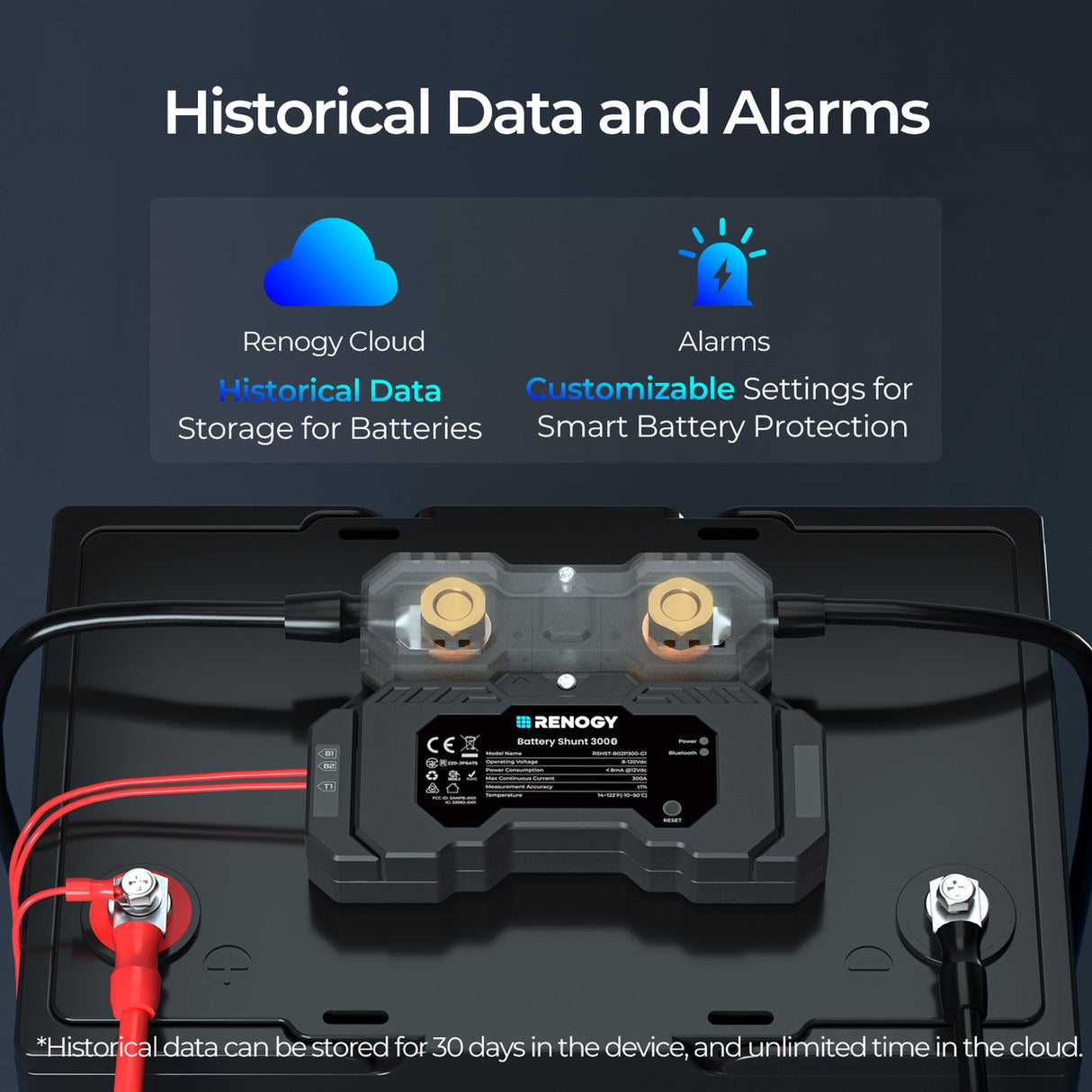

Track Battery Data Performance Over Time.

The Shunt 300 helps record historical data via Renogy ONE Core and DC Home App.

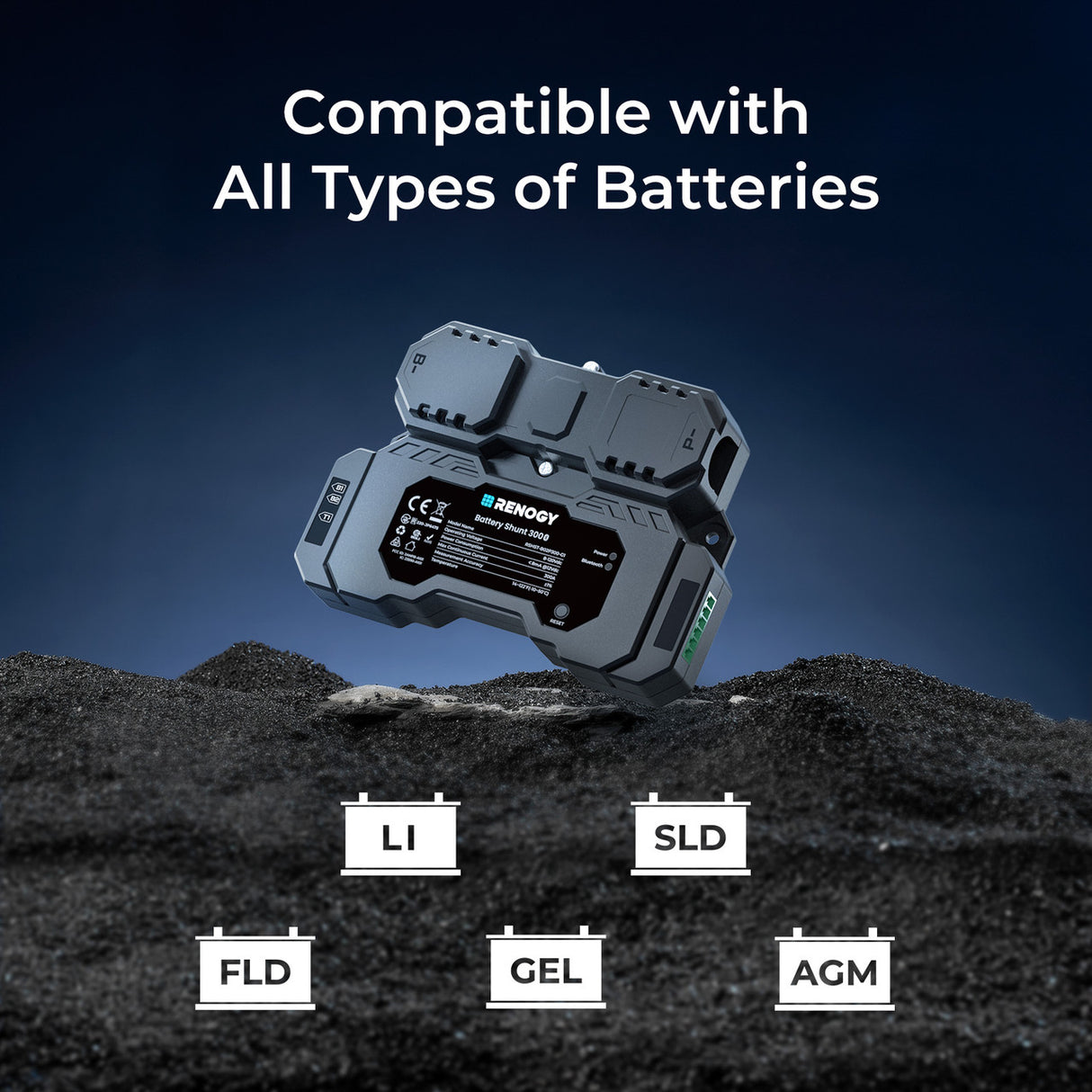

Compatible With All Types of Batteries

The Shunt 300 is compatible with all your starter battery and main batteries.

Certified Performance

The Shunt 300 has undergone comprehensive testing to not only meet but also surpass exceptionally high standards of excellence.

Battery Temperature Sensor

Detection of the battery temperature is possible with the included temperature sensor.

5-Minute Installation
Quick Setup
Fast Connection

Effortless Installation in 5 Minutes

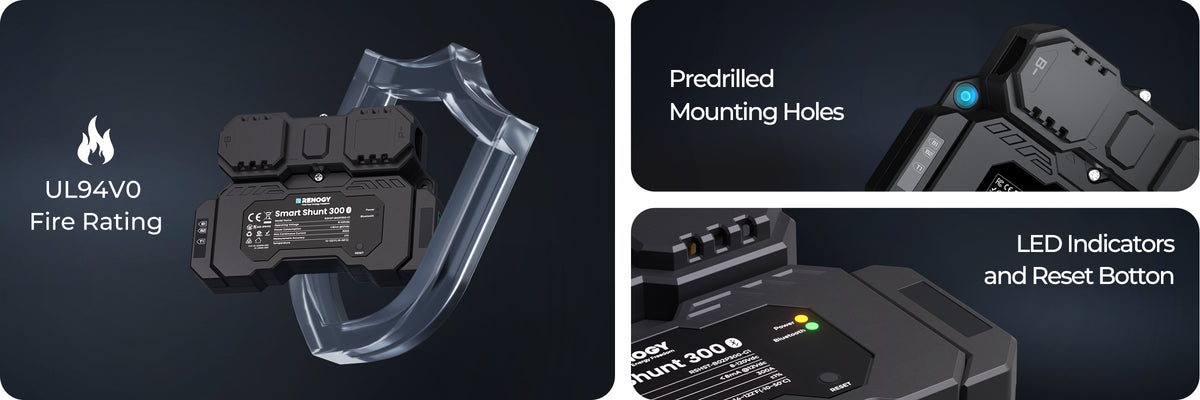

It can be placed on top of the battery or securely mounted on the wall with screws. The connection points feature protective covers to effectively safeguard against any loosening caused by various movements.

Quick Setup Involves Simple Operations to Get Started

The initial steps for a quick setup are designed to be user-friendly and straightforward, ensuring that users can get started with ease.

Fast Connection in 4 Steps

When paired with Renogy ONE Core and DC Home, the Shunt 300 provides a seamless real-time data display experience.

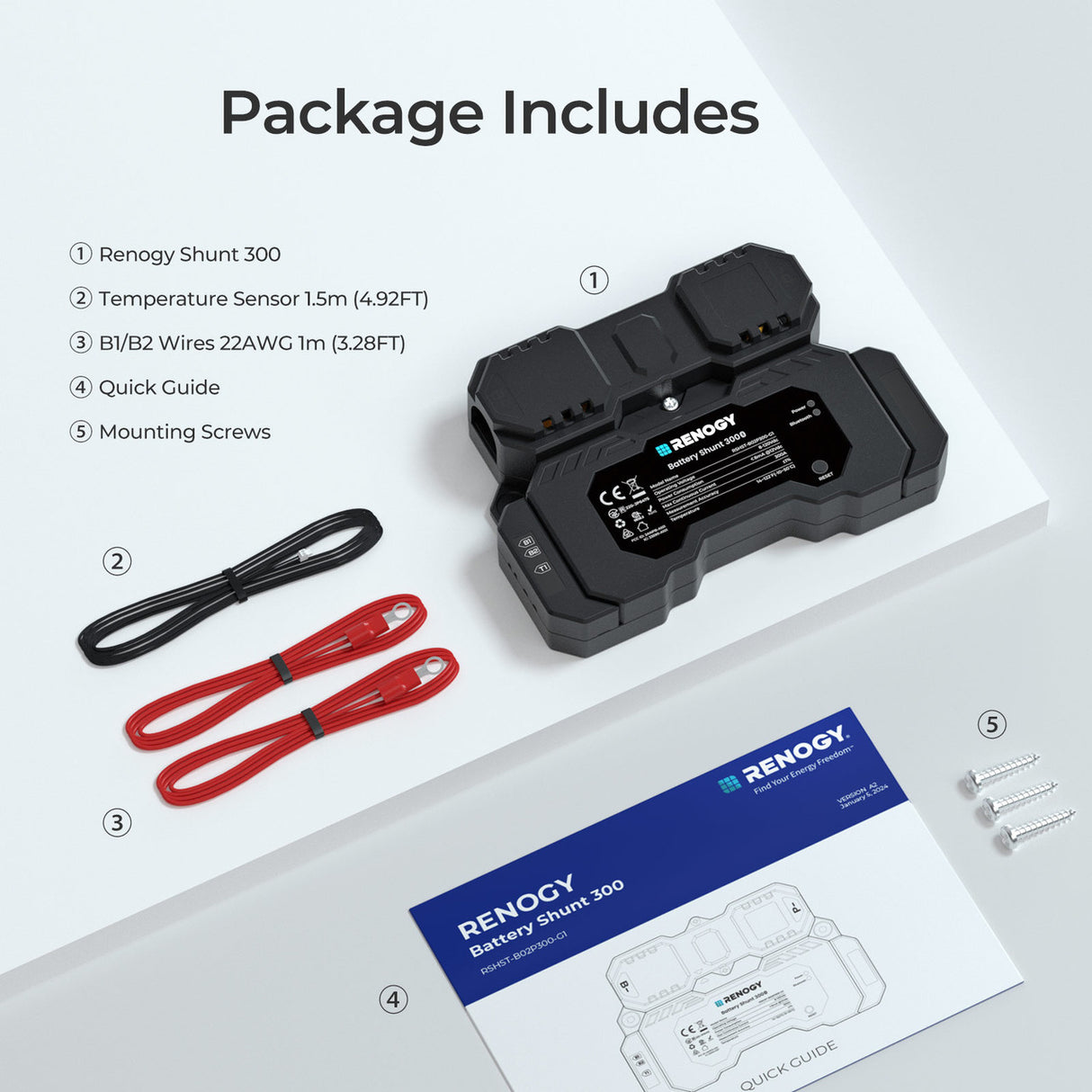

Package Includes

Battery only option

Battery Shunt 300

x 1

Quick Guide

x 1

Mounting Screws

x 3

B+ Wires (1 m) (22 AWG)

x 2

Temperature Sensor (1.5 m)

x 1

Specs

Power Supply
8 - 120 VDC
Power Consumption
<0.1 W
Communication
Bluetooth LE and BLE Mesh
Max continuous current
300A
Max peak current
500A(<10s)
Current accuracy
±1%
Current Resolution
0.01 A
Battery Capacity
1 - 6500Ah
Voltage Input Range
8 - 120V
Voltage input resolution
10 mV
Temperature sensor range
-20~80℃
Temperature sensor accuracy
±1%
Operating Temperature
14℉~122℉(-10 ℃ to 50 ℃)
Operating Humidity
0% to 95% RH
Operating Altitude
Less than 2000m above sea level
Installation
Surface mounting
Battery connection
M10 bolts
Weight
0.57lb (260g )

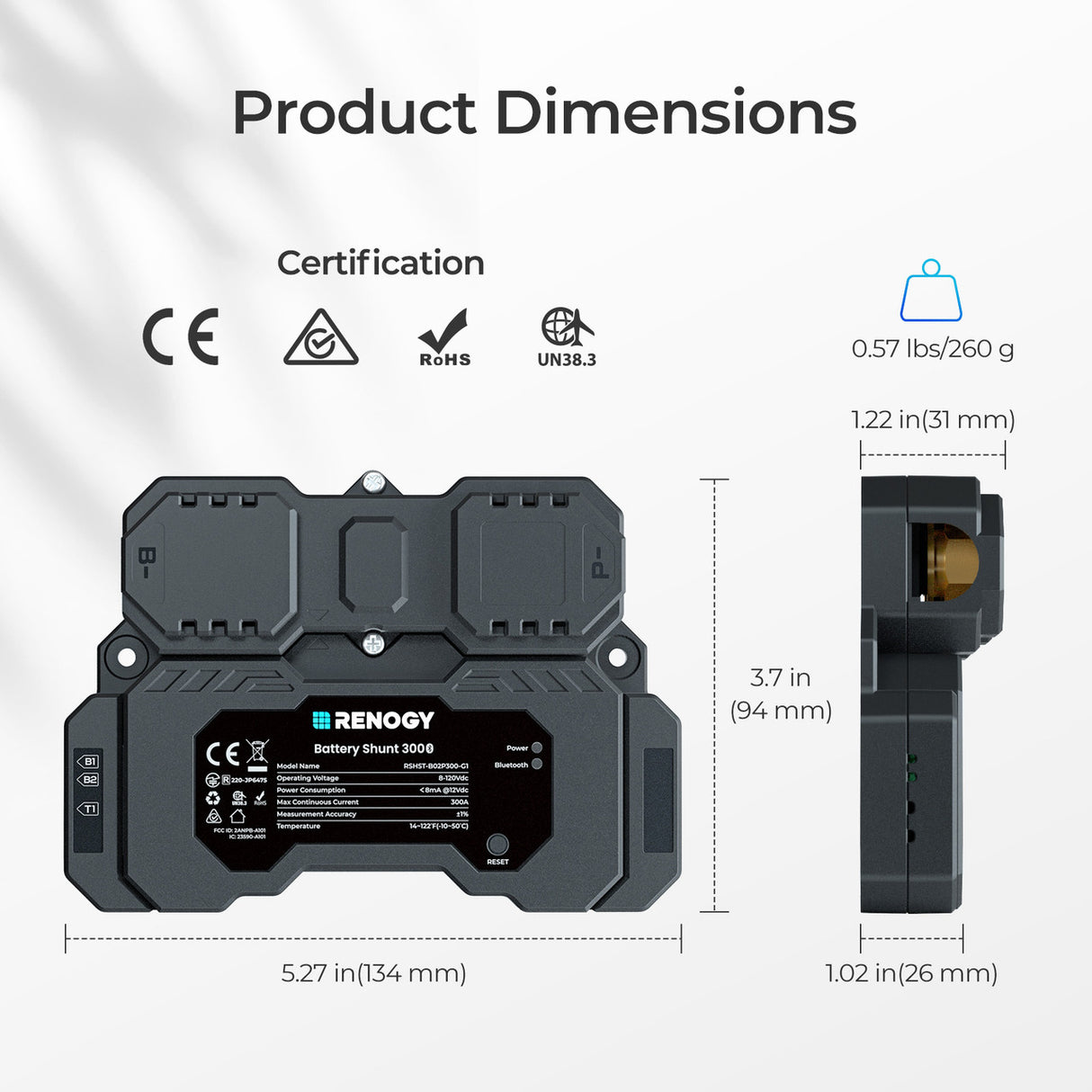

Dimensions
5.27 x 3.82 x 1.22 inch (134 x 97 x 31 mm)

Warranty

Material and Workmanship Warranty
2-year prorated material and workmanship warranty
Certifications
CE, FCC ID,IC ID,RCM,TSCA, RoHS,UN38.3,TELEC

Downloads

Quick Guide

Download

Warranty

Download

Manual Book

Download

FAQ

1.In DC Home or Renogy ONE, the current is shown as negative when charging and positive when discharging.

Inspect for reverse contact on B- or Pterminals.

2. Incorrect temperature reading

Confirm the Battery Temperature Sensor is properly installed.

3. Incorrect SOC reading

The battery capacity decreases as the charging and discharging cycles increase.Re-configure the “Rated Battery Ah” to the capacity when the battery is fully charged.

4.Inaccurate sampling precision in large-current scenarios

Elevated ambient temperatures can affect sampling accuracy. Ensure proper ventilation for the shunt and remove the upper cover if needed.
