Safety every minute, efficiency every day
The Renogy Solar Premium Kit offers outstanding safety with a variety of certified accessories, guaranteeing an efficient solar system featuring globally renowned solar panels and a fully certified MPPT Charge Controller.

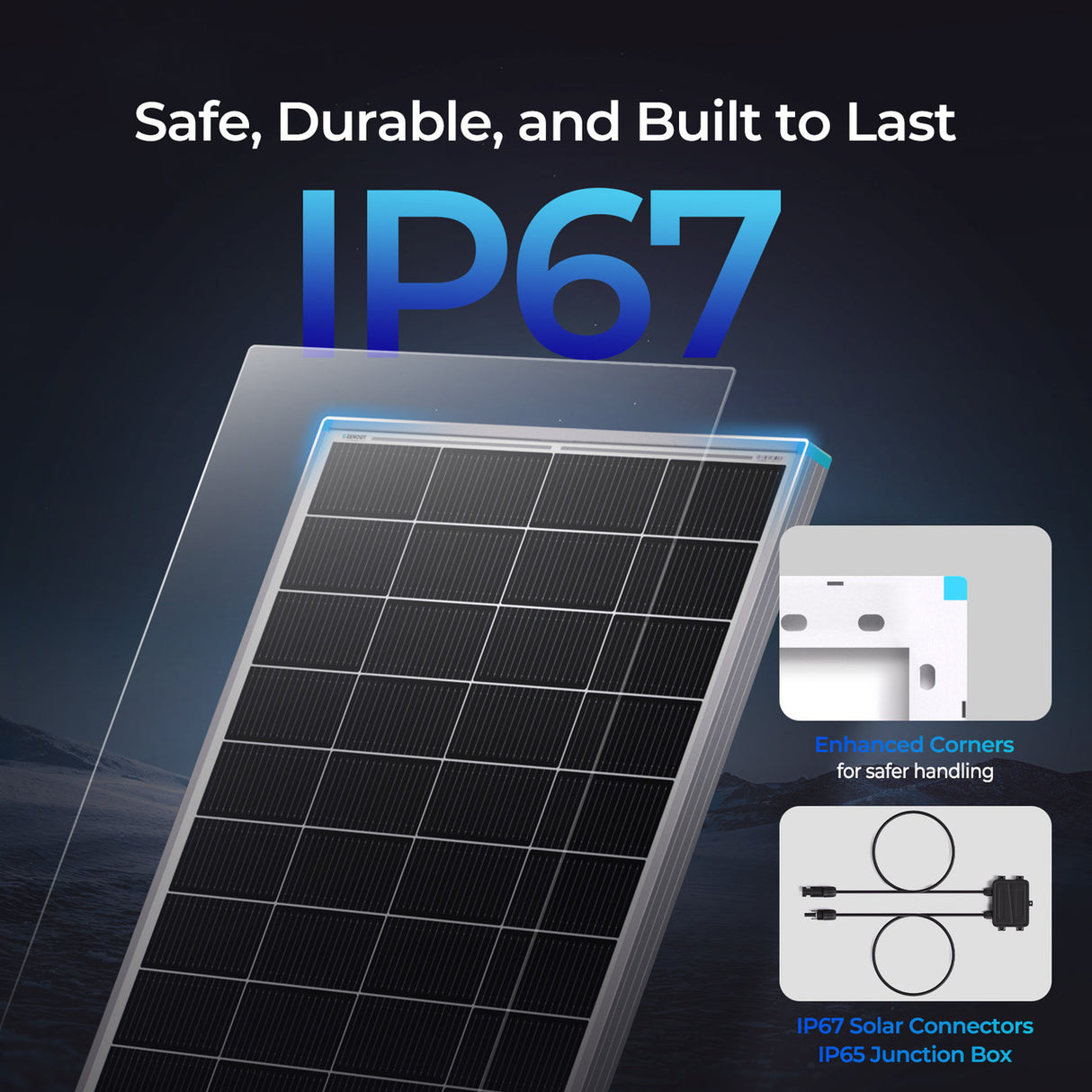

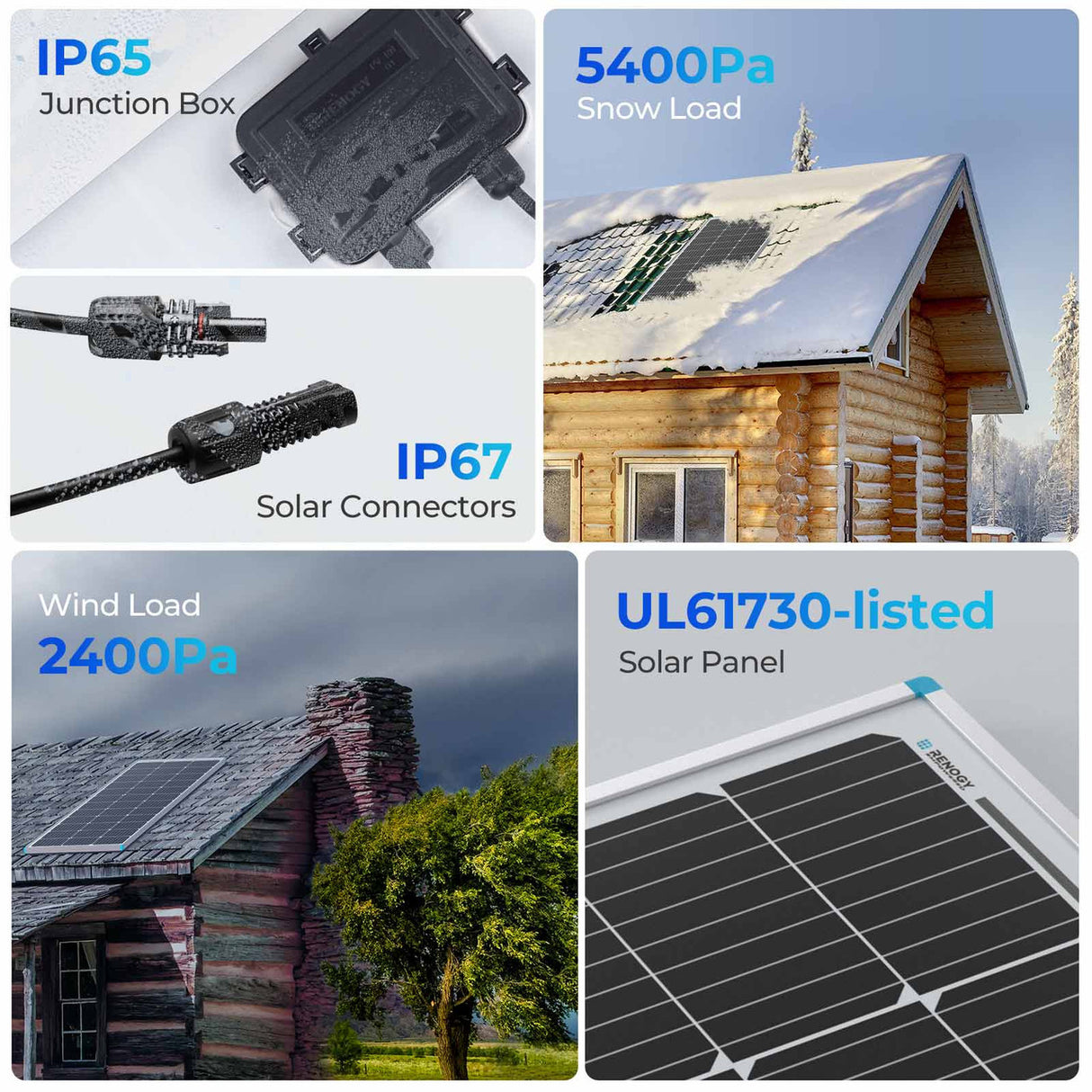

High-quality PERC solar panels
With a half-cell 9BB design, Renogy's PERC solar panel boasts a 22.5% higher cell efficiency. Crafted with premium materials, including a TPT backsheet and aluminum frame, the panel is protected from harsh environmental conditions over its lifetime.

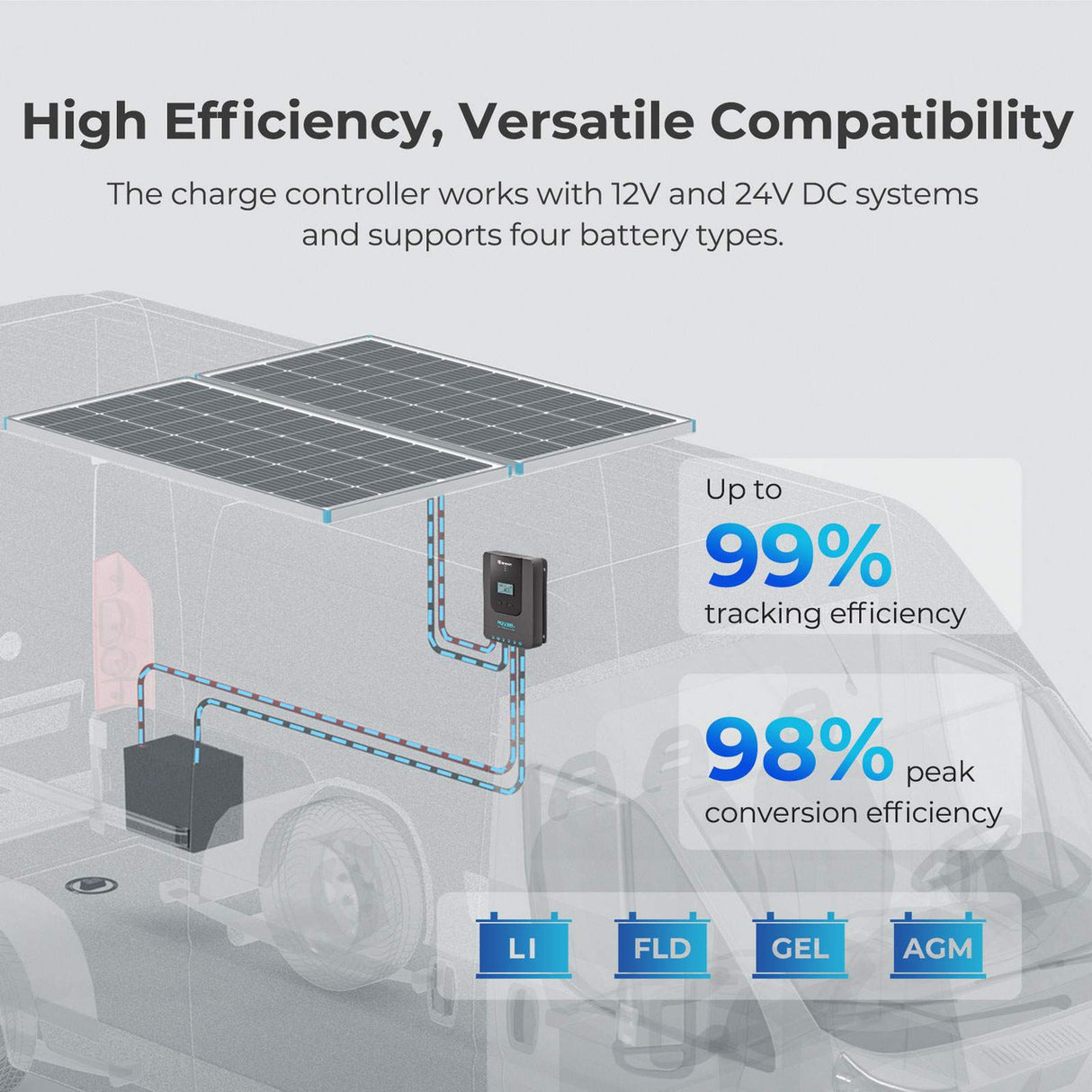

Charge Controller with 8 built-in protections
The Renogy Rover Solar Charge Controller boasts 8 built-in protections, actively monitoring voltage, current, and load changes. These include overtemperature, low-temperature, reverse current, reverse polarity, short-circuit, overload, overcharging, and overdischarging safeguards for efficient and safe battery charging.

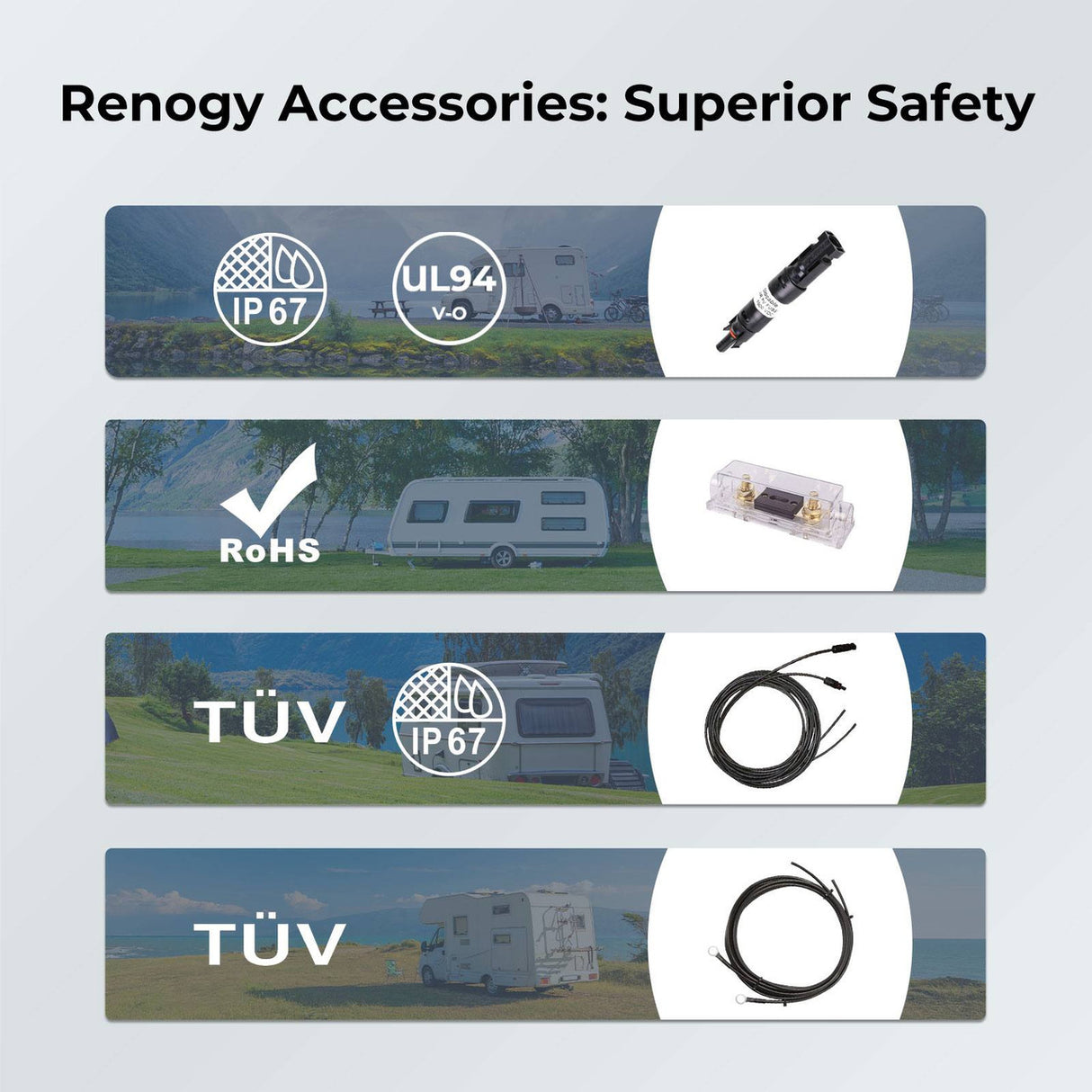

Renogy Fuse Solution
The Renogy Solar Premium Kit offers a reassuring fuse solution, comprising a fuse cable, ANL Fuse, and in-line fuse.

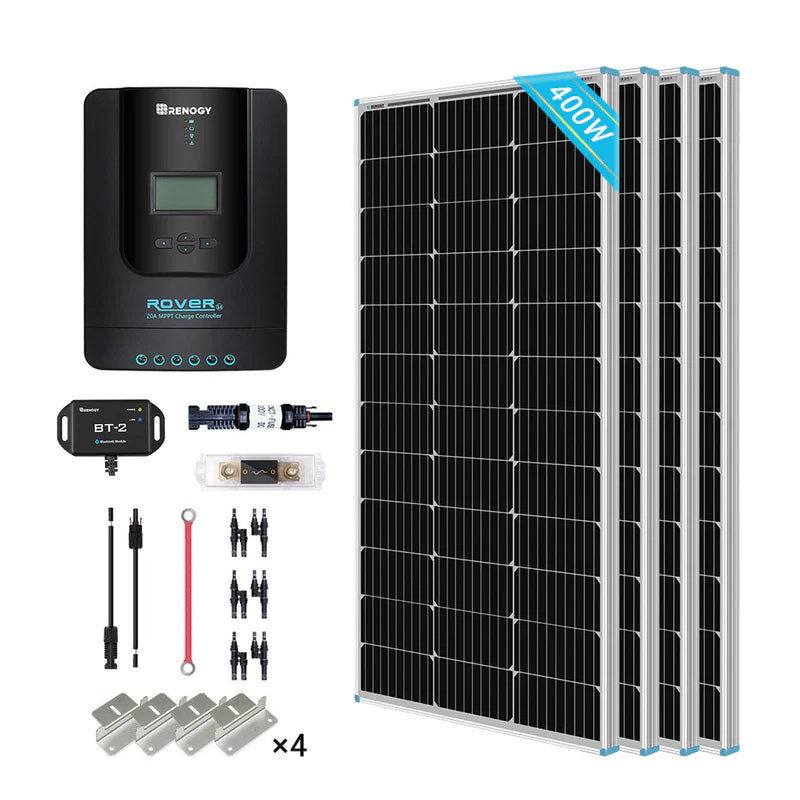

Package Includes
100W Mono Solar Panel
x 4
Rover Li 40A MPPT Charge Controller
x 1
BT-2 Bluetooth Module
x 1
20FT 10AWG Adaptor Kit
x 1
2FT 8AWG Fuse Cable
x 1
8FT 8AWG Tray Cable
x 1
Mounting Z Brackets (Set)
x 4
Solar Y Branch Connectors MMF+FFM Pair
x 3
10A In-line Fuse
x 1
40A ANL Fuse
x 1
RENOGY 100W MONOCRYSTALLINE SOLAR PANEL
Maximum Power at STC
100W
Open-Circuit Voltage (Voc)
24.3V
Short-Circuit Current (Isc):
5.21V
Optimum Operating Voltage (Vmp)
20.4V
Optimum Operating Current (Imp)
4.91V
Dimensions
41.8 x 20.9 x 1.38 inches
Maximum System Voltage
600VDC
Weight:
14.1lbs
RENOGY 10A In-Line FUSE HOLDER W/FUSE
Rated Current:
10A
Rated Voltage:
100VDC
Contact Material:
Copper, Silver Plated
Replaceable Fuse:
Cylindrical PV Fuse (10x38mm)
Safety Class:
II
Degree of Protection:
IP67 Mated
RENOGY 8FT8AWG TRAY CABLES (A PAIR)
Voltage Rating
600/1000V
Length:
8FT
Wire Gauge
8AWG
Operating Temperature:
'-40°F ~ +185°F (-40 ~ +85℃)
Certifications
TUV, ETL, CE, RoHS, FCC Class B, ISO 9001
MOUNTING Z BRACKETS (SET)
Eight Long Cap Bolts and Four Short Bolts
Four Spring Washers and Four Washers
Four Z Shape Solar Panel Brackets
Four Nuts
2FT 8AWG ANL FUSE CABLE
Length:
2FT
Wire Gauge
8AWG
Voltage Rating
AC Uo/U 0.6/1 KV, DC 1.8KV
Operating Temperature:
‘-40°F ~ +194°F (-40℃ ~ +90℃)
ANL 40A FUSE SET
Rated Current
40A
Rated Voltage
72V
Interrupt Capacity:
80A
Certifications
RoHS

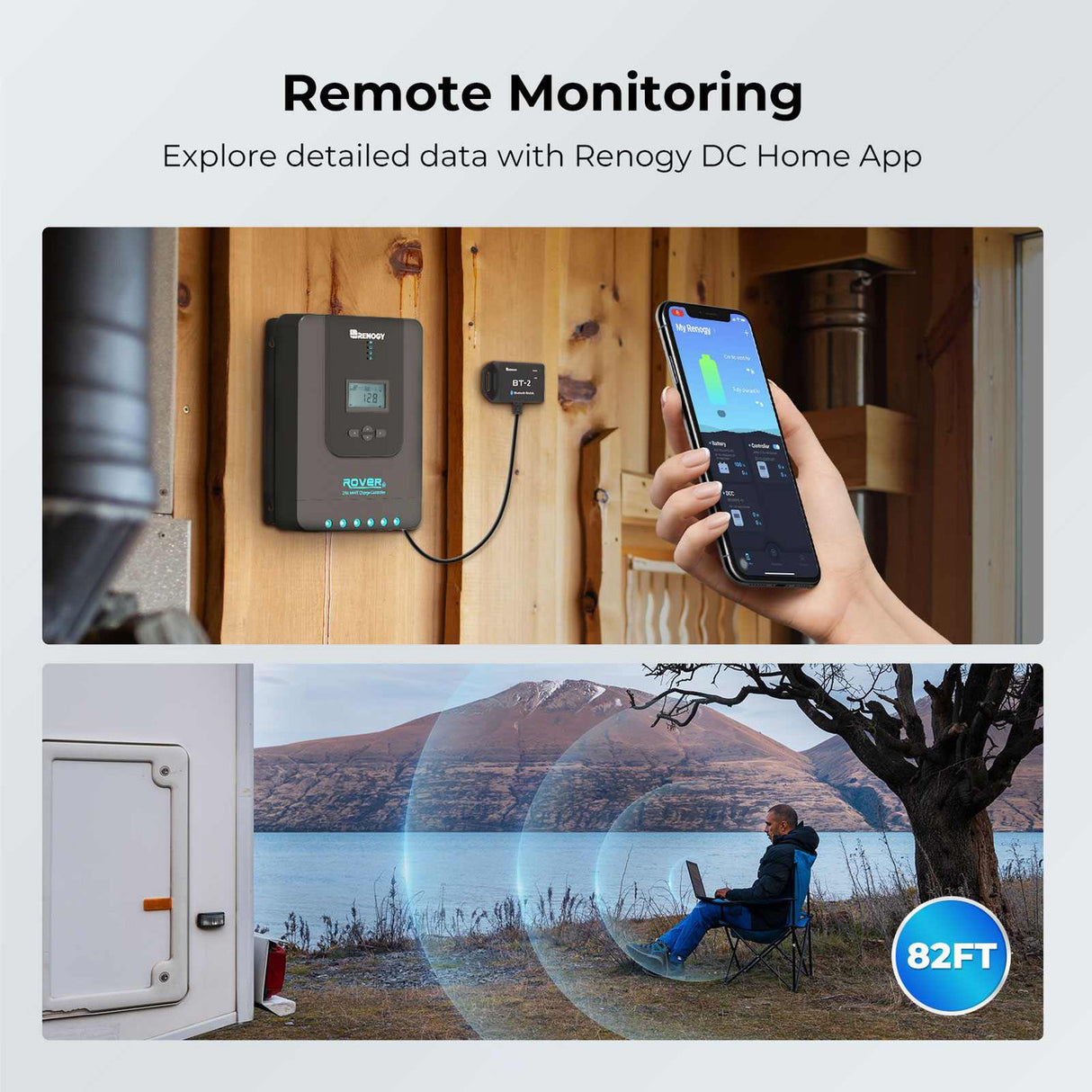

BT-2 BLUETOOTH MODULE
Input Voltage
5V or 12V
Communication Range
≤82ft (25m)
Communication Protocol
RS485
Operation Temperature
-4°F to 185°F ('-20℃~85℃)
RENOGY 20FT 10AWG ADAPTOR KIT (PAIR)
Length:
20FT
Wire Gauge
10AWG
Rated Voltage
600/1000V
Operating Temperature:
'-40°F ~ +185°F (-40℃ ~ +85℃)
Degree of Protection:
IP65
ROVER LI 40A MPPT SOLAR CHARGE CONTROLLER
Nominal Voltage
12V/24V DC Auto-Detect
Rated Charging Current:
40A
Rated Load Current:
20A
Max. Battery Voltage:
32V
Max. PV Input Power
12V/520W, 24V/1040W
Max. PV Input Voltage:
95VDC
Operating Temperature:
’-31°F ~ 113°F （-35°C ~ +45°C）
Max.Terminal Size:
8AWG 10mm2
Overall Dimension:
9.38 x 6.78 x 3.05 in
Weight
4.4lb
Certifications
FCC, CE, RoHS, RCM
Solar Y Branch Connectors
Withstanding voltage:
1000V DC(TUV), 600V(UL)
Temperature:
‘-40°F ~ +194°F (-40℃ ~ +90℃)
Protection Class:
Class II
Protection Degree:
IP67, mated
Rated Current:
50A
Warranty
Panels
25-year power output warranty
5-year 95% output warranty
10-year 90% output warranty
25-year 80% output warranty
10-year material and workmanship warranty
5-year 95% output warranty
10-year 90% output warranty
25-year 80% output warranty
10-year material and workmanship warranty
Rover MPPT Charge Controller
2-year material and workmanship warranty
Accessories
1-year material and workmanship warranty
Certifications
ETL Listed [UL-458]
CE and RoHS compliant
FCC Class B Part 15 Compliant
Manufactured in a Certified ISO 9001 Facility
CE; ROHS; FCC Part 15 Class B（Only Controller）
Frequently Asked Questions
What fuses do I need to buy extra when I connect solar panels in parallel?
When connecting four solar panels in parallel, you'll need three additional 10A in-line fuses, as you only receive one 10A in-line fuse in this kit.
What do I need to complete my off-grid solar power system?
Using this solar premium kit, you only need to purchase an inverter, batteries, battery inverter cables, and inverter fuses. For further inquiries about product specifications for your solar power system configurations, please contact customer service.
What does off-grid and on-grid mean?
On-grid simply means solar power equipment (array or solar panel) is connected to the electrical grid, while off-grid refers to systems that are not connected to the grid and therefore store the generated power for later use. Off-grid systems are not affected by grid blackouts.
Why is my solar panel under producing?
Solar panel performance may be hindered for a number of reasons. Most commonly environmental conditions such as indirect sunlight, temperature rise, cloudy sky, and dirt and stain build up on the top glass will cause a reduced power output.
How should I connect solar panels in my electrical circuit (series vs parallel)?
Solar panels can be connected in series or in parallel to meet your electrical circuit size and power demand. Connecting solar panels in series will have the effect of adding up their operating voltage output, while system current output will be the same as that for one panel. While, connecting solar panels in parallel will have a different effect; individual panels operating current output will add up to be the system output current, while system output voltage will be the same as the output voltage of one solar panel. To meet the optimum power output and system rating for your power system, you can use both parallel and series connections.
How many solar panels do I need?
The best way to gauge how many solar panels you need, is to understand and define the power load needed from this system. Power is measured in Watts, and capacity is commonly measured in Watt-hours (multiplying power output in watts by the required number of hours of operation multiplied by a safety factor of 1.5-2). Therefore, it is wise to size your battery bank first based on the minimum required capacity, and accordingly decide how many panels or how much power input is needed.
Can I add more solar panels to the Rover 40A and expand my system power output?
Yes, more solar panels can be added to this system to increase the power output. The Rover 40A has a maximum PV input current of 40A, maximum PV input voltage of 100VDC, and maximum input solar power of 520W at 12V or 1040W at 24V. You can wire more solar panels in series / in parallel to achieve larger power output, however you are limited by the maximum input voltage and current the charge controller can handle. It is safer to build a system operating at around 90% of the rated voltage and current to ensure there is a tolerance for any system overvoltage or overcurrent.
Will this solar kit power my AC unit?
In order to determine what size solar kit is appropriate, you must first define the total load to be expected of the solar power system. Most manufacturers will publish a specification sheet of the AC unit online and will include a nameplate sticker on the AC body. Both can be used to determine the actual power rating of the AC. BTU is a common measuring unit for energy in AC and water heater products, however we are intrested in the energy rate, or simply power. Power will be listed in units of Watts, and can be used to determine the total load resulting from running the intended AC unit. Multiply the power rating recorded in watts by the total number of hours of operation intended, to obtain the total watt-hours. Divide the total watt-hours by the peak sun hours in the location of installation, and multiply by a safety factor of 1.5-2, to obtain the total number of watts your panels should produce to power the air conditioner load. The total power load can be divided by the power output of one panel to obtain the number of panels needed.
When do I need an inverter?
If you intend to use this solar power kit as a power supply for home appliances (e.g. coffee maker, TV, etc.), then you will need an inverter to convert the output voltage from a VDC system to a 120V AC output socket. Renogy offers a variety of inverter products to suit your unique system and meet your power demand.
