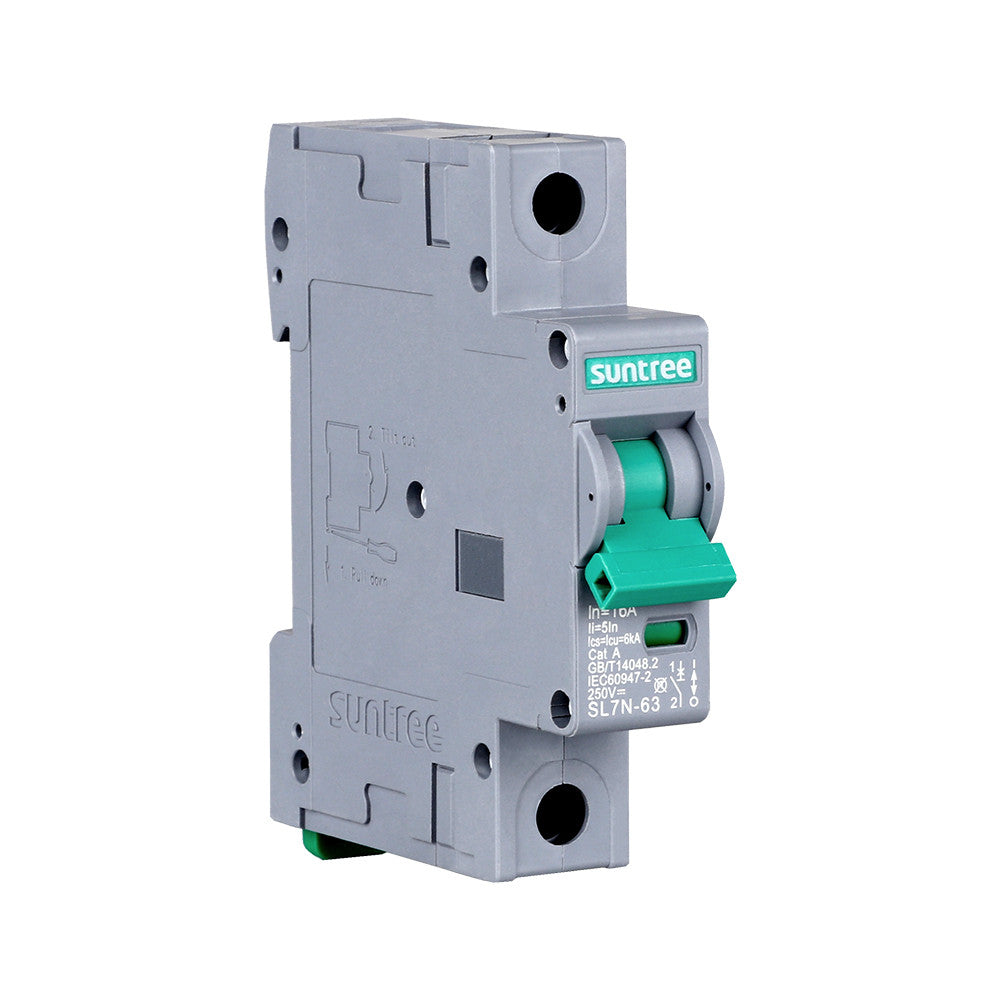

10A/16A/32A/50A/63A 1P DC Miniature Circuit Breaker
10A/16A/32A/50A/63A 1P DC Miniature Circuit Breaker - 10A is backordered and will ship as soon as it is back in stock.
10A/16A/32A/50A/63A 1P DC Miniature Circuit Breaker
Description

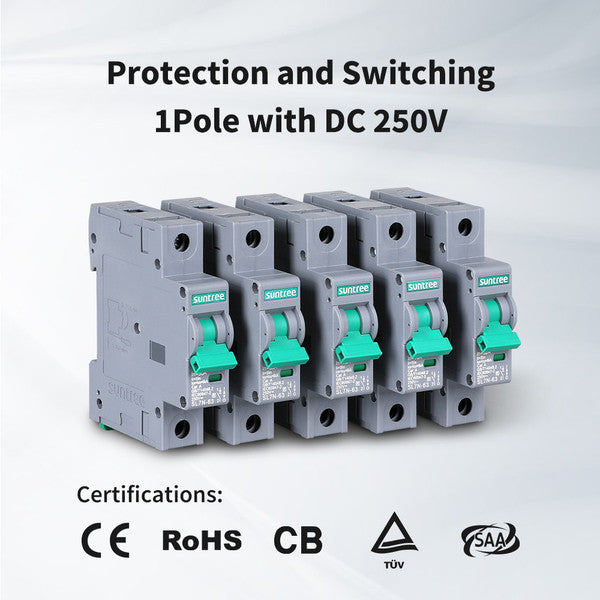

The Suntree DC Miniature Circuit Breaker is designed to protect DC electrical installations against overloads and short circuits, with both the thermal and magnetic tripping mechanism equipped. Once a fault is detected, the circuit breaker automatically switches off the electrical circuit to prevent damage to wires and avoid the risk of fire. The circuit breaker can also be manually opened under the full rated load without any damage when electrical maintenance needs to be performed. Engineered for reversible connection, the circuit breaker is allowed to be wired in either direction and functions under bidirectional current. The built-in indicator window helps identify the contact position of the circuit breaker at a glance. The buckle design enables easy installation on the standard DIN rail.
If you have any questions regarding this product, please submit a case.
Key Features
- DOUBLE SECURITY Equipped with both the thermal and magnetic tripping mechanism for reliability and safety.

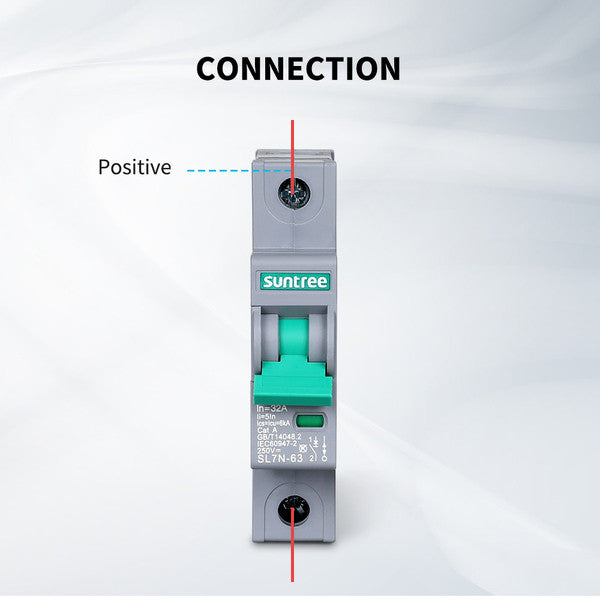

- SAFE TO USE Offers reversible connection for worry-free wiring and bidirectional protection.
- DURABLE FOR USE After the circuit breakers is disconnected, only reset is needed and there will be no damage.

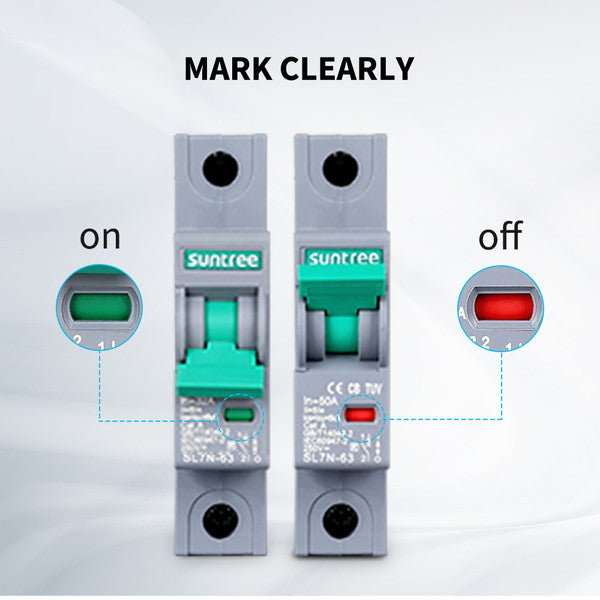

- EASY TO SEE Built-in indicator window helps identify the contact position.
- QUICK TO INSTALL Easily install on the standard DIN rail with the buckle design.
Package Includes
|

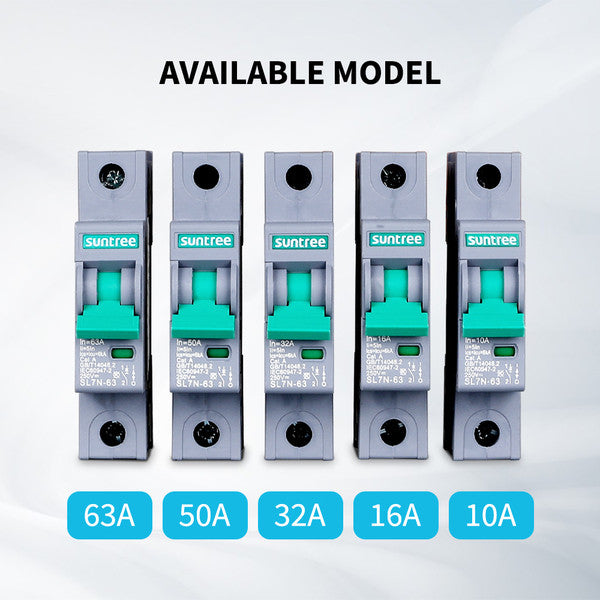

10A/16A/32A/50A/63A 1P DC Miniature Circuit Breaker
1 x
|
| 10A/16A/32A/50A/63A 1P DC MINIATURE CIRCUIT BREAKER | |
|---|---|
| Rated Insulation Voltage: 1250V | Rated Instantaneous Tripping Current: 60A/96A/192A/300A/378A (<0.1s) |
| Rated Operating Voltage: 250V | Trip Mechanism: Thermal-Magnetic |
| Rated Frame Current: 63A | Protection Rating: IP20 |
| Rated Current: 10A/16A/32A/50A/63A | Damp Heat Resistance: Type 2 |
| Number of Poles: 1 | Operating Relative Humidity: ≤95% |
| Operating Short-Circuit Breaking Capacity: 6KA | Operating Temperature Range: -22℉~158℉ (-30℃~70℃) |
| Ultimate Short-Circuit Breaking Capacity: 6kA | Storage Temperature Range: -40℉~185℉ (-40℃~85℃) |
| Rated Impulse Withstand Voltage: 6KV | Installation Method: DIN Rail |
| Mechanical Life: 20000 Times | Conductor Size: 14 AWG~4 AWG |

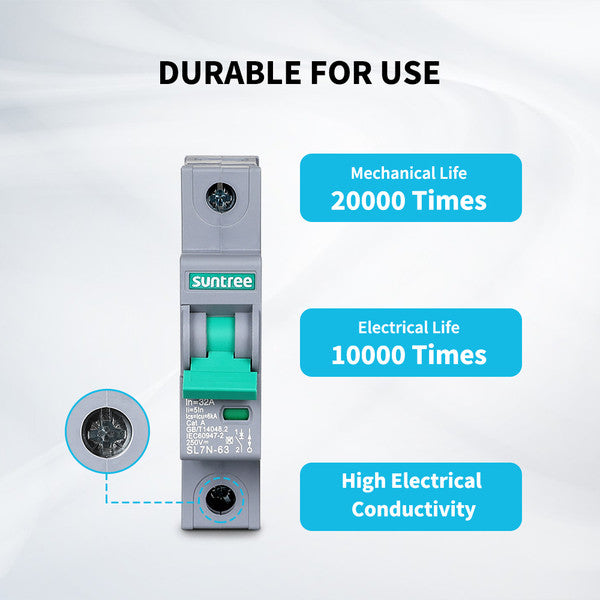

| Electrical Life: 10000 Times (<125VDC) | Recommended Terminal Torque: 17.7 inch·lbs~20.4 inch·lbs (2 N·m~2.3 N·m) |

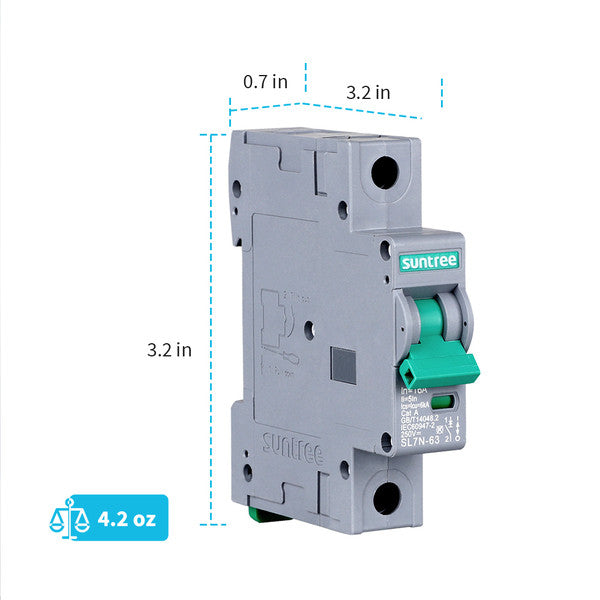

| Rated Non-Tripping Current: 10.5A/16.8A/33.6A/52.5A/66.15A (≥1h) | Dimension: 3.2 x 3.0 x 0.7 in (82 x 76 x 18 mm) |
| Rated Tripping Current: 13A/20.8A/41.6A/65A/81.9A (<1h) | Weight: 4.2 oz (120 g) |
Warranty Information
| Material and Workmanship Warranty | 1.5 years |
 |
