Description
With a Renogy 100W Monocrystalline Starter Kit MPPT; you won't have to wonder about whether or not you're getting the most out of your system. Designed to draw out your system's potential; this kit includes our 20A MPPT charge controller which uses Maximum Power Point Tracking technology; transferring power up to 30% more efficiently than PWM charge controllers.
Please kindly note that the kit we sell with MPPT controller doesn't include Solar Y connector because connect panels in series is ok for MPPT controller as long as the panels' total output voltage won't exceed the controller's max solar input voltage.
If you have any questions regarding this product, please submit a case.
Key Features
Efficient- High solar cell efficiency : Monocrystalline 18.4%
- Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments
- The included MPPT charge controler has a peak efficiency of 97%
- EL tested solar modules; no hot-spot heating guaranteed
- Corrosion-resistant aluminum frame for extended outdoor use; allowing the panels to last for decades
- TPT back sheet ensures smooth performance over a long period of time
- IP65 rated junction box provides complete protection against environmental particles and low pressure water jets
- Sealed; Gel and Flooded charging algorithim ready
- 4-Stage battery charging process for a rapid; efficient; and safe battery charging
- Timer function with 1-15 hour option
- The Renogy Wanderer is equipped with multiple electronic protections; overcharging; overload; short-circuit and reversed polarity
- Pre-drilled holes on the back of the panel allow for fast and secure mounting
- With a Renogy 20A MPPT Charge Controller; you can expand your system up to a maximum of 200W (12 Volt) or 400W (24 Volt)

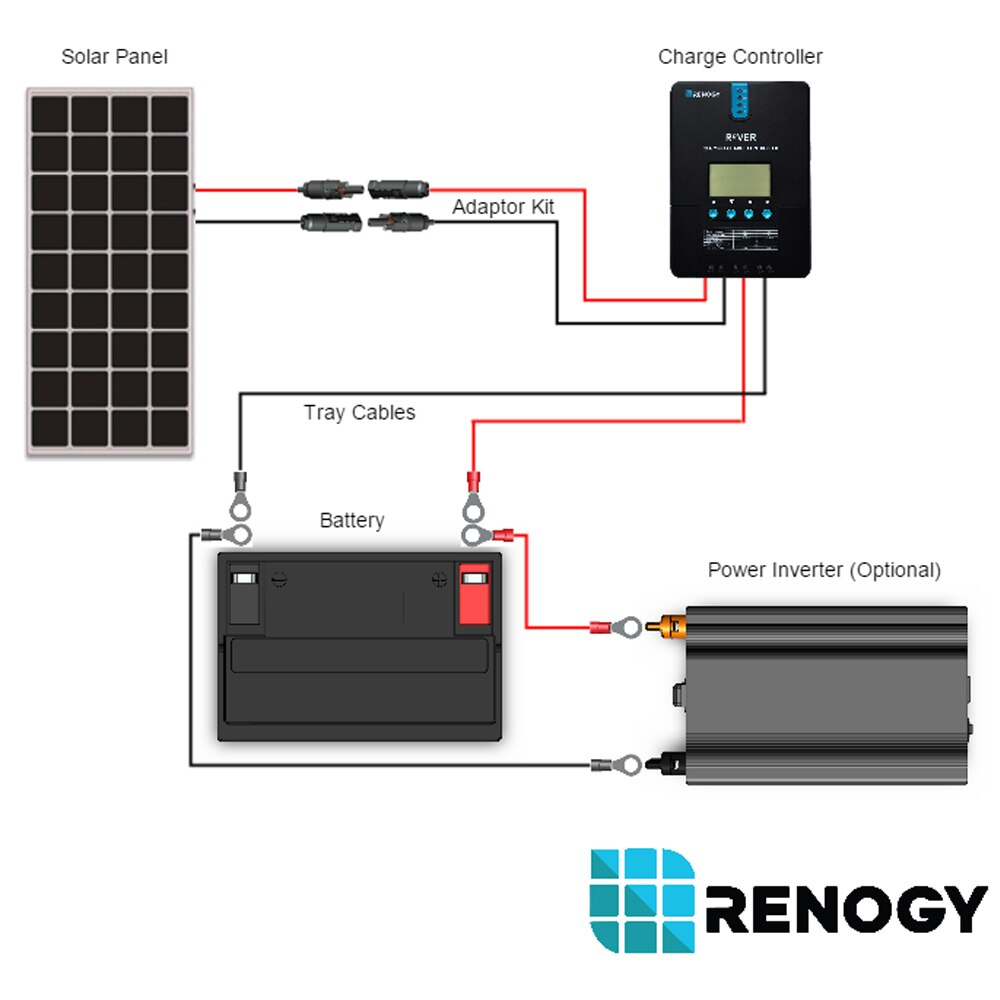

Package Include
|
Renogy 100W Solar Panel(Compact Design)
1 x |
Renogy 20A MPPT Rover Charge Controller
1 x |
|
1 x |
Renogy 20ft 10AWG Solar Adaptor Kit (A pair)
1 x |
|
Renogy 8ft 10AWG Tray Cables (A pair)
1 x |
| Renogy 100W Monocrystalline Solar Panel |
The Renogy Rover - 20A MPPT Charge Controller |
|---|---|
| Maximum Power: 100W | Nominal system voltage :12V/24V Auto Recognition |
| Maximum System Voltage:600V DC (UL) | Rated Battery Current :20A |
| Open-Circuit Voltage (Voc): 22.3V | Rated Load Current: 20A |
| Short-Circuit Current (Isc): 5.86A | Max. PV Input Short Current :25A |
| Optimum Operating Voltage (Vmp): 18.6V | Max. Battery Voltage :32V |
| Optimum Operating Current (Imp): 5.38A | Max Solar Input Voltage :100 VDC |
| Weight: 14.3lbs(6.5kg） | Mounting Oval :0.30 x 0.18in |
| Dimensions: 42.4 X 20.0 X 1.38 in（1076x509x35mm） | Net Weight :3.08 lb |
| Overall Dimension:8.27 x 5.94 x 2.34in(210x151x59.5mm) |
| Renogy 8ft 10AWG Tray Cables (A pair) | Mounting Z Brackets (Set) |
|---|---|
| Length: 8ft | Eight Long Cap Bolts and Four Short Bolts |
| AWG: 10 | Four Spring Washers and Four Washers |
| Rating Voltage: 600/1000V | Four Z Shape Solar Panel Brackets |
| Temperature: -40°F to +185°F | Four Nuts |
| Renogy Adaptor Kit (Set) | |
|---|---|
| Length: 20ft | |
| AWG: 10 | |
| Rating Voltage: 600/1000V | |
| Temperature: -40°F to +185°F |
Warranty Information
| Panels |
25-year transferable power output warranty: 5 year/95% efficiency rate; 10 year/90% efficiency rate; 25-year/80% efficiency rate 5-year material and workmanship warranty |
| Accessories | 1-year material warranty |
 |
|||
 |
|||
 |
|||
| Please click the links below to download the manuals: | |||
| Rover 20A 30A 40A Controller | |||
