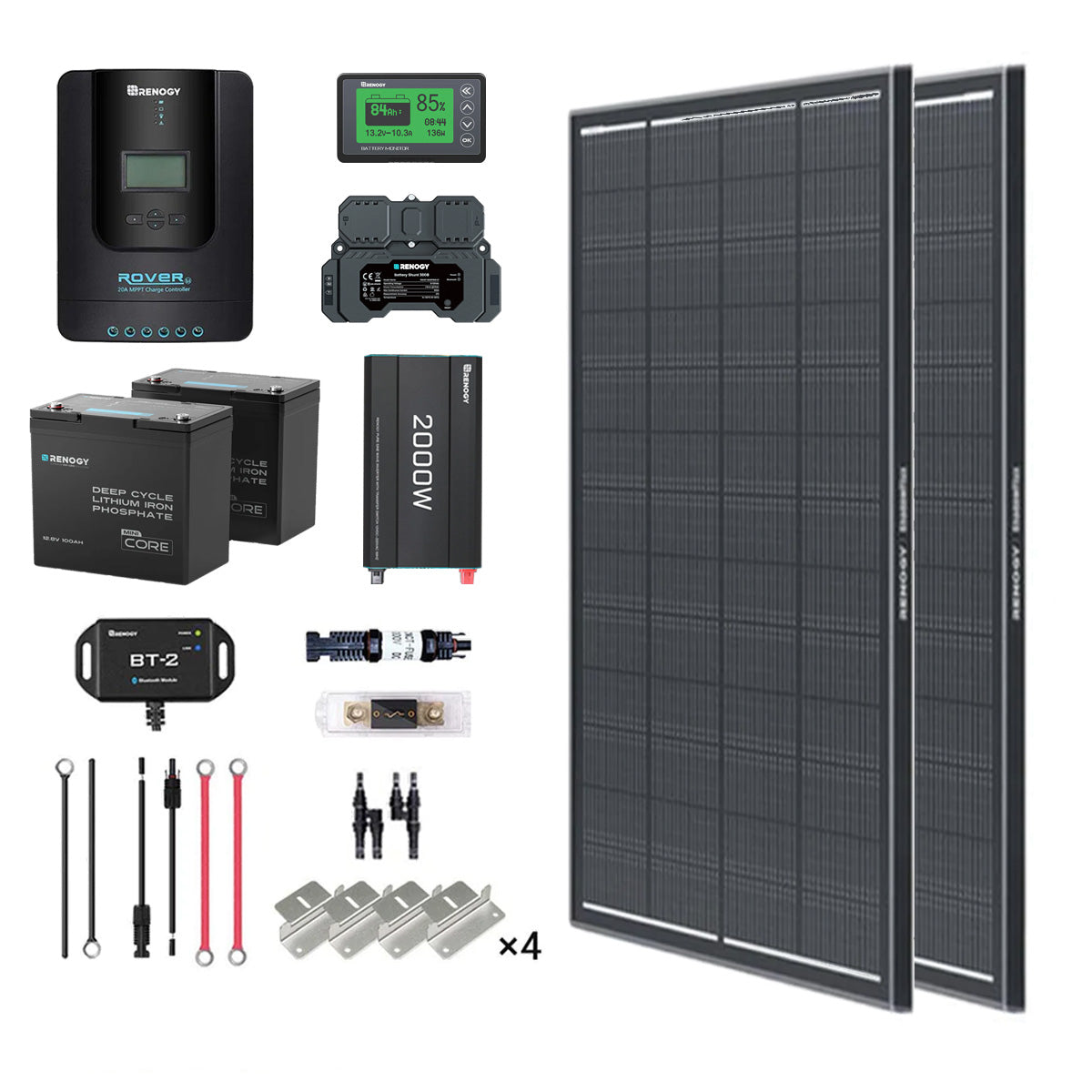

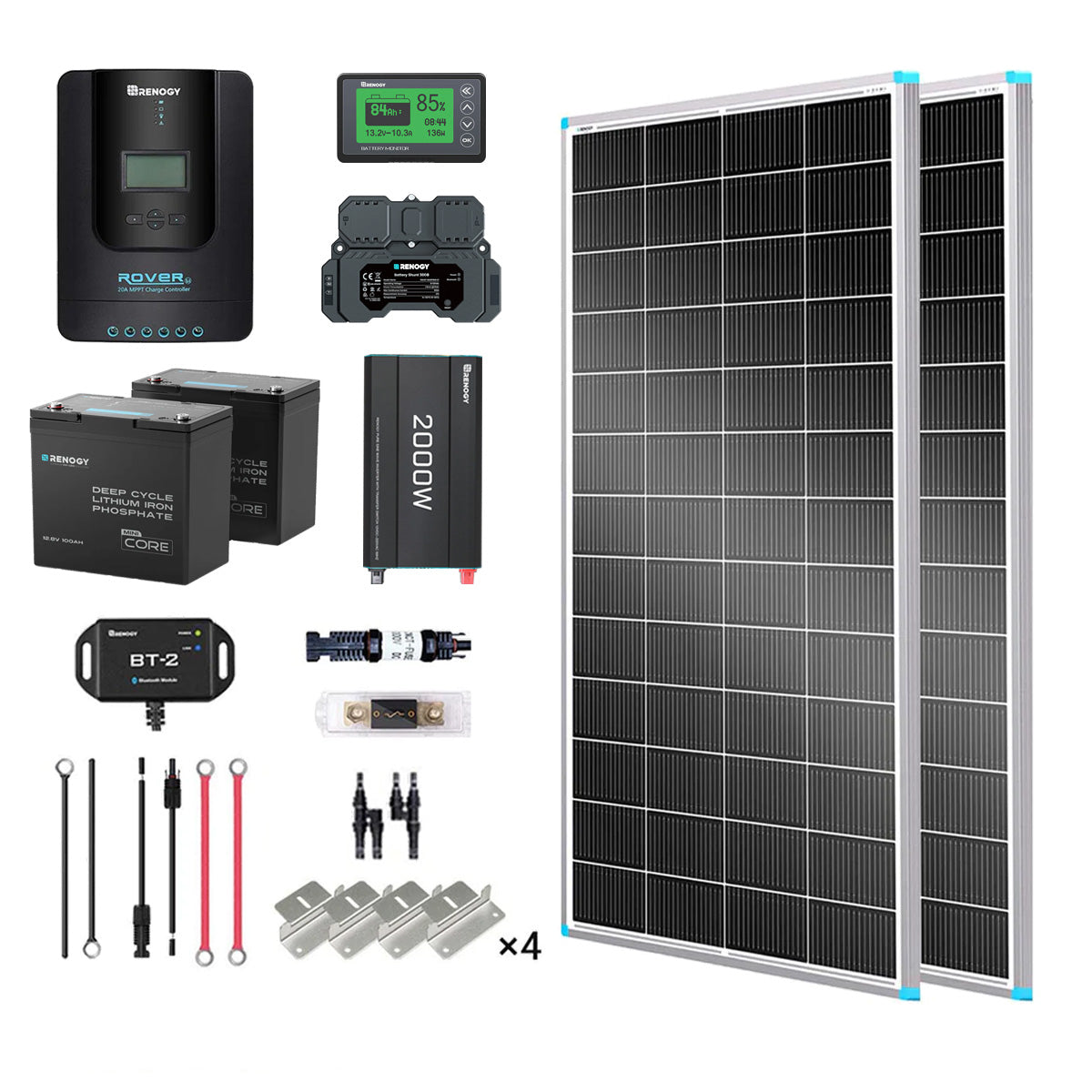

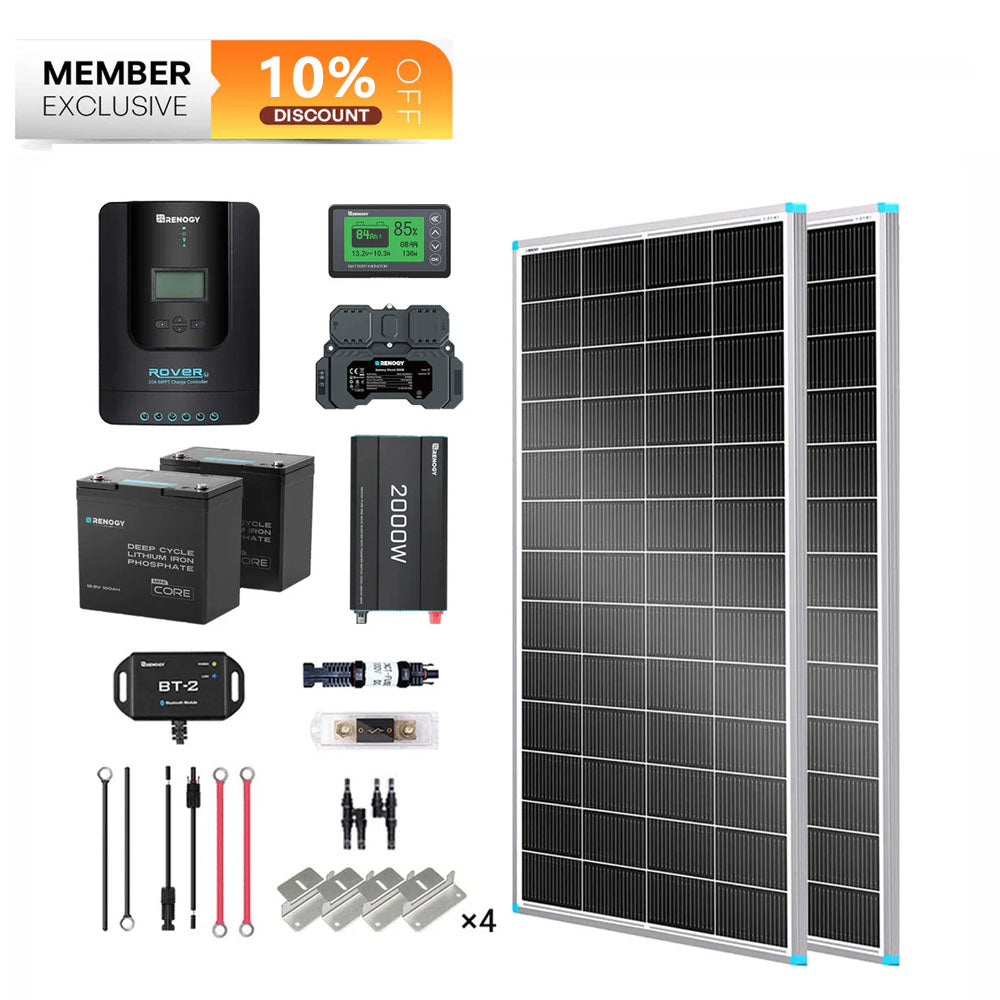

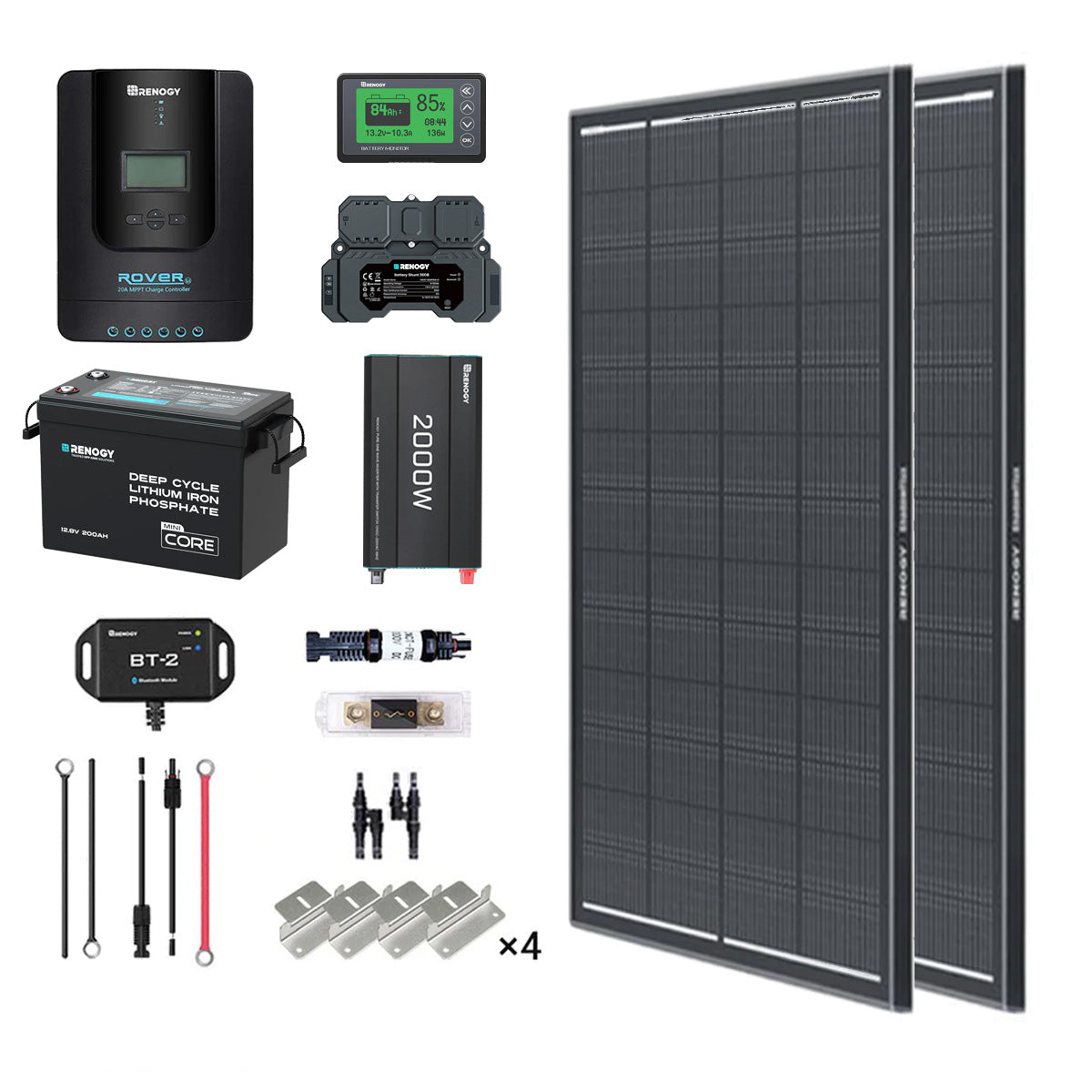

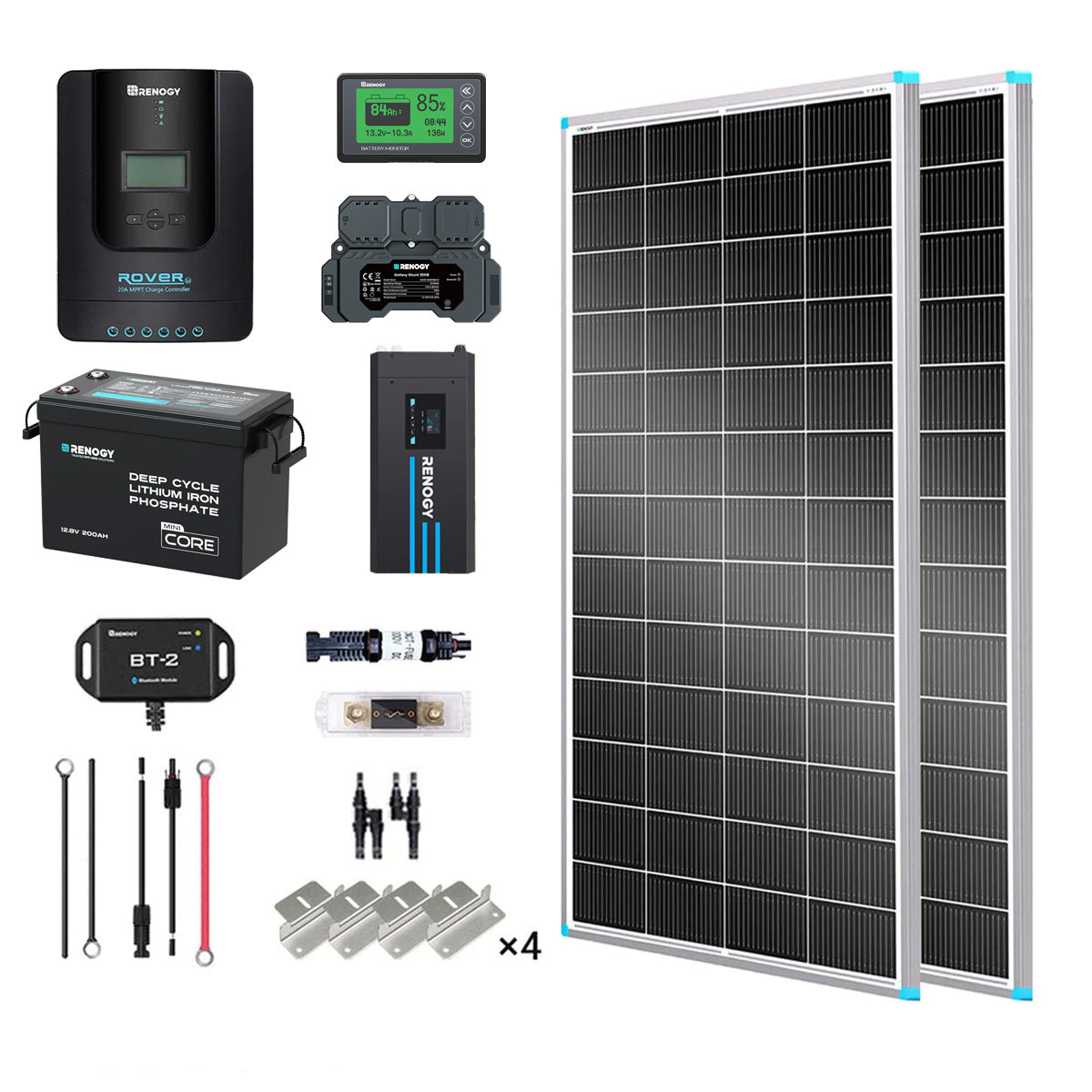

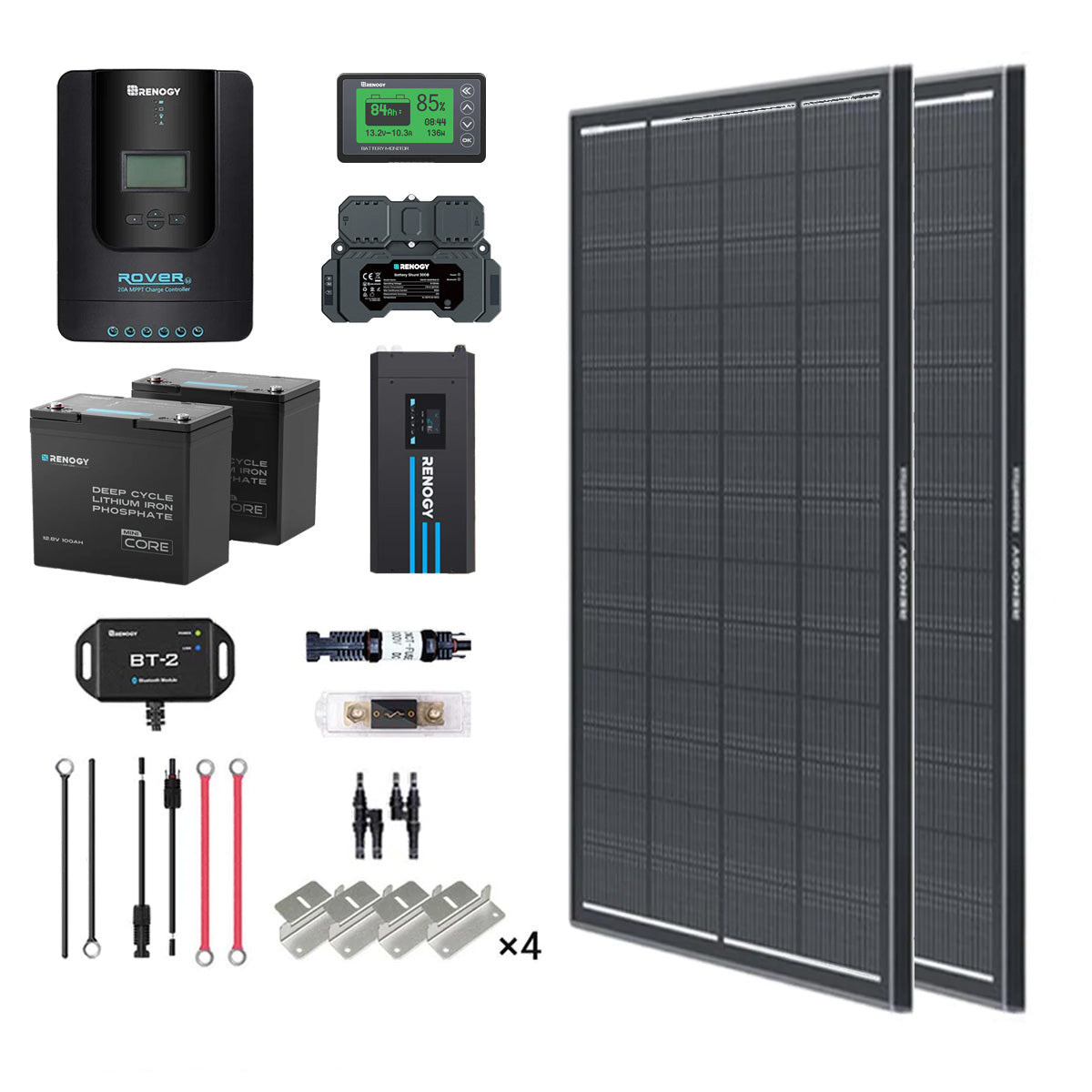

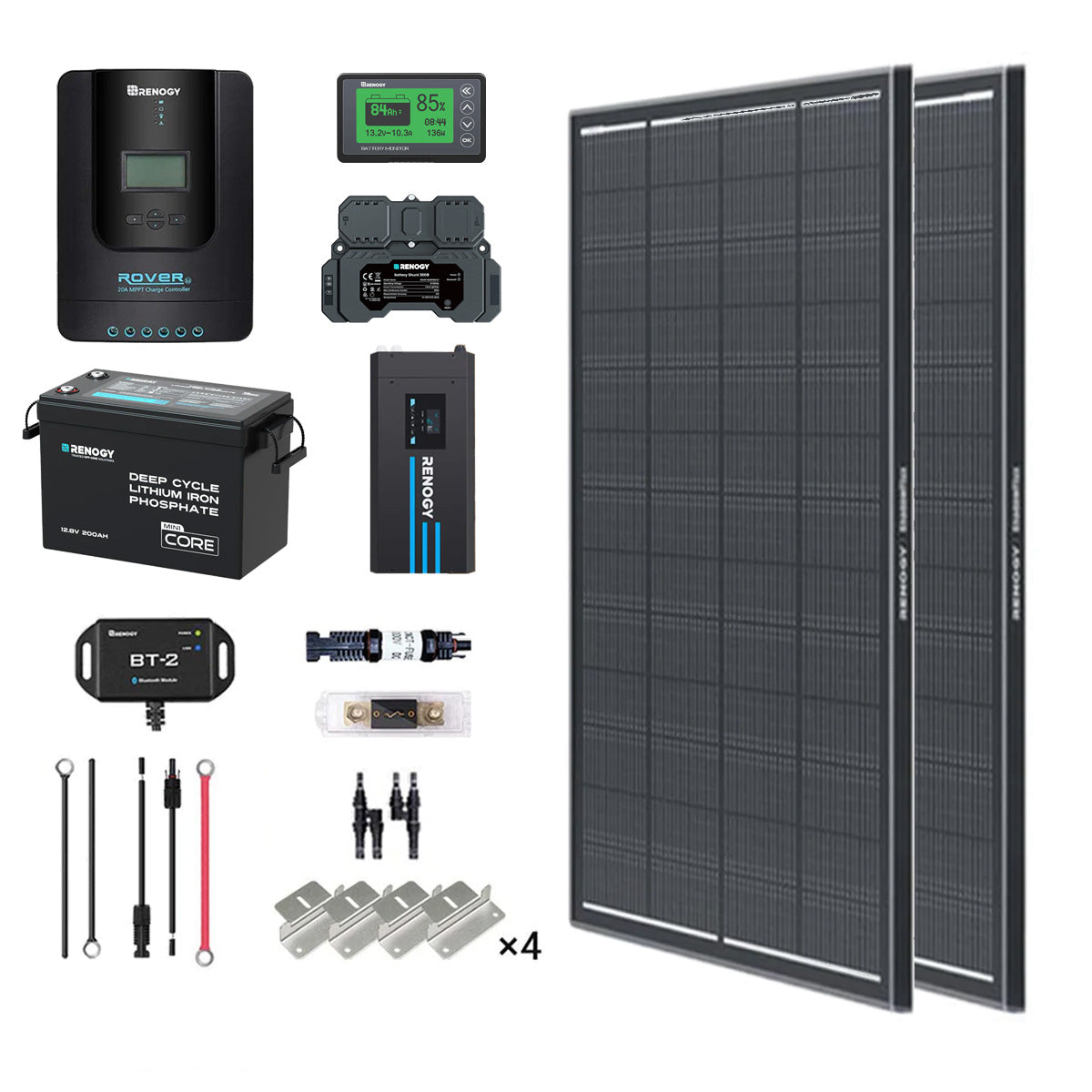

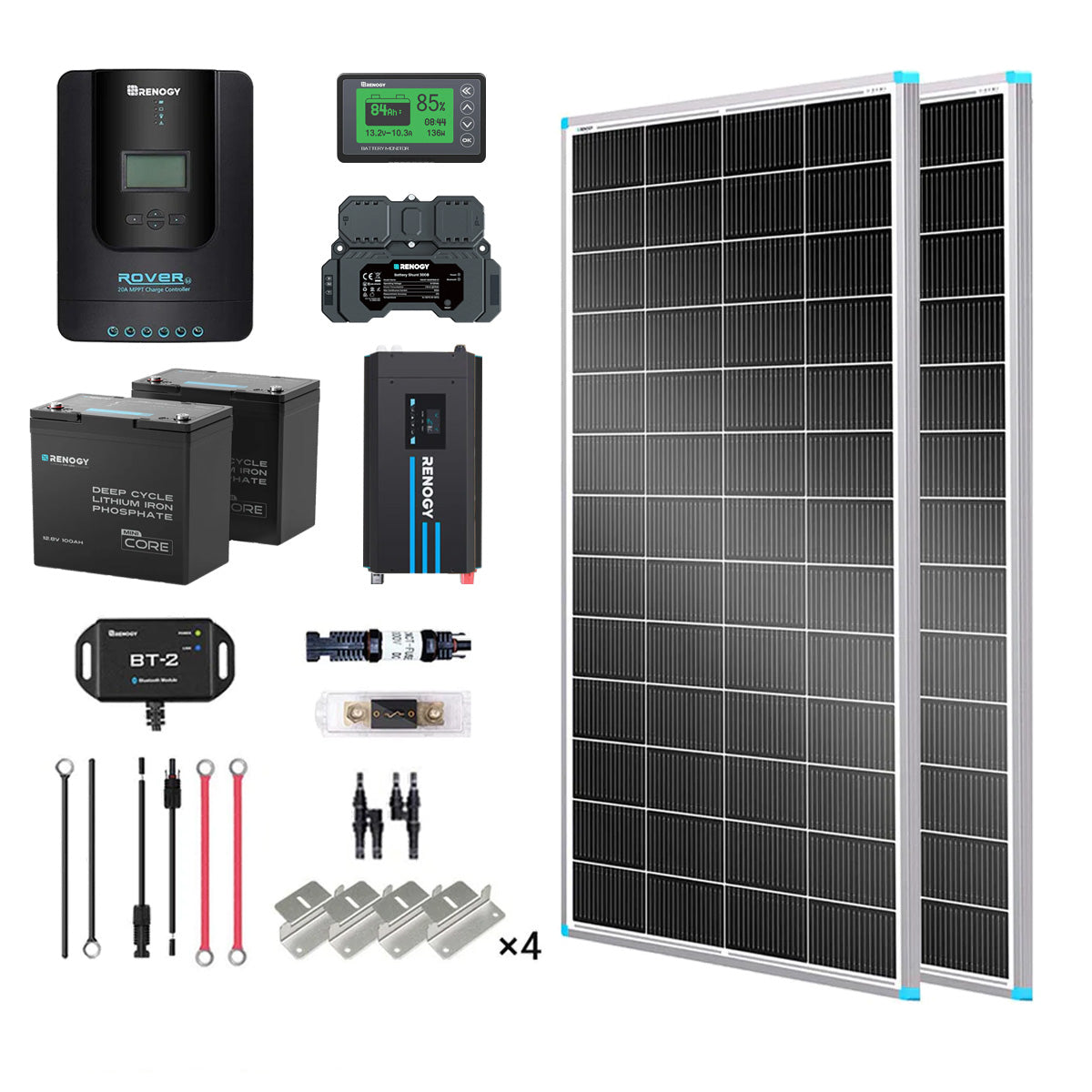

2Kwh 400W 12V Solar Panel System w/Solar Panel, Battery, Inverter and Charge Controller

SKU: RKIT400DC-R40-2100M-1220PUH-UK

Early-brid Price - Add to Cart to Get Automatic Extra 10% Off

£1,099.99 £1,517.99
Tax included. Free shipping.
+ 10990   Renogy Rays after purchase.
Log In About Rays

  • Generate up to 2kWh of clean energy per day, ideal for motorhomes, sheds and cabins.
  • High-efficiency solar panels deliver reliable performance, even under low-light conditions.
  • 40A MPPT charge controller ensures efficient charging and full protection for your battery system.
  • Expandable 12V/24V design supports multiple battery types and easy future system upgrades.
  • Works with 300A Battery Shunt for Remote Monitoring.
Solar Panel
Battery
Inverter
Free Shipping on All Products
30-Day Return & Refund Service



6% OFF Coupon for New Subscriber
Lifetime Customer Support Contact us: +44 3300589559
Show More Benefits Show Less
Quantity：
Payment Methods
Delivery Methods
Delivery time: 3-6 business days. (Excludes LTL shipping.) Free Shipping
Description
Specs
Downloads
Reviews

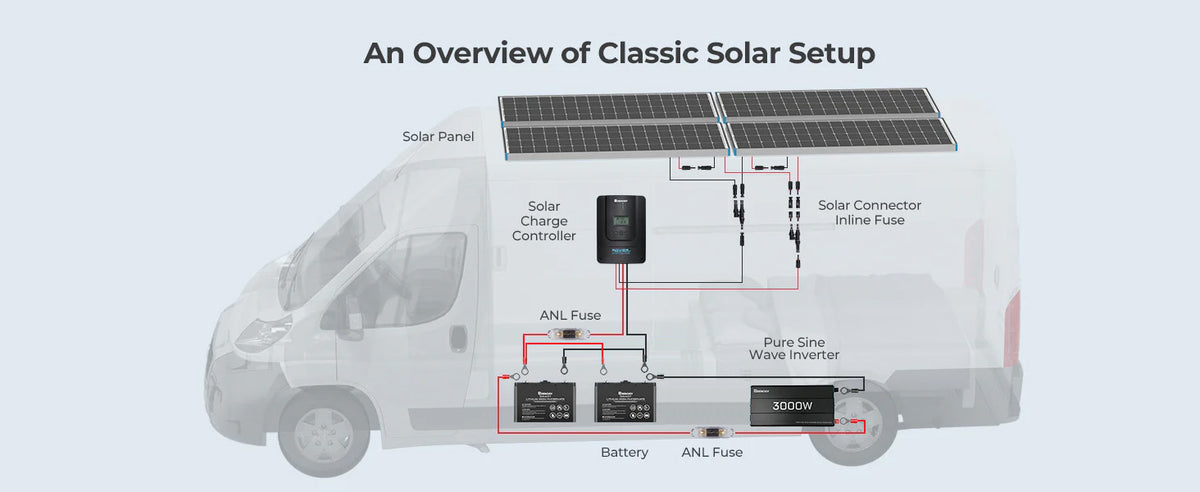

Safety every minute, efficiency every day

The Renogy Solar Premium Kit offers outstanding safety with a variety of certified accessories, guaranteeing an efficient solar system featuring globally renowned solar panels and a fully certified MPPT Charge Controller.

N-Type Solar Panel
Anti-shading Solar Panel

Renogy 16BB N-Type 200 Watt 24V Solar Panel

200W ShadowFlux Anti-shading N-Type Solar Panel

Revolutionize your solar setup with the market’s first N-Type solar panel, powered by advanced ShadowFlux anti-shading technology for stable, uninterrupted performance—day or night.

100Ah
200Ah

Smaller, Sleeker, Still Renogy Strong.

Power up with compact confidence! The Renogy 12V 200Ah Core Mini LiFePO4 Battery is 21% smaller than its counterparts while maintaining a robust 200A BMS plus a low-temperature cut-off for enhanced protection. Perfect for both travel and home use, it’s the ideal solution for versatile power demands.

2000W
3000W

High-Efficiency Solar Inverter for RVs & Off-Grid

The perfect addition to any off-grid system, whether for a van or cabin, the Renogy 2000W Pure Sine Wave Power Inverter acts as a DC-to-AC converter, enabling you to power household appliances. Unlike modified sine wave inverters, this 2000W inverter is a pure sine wave, producing cleaner, smoother, and more reliable electricity to power tools, fans, lights, and other electronics without interference. Many off-grid systems require a 12V solar inverter to power everyday electronics, and this model includes multiple protections to ensure smooth and safe operation. The AC priority function enables the inverter to automatically switch from the battery (DC) to the mains (AC) and vice versa whenever the utility company loses power.

High-Efficiency Solar Inverter for RVs & Off-Grid

Renogy 3000W Pure Sine Wave Inverter (12V DC to 230V AC) provides clean power (90%+ efficient) with 6000W surge. Ideal for RVs, solar systems, and off-grid homes.

High-quality PERC solar panels

With a half-cell 9BB design, Renogy's PERC solar panel boasts a 22.5% higher cell efficiency. Crafted with premium materials, including a TPT backsheet and aluminum frame, the panel is protected from harsh environmental conditions over its lifetime.

Charge Controller with 8 built-in protections

The Renogy Rover Solar Charge Controller boasts 8 built-in protections, actively monitoring voltage, current, and load changes. These include overtemperature, low-temperature, reverse current, reverse polarity, short-circuit, overload, overcharging, and overdischarging safeguards for efficient and safe battery charging.

Renogy Fuse Solution

The Renogy Solar Premium Kit offers a reassuring fuse solution, comprising a fuse cable, ANL Fuse, and in-line fuse.

Specifications

16BB N-Type 200 Watt 24V Solar Panel

Max Power at STC
200W
Open Circuit Voltage
37.44V
Short Circuit Current
6.85A
Optimum Operating Voltage
31.03V
Optimum Operating Current
6.46A
Maximum System Voltage
600VDC
Maximum Series Fuse Rating
15A
Module Efficiency
20.7%
Operating Temperature:
-40°F~185°F / -40℃~85℃
Dimensions
1262x764x30mm/49.7x30.1x1.2in
Weight
10.6kg/23.4lbs

200W ShadowFlux Anti-Shading N-Type Solar Panel

Max Power at STC
200W
Open Circuit Voltage
36.5V
Short Circuit Current
6.86A
Optimum Operating Voltage
31.3V
Optimum Operating Current
6.38A
Maximum System Voltage
1000VDC
Maximum Series Fuse Rating
15A
Module Efficiency
20.7%
Operating Temperature
-40°F~185°F / -40℃~85℃
Dimensions
1262*764*30mm/
49.69*30.08*1.18inch
Weight
10.81kg/23.83lb

Electrical Specifications

Battery Type
Lithium Iron Phosphate
Nominal Voltage
12.8V
Rated Capacity
100Ah (0.5C, 25℃)
Voltage Range
10V to 14.8V
Dimensions
229 x 138 x 213 mm / 9.02 x 5.43 x 8.39 in
Weight
21.8 lbs / 9.9 kg
Connection Method
Series & Parallel (4S4P)
Maximum Charge Current
100A
Maximum Discharge Current
100A
Protection Rating
IP65
Charge Temperature Range
32°F to 122°F (0°C to 50°C)
Discharge Temperature Range
-4°F to 140°F (-20°C to 60°C)
Storage Temperature Range
-13°F to 149°F (-25°C to 65°C)
Terminal Bolt Size
M8 x 1.25 x 12 mm
Recommended Terminal Torque
88.5 inch·lbs to 106.2 inch·lbs / 10 N·m to 12 N·m
Peak Discharge Current
300A@5s
Cycle Life (0.5C, 25℃)
5000 Cycles (80% DOD, 80% EOL)

Electrical Specifications

Rated Capacity
200Ah (0.5C, 25℃)
Voltage
12V
Energy
2560Wh
Cycle Life (0.5C/1C, 25℃)
5000 Cycles (80% DOD, 80% EOL)

Renogy 2000W 12V Pure Sine Wave Inverter

Continuous Power
2000W
Surge Power (Peak Power)
4000W
Input Voltage
12VDC
Output Voltage
220VAC±10
Input Voltage Range
11-16Vdc
Static Current
1.3A
Input Voltage Range
11-16Vdc
Static Current
1.3A
Output Frequency (Nominal)
50Hz±0.3
Output Wave form
Pure Sine Wave
Low Voltage Shutdown
10Vdc
Recover from low voltage protection
Support
High Voltage Shutdown
16.3Vdc
Battery supply & AC main transfer time
Within 50mS
Maximum Efficiency
90%
Working Temperature
0°C~40°C
Dimensions
442*220*92 mm
Weight
4.8Kg

Renogy 2000W 12V Pure Sine Wave Inverter Charger

Rated output power
2000W
Surge Power (Peak Power)
6000W
Nominal Output Voltage RMS
230VAC (200~240VAC, 10V interval)
Output Frequency (Nominal)
50 Hz
Input Voltage Range
10-16Vdc
Output Wave form
Pure Sine Wave
Nominal Efficiency
90% Peak
No Load Power Consumption: Normal
<20W; Power Saving: <15W
Battery Types
GEL, AGM, SLA, FLD, CAL, LI, USER
Operating Temperature
0 ~ 40°C / 32 ~ 104°F
Dimensions
20.1 x 11.2 x 7.6 in / 510 x 285 x 193 mm
Weight
51.1 lbs / 23.2 Kg
Output Current
5-65A; configurable, 5A intervals
Optimal Efficiency
>85%C
Nominal Input Voltage
230 VAC
Input Voltage Range
155-275 VAC
Input Frenquency Range
40Hz - 70Hz
Input Wave Form
Pure Sine Wave (Utility or Generator)
Transfer Time
~ 10ms
Transfer Relay Rating
30A

ROVER LI 40A MPPT SOLAR CHARGE CONTROLLER

Nominal Voltage
12V/24V DC Auto-Detect
Rated Charging Current:
40A
Rated Load Current:
20A
Max. Battery Voltage:
32V
Max. PV Input Power
12V/520W, 24V/1040W
Max. PV Input Voltage:
95VDC
Operating Temperature:
’-31°F ~ 113°F （-35°C ~ +45°C）
Max.Terminal Size:
8AWG 10mm2
Overall Dimension:
9.38 x 6.78 x 3.05 in
Weight
4.4lb
Certifications
FCC, CE, RoHS, RCM
