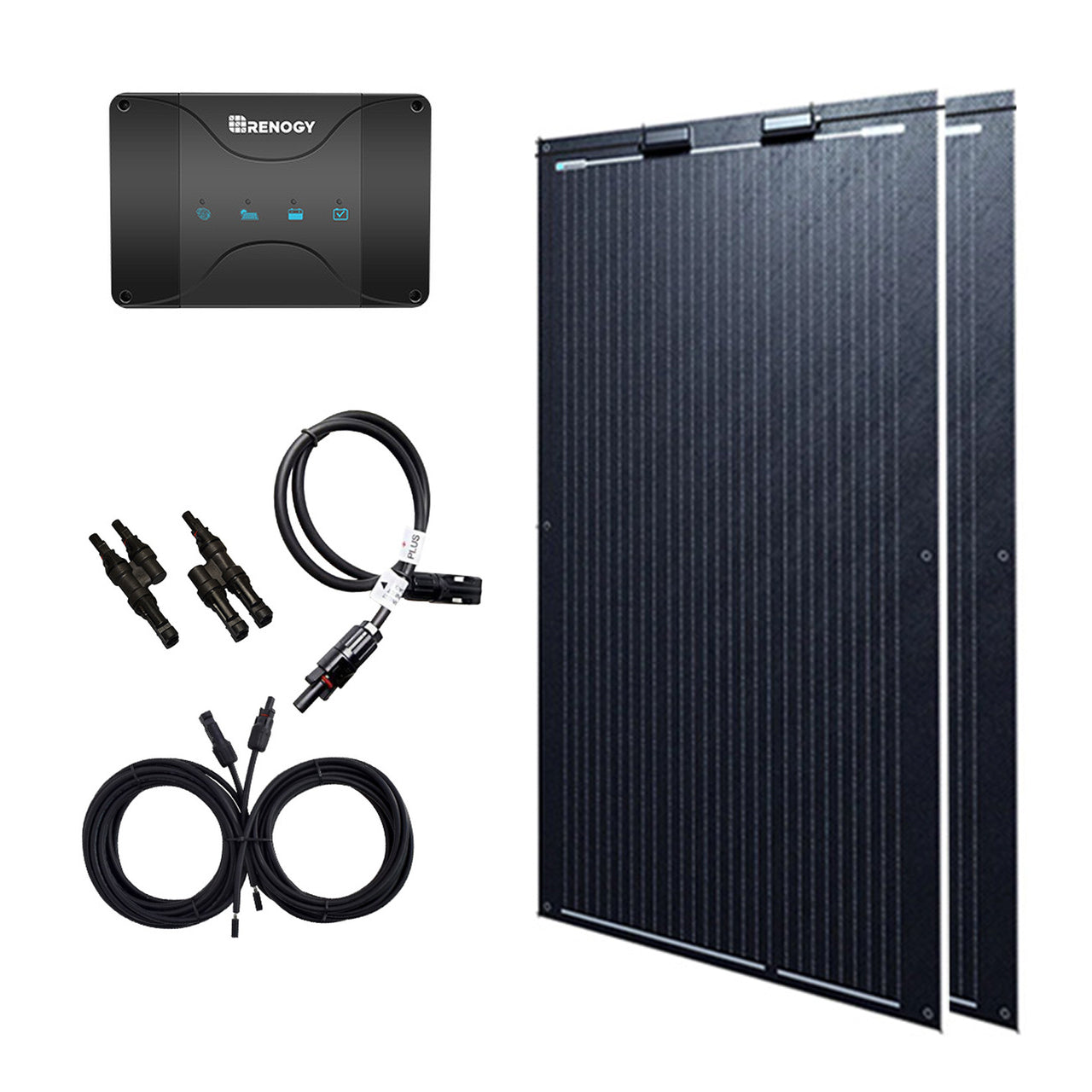

12V 50A Dual Battery Charging 200W Solar Flex Bundle
12V 50A Dual Battery Charging 200W Solar Flex Bundle is backordered and will ship as soon as it is back in stock.
12V 50A Dual Battery Charging 200W Solar Flex Bundle
Description
Giving you ultimate charging flexibility, the new dual battery charging solar bundle is the smart way to stay off the grid longer. This 12V 50A dual battery solution not only charges your house battery bank and trickle charges your starter battery bank while on the move, but thanks to the MPPT solar input, you can also charge while parked. If you need more power, you can expand up to 660W of solar input giving you plenty of options. Featuring reliable multi-stage charging and multi-chemistry functionality, the dual battery charging solar bundle has you covered whether you're using Flooded, Gel, AGM, or Lithium batteries. Now you can unlock monitoring and control features exclusively using the BT-2 Bluetooth Module and Renogy DC Home App (available in both the App Store and Google Play).
If you have any questions regarding this product, please submit a case.
Key Features
Solar Panel- Extremely Flexible, Up to 240°.
- Ultra Lightweight and Ultra Thin.
- Unmatched durability against hurricanes and hailstorms.
- Seamless integration with diverse roof shapes and types.
- Effortless mounting eliminates wear and tear.
- Designed to charge service batteries from two DC inputs—solar only, alternator only, or both.
- Built-in Maximum Power Point Tracking (MPPT) to maximize the solar power.
- 3-phase charging profile (Bulk, Boost, and Float) ensures your service battery will be accurately charged at the correct voltage levels to 100%.
- Built-in Voltage Sensitive Relay (VSR) for easy setup with smart alternators.
- Compatible with smart alternators (with variable output voltage) and traditional alternators.
- Trickle charges the starting battery via solar panels if the service battery is fully charged.
- Isolation of the starting battery and the service battery
- Temperature and voltage compensation features prolong battery life and improve system performance.
- Smart Protection Features: battery isolation, over-voltage protection, battery temperature protection, over-current protection, overheat protection, reverse current protection, solar panel and alternator reverse polarity protection.
- Compatible with multiple battery types: AGM, GEL, Flooded, and Lithium.
- Compact with a sturdy design, it was built tough for all conditions.
- Bluetooth Monitoring Ready! Exclusively available with the BT-2 Bluetooth Module accessory and Renogy DC Home App available on the IOS and Google Play Stores.

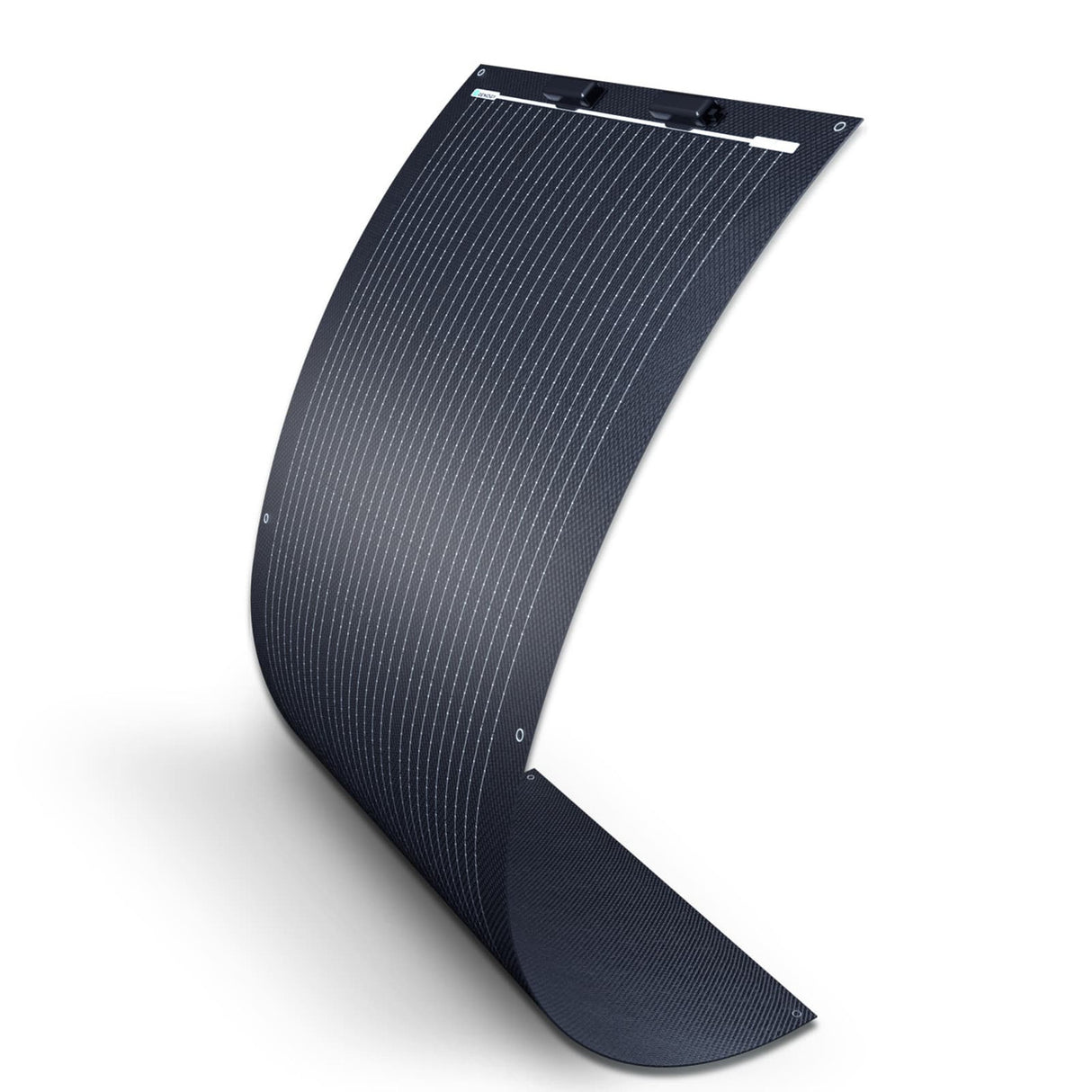

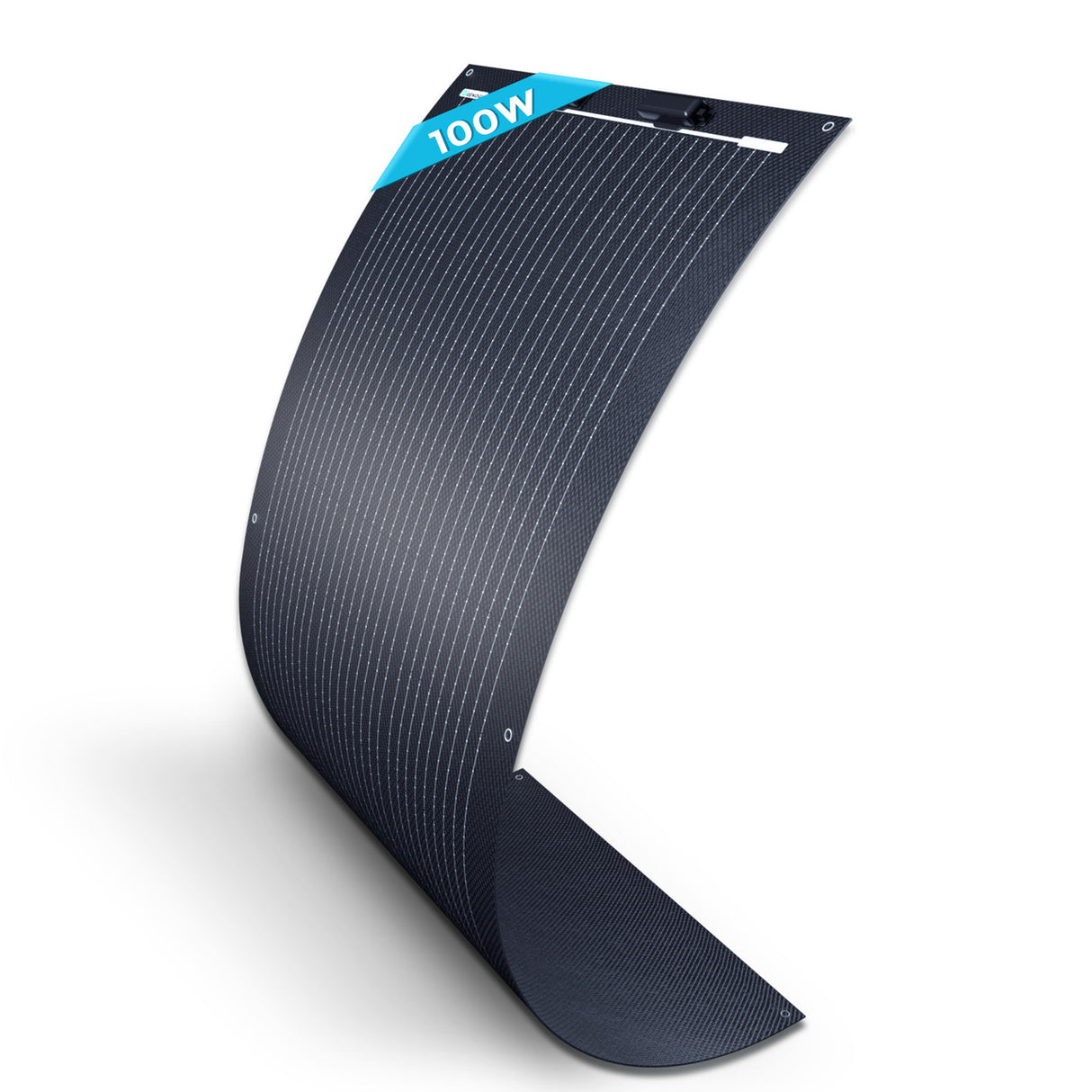

| Renogy Flexible 100 Watt Solar Panel | |
|---|---|
| Max Power at STC: 100 W | Open Circuit Voltage: 23.5V |
| Short Circuit Current: 5.51A | Optimum Operating Voltage: 23.5V |
| Optimum Operating Current: 5.20A | Operating Temperature: -40ºC to +85ºC |
| Dimensions: 1093.0 x 582.0 x 3 mm | Weight: 2.4 kg |

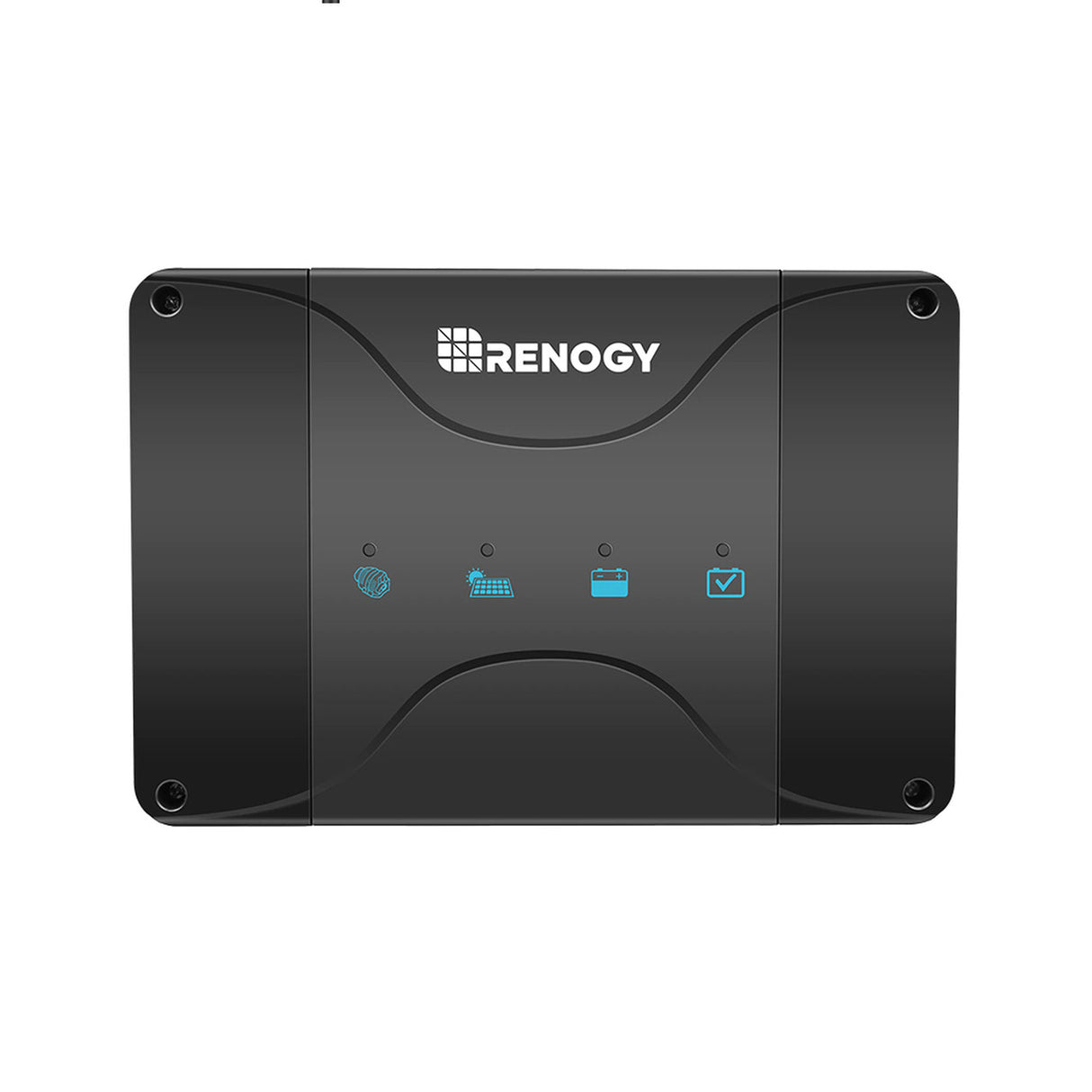

| DCC50S 12V 50A DC-DC On-Board Battery Charger with MPPT | |
|---|---|
| Nominal Voltage: 12V | Rated Charge Current(Single Input): 50A (Only Solar or Only Alternator) |
| Max. PV Input Voltage: 25 VDC | Rated Charge Current (Dual Input): 25A (Solar) + 25A (Alternator) = Max 50A |
| Max. PV Power: 660W (12V) | Temperature Compensation: -3mV/°C/2V, excludes LI |
| Operating Temperature: -31°F - 149°F/-35°C - 65°C | Weight: 3.1 lbs / 1.4 Kg |
| Self-Consumption: 60mA | Terminals: M8x1.25-10mm |
| Dimensions: 9.2 x 5.8 x 3.0 in / 234 x 146 x 77 mm | Certifications: CE; ROHS; FCC Part 15 Class B |
| Common Ground: Negative |
Warranty Information
| Panels |
25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate 3-year material and workmanship warranty |
| Accessories | 1-year material warranty |
 |
|||
 |
|||
| Please click the links below to download the manuals: | |||
| 100W Lightweight Monocrystalline Solar Panel | |||
| DCC50S 12V 50A Dual DC-DC On-Board Battery Charger with MPPT | |||
