Description
The Rover Elite series of MPPT charge controllers give you the most efficient charging for countless 12V or 24V off-grid solar applications. Compatible with an assortment of batteries, including Lithium, the Rover Elite MPPT utilizes powerfully smart tracking technology to maximize solar charging energy to your battery. Additionally, the Rover Elite MPPT is equipped with multiple battery, controller, and solar protections giving you peace of mind and an optimized system you can trust.
Please Note: The Rover Elite is not compatible with the Renogy BT-1, only compatible with BT-2 Bluetooth module.
If you have any questions regarding this product, please submit a case.
Key Features
- 12V /24V Automatic System Recognition (for non-lithium batteries).
- Backlit LCD displays system information and identifying error codes.
- Advanced MPPT Technology with up to 99% high tracking efficiency, 96% conversion efficiency, and Lithium-reawakening feature.
- 4 Deep Cycle Battery Pre-Sets: Gel, Flooded, Lithium-Iron Phosphate (12.8V), and Sealed/AGM.
- Multiple Electronic Protection Features, including over-charging, over-discharging, reverse polarity, over-load, and over-temperature.
Package Includes
|

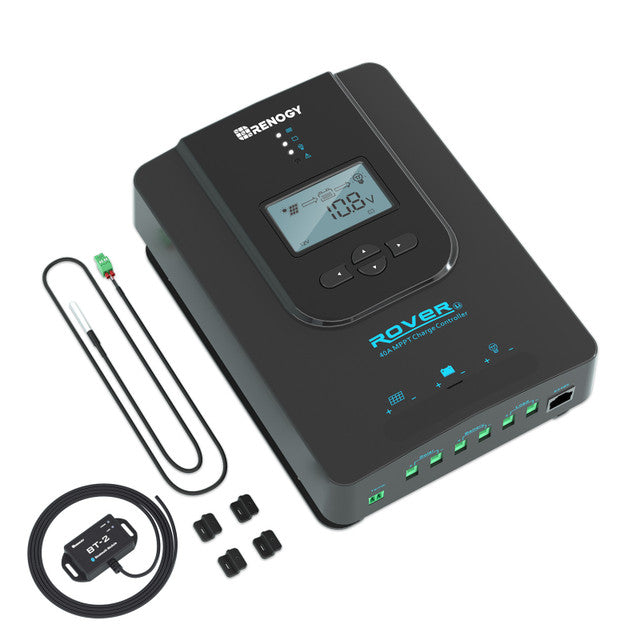

Rover Elite 40A MPPT Solar Charge Controller
1 x |
1 x |
|
Option: Renogy BT-2 Bluetooth module
1 x |
Option: Renogy Monitoring Screen for Rover Elite Series
1 x |
| Rover Elite 40A MPPT Solar Charge Controller | |
|---|---|
| Nominal Voltage: 12V/24V Auto Recognition (for non-lithium batteries) | Battery Rated Current : 40A |
| Max Battery Voltage : 32V | PV Input Voltage Range : 15V – 100V VOC |
| Max Power Input : 12V @ 520W 24V @ 1040W | Self Consumption: ≤0.6W @12V;≤0.8W @24V |
| Grounding Type : Negative | Controller Terminals : 20-6 AWG |
| Temperature Compensation: -3mV/℃/2V, excludes LI | Operating Temperature: -35°C~ 65°C/ -31°F ~ 113°F |
| Storage Temperature: -40°C~ 80°C/ -40°F ~ 176°F | Operating/Storage Humidity: < 90%, No Condensation |
| Dimensions: 199.5 x 130 x 76.7 mm/ 7.85 x 5.12 x 3.02 in | Weight: 1.36 kg/ 3 lbs |
| Enclosure: IP32 | Communication: RS485 |
| Certification : FCC Part 15 Class B; CE; RoHS; RCM | |
| OPTIONS: BT-2 BLUETOOTH MODULE | |
| Communication Protocol: RS485 | Port Type: RJ45 |
| Input Voltage: 5V or 12V | Protection Grade: IP54 |
| Standby Power Consumption: 0.04W | Operating Power Consumption: 0.05W |
| Communication Range: ≤82ft | Serial Baud Rate: Fixed Baud Rate 9600bps |
| Cable Length: 5.00 m (16.4 ft) | Dimensions: 2.65 X 1.38 X 0.55 in (67.3 X 35 X 14 mm) |
| OPTIONS: Monitoring Screen for Rover Elite Series | |
| Supply Voltage: 5VDC | Communication Port: RJ45 (RS485 Protocol) |
| Supply Current: 30mA | Display: Backlit LCD |
| Power Consumption: <1W | User Interface: 4 Front Panel Menu Buttons |
| Operating Temperature Range: -4°F~113°F / -20°C~45°C | Mounting System: Wall Mount |
| Voltage Accuracy: ±0.1V | Dimension: 2.76 x 4.33 x 1.25 inch / 70 x 110 x 31.8 mm |
| Current Accuracy: ±0.1A | Weight: 0.14 lbs / 62 g |
| Wire Length: 16.4ft / 5m | |
| Mounting Screw: M2.9x13mm |
Warranty Information
| Charge Controller | 2-year material warranty |
Certification
 |
 |
 |
 |
Please click the links below to download the manuals:
